Headline：10.1 inch

1 Introduction

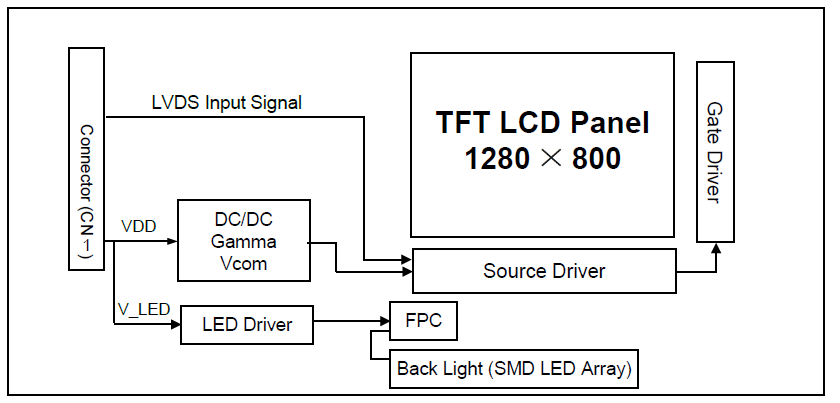

BP101WX1-206 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 10.07 inch diagonally measured active area with WXGA resolutions (1280 horizontal by 800 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in verticl stripe and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.

2.Features

1 Channel LVDS Interface with 1 pixel / clock

Thin and light weight

Display 16.7M colors (Hi FRC)

High luminance and contrast ratio, low reflection and wide viewing angle

DE (Data Enable) signal mode

3.3V for Logic Power and 3.7V for LED Back Light Power

ADS technology is applied for high display quality

RoHS compliant

3 Application

Commercial Digital Display

Display Terminals for Control System

Landscape and Portrait Display（7*24 & Indoor lifetime of one year ）

4.General Information

General Information
Parameter	Specification	Units
Active area	304.128(H) × 228.096(V)	mm
Number of pixels	1024(H) ×768(V)	pixels
Pixel pitch	0.297(H) ×0.297(V)	mm
Pixel arrangement	Pixels RGB Vertical stripe	--
Display colors	16.7M	colors
Display mode	Normally Black	--
Dimensional outline	326.5(H) × 253.5(V) × 9.7(Total)	mm
Weight	930	g
Power Consumption	8.72	Watt
Bezel width (L/R/U/D)	10/10/11.7/11.7	mm
Surface Treatment	Haze 25%, 3H	--
Back-light	E-LED Light bar Type	--
LED life	50000	--
Brightness	350	nit
Display Direction	landscape & Portrait	--

5.Drawing
