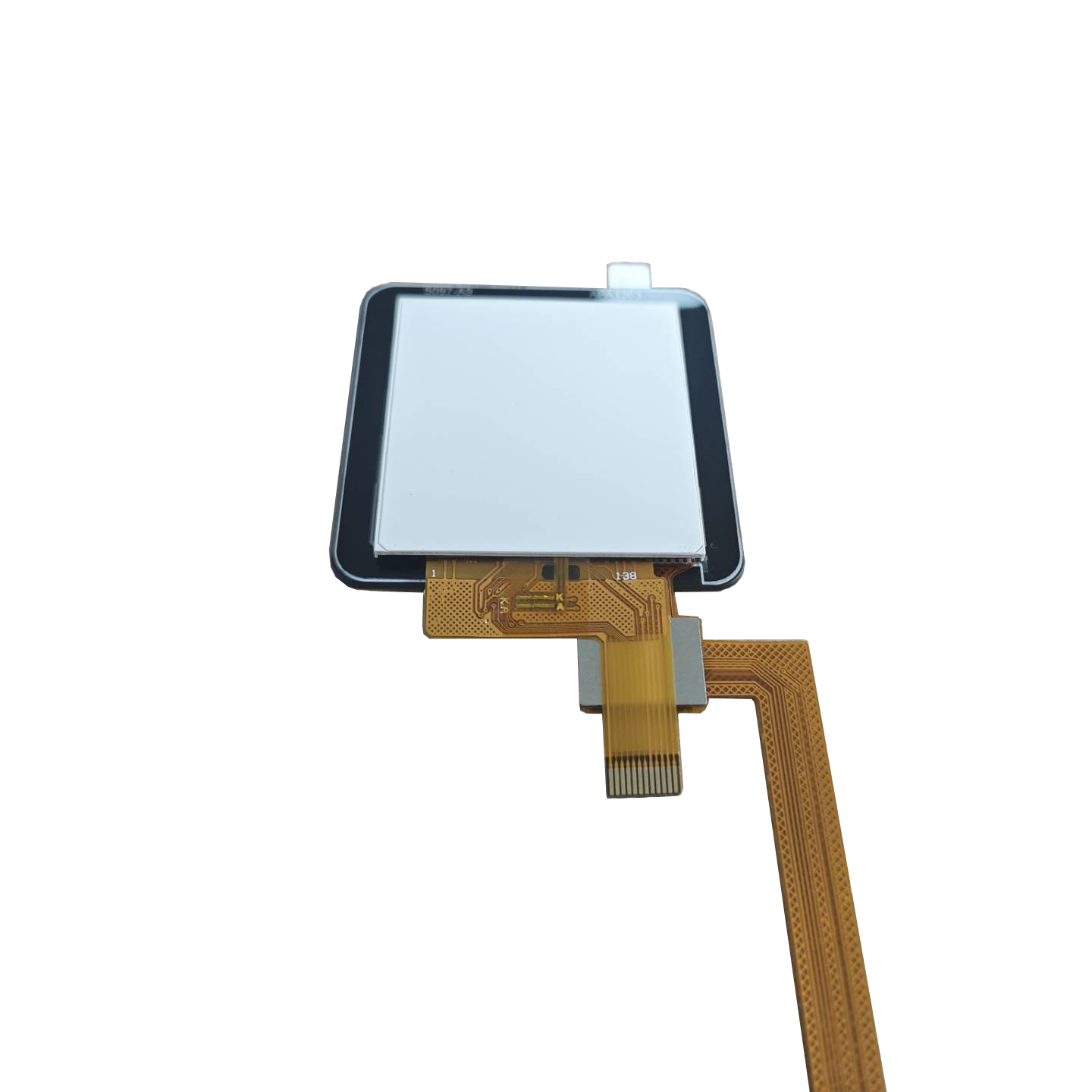

1.54 inch 240*240 pixel TFT with Capacitive Touch Panel ST7789V IC with 3-SPI Interface TFT LCD module

Headline:1.54 inch 240*240 pixel TFT with Capacitive Touch Panel , ST7789V IC with 3-SPI Interface TFT LCD module 1.Product Description TFT General Information Item Standard Value Units LCD type 1.54’’TFT -- Dot arrangement 240(RGB)×240 dots Color filter array RGB vertical stripe -- Display mode IPS / Transmission / Normally White -- Eyes Viewing Direction 80/80/80/80 -- Driver IC ST7789V -- Modul

**Headline:1.54 inch 240*240 pixel TFT with Capacitive Touch Panel , ST7789V IC with 3-SPI Interface TFT LCD module**

1.Product Description

TFT General Information
Item	Standard Value	Units
LCD type	1.54’’TFT	--
Dot arrangement	240(RGB)×240	dots
Color filter array	RGB vertical stripe	--
Display mode	IPS / Transmission / Normally White	--
Eyes Viewing Direction	80/80/80/80	--
Driver IC	ST7789V	--
Module size	40.2(W)×40.5(H)×3.44(T)(Exclude FPC)	mm
Active area	27.72(W)×27.72(H)	mm
Interface	3-SPI	--
Operating temperature	-20 ~ +70	°C
Storage temperature	-30 ~ +80	°C
Back Light	White LED*3	--

CTP General Information
Item	Standard Value	Units
CTP type	1.54’’TFT	--
Outline Dimension	40.2(W)×40.5(H)×1.35(T)	mm
Touch area	28.12*28.12	mm
Max Number of Fingers	1 point and gestures	--
Driver IC	FT6236	--
surface hardness	6H	--
Operating temperature	-20 ~ +70	°C
Storage temperature	-30 ~ +80	°C

2.Product Drawing
