4.3 Inch Transmissive TFT LCD Display for Consumer Electronics, 480x272 Resolution RGB Interface Free Viewing Angle RGB 1000 Nits High Brightness

The model is a Color TFT LCD supplied by This main Module has a 4.3 inch diagonally measured active display area with 480(RGB)X272 resolution. Each pixel is divided into Red, Green and Blue subpixels and dots which are arranged in vertical stripes.

Headline: 4.3 Inch Transmissive TFT LCD Display for Consumer Electronics, 480x272 Resolution RGB Interface Free Viewing Angle RGB 1000 Nits High Brightness

1.Product Description

LCD color is determined with 262,000 colors signal for each pixel.

The has been designed to apply the interface method that enables low power, high speed, and high contrast. The is intended to support applications where thin thickness, wide viewing angle and low power are critical factors and graphic displays are important.

Geneal Information
Item	Standard Values	Units
Display Mode	Normally Black	--
Size	4.3	inch
Display Resolution	480(RGB) x272	pixel
Module outline (W×H×T)	105.567.23.0	mm
Active area (WxH)	95.04*53.86	mm
Driver IC	NV3047	--
Pixel Pitch	0.198(H)×0.198(W)	mm
Input Signals	RGB	--
Luminance	1000	cd/m2
Viewing Direction	ALL	O' Clock
Operating Temperature	-20~+70	℃
Storage Temperature	-30~+80	℃

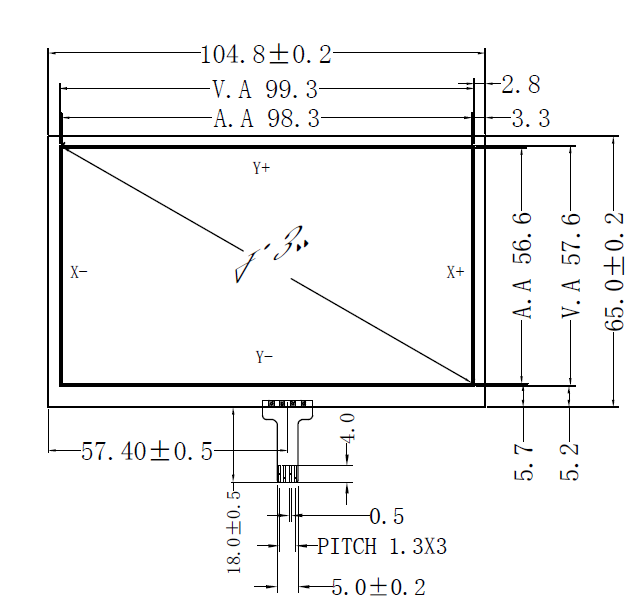

2. Product Drawing
