240x160 cog graphic lcd module free sample

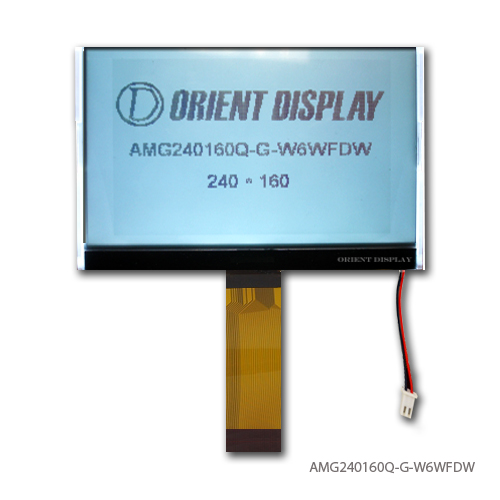

A 2.5″ monochrome,240×160 dot matrix, COG (Chip on Glass) Graphic LCD Module in FSTN Positive LCD Mode with Wide Temperature Range (Operating Temp: -20°C to 70°C, Storage Temp: -30°C to 80°C), and White LED Backlight. It has a six O’clock viewing direction and a transflective polarizer recommended for applications that will be used both indoor and outdoor. This product is assembled chip on glass with 1/160 Duty cycle and 1/12 Bias. This LCD uses controller IC UC1698 or equivalent. This is an ROHS compliant product manufactured with ISO standards and procedures .

A 3.9″ monochrome, 240×160 dot matrix, COG (Chip on Glass) Graphic LCD Module in FSTN Positive LCD Mode with Wide Temperature Range (Operating Temp: -20°C to 70°C, Storage Temp: -30°C to 80°C), and White LED Backlight. It has a six O’clock viewing direction and a transflective polarizer recommended for applications that will be used both indoor and outdoor. This product is assembled chip on glass with 1/160 Duty cycle and 1/12 Bias. This LCD uses controller IC UC1698 or equivalent. This is an ROHS compliant product manufactured with ISO standards and procedures.

* It can be customized for monochrome LCD, backlight, FPC and PCB Board with a little tooling charge, and customized shape is suitable for customer"s mechanical design.

Extensive rangeProviding complete solution from Mono to Color LCD module, Optical bonding between display to cover glass as well as cover glass to touch screen

Newhaven 160x100 graphic Chip-On-Glass (COG) Liquid Crystal Display shows dark pixels on a gray background. This reflective LCD Display is visible with high ambient light while offering a wide operating temperature range from -20 to 70 degrees Celsius. This NHD-C160100CZ-RN-FBW display has an optimal view of 6:00 and has no backlight. This display operates at 3V supply voltage and is RoHS compliant.

ERC128128FS-1 is 2.5 inch white background with 128x128 monochrome black pixels cog(chip on glass) lcd module,ST7541 controller,compact size,high contrast,wide operating temperature,wide view angle,white led backlight,fstn lcd,fpc connection,optional zif connector and led backlight connector.It supports 6800 8-bit,8080 8-bit parallel interface.

Thiswhiteondarkbackground 128x64 pixel COG (Chip-On-Glass) graphic LCDdisplay module has an integratedEnrichUC1701xcontroller. The graphic LCD is very low power, using less than 1mA to drive the display.

According to customers" various requests,tft lcd, lcd panel, lcd monitor, lcd screen, FSTN and STN lcd display, industrial lcd, we can match all accessories which inclusive of driver board,LED backlight & LVDS cables. Main Application
