As you can see pin 18 is used by the display for Instruction/Data Register selection. So, unfortunately you are not going to be able to use that pin for anything else. However there are other pins free so theoretically you could make something work. Just be careful about not pulling too much power from the Pi.

Also looking at the datasheet I suspect only pins 11, 19 and 21 are being used by the display. I"m fairly certain pin 18 is required. If you don"t need the functionality of a touchscreen, a display that connects to the DSI port might be more suitable and should leave pin 18 free.

To interface any random piece of hardware with a raspberry pi you need to know a few things 1) voltage limits, 2) pinout (you can kill any device by swapping GND and Vcc, 3) the interface (SPI, I2C, 1-wire, USB, 8-bit) and 4) the bytes you need to send to the device to control it.

The makers of reliable, well documented devices publish all of that information in a document called a datasheet. It tells you what you need to know to a) wire it to your RPi and b) drive it from software.

For something random bought from some unknown Chinese vendor on eBay you may not get that info. For something bought from Adafruit or CPC/Farnell/Element14 you are 100% guaranteed to get the datasheet, you may even get pictorial wiring diagrams and software code samples to drive the devices they"re selling.

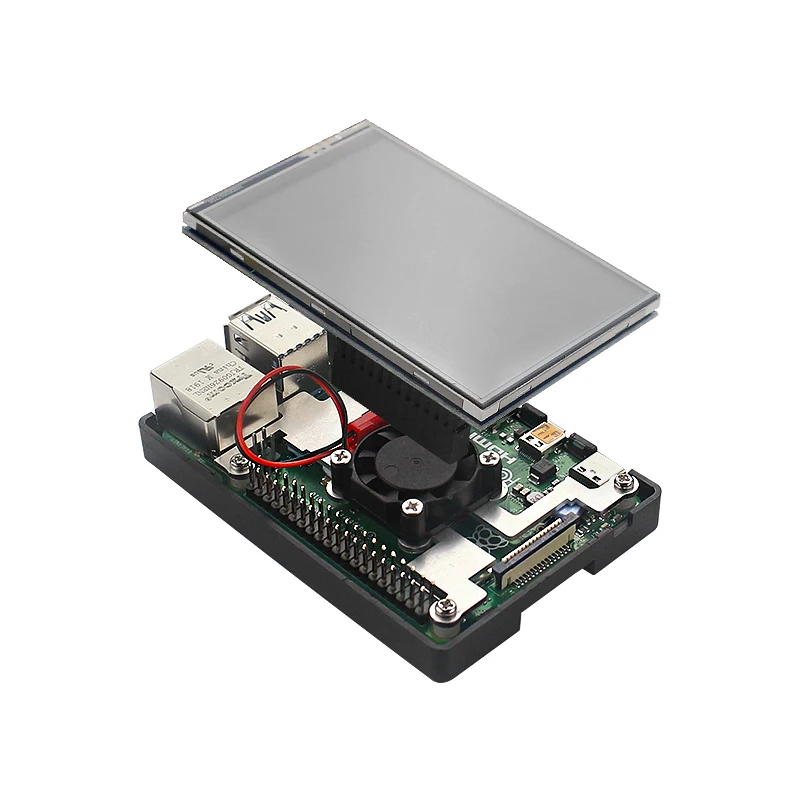

The RPi LCD can be driven in two ways: Method 1. install a driver to your Raspbian OS. Method 2. use the Ready-to-use image file of which the LCD driver was pre-installed.

2) Connect the TF card to the PC, open the Win32DiskImager software, select the system image downloaded in step 1 and click‘Write’ to write the system image. ( How to write an image to a micro SD card for your Pi? See RPi Image Installation Guides for more details)

3) Connect the TF card to the Raspberry Pi, start the Raspberry Pi. The LCD will display after booting up, and then log in to the Raspberry Pi terminal,(You may need to connect a keyboard and HDMI LCD to Pi for driver installing, or log in remotely with SSH)

1. Executing apt-get upgrade will cause the LCD to fail to work properly. In this case, you need to edit the config.txt file in the SD card and delete this sentence: dtoverlay=ads7846.

This LCD can be calibrated through the xinput-calibrator program. Note: The Raspberry Pi must be connected to the network, or else the program won"t be successfully installed.

Since the Raspberry Pi image and version are frequently updated, if you encounter a situation where the LCD cannot be used normally, please download the latest version of the image provided by us or from the official website of Raspberry Pi and install the latest driver provided by us.

When the Raspberry Pi starts normally, the PWR light is always on, and the ACT light is flashing. If it is found that both lights are always on, it may be that the TF card is not successfully programmed to the image or the TF card is in poor contact with the Raspberry Pi.

It is recommended to use a 5V 2.5A power adapter for the Raspberry Pi. If the Raspberry Pi is powered by the USB port of the PC, the Raspberry Pi may not be able to start normally due to an insufficient power supply.

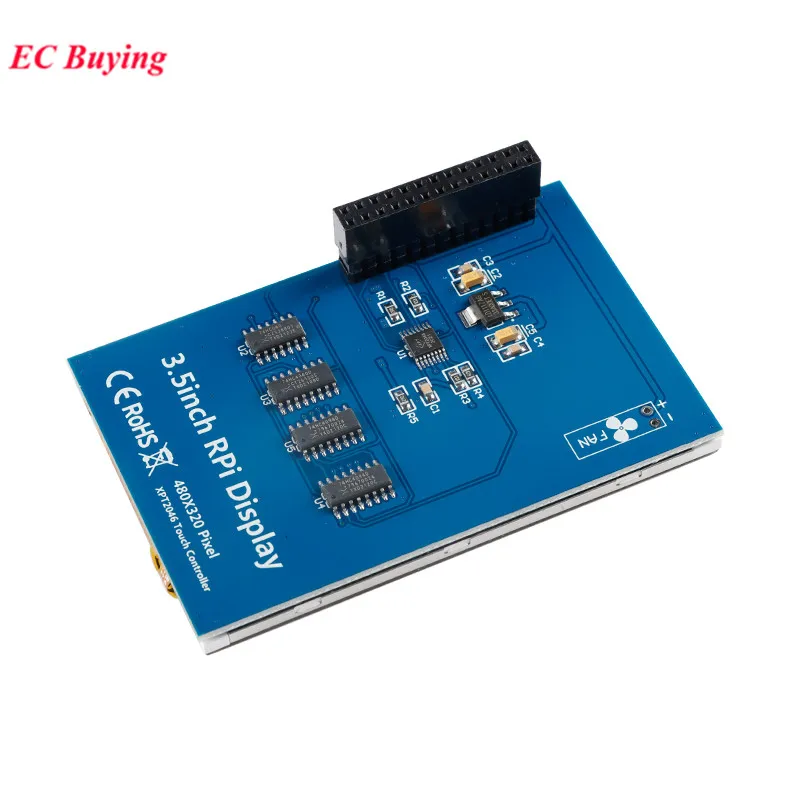

The RPi LCD can be driven in two ways: Method 1. install driver to your Raspbian OS. Method 2. use the Ready-to-use image file of which LCD driver was pre-installed.

2) Connect the TF card to the PC, open the Win32DiskImager software, select the system image downloaded in step 1 and click‘Write’ to write the system image. ( How to write an image to a micro SD card for your Pi? See RPi Image Installation Guides for more details)

3) Connect the TF card to the Raspberry Pi, start the Raspberry Pi. The LCD will display after booting up, and then log in to the Raspberry Pi terminal,(You may need to connect a keyboard and HDMI LCD to Pi for driver installing, or log in remotely with SSH)

1. Executing apt-get upgrade will cause the LCD to fail to work properly. In this case, you need to edit the config.txt file in the SD card and delete this sentence: dtoverlay=ads7846.

This LCD can be calibrated through the xinput-calibrator program. Note: The Raspberry Pi must be connected to the network, or else the program won"t be successfully installed.

Connecting an LCD to your Raspberry Pi will spice up almost any project, but what if your pins are tied up with connections to other modules? No problem, just connect your LCD with I2C, it only uses two pins (well, four if you count the ground and power).

In this tutorial, I’ll show you everything you need to set up an LCD using I2C, but if you want to learn more about I2C and the details of how it works, check out our article Basics of the I2C Communication Protocol.

There are a couple ways to use I2C to connect an LCD to the Raspberry Pi. The simplest is to get an LCD with an I2C backpack. But the hardcore DIY way is to use a standard HD44780 LCD and connect it to the Pi via a chip called the PCF8574.

The PCF8574 converts the I2C signal sent from the Pi into a parallel signal that can be used by the LCD. Most I2C LCDs use the PCF8574 anyway. I’ll explain how to connect it both ways in a minute.

I’ll also show you how to program the LCD using Python, and provide examples for how to print and position the text, clear the screen, scroll text, print data from a sensor, print the date and time, and print the IP address of your Pi.

Connecting an LCD with an I2C backpack is pretty self-explanatory. Connect the SDA pin on the Pi to the SDA pin on the LCD, and the SCL pin on the Pi to the SCL pin on the LCD. The ground and Vcc pins will also need to be connected. Most LCDs can operate with 3.3V, but they’re meant to be run on 5V, so connect it to the 5V pin of the Pi if possible.

If you have an LCD without I2C and have a PCF8574 chip lying around, you can use it to connect your LCD with a little extra wiring. The PCF8574 is an 8 bit I/O expander which converts a parallel signal into I2C and vice-versa. The Raspberry Pi sends data to the PCF8574 via I2C. The PCF8574 then converts the I2C signal into a 4 bit parallel signal, which is relayed to the LCD.

Before we get into the programming, we need to make sure the I2C module is enabled on the Pi and install a couple tools that will make it easier to use I2C.

Now we need to install a program called I2C-tools, which will tell us the I2C address of the LCD when it’s connected to the Pi. So at the command prompt, enter sudo apt-get install i2c-tools.

Next we need to install SMBUS, which gives the Python library we’re going to use access to the I2C bus on the Pi. At the command prompt, enter sudo apt-get install python-smbus.

Now reboot the Pi and log in again. With your LCD connected, enter i2cdetect -y 1 at the command prompt. This will show you a table of addresses for each I2C device connected to your Pi:

We’ll be using Python to program the LCD, so if this is your first time writing/running a Python program, you may want to check out How to Write and Run a Python Program on the Raspberry Pi before proceeding.

There are a couple things you may need to change in the code above, depending on your set up. On line 19 there is a function that defines the port for the I2C bus (I2CBUS = 0). Older Raspberry Pi’s used port 0, but newer models use port 1. So depending on which RPi model you have, you might need to change this from 0 to 1.

The function mylcd.lcd_display_string() prints text to the screen and also lets you chose where to position it. The function is used as mylcd.lcd_display_string("TEXT TO PRINT", ROW, COLUMN). For example, the following code prints “Hello World!” to row 2, column 3:

On a 16×2 LCD, the rows are numbered 1 – 2, while the columns are numbered 0 – 15. So to print “Hello World!” at the first column of the top row, you would use mylcd.lcd_display_string("Hello World!", 1, 0).

You can create any pattern you want and print it to the display as a custom character. Each character is an array of 5 x 8 pixels. Up to 8 custom characters can be defined and stored in the LCD’s memory. This custom character generator will help you create the bit array needed to define the characters in the LCD memory.

The code below will display data from a DHT11 temperature and humidity sensor. Follow this tutorial for instructions on how to set up the DHT11 on the Raspberry Pi. The DHT11 signal pin is connected to BCM pin 4 (physical pin 7 of the RPi).

By inserting the variable from your sensor into the mylcd.lcd_display_string() function (line 22 in the code above) you can print the sensor data just like any other text string.

These programs are just basic examples of ways you can control text on your LCD. Try changing things around and combining the code to get some interesting effects. For example, you can make some fun animations by scrolling with custom characters. Don’t have enough screen space to output all of your sensor data? Just print and clear each reading for a couple seconds in a loop.

This review is for UCTRONICS Male to Female GPIO Ribbon Cable 40pin. There isn"t a lot to say about this cable, and that is actually a good thing. Everything was done right on the cable that I received. It has the correct pin connections on both connectors to extend a Raspberry Pi GPIO hat outside the case. The strain relief on the cables is decent and the plastic connectors are good. Really, there is no reason to have a color coded cable, but it does let you verify that the cable is wired correctly. It is kind of nice to look at instead of another dull grey ribbon cable. I"m using this cable with a GPIO breakout board HAT that has LEDs, so it was very easy to tell that the cable was wired correctly. The length is enough to get outside the case without a lot of extra to flop around or introduce noise on the signals. I won"t put the top on my case, but this cable will fit nicely through a small slot that is open on at least one side. The connectors obviously won"t fit through a slot the size of the ribbon cable unless it is at a seam between the top and bottom.

Check this out if you are using Raspberry Pi, it is the cutest little display that you can stack on your Raspberry Pi Single Board Computer. It features a 2.8" display with 320 x 240 16-bit color pixels and a resistive touch overlay. The plate uses the high-speed SPI interface on the GPIO pins. You can use the mini display as a console, X window port, displaying images or video, etc. Best of all it plugs right in on top!

Uses the hardware SPI pins (SCK, MOSI, MISO, CE0, CE1) as well as GPIO #25 and #24. All other GPIO are unused. Since we had a tiny bit of space, there are 4 spots for optional slim tactile switches wired to four GPIOs, that you can use if you want to make a basic user interface. For example, you can use one as a power on/off button.

Adafruit has created a custom kernel package based of off Notro"s awesome framebuffer work, so you can install it over your existing Raspbian (or derivative) images in just a few commands. This tutorial shows you how to install the software, as well as calibrate the touchscreen, show videos, display images such as from your PiCam, and more!

Alternatively, we have tried installing the Graphics driver from LCD wiki page and is provided for Raspberry Pi OS/Raspbian. It also supports Ubuntu and Kali Linux too. Do follow the steps here: www.lcdwiki.com/2.8inch_RPi_Display

Note: Please use the recommended system for the touch screen. If another system is used, it may not have the touch function or may not work. You need to configure it yourself. Because there are many systems that the Raspberry Pi can use, we can’t make every system compatible with the touch screen.

In this tutorial, you’ll learn about the Raspberry Pi input and output pins, and how to control them with python3 using Gpiozero and Rpi.GPIO libraries.

If you have used the same pin in several scripts at the same time, you will see a warning when the code is running. Use the following command to disable this alert:

With the 2018 Xmas beta version of recalbox, I made a handheld recalbox game console using 2.2“ TFT LCD and a Raspberry Pi 0 W and GPIO buttons. You can find my youtube video here [https://www.youtube.com/watch?v=q_Xg_Vp2br4](link url)

Using 0.2 or 0.3mm Laminated (insulated) wires, solder up all the connections from the TFT LCD to the Raspberry Pi following the circuit diagram and the pin layout. The LED pin of LCD connects via a 50K VR to the 3V for brightness adjustment.

Solder up the 5V battery charger circuit board, the sliding switch and the battery to the 5V and ground pins of the Raspberry Pi according to the circuit diagram.

Until this is fixed in a later release, we need to change the following lines to fix this issue so the custom GPIO button pin mapping can take effect.

If all is good, you will be asked to press the button for each of the joystick keys laid out on the screen. First press the D-pad keys, up, down, left, right, etc. When you come to joystick-1, joystick-2, press Down button on the recalbox to skip these buttons as they are not provided on the GPIO controllers. When you come to L1/page up, press L1 button, L2/pagedown, press R1 button. For L2, R2, L3, R3, there are not provided by the GPIO controllers, skip these buttongs. Lastly, press Hot Key (HK) for the hotkey button.

After the recal box has boot up., the TFT screen should dipslay the splash screen and the welcome music will be played on the speakers drivien by the GPIO pins. if you do not get that after 1 minute or more, then somethings wrong. Power down the box and check the connections again.

The PiTFT+ features a 3.5" display with 480x320 16-bit color pixels and a resistive touch overlay and is engineered specifically to work with the Raspberry Pi 3, 2 and the Model A+/B+.

The display uses the hardware SPI pins as well as GPIO #25 and #24. GPIO #18 can be used to PWM dim the backlight. A 2x13 "classic" GPIO header on the bottom, with additional GPIO pins broken out into solder pads, allows you to use more of the GPIO.

The PiTFT+ can be used as a display for running the X interface, or the console. You can also have an HDMI display separately connected to complement the setup, keeping in mind that there can only be one X session running (so you"ll need to choose where X should be output, on the HDMI or the PiTFT+).
