high quality 2.4 inch tft lcd screen factory

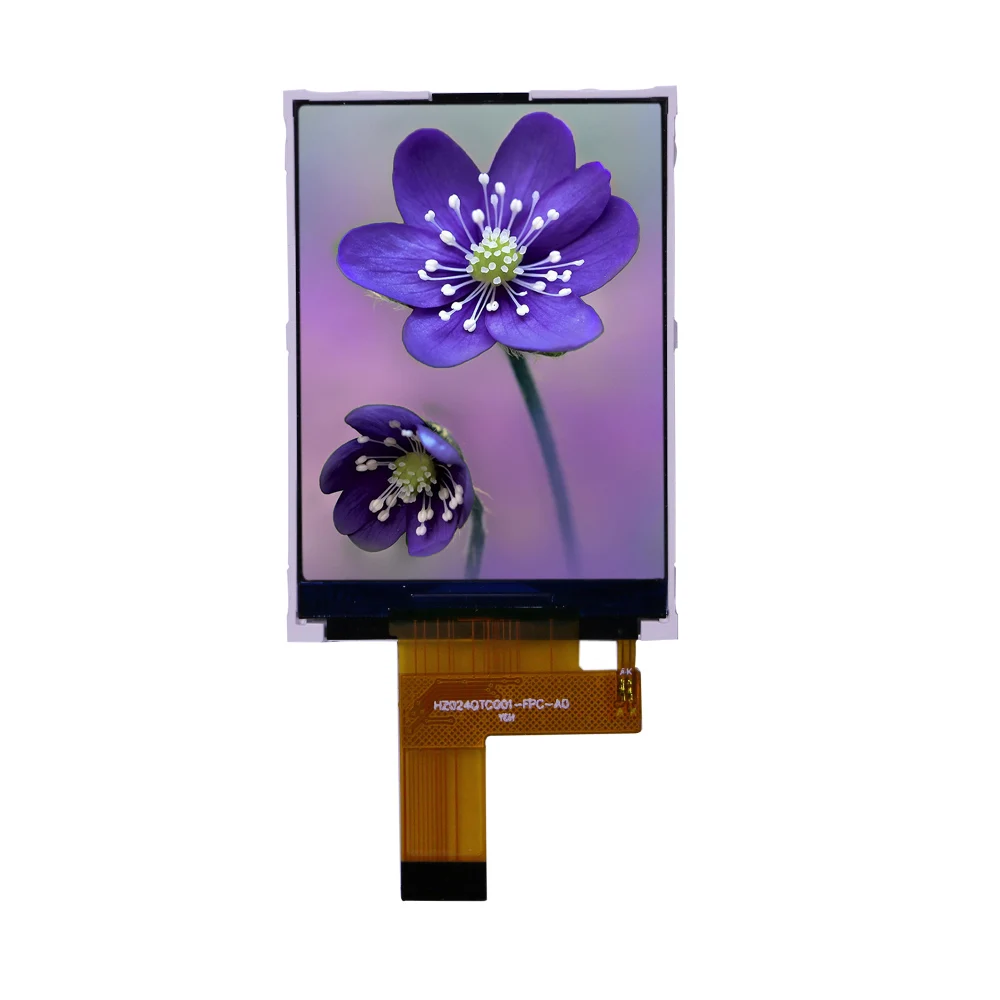

This 240x320 resolution LCD TFT is a Premium display with 8-bit or 16-bit parallel interface, offering high visibility up to 70° from any direction due to the multi-domain vertical alignment (MVA) technology in this LCD display. This Liquid Crystal Display has a built-in ST7789Vi controller, FFC ZIF I/O connection, is RoHS compliant and does not come with a touchscreen.

Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.

This 240x320 resolution LCD TFT is a standard display with 8-bit/16-bit Parallel interface, offering 262K colors and a 6:00 optimal view. This Liquid Crystal Display has a built-in ST7789Vi controller, FFC ZIF I/O connection, is RoHS compliant and does not come with a touchscreen.

Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.

A wide variety of 2.4 inch tft lcd displays options are available to you, such as original manufacturer, odm.You can also choose from datasheet, 2.4 inch tft lcd displays,as well as from tft, ips, and standard 2.4 inch tft lcd displays,

If using a boost driver like the CAT4139, you will need to change the current set resistor to lower the current to 15 mA. The CAT4139 will generate the higher voltage needed automatically.

DS024BOE39N-002 is a 2.4inch normally black, it applies to 2.4" color TFT-LCD panel. The 2.4inch color TFT-LCD panel is designed for translator, smart home, GPS, camcorder, digital camera application, industrial equipment device and other electronic products which require high quality flat panel displays, excellent visual effect. This module follows RoHS.

DISEN is a professional TFT(Thin Film Transistor) module manufacturer. There are different models of our TFT active matrix display with various features. Whether you need TFT display with control board, high brightness, wide viewing angle, monochrome, bar type, we have some options for you to choose from. We also offer customization service of backlight and FPC. The available diagonal sizes of our standard TFT display modules are 0.96", 1.77" 2.4", 2.8", 3.5", 3.9", 3.97", 4.3", 5", 5.6", 5.7", 6.2", 7", 8", 8.9", 9", 10.1", 10.4", 11.6”,12.1”, 12.3”, 13.3”, 14”, 15” and 15.6”.

Yes, for the highly customize products, we will have tooling charge per set, but the tooling charge can be refund to our customer if their placing orders up to 30K or 50K.

ER-TFT024-3 is 240x320 dots 2.4" color tft lcd module display with ILI9341 controller and optional 4-wire resistive touch panel and capacitive touch panel,superior display quality,super wide viewing angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO ARM and Raspberry PI.It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.It supports 8080 8-bit,9-bit,16-bit,18-bit parallel,3-wire,4-wire serial spi interface. FPC with zif connector is easily to assemble or remove.Lanscape mode is also available.

Of course, we wouldn"t just leave you with a datasheet and a "good luck!".Here is the link for 2.4"TFT Touch Shield with Libraries, EXxamples.Schematic Diagram for Arduino Due,Mega 2560 and Uno . For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and development kit at the bottom of this page.

You may wish to have NEWHAVEN NHD-2.4-240320,our part number ER-TFT024-4 should meet this requirment that is the completely the same withNEWHAVEN NHD-2.4-240320.

ER-TFT024-4 is still not our general product ,we don"t have enough stock .You have to email ([email protected]) our sales to buy samples or orders. Besides the minimum order quantity is no less than 500pcs per order.The production lead time is 5-6 weeks.

Engineers are always looking for lower cost, faster, more convenient interfaces to transmit signals and to accept data and commands. The numbers of available interfaces available in the market can be dazzling. Orient Display can also convert any interfaces to the customer’s requirements among the above interfaces or to higher level interfaces.

High Level Interfaces: Orient Display has technologies to make more advanced interfaces which are more convenient to non-display engineers, such as RS232, RS485, USB, VGA, HDMI etc. They are widely accepted in the market. More information can be found on our other product pages. TFT modules, Arduino TFT display, Raspberry Pi TFT display, Control Board.

Orient Display sunlight readable TFT displays can be categorized into high brightness TFT displays,high contrast IPS displays, transflective TFT displays, Blanview TFT displays etc.

The brightness of our standard high brightness TFT displays can be from 700 to 1000 nits which make them be visible under all environments including direct sunlight. With proper adding 3M brightness enhancement film (BEF) and double brightness enhancement film (DBEF) and adjustment of the LED chips, Orient Display high brightness TFT products can achieve 1,500 to 2,000 nits or even higher luminance which makes great contrast under direct sunlight. Orient Display has a special thermal management design to reduce the heat release and largely extend LED lifetime and reduce energy consumption.

Our high contrast and wide viewing angle IPS displays can achieve contrast ratio higher than 1000:1 which can make readability under strong sunlight with lower backlight luminance. High brightness IPS displays have been widely accepted by our customers with its superb display quality and it has become one of the best sellers in all our display category.

Transflective display is an old monochrome display technology but it has been utilized in our color TFT line for sunlight readable application. Orient Display has 2.4” and 3.5” to choose from.

Blanview TFT displays are the new technology developed by Ortustech in Japan. It can provide around 40% of energy consumption for TFT panels which can use smaller rechargeable or disposable batteries and generate less heat. The price is also lower than traditional transflective TFT displays. Orient Display is partnering with the technology inventor to provide 4.3” and 5.0” .

Touch panels have been a much better human machine interface which become widely popular. Orient Display has been investing heavy for capacitive touch screen sensor manufacturing capacity. Now, Orient Display factory is No.1 in the world for automotive capacitive touch screen which took around 18% market share in the world automotive market.

Considering the different shapes of the touch surface requirements, Orient Display can produce different shapes of 2D touch panel (rectangle, round, octagon etc.), or 2.5D touch screen (round edge and flat surface) or 3D (totally curved surface) touch panel.

Considering different strength requirements, Orient Display can provide low cost chemical tampered soda-lime glass, Asahi (AGC) Dragontrail glass and Corning high end Gorilla glass. With different thickness requirement, Orient Display can provide the thinnest 0.5mm OGS touch panel, to thickness more than 10mm tempered glass to prevent vandalizing, or different kinds of plastic touch panel to provide glass piece free (fear) or flexible substrates need.

Of course, Orient Display can also offer traditional RTP (Resistive Touch Panel) of 4-wire, 5-wire, 8-wire through our partners, which Orient Display can do integration to resistive touch screen displays.

Kingtech is one of the leading TFT LCD display OEM/ODM manufacturers in China since 2003. Customization is allowed for projects such as industrial devices, medical, POS, logistics devices, smart home applications and etc.

To provide a one-stop LCD display solution. During the last 17 years, based on LCD manufacturing as our center, we gradually expand to the TFT capacitive touchscreen, driving board, software hardware design, and complete industrial computer solution.

As a professional LCD screen supplier/ LCD display supplier/ LCD panel company/ LCD module manufacturer, Kingtech LCD aims to provide a one-stop service and solve your problems. With a strong LCD Display module R & D team and strict quality management of IS09001, IS01400ATF16949 certificates.
