ssd1963 lcd panel for sale

ER-TFTM070-4V2.1 is the updated version of ER-TFTM070-4,that is 800x480 dots 7" color tft lcd module display with ssd1963 controller board,superior display quality,super wide viewing angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, and ARM .It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.

It supports 6800, 8080 8-bit /9-bit/16-bit/18-bit/24-bit parallel interface.Built-in MicroSD card slot.It"s optional for resistive touch panel and controller XPT2046,capacitive touch panel and controller FT5206, font chip, flash chip and microsd card. We offer two types connection,one is pinheader and the another is ZIF connector with flat cable mounting on board by default and suggested.

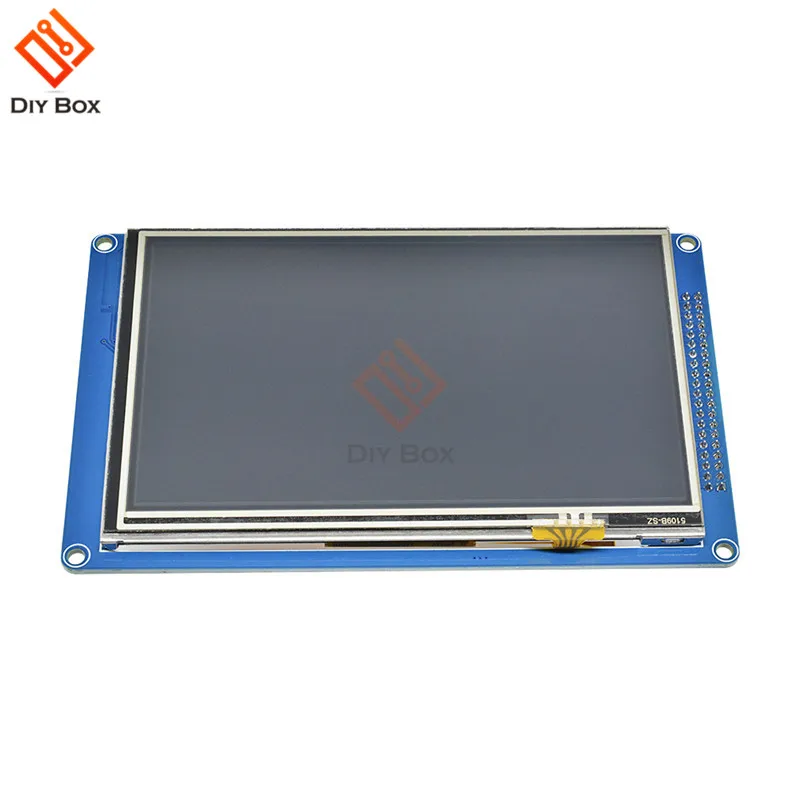

ER-TFTM050-5 is 800x480 dots 5" color tft lcd module display with SSD1963 controller board,superior display quality,super wide viewing angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, and ARM .It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.

It supports 6800, 8080 8-bit /9-bit/16-bit/18-bit/24-bit parallel interface. Built-in MicroSD card slot. It"s optional for 4-wire resistive touch panel with controller,capacitive touch panel with controller,font chip, flash chip and microsd card. We offer two types connection,one is pin header and the another is ZIF connector with flat cable.Mounting on board by default.

Descriptions:This 7.0" TFT LCD Module can be can be easy controlled by MCU such as 51,AVR,STM32,PIC,MSP430,DSP,ARM, and ARM .It can be used in any embedded systems which require display high quality colorful image. The Module used

SSD1963 LCD controller with 7 inch LCD module with touchscreen. This LCD has a superior display quality and super wide viewing angle, please see the sample pictures, they are taken directly from the LCD display.Features:7.0" TFT LCD Module, Resolution 800x480, SSD1963 Controller

LCD-specificed intialization code is provided, so that you can save time to optimize power control register and gamma curves for best display performance. We have test the provided code, it gives the best display performanace

Warning: All data port voltage can not exceed 3.6V.Package Included:1PCS*New 7" inch TFT LCD module 800x480 SSD1963 Touch PWM, For Arduino AVR STM32 ARM

Sale 7" 7.0" Inch TFT LCD Show 800x480 SSD1963 Contact Panel Display screen PWM LED Backlight Controller Module For 51/AVR/STM32 Check more at https://www.revbob.gizzmos.net/products/7-7-0-inch-tft-lcd-display-800x480-ssd1963-touch-panel-screen-pwm-led-backlight-controller-module-for-51-avr-stm32/

The WF43QTIBEDBND is a 4.3 inch TFT LCD Display which is Winstar WF43H extended model with SSD1963 controller board plus a 36 pin-out connector on board. The model is available in 8080 family MPU 8 bit or 16 bit interface option and pre-defined pin no. 33 ~ 36 as backlight supply; so there is no need to design extra backlight circuit. This 4.3" TFT LCD panel is feature with Glare coating surface panel having benefited of less-reflective.

Winstar Q series is support with Solomon SSD1963 Which has the traditional inputs and drive TFT by VESA signal. Therefore, there is no need of T-COM circuit on board. Besides, we have integrated all functions including TFT connection, backlight driver, and touch panel into only one connection.

SPECIFICATION 4.3" TFT LCD Module, Resolution 480X272, SSD1963 Controller Resist film to protect the LCD screen LCD Type: TFT Transmissive Normal White super wide viewing angle LCD Panel: HannStar HSD050IDW1 Interface: 8/16bit parallel bus...

As I upload the "Calibration" example onto the board, the LCD begins to display a number of fixed colored dots (like the image attached). It also flashes once a few seconds.

This 7.0" TFT LCD Module can be easy controlled by MCU such as 8051, PIC, AVR, ARDUINO, and ARM .It can be used in any embedded systems which require display high quality colorful image. The Module used SSD1963 LCD controller with 5 inch LCD module with touchpad. This LCD has a superior display quality and super wide viewing angle. The LCD has a SD slot, SPI flash footprint.

LCD-specificed intialization code is provided, so that you can save time to optimize power control register and gamma curves for best display performance. We have test the provided code, it gives the best display performanace
