7 led backlight tft lcd monitor brands

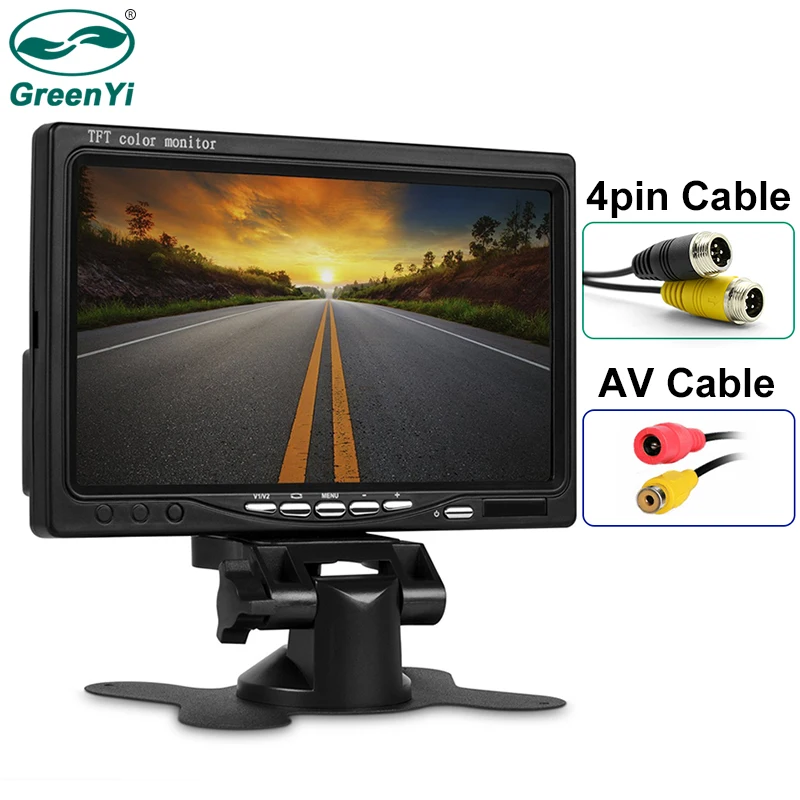

Specification:The Backlight Color TFT LCD monitor with low power consumption and have 2 ways to install, standing or mounting, it is convenient to carry.Parking rearview priority:The monitor will start up automatically, and synchronously display the video from rearview camera when you"re backing your car;

Low power consumption.Display Component:Color TFT-LCDNumber of Dots:800W * RGB * 480HContrast Ratio:400:1Response Time:B to W 30ms, W to B 10msVideo Frequency:PAL/NTSCPower:DC12V/24VConsumption:6WVideo:Two way video input( 1Female and 1Male)Housing:ABSColor:BlackExternal Dimensions:174 x 113 x 19mm (LxWxD)Product weight:379gPackage dimensions:212x155x93mmPackage Weight:415gPackage Included:1 x 7" Car Monitor

A wide variety of 7 inch tft led backlight lcd options are available to you, You can also choose from original manufacturer, odm 7 inch tft led backlight lcd,As well as from tft, ips, and tn.

Monsview Industrial Co.,Ltd was established in 2002, we are a worldwide leading manufacturer specialized in designing&producing LCD LED monitor, touchscreen monitor, open frame monitor,industrial monitor, industrial panel pc, digital signage, cctv monitor etc.Our monitor size ranges from 5 inch to 45 inch and are widely used in the fields of security monitoring, traffic control center, broadcasting system, city square, shopping mall, bank,school and hospital,etc. Our monitors can be applied in devices like ATM, Self-service kiosk, Transportation, Automatic Vending Machine, Gaming Machine, POS, Medical Treatment, CNC Machine etc.

Monsview has been ranked in the Top 10 brand LCD monitor supplier, Our company has independent import and export rights. Our products and solutions are popular both in domestic and global markets in over 150 countries, mainly in America, Europe,Oceania,Asia, and Middle East and gained strong reputation in this industry. Our Strong & professional R&D department can provide our customers with various solutions and customized service. Monsview will adhere to its core value proposition of "Responsibility Makes Perfect" and will spare no effort to improve its competitiveness by implementing the concept of scientific development.

**********1) 7" LED Backlight Color TFT LCD monitor. Works perfectly with car rearview cameras, supports Car DVD,serveillance camera, STB, satellite receiver and other video equipment.*****2) Screen rotatable. Screen ratio 16:9/4:3 adjustable. Brightness, contrast, color adjustable.*****3) With 2 AV input. AV1 connects to car DVD, VCR and other video equipment. AV2 to car backup camera.*****4) Full color LED backlight display. High-resolution picture. No Audio input or output.Package Included: 1 x 7" Car Monitor, 1 x Holder, 1x Frame, 1 x Video & Power Cable, 1 x Remote Controller, 1 x User Manual.*****5) Note: You are kindly suggested to ask a professional person or go to 4S car store for installing after buying if you do not know how to install.

... screen. End-cap shelf displays in retail settings or as personal gaming screens as part of a larger interactive gaming table benefit from the features and design of the 0700L. The 7" display utilizes ...

... mount monitor with a 7 inch 800 x 480 1000 nits high brightness industrial LED LCD with IP65 rated rugged metal front bezel, -20°C to 60°C wide working temperature, VGA + DVI, and 12VDC power input.

... LCD monitor with a 7-inch display monitor designed for military display application, aluminum enclosure with anti-corrosion chromate coating, D38999 connector and ANti-EMI AR glass to ...

... . This compact display is less than 8” wide and weighs only 1 kg, and the same model is available in screen sizes up to 21.5". This touchscreen monitor can be connected to any computer including a rugged ...

STONKAM® 7 inch HD Digital Wireless Monitor is easy to install. It supports quad view and auto pairing; good for truck, trailer, RV, etc. It can work with HD wireless cameras to form excellent Wireless ...

... ® Waterproof 7 inch HD Digital Wireless Vehicle Quad-view Monitor is easy to install. It supports quad view and auto pairing; good for truck, trailer, RV, etc. It can work with HD wireless cameras to ...

STONKAM 7 inch HD vehicle monitor supports 4CH HD cameras input which allows the driver to see directly the environment around the vehicle while driving. This can reduce the possibilities of scratch and ...

... made of glass, with excellent touch sensitive. LCD7 with 7" TFT(1024 x 600, max support resolution 1920 x1080), furthermore support headphone Drives, 46mW.

M-series industrial true flat touch monitors have two segments: small size from 7”, 8”, 10.1”, to 10.4”, and large size define from 15”, 17”, to 18.5”. All of M-series industrial monitors ...

The robust & digital monitor of the ArkVisionUnit family is in the screen diagonal of 7" our entry model into the digital display world. It is perfectly matched to our cameras of the ...

The 7” MD3071A is the premium monitor in Motec’s product line and can be used in all industry sectors. Developed and manufactured in Germany, it provides an extensive amount of intelligent functions for ...

An LED-backlit LCD is a liquid-crystal display that uses LEDs for backlighting instead of traditional cold cathode fluorescent (CCFL) backlighting.TFT LCD (thin-film-transistor liquid-crystal display) technologies as CCFL-backlit LCDs, but offer a variety of advantages over them.

While not an LED display, a television using such a combination of an LED backlight with an LCD panel is advertised as an LED TV by some manufacturers and suppliers.

The local dimming method of backlighting allows to dynamically control the level of light intensity of specific areas of darkness on the screen, resulting in much higher dynamic-contrast ratios, though at the cost of less detail in small, bright objects on a dark background, such as star fields or shadow details.

A 2016 study by the University of California (Berkeley) suggests that the subjectively perceived visual enhancement with common contrast source material levels off at about 60 LCD local dimming zones.

LED-backlit LCDs are not self-illuminating (unlike pure-LED systems). There are several methods of backlighting an LCD panel using LEDs, including the use of either white or RGB (Red, Green, and Blue) LED arrays behind the panel and edge-LED lighting (which uses white LEDs around the inside frame of the TV and a light-diffusion panel to spread the light evenly behind the LCD panel). Variations in LED backlighting offer different benefits. The first commercial full-array LED-backlit LCD TV was the Sony Qualia 005 (introduced in 2004), which used RGB LED arrays to produce a color gamut about twice that of a conventional CCFL LCD television. This was possible because red, green and blue LEDs have sharp spectral peaks which (combined with the LCD panel filters) result in significantly less bleed-through to adjacent color channels. Unwanted bleed-through channels do not "whiten" the desired color as much, resulting in a larger gamut. RGB LED technology continues to be used on Sony BRAVIA LCD models. LED backlighting using white LEDs produces a broader spectrum source feeding the individual LCD panel filters (similar to CCFL sources), resulting in a more limited display gamut than RGB LEDs at lower cost.

The evolution of energy standards and the increasing public expectations regarding power consumption made it necessary for backlight systems to manage their power. As for other consumer electronics products (e.g., fridges or light bulbs), energy consumption categories are enforced for television sets.

Using PWM (pulse-width modulation), a technology where the intensity of the LEDs are kept constant but the brightness adjustment is achieved by varying a time interval of flashing these constant light intensity light sources,

A first dynamic "local dimming" LED backlight was public demonstrated by BrightSide Technologies in 2003,Sony in September 2008 on the 40-inch (1,000 mm) BRAVIA KLV-40ZX1M (known as the ZX1 in Europe). Edge-LED lighting for LCDs allows thinner housing; the Sony BRAVIA KLV-40ZX1M is 1 cm thick, and others are also extremely thin.

LED-backlit LCDs have longer life and better energy efficiency than plasma and CCFL LCD TVs.mercury, an environmental pollutant, in their manufacture. However, other elements (such as gallium and arsenic) are used in the manufacture of the LED emitters; there is debate over whether they are a better long-term solution to the problem of screen disposal.

Because LEDs can be switched on and off more quickly than CCFLs and can offer a higher light output, it is theoretically possible to offer very high contrast ratios. They can produce deep blacks (LEDs off) and high brightness (LEDs on). However, measurements made from pure-black and pure-white outputs are complicated by edge-LED lighting not allowing these outputs to be reproduced simultaneously on screen.

Quantum dots are photoluminescent; they are useful in displays because they emit light in specific, narrow normal distributions of wavelengths. To generate white light best suited as an LCD backlight, parts of the light of a blue-emitting LED are transformed by quantum dots into small-bandwidth green and red light such that the combined white light allows a nearly ideal color gamut to be generated by the RGB color filters of the LCD panel. In addition, efficiency is improved, as intermediate colors are no longer present and do not have to be filtered out by the color filters of the LCD screen. This can result in a display that more accurately renders colors in the visible spectrum. Companies developing quantum dot solutions for displays include Nanosys, 3M as a licensee of Nanosys, QD Vision of Lexington, Massachusetts, US and Avantama of Switzerland.Consumer Electronics Show 2015.quantum dot displays at CES 2017 and later formed the "QLED Alliance" with Hisense and TCL to market the technology.

Mini LED displays are LED-backlit LCDs with mini-LED–based backlighting supporting over a thousand full array local dimming (FALD) zones, providing deeper blacks and a higher contrast ratio.

LED backlights are often dimmed by applying pulse-width modulation to the supply current, switching the backlight off and on more quickly than the eye can perceive. If the dimming-pulse frequency is too low or the user is sensitive to flicker, this may cause discomfort and eyestrain similar to the flicker of CRT displays at lower refresh rates.

Competing display technologies for the best image performance; A.J.S.M. de Vaan; Journal of the society of information displays, Volume 15, Issue 9 September 2007 Pages 657–666; http://onlinelibrary.wiley.com/doi/10.1889/1.2785199/abstract?

Novitsky, Tom; Abbott, Bill (12 November 2007). "Driving LEDs versus CCFLs for LCD backlighting". EE Times. Archived from the original on 28 November 2010. Retrieved 21 November 2020.

LED TVs: 10 things you need to know; David Carnoy, David Katzmaier; CNET.com/news; 3 June 2010; https://www.cnet.com/news/led-tvs-10-things-you-need-to-know/

Method of and device for generating an image having a desired brightness; D.A. Stanton; M.V.C. Stroomer; A.J.S.M. de Vaan; US patent USRE42428E; 7 June 2011; https://worldwide.espacenet.com/publicationDetails/biblio?CC=US&NR=RE42428E

Chen, Haiwei; Zhu, Ruidong; Li, Ming-Chun; Lee, Seok-Lyul; Wu, Shin-Tson (24 January 2017). "Pixel-by-pixel local dimming for high-dynamic-range liquid crystal displays". Optics Express. 25 (3): 1973. doi:ISSN 1094-4087.

Controlling Power Consumption for Displays With Backlight Dimming; Claire Mantel et al; Journal of Display Technology; Volume: 9, Issue: 12, Dec. 2013; https://ieeexplore.ieee.org/document/6520956

Energy Efficiency Success Story: TV Energy Consumption Shrinks as Screen Size and Performance Grow, Finds New CTA Study; Consumer Technology Association; press release 12 July 2017; https://cta.tech/News/Press-Releases/2017/July/Energy-Efficiency-Success-Story-TV-Energy-Consump.aspx Archived 4 November 2017 at the Wayback Machine

LCD Television Power Draw Trends from 2003 to 2015; B. Urban and K. Roth; Fraunhofer USA Center for Sustainable Energy Systems; Final Report to the Consumer Technology Association; May 2017; http://www.cta.tech/cta/media/policyImages/policyPDFs/Fraunhofer-LCD-TV-Power-Draw-Trends-FINAL.pdf Archived 1 August 2017 at the Wayback Machine

Broadband reflective polarizers based on form birefringence for ultra-thin liquid crystal displays; S.U. Pan; L. Tan and H.S. Kwok; Vol. 25, No. 15; 24 July 2017; Optics Express 17499; https://www.osapublishing.org/oe/viewmedia.cfm?uri=oe-25-15-17499&seq=0

Polarisation-sensitive beam splitter; D.J. Broer; A.J.S.M. de Vaan; J. Brambring; European patent EP0428213B1; 27 July 1994; https://worldwide.espacenet.com/publicationDetails/biblio?CC=EP&NR=0428213B1&KC=B1&FT=D#

The Durapixel 7" sunlight readable LCD Monitor from Litemax has a brightness of 1000 NITS with a screen resolution of 1280x800. By incorporating the latest LED backlight technology the screen has a 100,000 hours MTBF whilst keeping power consumption levels down to a minimum. The display also has a wide operating temperature of between -20°C~70°C so is suited for applications where high ambient light and extreme temperature change is a factor. This can be in for applications such as kiosk, ATM, POS, mobile, military, marine or digital signage.

The LRM7531 houses 2 x 7” TFT LCD Monitors with a Colour Digital LED Backlight Panel for a superb clear image. Inputs of PC and Composite Video BNC Loop through. All housed in a rugged 19” Rackmount, 3U high, metal case. Boasting A Full OSD with Hot Keys for easy use and individual On/Off switches per Monitor. Both monitors are powered using a single 12V source. Ideal for Surveillance and monitoring systems as well as Multimedia Video Applications.
