lcd screen table brands

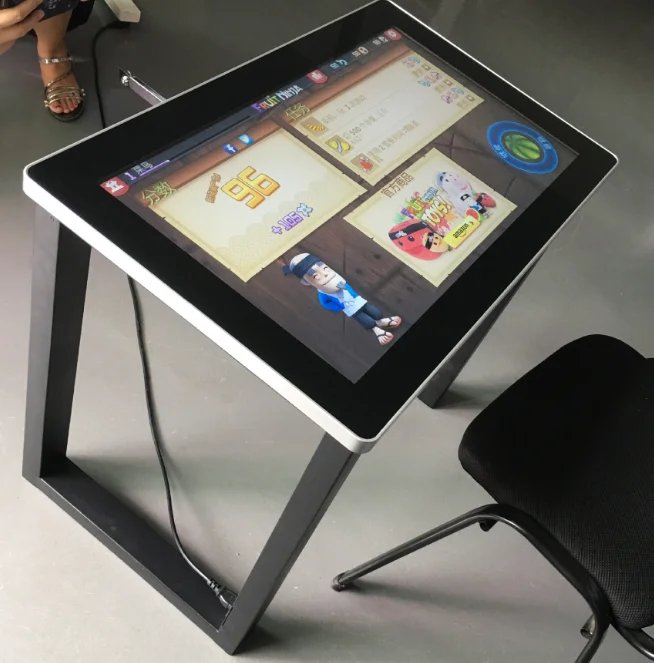

CDS interactive touch screen tables (touch tables) are a growing trend in the modern world of today and are used in stores, exhibitions, schools, museums, reception areas and meeting rooms to name a few.

Our CDS interactive touch tables and industrial grade commercial touch screen tables (touchtables) use a premium quality robust design, perfect for optimum performance in the most demanding applications.

Both our interactive multitouch table options are sleek and modern, using the latest in display and touchscreen technology, however the public area table has a thick solid base, and is much heavier to prevent users from trying to steal it.

Both touch screen tables are beautifully crafted, available in multiple sizes, 32″, 42″, 46″ and 55″ Full HD 1920 x 1080, and a 65″ 4K 3840 x 2160 version also.

All our tables are built with advanced technology, a fast, accurate and natural multi touch, black border PCAP touchscreen overlay, for a seamless face, with a smooth, modern touch experience, similar to modern smart phones.

We offer an excellent personalisation service where you can have the table produced in a colour of your choice, with your logo, company name or tag line added to add a personal touch.

For more information on our Touchscreen Tables, or for pricing and datasheets, please call us on +44 (0)1634 327420 or click here to email our sales team.

The software supports up to 4K resolution and beyond, supports all common media formats (images, videos and PDFs) and has a built in web browser and screensaver, giving you full flexibility to show exactly what you want, where you want.

The whole product is made from aircraft-grade aluminium and combined with state-of-the-art display and touchscreen hardware. To achieve the highest standards possible, only certified and quality proven components, such as electrical boards and connectors, are used.

BrightSign® offers small form factor signage players which can be integrated seamlessly in the same environment as our MMT Touch Tables. The BrightAuthor® Software comes with ready-made interactive software templates that only need to be filled with contents like texts, images and videos.

Our range of interactive tables provide a minimalist and stylish touch screen solution in comparison to competing touch table technologies. These touch screen coffee tables are available with a 55″ integrated screen with custom options or leg lengths available on request.

Our touch tables complete with a 55″ commercial grade full HD or 4K LCD display, PCAP multi-touch technology, toughened safety glass fascia and integrated Window or Android. Alternatively, our touch tables can be connected to your own PC or Media Player. A number of standard touch table products are available and we can custom design touch tables, touch screen desks and other interactive furniture to meet with a customer’s specific requirements.

Whether it’s creating a collaborative workspace, keeping track of the stock markets or simply passing time playing a game, our touch tables cater for all applications.

Interactive Tables transform the way you introduce your customers to your products or service with the ultimate in sales presentation technology. Delivering memorable visual pitches is made easy with our touch tables, serving as the perfect platform to impress your customers and outperform the competition.

Utilising integrated Windows or Android operating systems, our touch screen tables are designed with ease of use in mind. You can simply plug and play, downloading presentations, proposals and more directly to your touch screen table without hassle, interacting with your content in the same way as a standard desktop PC.

Touch Tables allow you to move away from the norms of static desktop computers and give your team a new incentive to produce fresh ideas by integrating an interactive table into the workplace. By using a touch screen table you can offer a more welcoming environment for new ideas, encouraging your workforce to band together in one place and do away with individual working to create a single collective effort that can be shared amongst the team.

Our new range of intouch Interactive Touch Tables and Furniture utilises PCAP technology, offering 10 touch points and the most responsive and sensitive surface for 24/7 applications, allowing you to take a collaborative approach to education, sales or ordering, with up to 10 people using the table at any one time.

Whilst we offer a number of standard products in our Interactive Touch Table range, we can also custom design tables, desks and furniture to meet a customer’s specific requirements. We are always looking for new and exciting uses of our technology, working with our customers to see how we can adapt our products to best suit your needs. Features we have previously seen in bespoke touch screen table projects include a wireless charging point for mobile phones, webcam and a custom picked carbon fibre finish.

Our smart touch tables are also compatible with a range of specially designed touch table software that can be used whilst limiting access to the key functions and settings of the built in PC. Pro Display works with a variety of clients across a wide range of market sectors, including but not limited to designers, architects, space planners, merchandisers and retailers.

Our interactive touch tables are custom designed, featuring a 10-point PCAP multi-touch screen that’s suitable for 24/7 applications with options available with Windows or Android Operating Systems.

Our Touch Tables are available with standard screen sizes of 55″, with table dimensions and design customisable to suit your specific project requirements.

Our Touch Tables come with integrated Windows or Android Operating Systems and HDMI, VGA and USB inputs to connect your own media player or PC, providing the foundations to run a wide range of software.

Once connected our touch tables allow you to interactive with your content the same as any standard PC, supporting internet browsing, creative design software and even gaming.

There are many benefits to using an interactive table, with the opportunity for use across a wide range of market sectors. In commercial applications, our Touch Tables are a popular choice for collaborative working, with the 10-point multi-touch functionality making it possible for teams to work together on content, ideal for boardrooms, creative agencies and education purposes.

Our Interactive Tables are also a great solution for presentations, creating a more personal space for these exchanges working exceptionally well in B2C applications like estate agents, interior designers, or even car showrooms.

Our Touch Tables are also a great addition to any home, providing the perfect home working space that can be transformed into a games table as well as used for catch-up tv, video chatting and much more.

As well as a choice of four screen sizes, we can also customise the table’s dimensions with a choice of leg lengths. Our table tops can also be manufactured with custom designs and finishes to integrate into your interiors with options for custom branding in commercial applications.

Previously our Interactive Tables have also been manufactured with features like wireless charging points for mobile phones, webcams & keyboards and even custom carbon fibre finishes.

We manufacture in Britain and ship worldwide – if you need further information, a pricing quote, or want to discuss ideas for using our Touch Tables click the link below to contact us, email us via info@prodisplay.com or call us on +44 (0)1226 361 306.

Our Touch Screen Tables can be built to ship flat in a case and re-assembled in minutes making Digital Touch Systems the only company in the world to build mobile touch tables that still function better than most while looking amazing at the same time. Touchscreen tables are the answer for anyone looking to have the best product available on the market to showcase their products and services.

Using advanced 3MTM PCAP touch-sensor technology, any optical challenges as found in other projected capacitive technology such as moiré or sparkles are overcome resulting in exceptional touch performance with a smooth surface and high image quality. Perfectly suited to the rigors of public usage, the robust glass surface is resistant to scratches whilst its anti-glare property makes it suitable for use even in areas of high ambient light. Object detection capability opens intriguing interactive signage opportunities especially for product promotion in retail.

Interactive Display Tables were initially designed and implemented for use in schools and places of higher learning. As the popularity of this form of interactive display expanded, the use of these interactive tables has grown to commercial use at trade shows, expos, galleries museums as well as in the medical and science fields. The distribution of information and visual content are superior with multimedia resources, streaming & recorded video and even games being accessed by multiple users in a relaxed state.

Students can achieve learning and fun together using these state-of-the-art interactive tables. These tables are perfect for active minds. Learners will enhance their abilities academically and socially.

Developing academic advancement and social communication is important for every student. With these high-quality interactive tables, students can collaborate together at the same time, boosting their communicating and learning capabilities.

Touchscreen tables provide an easy way to run your business. Customers can enjoy fast navigation as they search for alternative routes in the shopping mall. Table touchscreen monitors also allow enthusiasts to interact with educational exhibits, such as history, science, or geology. Most tabletop touchscreen monitors are equipped with numerous features that help users traverse, learn, and understand their surroundings. They are a must-have for business owners who wants to offer a world-class customer experience while giving users a sense of independence. Touchscreen smart tables will elevate the enjoyment and convenience for everyone trying to engage with the nearby exhibits, landscapes, or items. Users might appreciate not having to flag down someone when they need directions or have questions about an artifact. Find an assortment of Touchscreen tables for your business on Alibaba.com.

Smart touchscreen tables have several uses that make them a convenient addition to any establishment. One of its most common utilization methods is navigation for large areas like malls, factories, or airports. Education is another excellent way to put these convenient tables to good use. The digital touchscreen table will introduce exciting features to the users while also being able to elaborate and fascinate them with interesting facts. Gaming is another way to enjoy this fine product since owners can load it with games and other forms of entertainment.

Touchscreen tables come in numerous styles that make them easier to operate. A standing multi-touchscreen table design allows individuals to engage while on the go, such as in a subway or air terminal. Coffee table-themed smart touchscreen tables are great for those who want to game or engage with advertisements. They also come with tempered glass and waterproof materials to make them more durable.

Marvel Touch Screen Coffee Table are very diverse and multifunctional. We have various designs, which can be applied at different locations, like restaurants, meeting rooms, hotels, schools, gaming rooms etc. We can use them to order foods, hold a meeting, search information, learning and playing games.

Most of our lcd Touch Screen Coffee Table are made of mild steel, some of them are made of stainless steel, like our coffee multi touch screen table or fiberglass, like our interactive touch screen table for kids. But all of them are with a 5mm temper glass on the table surface, it is strong and solid. Also we have multi IR touch and touch foil for your option, you can choose one of them depends on your usage. If it is used in restaurant or need to be waterproof, touch foil is better, as the table surface with touch foil is full flat, it is easier to clean if any water sprays on. If waterproof is not necessary, IR touch is a good choice too, since it is more cost effective.

If you want to know more of our touch screen coffee table for sale. Welcome to cvisit our website www.marveltechgroup.com and contact us for more information at any time.

Keewin touch table is developed to support better user interface, such as IPS diplays with a 10-point P-cap multi-touch and a full glass covered screen. Keewin touch table is equipped with an interactive display.It can be used as an virtual desktop and utilize a variety of applications such as multimedia (video, images, games, etc.), interactive catalogs, interactive virtual calls, music or video jukeboxes, museum applications and more.

This kind of Multi Touch Screen Table is mainly composed of imported 10 touch points capacitor, 1080P HD display, 5MM tempered glass, industrial grade LCD screen and solid wood table body. The appearance looks dignified and elegant. It supports independent operation without interference. Its screen can be rotated 360°, which is easily for face-to-face interaction. In addition, the Multi Touch Screen Table has the advantages of waterproof, moisture-proof, explosion-proof, excellent protection level, delicate design, compact structure, simple operation, easy cleaning as well as durability.

Our multi touch screen table are extensively used in widely applicated in advertisement, education, displays and various games industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!

It has been a long time since I"ve contributed to this website--going on to a year almost--I was trying to accomplish a personal goal that was in the making since my early high school years. This instructable has taken 2 years of independent research and setbacks, but it is finally here. I present to you the complete guide to building a personal Multi-touch table at home with basic design and engineering skills ( I will attempt to fully explain every detail so that even a beginner can find success!). Most mathematics have been performed so the only fear regarding this project is the fact that it will take some time to put together . . . and some money.

When I was in my freshman year of high school, I was invited to attend an engineering "field day" taking place in Alabama"s Redstone Arsenal. Although most of what we were shown during this trip were projects that I am not able to speak about, one of the more relaxed projects was the Multi-touch table. I am not allowed to say what the table was being used for--I"ve forgotten either way--but I can speak about its features. The table shown to us was a 30" Microsoft Pixelsense (then known as the Surface, before the tablet took its name) and to me, it was glorious. As a connoisseur of Natural User Interfaces (NUI), I"d always been fascinated by 3D spatial projections ( what most people call holograms) and anything of the like. I had never seen of these before so it would be easy for anyone to imagine my excitement. I asked the Project manager about what it would take to work with one of these and how I could be involved. You could imagine my disappointment when he told me that although it was simple, it wasn"t anything that I could ever make by myself. This very conversation sparked a 5 year personal vendetta against that one employee that led to the creation of this instructable--as a hobbyist. I enrolled in optic courses and searched through every crevice of the Web until I had enough information to build my own table. I had two very important personal objectives:

1) Educational: To gain experience in NUI technologies and help spread this knowledge to students willing to learn via independent projects. I planned to stimulate interest with the introduction of a hobbyist-made Multi-touch table in order to engage myself deeper into NUI technologies

This project was conducted with 3 other friends, and the table is currently housed in one of the member"s college dorms. As I am writing this alone and since I conducted all of the planning and designing, I will refer to myself when I speak of things that are design related. I may also refer to the group as a collective in the article, hence my using of "we" on the occasion.

This will be a very long instructable. My aim is to make the most detailed instructable in order to increase interest in NUI tech, but above all, for you to understand all that you are doing as you are doing it.

Each section is pre-labeled in the title, allowing for your easy navigation. "Information" refers to my explaining theories, plans, mathematical or physical concepts, tools, etc. "Hardware" refers to sections where I outline the steps to take in actually building the hardware for the table. Finally, "software" or "warez" refers to sections where I explain how to set up software. List of Contributors: As you may have noticed, this account is the property of a collective of currently enrolled college students. The list of contributors for this project are:

This will be the longest step for you since there are many variables to consider. It all depends on what you aim to accomplish. My table cost me an approximate $2000:

9. Computer..................................................................... $0.00 (used my friend"s)As you can see, the specifics (as in amount of screws or type of wood) have been omitted. This is done to encourage creativity. As my project was a prototype, the design was made very simple. As of now, I am working on reducing the height of the table from the initial 3 ft to 1-1.6 ft; thus, giving a specification on the amount of wood and screws would be useless as I would only lead you to spend an inappropriate amount of money. Had I done the project correctly the first time, we could have saved nearly $75 on Wood and screws alone.

We are going to be building a 47" Planar Infrared-based Multi-touch table using the Diffused Surface Illumination (DSI) Technique. This technique is not recommended if you aim to read objects (that are not fingers)--also known as fiducials--unless you plan on not using the diffusive panel of the LCD. It is also not the best to implement when using an LCD, but it is the most convenient due to requiring less materials and work. I chose this one because of the convenience.

The first PixelSense used a different technique called Rear-Diffused Illumination ( Rear DI). By Rear DI, the maker is required to use IR illuminators on the underside of the screen. Because of this, it is nearly impossible to create using LCDs due to the IR light reflecting from the back panel. Thus, people will usually use a short throw projector (usually more expensive if you want HD quality). All in all, DSI allows for higher visual quality at a reduced price. Input detection remains the same.

Typically, smartphones and tablets use either capacitive, resistive, or surface acoustic wave screens in order to detect user touch points. Capacitive uses the electrical properties of human bodies in order to detect user inputs at certain points (the skin of your fingertips). Thus, devices using this screen are highly sensitive and neglect pressure--meaning that users cannot use regular styluses or gloved hands. In addition to this, the cost for capacitive layering on a large scale project would be tremendous.

Resistive screens simply rely on pressure as they are built by layering screens. For resistive, there is an inconvenience in that building this setup would require the user to create layering patterns with little promise of multi-input detection.

In Surface Acoustic Wave (SAW) screens, when a panel is touched, the ultrasonic waves exerted in the panels are absorbed at those points and this registers a position for touch events to the controller for processing. This would be burdensome if applied to larger screens.

The first thing you should worry about is your LCD TV. You won"t be able to use just any TV as there may be issues. I will explain this in more detail soon.

The LCD is perhaps the most annoying hardware component regarding the setup of an LCD DSI table due to the FFC Issue--I will get to this soon. But first, a bit of insight: It is mildly important to understand how LCDs work for the purpose of explaining how the table works. Also, since we are taking one apart, it is important that we understand what each component does.

LCDs are an amazing piece of technology that remind us of how amazing and progressed our technological prowess has come. At the core, they rely on Liquid Crystals (LC). LCs are materials that are literally in a state between liquid and solid states of matter--this means that their particles maintain their orientation, yet they are able to move around to different positions akin to liquid state materials. Thus, they are highly sensitive to temperature changes ( they must be at an exact temperature to maintain their odd state). For LCD screens, LC particles are usually arranged in a twisted nematic phase. This only means that they are affected by electric current (nematic) and are naturally twisted. When we apply current to the LC substrate, the LCs untwist varying degrees depending on the voltage--which allows them to react predictably in controlling the passage of light. The orientation of the particles in the natural state depend on either a magnetic field or microscopic grooves. The change in orientation (for most LCDs) is described as either smetic c or chiral nematic. The smetic c orientation holds that the particles are layered in such a way that they tilt slightly in angles with each layer while the chiral orientation sees the molecules untwist slightly from layer to layer.

There are many types of LCD screens such as Passive and Active Matrix LCDs, but since we are most likely only dealing with an Active Matrix, I will only explain this one. Active Matrix LCDs depend on Thin Film Transistors (TFT) which are essentially tiny switching transistors and capacitors. They are arranged in a matrix fashion on a glass substrate and to turn a pixel on, the row corresponding to that transistor is turned on and a charge is sent through that column. Since the other rows are off, only the capacitor at that row is receiving a charge--theoretically knowing that Capacitors can change current instantaneously, this is explained and we also factor that the charge can be held until the next refresh cycle. Controlling the voltage, one can untwist the LC enough to moderate the amount of light that passes. This allows for the creation of a gray-scale.

Each Pixel has 3 sub-pixels (red-blue-green{RGB}) and they each have their own transistor. each sub-pixel allows for 256 shades within their own gray-scale for a grand total of 16.8 million possible colors on your screen. this is true unless you have a fancy yellow pixel LCD display as we get the possible colors from 255^3 for the 3 sub-pixels.

Depends on the display. A 1024x768 TV has 1024 columns and 768 rows, so if we multiply that by 3 pixels, we get 2,359,296 TFTs etched onto the glass panel. If that doesn"t impress you, wait until you see how thin the screen really is and what happens when you turn it on away from its casing!

In building your table, you are going to have to make predictions and decisions. You won"t always have a perfect display built. Sometimes, you"re going to have to figure things out from the fundamentals in order to make sure you didn"t just waste $$$$. Also, depending on your setup, you may have to predict the display size of your LCD based on the properties of the screen. More importantly, this is knowledge! so take it in!

III. Things I should worry about in regards to the TV I will use for the table:The FFC Issue as defined on the NUI Group Forums is when the FFC cables are either too small or fragile to be manipulated into building a Multi touch setup. The Flat Flex Cable is the cable that you will find connecting the LCD matrix to the Control boards. This can become a problem as they are hard to replace and if the get in the way of the construction, they may cause accidental damage. Fortunately, there are links to databases with TVs that do not have this problem and are perfect for Multi touch setups:

The Aspect Ratio: You need to know your aspect ratio so that you can approximate the size of your LCD in order to create your chassis, or box. Most LCDs nowadays are 16:9 since this is the HDTV Standard. That is, 9 units of height for 16 units of width. Use similar triangles (yes, math) in order to determine the size of your LCD screen. Of course, this is only necessary in the case you do not want to rip the TV apart until you have everything else (Acrylic, wood, etc).

Contrast Ratio: This is the measure between the brightest possible image and the darkest possible image. White/Black = Contrast Ratio. Unfortunately, there is no actual metric to standardize this so companies just exaggerate things such as 1000000000:1 (who knows what that means?) This matters only in terms of vanity--say you wanted the clearest possible image to be displayed on your LCD. An LCD with a high dynamic ratio is better than an LCD with a native that gives the same ratio; however, an LCD with a higher native ratio is superior. Native describes what the LCD is able to produce on its own and dynamic refers to using circuitry to assist the panel in accordance to ambient light.

The LCD screen comes with a set viewing angle that ensures the best possible picture--most consumer don"t know this and miss out on the full experience. A Bias angle is designed to offset this angle. Because of this, your angle of acceptable viewing is made much larger. There is still an area of unacceptable contrast, but you will most likely not reach it.

The first thing to do in determining the LCD size is to find out what your aspect ratio is. The beautiful thing is that LCD retailers are required to release a specs sheet concerning the capabilities and basic information regarding the TV. In these, the most notable of specs is the aspect ratio--usually 5:4 or 16:9.

Next, use triangle-angle relationships to determine the angle opposite the horizontal and vertical measurement of your display using the aspect ratio. For example, a 16:9 ratio LCD will have 16 units of measure for the horizontal component and 9 for the vertical. The angle opposite is the given by cos (16/proper diagonal measure). For a television of a 46.96" diagonal, Cos(16/46.96") = 60.64224646 degrees, which makes sense.

Next, setup a similar triangle diagram where the 16:9 is within the LCD. You are to find the X and Y components of the outer triangle. You use law of sines with the angle determined above to find this. For example, following our calculations, [Sin(60.642)/9] = [(x/46.96")/x] given that y = 9x/16.

The First step of the hardware process is to build a box that will hold all of your components together. This step will be where your design starts taking a new life depending on whether you want a coffee table, a display monitor, a station, etc. I am currently in the process of modifying my box and make a coffee table. Once that is completed, if anyone is interested, I can upload some pictures and describe the build process. The pictures above are very simplistic due to our table being built as a prototype that was ultimately going to be modified either way.

Is your box the right size to hold your LCD screen? This is where aspect ratio comes into play. You need to make sure your layers won"t fall through and that the LCD cables/components won"t get in the way. Also, make sure you can make it mobile (it can fit through doors)

Where will your computer be? You may not want to put the computer or the LCD components inside the box unless you are willing to include compartments on the underside for them as they will interrupt the image on the LCD and the camera"s ability to track your fingers.

Ventilation: The Cameras won"t get too hot, but if you do decide to conceal the computer and LCD components (which does make it look nicer), you may want to invest on some ventilation. You can use a couple of in/outtake fans for this if you want.

Are you accommodating for cabling? Make sure you have a plan in mind for neatly placing the cables in your table. One cable over the camera makes a significant amount of interference.

Is your structure strong enough to hold the Screen layers? you have about 32-45 lbs of screen to hold and the additional weight due to people putting their hands on your table.

Your LCD panel has a back plate that acts as a partially reflective mirror in a sense. On your TV, you will mostly likely find fluorescent tubes. These are known as the back-light and their sole purpose is to provide the base light that the LCD screen will use. The panel also contains the polarizers necessary for the LCs to control the light. We are going to replace this entirely with the LEDs. Why? The tubes are too weak to provide the lighting necessary for the LCD to work once the distance is increased--and you must increase the distance so that you may accommodate for your cameras. Also, the tubes are very fragile and risky. The white LEDs will be placed on the bottom of the box in order to make the screen show an image. Additionally, for this to work, they must be place around the cameras so that they are not in the way. the cameras should also be elevated so that you don"t get too much light interference.

You may want to first sketch your design or create a model using a CAD program. You can get Google Sketch-up and it will work wonders for free. It also has a built-in tutorial and gallery. You can find the Ideum MT50 table CAD file there too if you want a bit of inspiration.

You MUST calculate the distance needed between your camera and screen in order to determine the size of your box. I used two cameras so that I could stitch the two feeds together and reduce my height by three times. Normally, this means having to calculate angles and ray diagrams. Thankfully, the NUI forums has a thread where Peau Productions created a lens calculator that may help simplify this. Please use this before purchasing your cameras or buying the wood. Also, consider looking through the projects on this forum.

As laid out in the previous step, you may want to start thinking about ventilation for your chassis. As pictured above, our simple setup opted for neglecting this step as it was only a prototype. You may want to consider it depending on your component and screen positioning. Remember that IR is also heat, so you may need a system to remedy problems relating to this if they arise. As far as layering for now, consider adding various lips and edges to your table. Remember that you will need a place to house a mouse and keyboard for initial setup and troubleshooting. Also, If you are considering to lay a shell over your box as a design choice (as we did), you"ll need a way to support the acrylic. We personally ordered our Acrylic to be larger than our LCD screen in order to have the effect of a floating LCD screen. If you aren"t expecting any children or aggressive people to touch your screen--the Endligthen layer is very easily scratched--you may even replace the extruded FF with the abrasion resistant layer. All in all, lay a piece of acrylic for support. If you are a careful person, use the abrasion resistant layer as a support. If you don"t want to risk anything going wrong, use the extruded FF.

Of course, the first thing to do is turn off the power and remove the AC cable and gently lay the television screen-down on a flat and stable surface.

You will see a metal back-plate with holes. Through those holes, you will likely see white sheets. Those are the diffusers and we are trying to get to those. Unscrew the screws holding the plate together and remove the plate. To do this, we have to take the front plastic casing off so you"ll have to flip the TV. Do this carefully as you do not want to risk damaging the LCD panel.

Take the casing off and work your way unscrewing until you get to the LCD panel. Gently and safely remove the connectors to the panel. The green and brown connectors DO NOT come off. If it looks like it won"t come off, it most likely won"t. Be very careful here.

Lay the LCD panel safely on a flat surface and wrap it with a blanket or something that will protect it. The panel is ~2 mm thick and thus, easily warped. Have a friend help you handle it so you distribute the weight evenly. Now think back to all that theory you read in the previous section and be amazed at how compact the panel is.

Right under the LCD are the white diffusers. Take care as they are likely to be statically charged. The diffusers serve to evenly distribute the white light under the panel from the back-light. You may not need all three though. We opted to use the thickest one as the others did nothing for us. The case may be different for you. For now, just keep them until the testing of the LCD display.

Do what you will with the back-light. If you opt for a size < 25" diagonal, you may actually make the factory light work and circumvent the cost of white LEDs. If not, do what you will with it--for the purpose of this table, it is no longer needed.

Recall the last section where I advised you to take pictures of each and every connection. This is where all will come in handy. In this section, we will be essentially rebuilding the LCD TV on your box. How you do this is going to depend solely on how you chose to design your box a couple of sections back. As for our team, we decided to go with designing an inner box that would later be concealed within another outer box. We simply used wood screws to screw the boards onto the back side of the inner box. The important thing to consider is to be careful that you don"t crack the boards while screwing them onto the wood. For now, disregard the LCD panel. Do not place it until the next section as we must discuss the layering for the table. However, you do have the option of placing your computer along with the boards of the LCD. There is a great amount of flexibility when choosing a computer. To be honest, as long as it has over 512 MB RAM and is HDMI compatible, the computer will perform nicely. Any recent/decent PC will do--even a laptop if you so wish. We"ll talk operating systems later on. For now, just choose your favorite as we have to set everything up.

Assuming you calculated the height of your table based on your camera lens as I advised in the previous planning sections (or have prepared an appropriate platform for elevating the cameras to their needed height), place the cameras where they need to be. You need to perform the above calculations for centering your cameras as well.****If you do not yet understand how to perform any of these equations, you can PM me and I will try to help. You simply use the FOV for the camera to determine a distance from the screen where the cameras can see portion desired from the screen. This should give you an idea of proper height and placement for the cameras.

Find your Endlighten layer. It"s time to wrap it in IR LEDs. You may want to consider purchasing some U-bars to give the table a cleaner feel and look. As for us, since we were still testing, we used Duct Tape again to hold the IR in place. All you have to do is simply cut the IR reel to size and wrap it around the edges of the Acrylic. Next, connect to a power supply and verify that they work. You may not be able to see the IR wavelength with your eye, but if you use your phone, you will see an orange-yellowish glow.

ghosting refers to the "naturalness" of your interaction with the table. We say there is too much ghosting when the Acrylic layers are too thick or ordered in a way that your touch doesn"t seem to feel right. If your touch layer is, for example, an inch from the projection layer, the effect of refraction will be heavier and you will feel as if your touches are off. This is a problem in that you won"t get the full touchscreen experience.

Transparency refers to the user"s ability to see through the LCD. This can be used either creatively or it can be bad. The line between right and wrong is mainly blurred on this issue.II. Example setups : I will now share the setups we experimented with and allow you to pick the best choice:

**Report: Perfect blobs read. Additionally, decreasing the size from 3 ft to 1.6 ft would only make it better (allowing for us to place a protective layer). The downside is that since the diffuse layer has been removed, the transparency increases. We sacrifice transparency for perfect detection and virtually no ghosting. The transparency is not bad when the is no ambient light ( it is non intrusive). If the user wishes to use the table in an area with ambient light, this setup is not recommended as they will not see the screen performing at maximum quality. If the user is creative, they can show off the guts of the system and make it very presentable. You can attempt this:

**Report: Not recommended unless a support layer is added (LCDs are very fragile), but it is an interesting setup. received perfect blobs, no ghosting, yet great deal of transparency. Perhaps adding a layer of support and a thin diffuse layer will work.

A. The diffuser sheet we used was the thicker one that is packaged with the LCD as my teammate accidentally threw away the smaller ones. I am fairly certain that the thinner sheets would have worked best to reduce transparency in the case of the setups we built without diffuse layers.

C. I did not feel that I needed to thoroughly explain the re-assembly for the LCD panel onto the box. All that you have to do is place it down on top of your support layer and reconnect the appropriate FFC to the sockets on the T-con Board. It is important that you connect them to the sockets they correspond to. Also, make sure the sockets are clean and that the FFC are in correctly. If you place them backwards or incorrectly, you may see a column of dead pixels. This is nothing to be too alarmed about as you only need to fix the connection.

Once you are content with a specific layering, turn on the TV and watch something (or use your computer). Make sure that you have a mouse and keyboard as you are not yet able to receive responses for your inputs. Also, make sure that your white LEDs are on (doesn"t matter if your IR LEDs are on for this step). If you can see as we did in the picture above, then all is well and you should congratulate yourself on being one of the few people to re-purpose an LCD and have it work on the first try!

Screen is black? Turn on white LEDs. If LEDs are on, make sure they are white and not IR. If still no picture, your Flat Flex Cables are connected in the wrong order.

Microsoft"sWindowsWindows 8/ Windows 8.1/RT: Windows 8, RT, and 8.1 were optimized for the touchscreen apparatus. The metro offers a rich experience that feels like it was created specifically for a multi-touch device. Also, the corner sliding and huge amount of touchscreen apps already available through the windows store offer this OS a great advantage. We personally chose this OS because it was the easiest to set up. The NUI group; however, does not have too much documentation on this OS as it is not the preferred Windows OS. Also, a couple of changes in the coding made two library files be missing in this update--this only means that you"ll find yourself downloading additional files an databases in order to compensate. Also, you must choose whether to overlay or keep the built-in touch system. The NUI community will push for the use of Touch Injector as a service to give the inputs functions rather than the established MT Vista. Also, since the three versions were written differently, the setup may be different. There are blogs whose users have modded the appropriate software in order to be optimized for your version. You may encounter problems such as no input being shown, the touch-tracker not showing up on start-up, and permission revocation. You must be the account"s administrator and run the warez in this mode in order for things to work properly. Lastly, since the warez is open-source for the most part, you may have conflicts with your anti-virus application. Simply treat these as false positives and move on.

Windows 7: It is smooth, fast, and perfect for multi-touch. Similar to the above version, you should try to build your setup in a way that the corners are free for touching as the start menu and the important apps for this are located on the task bar"s corners by default. You will need to install a number of services in order to get your input recognized by the controller, but this has the most documentation to any other OS in the NUI forums. You should not have many problems dealing with this OS when it comes to multi-touch. Also, if you are a student, you may have access to the Microsoft Surface Developer Kit which will increase the functionality of you table. You can also experiment with building your own frameworks and graphical interfaces if you so desire--which is always a great thing. If you are an avid windows fanatic, I would recommend this OS as it is a blessing.

Windows Vista/ XP:I grouped Vista with XP since after the service packs released for these OS", XP and Vista simply become Windows pre-7.1. I do believe their service has been discontinued (don"t quote me on that) so I would not recommend these if you are worried about a longer-term experience with your table--I"ve not yet attempted to upgrade or downgrade an OS with the multi-touch Warez already installed. Other than that, you"ll be finding a good amount of support in the NUI forums due to the newer software simply being a modded version of software originally for XP and Vista. You shouldn"t have too many problems with these, but i recommend not to go here unless you are planning to run a virtual machine with a more updated OS--most apps have been optimized for the more recent OS" and I"d recommend starting at 7 if you want that old-fashioned Windows appeal. ** Side Note: Consider installing a program named Rain-meter. Rain-meter takes the widgets introduced in vista to a new level by allowing you to set up your computer exactly how you"d like it. You can create futuristic displays or even have sound output given for certain actions. This app is compatible with most Windows OS versions as far as I am aware. I use it last on my personal Win 8 laptop setup. Ubuntu offers an applet for this named Conky. If you use Conky, I advise downloading Conky Manager.

Linux OS:Canonical"s Ubuntu (any release from 12.04 LTS to 13.10): When it comes to Linux OS", people seem to think you must be a hacker, or an overly obsessed computer maniac in order to understand what is going on--the movies seem to portray Linux as a completely text-based OS, and who wants that? Well, let me be the first to tell you that they are wrong! Ubuntu is a FREE (although I"d recommend leaving a donation to the company when downloading) OS distributed by Canonical that is beyond wonderful. It is classified under the "Debian-like" distributions as this is where it is sourced from. Ubuntu is virtually updated daily and provides the highest sense of security for the average user. It handles similarly to Windows, yet it has it"s own advantages that a Windows OS could not provide you. A big pro is that you won"t find your system being infected by viruses. Although you can still contract Trojans and such, your system will be unharmed as the viruses are written for Windows users--they won"t open and execute on Ubuntu or any Linux distro (unless you use WINE, a windows emulator for Linux). If you dual boot with Windows, you can even use Ubuntu to rid your Windows partition of any infections it may have. Ubuntu 13.10 (dubbed "Saucy Salamander") was written with touchscreen devices in mind much like windows 8; however, the format of the graphical interface is non-intrusive, and the options are all equally optimized for the non-touch aficionado. Paired with a variety of apps that you can find in their software center, you can make this desktop exactly what you want it to be, giving you the ultimate freedom and maneuverability. So what"s the problem with it then? It is very hard to find any documentation on setting up an Ubuntu multi-touch setup on the NUI forums. This is due to many of the programs that are needed for touch implementation being written with Windows users in mind. You"ll have to find a replacement capture software--I"ve heard Cheese or VLC Media Player work well with Ubuntu in place of the CLeye for the PS3 eye, but you WILL have to experiment and go through a lot of hard work in order to get this setup to work. The few that I"ve seen are gorgeous, so it IS worth the trouble. I am personally planning on getting my table back soon in order to experiment with changing the OS back to Ubuntu. Also, while on Ubuntu, you"ll find yourself dealing with the Terminal (Linux equivalent of the Command Prompt console or Powershell) more than anything else. Although everything gives you the option of graphical input, you may find the terminal to be more satisfying. If you want to learn about computers, processes and all that goes into providing a rich, safe, and efficient user experience, I"d say give any Linux distro a chance.

CCV stands for Community Core Vision, the open-source and NUI group-developed tracking software at the basis for any multi-touch table you will find to be built in the NUI group forums. It comes with its own handy interface that luckily does not change too much in between version revision. I believe the CCV distro we are currently in is 1.5--this is the one we used since it has documentation and support for multi-camera setups. There is a mod in the NUI forums for 1.4 that allows it to accept multi-camera setups. The more cameras, the faster your table and the smaller you can build it. I"ve explained in a very layman"s terms how this program works in the Understanding Software section. There are various replacements to this program, although I do not recommend going that route as the NUI forums specifically highlight CCV over all other programs.

The Code Laboratories SDK for the PS3 eye. It comes with a variety of drivers and tools to sync and configure the PS3 eye to your setup via the computer. If you are working with CCV 1.5, I recommend downloading this first and making sure that your input can be read through this program. The graphical interface should display the capture of your blobs as you touch the table. Once you"ve got this done, you can proceed to CCV capture. There is a problem with registration regarding the CLeye though. The SDK requires that you buy a license for ~$35 in order to get the software to work. Luckily, there are a couple of ways to circumvent this; however, you will be making things harder for yourself as the process requires the handling and manipulation of DLL files. This could potentially mess up your software setup and force you to have to re-install everything all over again many times. You can find the drivers for the CLeye to be detailed on the main CCV 1.5 forum post given in the CCV section or here, and here is the CLeye site.

Assuming that your blobs are perfect, and that you are satisfied with the framerate and all other factors, the final thing to do is to calibrate CCV settings. Once again, Sandler has provided an amazingly detailed guide on the steps for proper calibration. I advise that you go read it here. Once you are done with this step--if successful--you have essentially finished the construction of your setup. Your efforts and money should have (hopefully) paid off, and you will be the proud owner of an LCD-based DSI touch screen table that is fully functional and pleasing.

The best way test your setup? Flash demos of course! Head over to Seth Sandler"s Blog for the last time and download some demo applications from NUI folders. Or simply head to the windows store and download a game. If you encounter some problems, you are most likely to find a solution to it via the forums so keep those in mind. Either way, have fun with your new table!

So you"ve finally completed your table. Feel free to leave any feedback on how this instructable could be made better. Also, feel free to post videos and pics of your setup in the comments below. I"ll be sure to add more pics and a couple of videos once I get my setup modded.

If you realized anything from this instructable, let it be this: Multi-touch isn"t just a toy, nor is it a technology that we should take too much for granted. Projects like these are gateways to the future of NUI technologies. Multi-touch facilitates the branching toward the naturalization of the human to computer interface. Children are able to become more engaged and willing to learn about technology in this manner--as we are a species that yearns for feedback from our senses--and the elderly and disabled peoples can find more comfort and relief in navigating these devices. More importantly, Multi-touch opens the door to greater technologies such as Pranav Mistry"s SixthSense gestural interface (an instructable that may make it"s way sooner than you may think) and a host of other interface revisions--some of which I am not able to fully reveal as I am planning on developing. The fact that you"ve completed this project is truly something to boast about.

Of course, not all of us have a huge point to prove. Maybe you want to make a Multitouch table without having to spend so much money. I admit, as time has passed, it has become much easier to develop these devices for a smaller cost, and aside from the size of the display, you won"t be losing much at all.

i) Parts if going the camera route:LCD TV: I can give you links to these three. They may soon be unavailable as I"ve recommended them to many other users, but you can always use their LED TV derivatives as well. Vizio has a great selection of LCD and LED TVs (I promise I"m not trying to sell you their products) And I tend to generally trust their TVs to comply and be cleared from the FFC issue. Here is a 23" and 24" i think would be worth taking a look at.

II. Options for a $400 or less budget:As far as LCD, the smaller the diagonal, the cheaper your table will be. So at a $300 budget (If you"re not wanting to move past that) I"d get a 17-19" TV (usually $45 on eBay if you can find one). Keep in mind that you are sacrificing HD capability if you don"t already own an HD-ready computer.

Considering an ordinary camera and just adding a floppy disk as the IR band-pass filter? I"d say don"t do that either. If you want an optimal setup, THIS WILL NOT WORK. In the old days, it was the smart thing to do but now, we buy our cameras to match the IR wavelength exactly. Makeshift Band-pass filters usually fail at rapid and smooth input detection. Also, if configured incorrectly, nothing will work. In terms of the camera, the PS3 eye is THE camera of choice for the NUI group. All the drivers and protocols in CCV are optimized for it. It would be wise to stick with it.Do I have other options on the camera? Not any cheap ones.Point Grey is a popular option for those willing to go all out; however, if you buy a proper IR Band-pass filter and configure your own PS3 eye, you"d save quite a bit of money (~$20).What"s the difference between LCD and LED TV? The only difference is the back-light. LCD uses Cold Cathode Fluorescent Lamps (CCFL) tubes and LED uses white LEDs. That"s it!What"s the theoretical layering for the Touch frames? The layering becomes much simpler since the frames take care of everything now. IR detectors and emitters surround the inner section of the frame--removing the need for most of the components. Thus, the layering reduces to:

Hello! I was wondering, it appears that on another one of your instructables you described creating an A.I. User Control Point to go along with the table. It even appears that you entered it into a contest of some sort. It wouldn"t let me comment on that instructable, but I was wondering if you have finished it now that the instructable is 6 years old. What has happened with it since then?0

Hey Man..first off great tutorial. Super detailed. I had a question maybe you can help. I already made a table with a 55" Samsung plasma TV. The TV was removed from the frame and set into the top of the table with a thin sheet of acrylic for protection (I have a super inquisitive 2 yr old). I have seen commercial display overlays ($600+) that use an IR matrix and simply tracks where the finger breaks the IR beam and assigns the X/Y coordinate on the screen. It connects using a regular USB cable right into the PC. The USB provides power and input. I like the idea of this as I would simply use it for simple touch applications like web surfing or perhaps a kids painting program. It claims to support 100+ mulittouch inputs. Any idea on the program used or what could be used for reading the IR matrix? I grasp the hardware concept.. IR beams travel vertically and horizontally with an IR receiver on the opposite site of the frame. For example the IR LEDs would be at the top and the left where the IR receiver would be on the bottom and the right. I believe I can build the frame overlay, but I"m stuck on the software portion. I should mention I am running Ubuntu 17.1. I should mention the table has an app controlled Arduino relay setup underneath for a motorized gun drawer and lighting. I appreciate any input you have, or anyone here for that matter. Thanks in advance!

This is an awesome and insanely detailed set of instructions! I"m currently planning to build something like it, but wanted to ask a few questions: How much pressure is required for this setup to register a touch? I ask because I"d like to be able to place other objects on the table, not just fingers. For example, place a ruler on the table for use as a straight edge in a drawing program or place game pieces on the table for a digital board game. Is your approach able to recognize lightweight objects like this? An alternative approach I"m considering is using computer vision to recognize fiducials on the underside of objects set on the screen. Could this be incorporated into this set up? Would you be willing to point me in the direction of more such resources that I could read (Googling only gets me so far...)?

As for your question, not a lot of pressure is required assuming that you keep your protective layers thin. My approach can recognize fiducials, but a bit of extra coding will be required. With that, though, you"d be able to make objects interact with the table.

No. Using touch frames, you forfeit being able to do fiducials. We did not use a touch frame, we built our own table by generating IR with other sources and capturing with a modded PS Eye0

So, I"m wondering if the cameras have anything to do with the height of the table. I"m building it in my basement and the stairwell to the basement is really narrow, so if I want to move it later I"d like it to be somewhat portable. If I got lots of little lenses could I array them to the point where I could bring the height down to something less than a foot, like the size of the frame of the tv itself?0

CCV includes some functionality for camera stitching. Depends on the size of your screen, but with simple geometry, you could bring down the size considerably.0

but I have a question! Can i use my laptop or desktop screen to create something of this nature and can i create my own programs that will makes it look awesome??

Yes. You can code your own apps. You can also use a laptop to do this too. Think about it as a fancier over-sized track-pad with the ability to display. That"s all these tables do.0

I have a similar project I"m about to start, I"m going to be using a Rasberry Pi3 as the source of OS but obviously I"ll still need a power source is there any recommended power banks I can stick to the underside of the table?

Good job jamal_7lna!!...i am doing college project based on this where i have to interface the touch table cpu with my microcontroller wireless mode,could you shed some light thank you! :)

IR wouldn"t be a problem in terms of eye safety or EM radiation exposure. You"d be good. You can use capacitive, but you"d be compromising on response time, fiducial usage, and touch-point limit. If you really want to do something for commercial, capacitive may be your best bet tho (only because of return on investment). The table I built here is for hobbyists. The gold-standard nowadays uses ir emitters and sensors in an array format to increase response. Using this guide for building a commercial system (or any on the internet right now) won"t get you anywhere. I encourage you to read up on detectors and electronics systems. If you could get something made with an OLED type screen and a camera/detector array, you"d hit a gold mine. Think about it: Folding touch tables!More CommentsPost Comment
