LCD panels of broken laptops or old TVs can easily be turned into multifunctional displays. You can give them analog and digital inputs and media player capabilities with a cheap universal controller board. As long as the panel itself is functional, you can use the V56 controller board to drive both the screen and the backlight. Reuse LCD screens as media players, video monitors or computer displays and save them from the garbage dump!

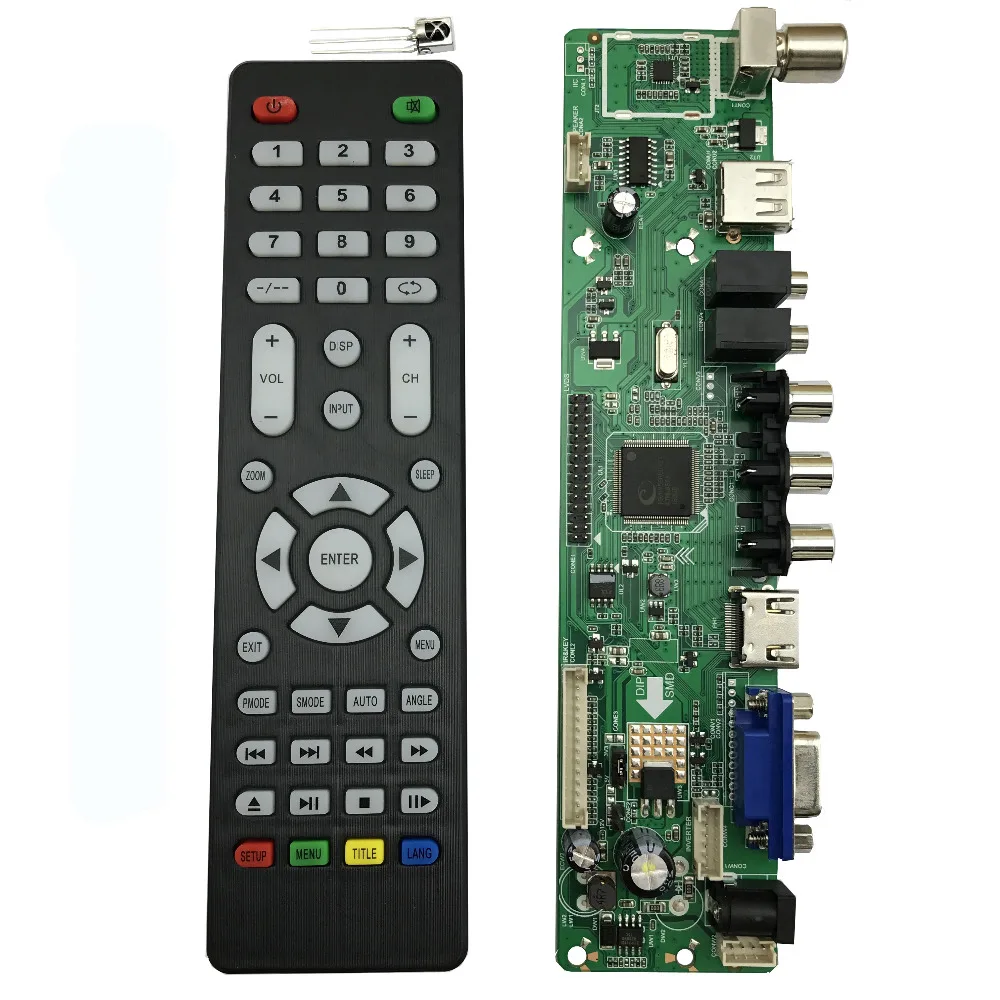

The easiest way to repurpose your LCD panel is by using a V56 controller kit that comes with all the parts that you need. I tested the V56 Universal LCD TV Controller Driver Board from Banggood It supports most LVDS panels with resolutions up to 1920 x 1080 pixels.  It comes with the following parts:

First of all, remove the LCD screen from its housing. In my case, it was an old laptop screen, so I detached the lid from the laptop and removed the plastic housing from the screen.

According to the specifications you looked up in the previous step, you need to set the voltage jumper on the controller board. There are 3 options: 3.3 volts, 5 volts and 12 volts. Make sure you set the right voltage, or else the magic smoke might escape!

Look for the file that matches your screen’s model number and resolution. If the model is not listed, then choose the “general” type for that resolution

The power LED should be blinking BLUE for a couple of times while it’s loading the new firmware. If it doesn’t upload the firmware, you should try renaming the file from “LAMV45R.bin” to “LAMV56.bin” (remove the R)

By continuing to use AliExpress you accept our use of cookies (view more on our Privacy Policy). You can adjust your Cookie Preferences at the bottom of this page.

This website is using a security service to protect itself from online attacks. The action you just performed triggered the security solution. There are several actions that could trigger this block including submitting a certain word or phrase, a SQL command or malformed data.

USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb),                                                 Picture (Jpg, jpeg, bmp, png), Text (text)

It continues to flash and never stop. This is normal, just wait about 1 minute, this means that the update is complete. Then turn off and turn off the u-disk

Download your required software and then extract it you will get the folder. Now copy the files to USB or load with Programmer. For More Detail about the download process, watch the video Click Here

A controller board is a piece in an electrical circuit that interfaces with a peripheral object by connecting the computer to it. The connection may be with other computer parts, such as the memory controller, or with an external device, like a mouse, that acts as a peripheral controller for an operation of the original device.

The LCD controller board is often called the Analog/Digital (A/D) board. As a type of hardware processor, it allows for various video source inputs to be connected, selected, and displayed on the LCD screen. It does this by converting the different video input signals into a format manageable by the LCD panel.

In conjunction with the LCD controller, the LCD driver is a form of software that is the interface of and dependent on the controller piece. Combined, the two form an LCD controller driver board. As the controller connects the computer to the operating system (OS), the driver facilitates that communication. Though there is typically just one display controller per LCD, there can be added drivers to extend the reach of the drive to further segments of the LCD.

To generalize the process, the LCD controller/driver adjusts the input signal, scaling resolution if needed, and then outputs the signal for the LCD monitor to use. Some of these output interfaces are low-voltage differential signaling (LVDS), SPI, I2C, and Parallel.

In most LCD controller/driver boards, there are two other input/output systems. Both these systems, however, are two-way pathways. One involves controlling and monitoring options, such as controls for brightness, image, and color using the on-screen display (OSD) control panel. The other is for communication via connections like Ethernet, Bluetooth, or IP.

With modern developments, touch screen devices have become much more prominent, and so the touchscreen controller has as well. There are two types of touchscreens: the resistive one that measures pressure and the capacitive one that reads touch. In both of these, there are sensors that detect the touch signal which then transmit the signal data to the controller. The controller then processes the command for the OS.

To delve deeper into the details, consider the previously mentioned input signals. There are a variety of signals that LCD technology processes, such as VGA, HDMI, DVI, and DisplayPort. These computer display standards vary in format and characteristics like aspect ratio, display size, display resolution, color depth, and refresh rate. One of the biggest differences between these standards is their usage of analog signals or digital signals.

In an analog signal, the signal is continuous, but in digital, they are discrete values, typically of 0 and 1. Digital signals have become the most used, as they can more easily carry information and have better quality maintenance; if the analog signal is used and unnecessary information is present, it is impossible to remove it due to the continuous nature of the analog signal. In order to make that switch to digital signals, converters are used to replacethe real numbers of the analog sequence with a set of discrete values.

The VGA, short for video graphic array, standard is one of the most popular analog-based technologies. In recent years, however, the VGA interface has been overshadowed by interfaces like high definition multimedia interfaces, better known as HDMI, which has become a de facto standard for digital signal transmissions.

The HDMI is a combination of digital audio and digital video transmission. There are many HDMI connectors, such as the standard, dual-link, and micro. These connectors are what the input signal travels through to reach the LCD controller and to direct what to display.

The DVI (Digital Visual Interface) offers both analog signals, digital signals, or a combination of the two. Like the HDMI, it has various connector types for different signal types.

When crossing interfaces, we use adapters to bridge the differences between signals. The DVI VGA adapter is relatively inexpensive due to how compatible the two are. The HDMI is also very compatible with the DVI, making the HDMI DVI adapter quite simple.

The VGA to HDMI adapter, however, must overcome greater differences, as they are not naturally as compatible as each were with DVI. Not only are there differences in the analog/digital signals, but also the VGA only uses video interface, whereas the HDMI uses both audio and video. A cable and an adapter are needed to connect the two devices.

And last from the list of examples of input signals is the DisplayPort. It is similar to HDMI in its purpose to replace outdated VGA and DVI as well as its transmission of audio and video through its interface. The DisplayPort does not have as much variation in cables and connectors as the HDMI, with only one cable and two types of connectors. From the DisplayPort, there is a growing technology called the embedded DisplayPort interface, or eDP interface. LCD manufacturers have begun to gravitate towards this interface due to its fewer connections, smaller size, and ability to quickly transmit high quality displays.

Bringing the subject back to LCD controllers, with the various types of computer display standards, the video signal inputs can be a challenge to accommodate and translate for the LCD panel, but with the help of adapters and the growth of these standard types, displays continue to become faster and develop with greater resolutions.

CNDis the best choice for LCD / LED main board solutions, and Open frame Touch Monitor Solutions, Android board Solutions, with over 12 years professional experiences both in hardware and software design, we provide one-stand services for both hardware and software. and CND has gained very good reputation during cooperation with biggest clients from financial , rail transit, and industrial etc.Quality is our culture, Time is gold, Service is our soul, to be with us your business is safe, your money is safechoose CND, choose a mutual win-win partner.

However, this "new" V56, there is no support for most popular laptop"s screens, like for example: 1280x800_SI6L, 1600x900_DO6L , 1920x1080_DO6L and many more etc. etc. Anyway, there is way to made them work, for example for screen 1280x800_SI6L use firmware "1280x800" and "SI8L" and then, if still not working, in "Service Menu" change LVDS MAP value, that way screen works well as SI6L . The same can be done for other resolutions and LVDS signal types, as described

There are also signals that some new V56 controllers, rejects LAMV56.bin file and do not want to program it. In such case, add letter "R" in file name, like that - LAMV56R.bin, such file will be programmed well. This character "R" add for first time reprogramming only, after successful first time controller reprogram, you can use regular LAMV56.bin files without "R" for next screens.

So, always consider and think twice, before buy any board, choose seller fully supporting latest firmware files for his board, if he is not - simply DO NOT buy, because you will have useless piece of junk.

Programming is very simple, we must choose proper .bin file and copy it to USB pen-drive at root directory, plug pen-drive into USB, then plug power cord, status LED will made some flashes, first slower and at end faster, and software upgrade is done, you will see picture on LCD screen.

Attention: Sometimes, when playing with firmware, if there be power cut/brake during programming and flash will not finish programming, than the board become dead.

Upgrade to newest version firmware on you device, v56 universal lcd tv controller driver board firmware download update you current version firmware to latest version, download newest firmware.

Step 2: Downlosd the file and open, find your screen resolution and screen model number.copy it to your U disc.(If you can’t find your screen model numer in the folder, you can copy anyone to try, if not suitable ,try another one)

T.V56.03 Firmware Free Download: Hi Guys This is Anees Imran Technician. Many Friends have requested us for T.V56.03 Firmware. So now I am uploading this firmware for all the friends to download for free. Here you can get all resolutions of T.V56.03 Firmware in all remotes like General Remote, Samsung Remote, Sony Remote and LG remote and more. These all firmware resolution files are tested and USB updateable. It means you can update them using the USB Disk Drive.

Friends, This post is about T.V56.03 Universal LED TV Board Firmware/Software, Schematics/Circuit Diagram, Datasheet PDF and Service mode. Today We will give you T.V56.03 Firmware, we are also telling you how to download this firmware, T.V56.03 Service Mode, and T.V56.03 Schematic Diagram. So guys get ready for all the magic. We are starting here. We are providing this firmware for free, so please guys use to install this firmware if you have proper knowledge about it. Otherwise, you may be lost your mainboard. We will not respond in this way.

Soft4ledis the best platform for technicians and repairers. Because here we provide Electronics Repair Tutorials, Firmware/Software Bins, Schematics/Circuit Diagrams, Datasheets, Pinouts, PDF files, eBooks for LCD/LED TVs, Mobile Phones, Computers, Laptops, Satellite Receivers, and more Electronics Equipments. We provide these all to help the technicians all around the world. So guys if you are getting help from this site then please share also with others on Social media like Telegrams, Facebook and WhatsApp groups.

Have you downloaded the exact resolution for your Display Panel of T.V56.03 Firmware? Well if you have downloaded and if you have to install or update it then I will tell you how to do it. So it is very easy to install or update T.V56.03 Firmware if you follow all the steps carefully. We are providing here some steps, please follow them one by one and install the firmware easily.

Do you want to get T.V56.03 Schematic Diagram for free? If yes then here is available free for you. Please Click Here to find the schematics Diagram for your Universal LED TV Board.

If you want to enter in T.V56.03 Service mode then we are showing here the code. Using this code you can enter the Service/Factory mode of T.V56.03 LED TV Board. Please do not disturb any setting in the Service mode, if you have not the knowledge about that. Press the following in sequence on the remote.

3. Press the {9} {3} {0} {1} buttons on the remote. o {OK} button will access/navigate through modes o {VOL +}, {VOL-}, {P+} & {P-} buttons move through options and change values

The Controller/Driver Board is used to OLED/LCD display and work as the main display board. It ensures a panel display works properly with input connections such as VGA, HDMI, DVI, or DP (Display Port).

Panox Display supplies Controller/Driver boards that work with all of the well-known OLED/LCD panel brands. We provide an Controller/Driver board with cable sets based on the demands of your panel display, with custom firmware to ensure your panel display works as it should do.

The functions of our boards include, but are not limited to, adjustment of brightness, sound output, touch interface, extra data transmission, and gyroscope.

Complete industrial and digital signage display solutions such as display-kits or total solution touch displays with touchscreen directly integrated in the manufacturing process.

After all done, use the remote control to turn on the tv (after burning the firmware, the mainbaord is on standby, need the remote control to turn on the tv)

Burning method: to record the screen program in the USB flash disk, USB flash disk inserted into board, plug in the keypad, electricity; About after a few seconds, press the keypad lights start alternating red and green flash, flash lights began to write programs (please do not power), in the slow flash first, after a slow flash flash, will speed up the quick flash, long after the last until the lights stop flashing is the program written, electricity burn with USB flash disk to complete the program.

Not only USB interface can be used to upgrade programs, but also can use to play video/music/photo (V29 without this function), basically formats are supported. You can also set a boot display pictures or LOGO.

3. Connected to the keypad, electricity again, until you see by the indicator lights on the keypad after flashing in red and green, until after the indicator flashing, unplug the power, then pull out USB Flash disk, afresh power on. (Note that write programs do not power outages, crashing won"t be able to use)
