LCD panels of broken laptops or old TVs can easily be turned into multifunctional displays. You can give them analog and digital inputs and media player capabilities with a cheap universal controller board. As long as the panel itself is functional, you can use the V56 controller board to drive both the screen and the backlight. Reuse LCD screens as media players, video monitors or computer displays and save them from the garbage dump!

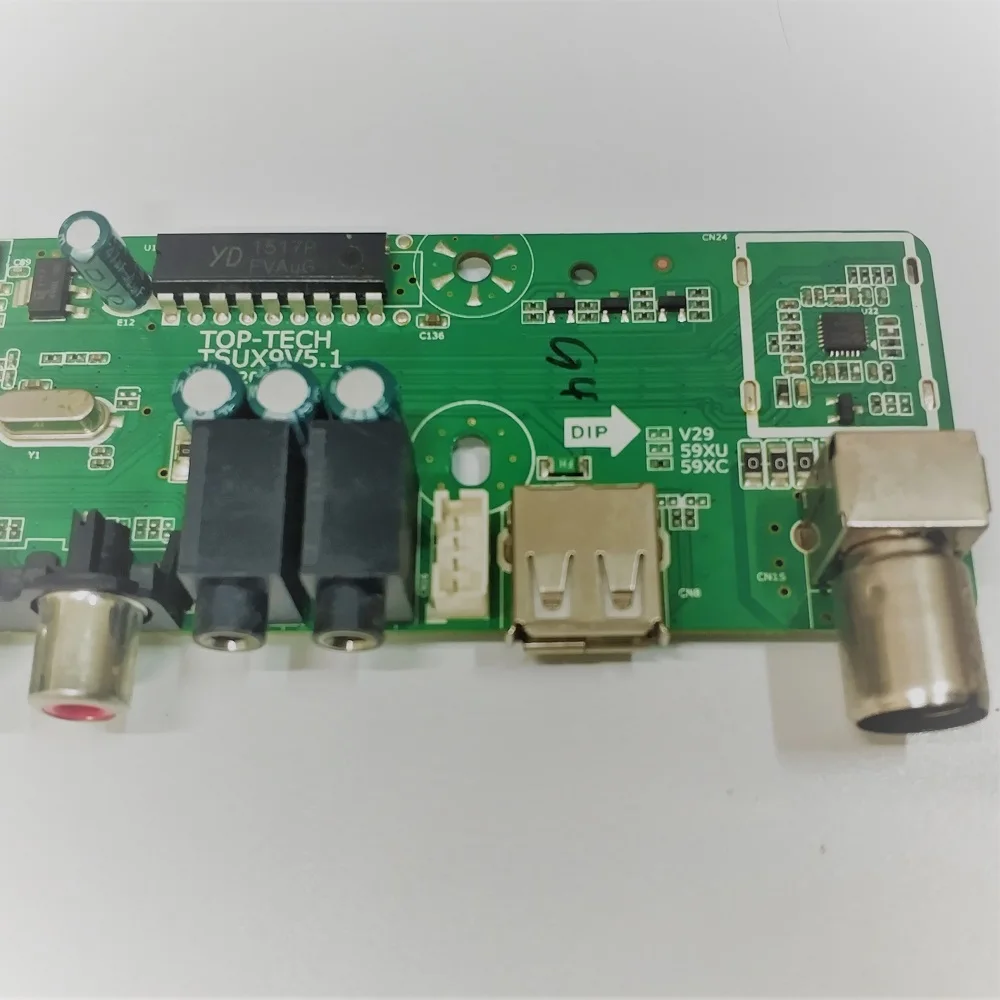

The easiest way to repurpose your LCD panel is by using a V56 controller kit that comes with all the parts that you need. I tested the V56 Universal LCD TV Controller Driver Board from Banggood It supports most LVDS panels with resolutions up to 1920 x 1080 pixels.  It comes with the following parts:

First of all, remove the LCD screen from its housing. In my case, it was an old laptop screen, so I detached the lid from the laptop and removed the plastic housing from the screen.

According to the specifications you looked up in the previous step, you need to set the voltage jumper on the controller board. There are 3 options: 3.3 volts, 5 volts and 12 volts. Make sure you set the right voltage, or else the magic smoke might escape!

Look for the file that matches your screen’s model number and resolution. If the model is not listed, then choose the “general” type for that resolution

The power LED should be blinking BLUE for a couple of times while it’s loading the new firmware. If it doesn’t upload the firmware, you should try renaming the file from “LAMV45R.bin” to “LAMV56.bin” (remove the R)

Burning method: to record the screen program in the USB flash disk, USB flash disk inserted into board, plug in the keypad, electricity; About after a few seconds, press the keypad lights start alternating red and green flash, flash lights began to write programs (please do not power), light in the slow flash first, after a slow flash flash, will speed up the quick flash, long after the last until the lights stop flashing light is the program written, electricity burn with USB flash disk to complete the program.

Not only USB interface can be used to upgrade programs, but also can use to play video, basically formats are supported. You can also set a boot display pictures or LOGO

3. Connected to the keypad, electricity again, until you see by the indicator lights on the keypad after flashing in red and green, until after the indicator light flashing, unplug the power, then pull out USB Flash disk, afresh power on.(Note that write programs do not power outages, crashing won"t be able to use)
