If you are using this LCD with a 5V device such as an Arduino, be aware that it doesn"t work if WITHOUT level shifting to 3.3v logic. Please use level shifters from 5V to 3.3V, it will work then.

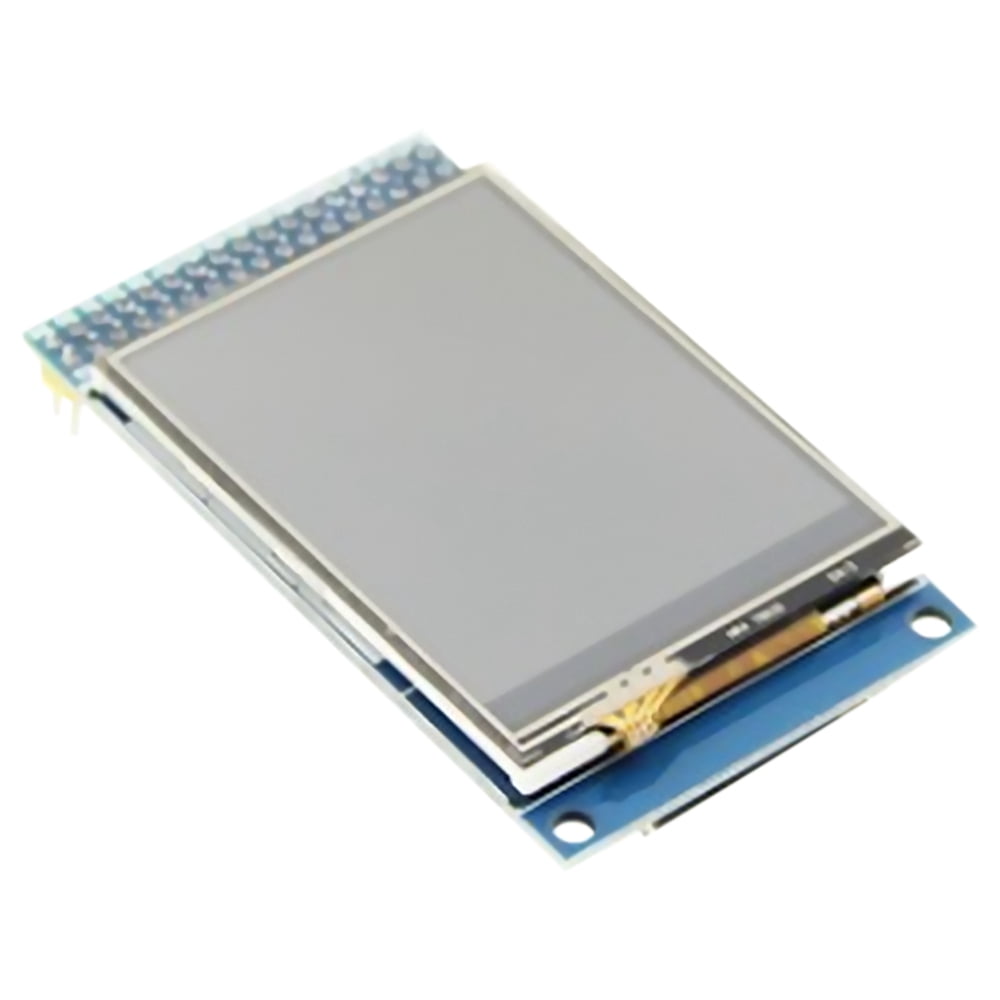

This 3.2 inch TFT LCD Display module has a resolution of 320 x 240 pixels. The module includes Resistive Touch Screen Panel. SSD1289 is used to control LCD and the touch panel is controlled by XPT2046.The module can be interfaced with any MCU like STM32, AVR and 8051 using the 40 pins breakout header that Include touch panel interface. The module can be driven in 16bit data interface mode.

This LCD Module can be directly plugged into Arduino board using "TFT LCD Adapter Shield for Arduino" shield. The LCD on this module has a has wide viewing angle and a decent contrast ratio.

The 1.8 inch TFT LCD Module Display 128×160 ST7735R SD Card AVR STM32 ARM  is a single-chip controller/driver for 262K-color, graphic type TFT-LCD. It consists of 396 source lines and 162 gate line driving circuits. This chip is capable of connecting directly to an external

As a 2inch IPS display module with a resolution of 240 * 320, it uses an SPI interface for communication. The LCD has an internal controller with basic functions, which can be used to draw points, lines, circles, and rectangles, and display English, Chinese as well as pictures.

The 2inch LCD uses the PH2.0 8PIN interface, which can be connected to the Raspberry Pi according to the above table: (Please connect according to the pin definition table. The color of the wiring in the picture is for reference only, and the actual color shall prevail.)

The example we provide is based on STM32F103RBT6, and the connection method provided is also the corresponding pin of STM32F103RBT6. If you need to transplant the program, please connect according to the actual pin.

The LCD supports 12-bit, 16-bit, and 18-bit input color formats per pixel, namely RGB444, RGB565, and RGB666 three color formats, this demo uses RGB565 color format, which is also a commonly used RGB format.

For most LCD controllers, the communication mode of the controller can be configured, usually with an 8080 parallel interface, three-wire SPI, four-wire SPI, and other communication methods. This LCD uses a four-wire SPI communication interface, which can greatly save the GPIO port, and the communication speed will be faster.

2. The module_init() function is automatically called in the INIT () initializer on the LCD, but the module_exit() function needs to be called by itself

Python has an image library PIL official library link, it do not need to write code from the logical layer like C, can directly call to the image library for image processing. The following will take 1.54inch LCD as an example, we provide a brief description for the demo.

This 7 inch TFT LCD display module has super stability. The module uses the driving scheme of CPLD + SDRAM, which far more superior than SSD1963 and RA8875. Solve the problem of bad immunity, death and white screen from SSD1963.

This 7 inch TFT LCD display module has good simplicity. Not need an initializer, what have to do is reset. You can use 5 register command to control it. Greatly thin the code, reducing the debugging difficult and error rate.

This 7 inch TFT LCD display module has good speed. The respond speed of W/R cycle can be up to 200ns. The fastest full screen refresh rate is 13 frames. 8M SDRAM correspond to 8 pages display cache. The display registers and RW one is set independently. Display page and RW page also can be in which data can be written in the background. Just using one command to change screenful display data instantly. Far more superior than RA8875.
