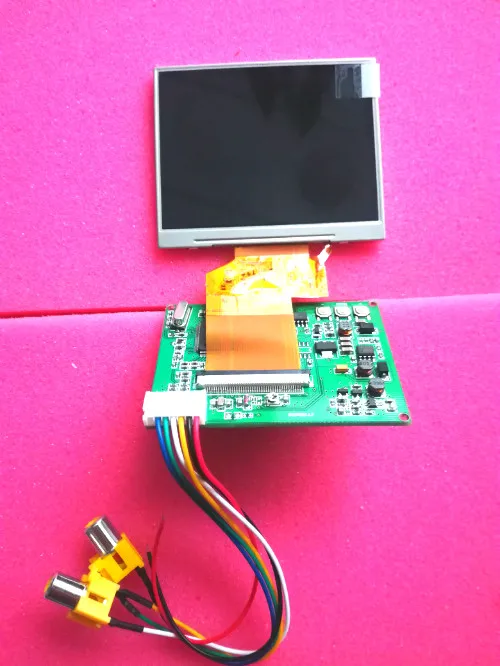

Raspberry Pi NTSC/PAL (Television) TFT Display - 3.5" Diagonalis a TFT display that can be used with yourRaspberry Piboard. The visible display measures only 3.5" (8.9cm) diagonal, the TFT comes with a NTSC/PAL driver board. The display is very easy to use - simply connect 6-15VDC to the red (+) and black (-) wires, then connect a composite video source to the RCA connectors.

Yes, this is an adorable small television! The visible display measures only 4.3" (11cm) diagonal, the TFT comes with a NTSC/PAL driver board, enclosure and stand. The display is very easy to use - simply connect 12VDC to the 2.1mm center-positive DC jack (or use the cable and connect to the red and black wires), then connect a composite video source to one of the RCA cable. Voila, a television display! There"s three little buttons in the back that let you enter a menu system for adjusting brightness, color and contrast. The display has two composite plugs, AV1 and AV2. AV1 is the default and if AV2 goes "live" it replaces AV1.

To demonstrate it, we took some photos with the display connected to a Raspberry Pi, but it will also work connected to any analog composite-video output such as a YBox or Propeller w/Video out. It will not work with a device that only outputs VGA, HDMI or any other digital video signal.

A power adapter is not included you will want one of our 9VDC 1 Amp or 12VDC 1 Amp adapters or provide one of your own. Even though the display specifies 12VDC we found it works from 6V to 12V DC without problems.

Display brilliant colors on the Displaytech 3.5 inch TFT LCD module! This LCD display has 320 x 240 RGB resolution and uses the NewVision NV3035C single chip digital driver. The TFT driver IC supports 16M colors allowing for a range of hues to be displayed and can also support up to 22 different types of input video formats within RGB, CCIR656, and CCIR601 video formats. The 3.5” TFT is available with a touch screen panel in either resistive (single-finger or stylus pressure) or capacitive (five-finger, multi-gesture) touchscreen technology.

Description The a 8.80cm diagonal active matrix TFT-LCD panel addressed by low temperature polycrystalline silicon transistors with built-in peripheral driving circuitry. This panel provides fullcolor representation for NTSC and PAL systems. In addition, RGB dots are arranged in a delta pattern that provides smooth picture quality without fixed color patterns compared to vertical stripe and mosaic patterns. Features Number of active dots: 8.80cm (3.5 Type) in diagonal Horizontal resolution: 440 TV lines Optical transmittance: 8.2% (typ.) High contrast ratio with normally white mode: 200 (typ.) Built-in H and V driving circuitry (built-in input level conversion circuit, 3V drive possible) Low voltage, low power consumption 12V drive: 60mW (typ.) Smooth pictures with a RGB delta arrangement Supports NTSC/PAL Built-in picture quality improvement circuit Up/down and/or right/left inverse display function 16:9 screen display function AR (anti-reflectance) surface treatment provides an easy-to-see display even outdoors Dirt-resistant surface treatment Narrow frame High color reproductivity Element Structure Active matrix TFT-LCD panel with built-in peripheral driving circuitry using low temperature polycrystalline silicon transistors Number of pixels Total number of dots : 884 (H) � 230 (V) = 203,320 Number of active dots : 880 (H) � 228 (V) = 200,640 Panel dimensions Package dimensions : 78.8 (W) � 63.3 (D) � 2.2 (H) (mm) Effective display dimensions : 70.400 (H) � 52.725 (V) (mm) Applications LCD monitors, etc.
