1. Data display:It shows speed, total mileage, single mileage, stage cumulative mileage and power-assist stalls, riding time, battery charge status and other cycling parameters;

4. Parameter settings:with a number of user parameter setting functions, motor parameters, velocity measurement parameters, speed-limit parameters, power parameters, power-assist control parameters, the minimum controller voltage and maximum current parameters and other operating models for settings adjustment ;

7. Night driving:With LCD back-light display and a headlight switch control function, the meter back-light and headlights can be turned on during at night;

9. Use five-line of digital communication, the instrument has good compatibility and interchangeability, different instruments can be conducted the data exchanges and parameters copy directly;

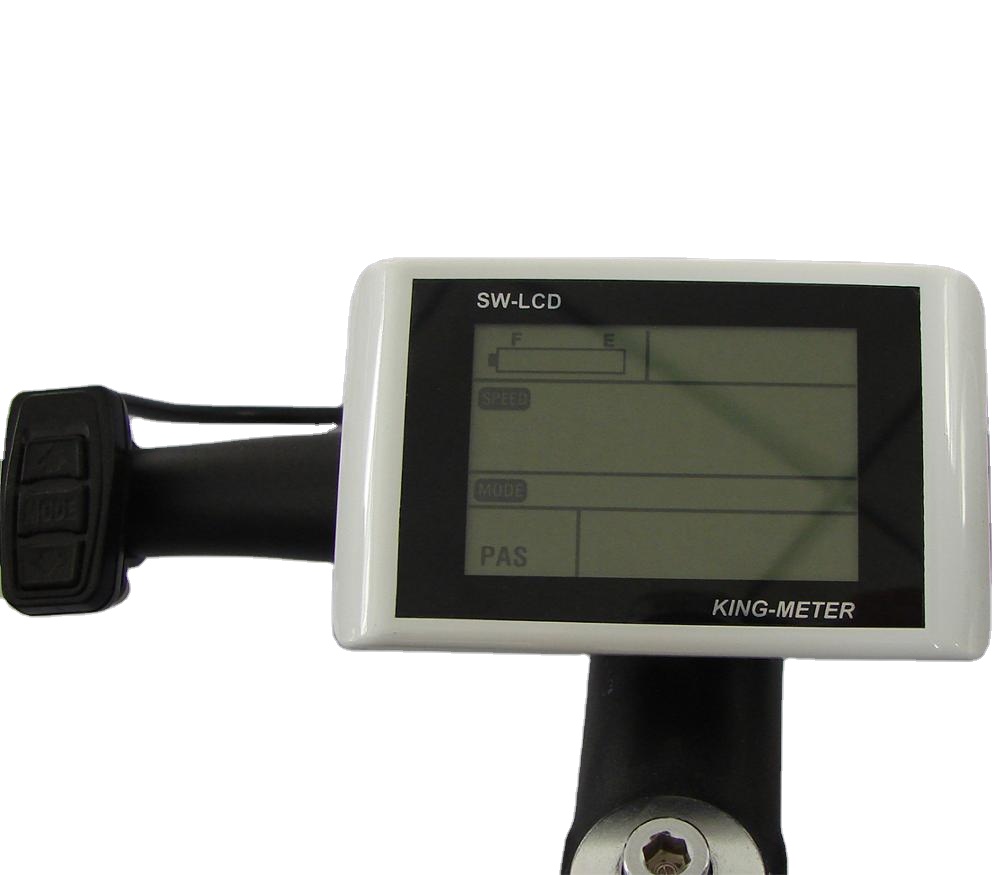

SW-LCD housing material: PC. And the color of housing is white or black. Working temperature scope: -20℃—+60℃, the shell material can ensure normal use and good mechanical performance of the products.

Display Figures: Display content: battery capacity, motor power ratio, riding speed, riding distance, power, PUSH cruise control, and error code display of the electronic control system.

Attention for Using: Ride your bike in a safe way. Don’t hit or knock the display. Keep away from the bad environments when use, such as downpour, large snowflakes and solarization. Try not to use in under-voltage condition. The screen will get dark along with the temperature reduction when temperature below -10℃. The screen will return to normal when the temperature rises again.

[{"id":41131757830323,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"SW LCD King-Meter Display","public_title":null,"options":["Default Title"],"price":19999,"weight":0,"compare_at_price":null,"inventory_quantity":9,"inventory_management":"shopify","inventory_policy":"deny","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}]

[{"id":41143524982963,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"J-LCD King-Meter Display","public_title":null,"options":["Default Title"],"price":16999,"weight":0,"compare_at_price":null,"inventory_quantity":7,"inventory_management":"shopify","inventory_policy":"deny","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}]

KM6S-LCD housing material is made from PC plastic with a working temperature range of -20℃ to 60℃. The color can be either white or black. This material ensures the good mechanical performance of the product.

KM6S-LCD is equipped with a 30-button unit and an N3 button. This button is suitable for both left and right-hand operations. Button dimensions are as follows (mm):

Fix the display and 30-Button unit or N3-Button unit on the handlebar and adjust it to an appropriate visual angle. Match display connector with controller connector.

Long press “MODE” to power on the display, which also powers the controller and unlocks the power key of the controller. At the working state, long press “MODE” to power off the display. After shutting down, the display does not use the battery and the current leak is less than 1uA.

After the display is on, it shows real-time speed as default. Long press MODE&DOWN to switch the showing. It is as below in turn: real-time speed (Km/h), average speed (Km/h), max speed (Km/h), and real-time speed (Km/h)

After the display is powered on, it shows the single trip distance as default. Short press the MODE button, then switches to other parameters. It is as below in turn: single trip, ODO, single trip time.

Short press UP and DOWN, then switch the PAS level and change the outputting power of the motor. The range is level 1- level 5, with level 1 as default.

The max speed as the default of the display is 25Km/h. changing this value can set the highest speed. When E-bike runs over the setting, the controller will cut off the power to the motor to ensure safety.

At setting parameter state, short press MODE to confirm and enter into the next setting. Long press MODE and then save and exit. Long press DOWN and then abandons the current operation, exit from setting, and does not save current setting data.

The display is with a USB port, used for mobiles, outputting 5VDC/500mA. When the display is shut, connect the mobile and USB port, then the displays show USB every 3 seconds to indicate the working state. If you shut the display at this moment, the USB still works. Charging stops at any time you plug out your mobile phone.

A: That means the abnormal communication between display and controller. Please try the suggestions below. If not helpful, please send the display to retailers or contact us:

This operating instruction is general-purpose software (version V1.1). Some of the versions of the e-bike LCD may have slight differences, depending on the specialized display.
