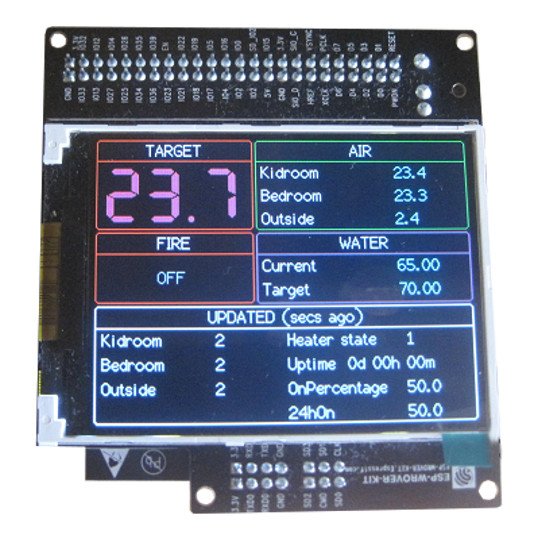

The ESP-WROVER-KIT comes with an ESP32-WROVER-E module by default. This board features support for an LCD and MicroSD card. The I/O pins have been broken out from the ESP32-WROVER-E for easy extension. The board carries an advanced multi-protocol USB bridge (the FTDI FT2232HL), enabling developers to use JTAG directly to debug the ESP32 module through the USB interface. The development board makes secondary development easy and cost-effective.

ESP32-PICO-KIT is Espressif"s smallest development board, as it fits into a mini breadboard. It is fully functional with the minimum number of discrete components, while it has all the ESP32 pins exposed.

ESP32-PICO-V3-ZERO-DevKit is a development board based on ESP32-PICO-V3-ZERO (ACK) module. Its pin layout is compatible with that of Arduino Zero development board, therefore, this ESP32-PICO-V3-ZERO-DevKit can directly plug in Arduino Zero board, or connect with other host boards and peripherals via jumper.

ESP32-PICO-DevKitM-2 is a ESP32-PICO-MINI-02-based development board produced by Espressif. Most of the I/O pins are broken out to the pin headers on both sides for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-DevKitM-1 on a breadboard.

ESP-EYE is a development board for image recognition and audio processing, which can be used in various AIoT applications. It features an ESP32 chip, a 2-Megapixel camera and a microphone. ESP-EYE offers plenty of storage, with an 8 MB PSRAM and a 4 MB flash. It also supports image transmission via Wi-Fi and debugging through a Micro-USB port.

The ESP32-LyraT development board is designed for the speech and voice recognition market. It integrates the ESP32-WROVER-E module, which includes a dual-core processor and 4.5 MB of operating memory. With this development board, only few peripheral devices are required for implementing a highly-integrated audio solution.

ESP32-LyraT-Mini is a lightweight audio development board based on ESP32-WROVER-E, which implements AEC, AGC, NS WWE (wake word engine) and other audio signal processing technologies.

ESP32-LyraTD-MSC, one of Espressif’s Audio Development Boards, is an Acoustic Echo Cancelation (AEC) solution supporting voice recognition, near-field and far-field voice wake-up. Audio files in the format of AAC, FLAC, OPUS and OGG can be decoded and output without quality loss. It also supports connection to Baidu"s DuerOS and Amazon"s Alexa Voice Service (AVS).

ESP32-LyraTD-SYNA is one of Espressif’s Audio Development Board based on ESP32 MCU and Synaptics DSP. It is an Acoustic Echo Cancelation (AEC) solution, supporting voice recognition and voice wake-up. It also supports connection to Amazon’s AVS (Alexa Voice Service), Google"s Dialogflow and Google"s GVA (Google Voice Assistant).

ESP32-LyraTD-DSPG is based on ESP32-WROVER-B, a BT/Wi-Fi combo module, and a digital signal processor (DSP) that features a three-microphone array for noise reduction, echo cancellation, beamforming and wake-word detection. ESP32-LyraTD-DSPG is integrated with peripheral devices and consists of two development boards. The sub board mainly consists of the microphone array, function keys and LEDs. The main board is integrated with power management, Wi-Fi and audio modules like dsp, codec and power amplifier. The two boards can be connected with FPC.

ESP32-Vaquita-DSPG is Espressif’s new Alexa built-in solution powered by ESP32 and DSP Group’s DBMD5P audio SoC. With a 2-Mic array which allows for a 360-degree pick-up, the solution provides a superior far-field voice recognition performance. The new ESP32-Vaquita-DSPG development kit is a turnkey solution for easily creating Alexa built-in connected devices that provide out-of-the-box voice enablement and AWS-IoT cloud connectivity.

ESP32-Korvo is an ESP32-based audio development board with microphone array, together with Espressif"s speech recognition SDK ESP-Skainet, ESP32-Korvo is suitable for far-field speech recognition applications with low power consumption. ESP32-Korvo is composed of two boards connected by an FPC cable: the main board contains ESP32-WROVER-E module, power port, micro SD card slot, earphone and speaker connectors; the sub board contains microphone array, function buttons and LEDs.

ESP32-Korvo-DU1906 is an Espressif audio development board with an ESP32-DU1906 module as its core. This board is designed not only to provide advanced end-to-end audio solutions with highly efficient integrated AI capabilities as well as a Cloud + End integrated device-level AIoT platform, significantly lowering the barrier to entry for IoT devices to AI capability.

ESP32-LCD-Kit is an HMI (Human Machine Interface) development board based on ESP32-DevKitC (need to purchase if you didn’t have one). ESP32-LCDKit is integrated with such peripherals as SD-Card, DAC-Audio, and can be connected an external display. The board is mainly used for HMI-related development and evaluation. Development board reserved screen interface type: SPI serial interface, 8-bit parallel interface, 16-bit parallel interface.

ESP32-Ethernet-Kit is an ESP32-based development board produced by Espressif. It consists of two development boards, the Ethernet board A and the PoE board B, The Ethernet board contains Bluetooth / Wi-Fi dual-mode ESP32-WROVER-E module and IP101GRI, a Single Port 10/100 Fast Ethernet Transceiver (PHY). The PoE board (B) provides power over Ethernet functionality. The A board can work independently, without the board B installed.

lcd display esp32 in stock

M5StickC is a mini M5Stack, powered by ESP32. It is a portable, easy-to-use, open source, IoT development board. What it can do? This tiny block is able to realize your idea, enlighten your creativity, and help with your IoT prototyping in a very short time. It will take away a lot of pains from the development process.M5stickC is one of the core devices in M5Stack product series.

lcd display esp32 in stock

The content is intended to be updated from time to time, I will add more details if I found new display or library update. You can also help me enrich the content by leaving comments below.

You can run various IoT projects prefectly without any display. But not all IoT project only feed data in single direction (IoT to server), some IoT also gather real time information from the server for displaying.

My previous instructables, ESP32 Photo Clock is am example, it download a current minute photo from the Internet, decode the JPEG photo and display it.

Many Arduino projects use monochrome display, one of the reason is the limited resources of a MCU. 320 pixels width, 240 pixels height and 8 bits color for each RGB color channel means 230 KB for each full screen picture. But normal Arduino (ATmega328) only have 32 KB flash and it is time consuming (over a second) to read data from SD card and draw it to the color display.

ESP32 have changed the game! It have much faster processing power (16 MHz vs 240 MHz dual core), much more RAM (2 KB vs over 200 KB) and much more flash (32 KB vs 4 MB), so it is capable to utilize more color and higher resolution image for displaying. At the same time it is capable to do some RAM hungry process such as Animated GIF, JPEG or PNG file decoding, it is a very important feature for displaying information gathered from the internet.

Color display have many type of interfaces: Serial Peripheral Interface (SPI), 6-bit, 8-bit, 16-bit, 18-bit and 24-bit parallel interfaces and also NeoPixel!

SPI dominate the hobby electronics market, most likely because of fewer wire required to connect. Most display in my drawer only have SPI pins breaking out, so this instructables focus on SPI display and a few 8-bit display.

NeoPixel matrix is a very special type of color display. If you are interested in NeoPixel matrix display, here are some of my instructables using it:

There are various color display for hobby electronics: LCD, IPS LCD, OLED with different resolutions and different driver chips. LCD can have higher image density but OLED have better viewable angle, IPS LCD can have both. OLED have more power efficient for each light up pixel but may have burn-in problems. Color OLED operate in 14 V, it means you need a dedicate step-up circuit, but it is not a problem if you simply use with a break-out board. LCD in most case can direct operate in 3.3 V, the same operating voltage as ESP32, so you can consider not use break out board to make a slimmer product.

Software support on the other side also influence your selection. You can develop ESP32 program with Arduino IDE or direct use ESP-IDF. But since ESP-IDF did not have too much display library and not much display hardware supported, so I will concentrate on Arduino display libraries only.

OLED have a big advantage, the pixel only draw power if it lights up. On the other hand, LCD back light always draw full power even you are displaying a black screen. So OLED can help save some power for the project powered by a battery.

This is a 1.5" 128 x 128 color OLED, this form factor is very fit for smart-watch-like wearable project. The most barrier of select this should be the price tag is around 4 times of a normal LCD.

ST7735 is a very popular LCD driver model for the resolution 128x128 and 128x160. It may cause by its popularity, there are many manufacturer produce compatible product. However, they are not fully compatible.

Thanks for the popularity of wearable gadget, I can find more small size IPS LCD in the market this year(2018). The above picture is an 0.96" 80x160 IPS color LCD using ST7735 driver chip. As you can see in the 3rd picture, you can treat it as a 128x160 color display in code but only the middle part is actually displaying. The 4th picture is the display without breakout board, it is thin, tiny and very fit for a wearable project!

SSD1283A is 1.6" 130x130 display, it claim only consume 0.1 in sleep mode and backlight turned off. In sleep mode the last drawn screen still readable under sufficient lighting.

It is a 2.2" 176x220 color LCD. It is relatively fewer projects using this chips and resolution. It may caused by the success of its chip family brother, ILI9341 (0.2" larger in size but have near double resolution).

I think ILI9341 is the most popular LCD driver chip in the hobby electronics market. In most case it is 240x320 resolution and have many screen size from 1.7" to 3.5". Some breakout board also built-in touch screen feature.

ST7789 also a common driver chip in ESP32 community. One of the reason is ESP32 official development kit using it. As same as ILI9341, ST7789 also can drive 240x320 resolution.

This also the highest pixel density color display in my drawer. As same as normal LCD, it can direct operate in 3.3 V, so it is very good for making slim wearable device.

There are many display libraries that can support various hardware. I have picked 4 of most popular Arduino library for comparison:Adafruit GFX Family

The display speed is one of the most important thing we consider to select which library. I have chosen TFT_eSPI PDQ test for this comparison. I have made some effort to rewrite the PDQ test that can run in 4 libraries. All test will run with the same 2.8" ILI9341 LCD.

As I found TFT_eSPI is the most potential display library for ESP32 in this instructables, I have paid some effort to add support for all my display in hand. The newly added display support marked letter M in red at the above picture, here is my enhanced version:

Adafruit sell various display module in hobby electronics market and they also have very good support in software level. Their display libraries all built on a parent class called Adafruit_GFX, so I call it Adafruit GFX Family. This library generally support most Arduino hardware (also ESP32).

In Arduino Library Manager simply search "adafruit display", you can see all the family members. If you want to install it, say ILI9341, simply select "Adafruit ILI9341" and then click install. Remember also install its dependent library "Adafruit GFX Library".

This library method signature is very similar to Adafruit GFX, but it is tailor-made for ESP8266 or ESP32. I think the source code is optimised for ESP32, so the PDQ result is much faster than other libraries.

#define LOAD_GLCD // Font 1. Original Adafruit 8 pixel font needs ~1820 bytes in FLASH
#define LOAD_FONT2 // Font 2. Small 16 pixel high font, needs ~3534 bytes in FLASH, 96 characters

ESP32 + ILI9341 can run at SPI speed 40 MHz, it require some code change at library folder. The above pictures are the fine tuned result. Here are the code change summary:

ST7735 and ILI9341 are the most popular display, this 2 are better option for the beginner. You may notice LCD have a big weakness, the viewable angle, some color lost outside the viewable angle and the screen become unreadable. If you have enough budget, OLED or IPS LCD have much better viewable angle.

ILI9341 should be most valuable display for the beginner. Adafruit GFX Library should be most easy to use for the beginner, and since TFT_eSPI have very similar method signature, it is very easy to switch to a faster library later on.

OLED require 14 V to light up the pixel so it is not easy to decouple the breakout board. On the other hand, LCD (also IPS LCD) usually operate in 3.3 V, as same as the ESP32. In most case, there are only the LED control circuit required between LCD and ESP32, i.e. a transistor and few resistors. So it relatively easy to make it.

It is very important to read the data sheet first before you decide not using breakout board. The pins layout, pin pitch size, the sample circuit connection and maximum rating all you can find in data sheet. The maximum voltage is especially important, you should sticky follow the rating or you will blow your LCD. The chip can operate in 3.3 V but LED may be 2.8 - 3.0 V so it require some electronics in the middle, most data sheet have the sample circuit. You may ask your seller send a soft copy of data sheet to you or simply Google it by the model number.

My special hint: I like to soldering a FPC cable with the same pin pitch size as the LCD to help the connection with the MCU. I have used this technique in these instructables:

If you read through the data sheet of the color display, you may find most of color display can support 18 bit color depth (6 bit for each RGB channel). 18 bit color depth can have a better image quality that 16 bit color depth (5 bit in red and blue channel, 6 bit for green channel). However, only Ucglib actually run at 18 bit color depth (262,144 colors), other 3 libraries all run at 16 bit color depth (65,536 colors). It is because 18 bit color depth actually require transfer 3 bytes (24 bit) of data for each pixel, it means 50% more data require to transfer and store in memory. It is one of the reason why Ucglib run slower, but it can have a better image quality.

Thank you very much for posting this detailed review of the color display option available for "Duino users. You have saved me hours, maybe days of time wandering the web looking for information.0

Great article! Very interested in round displays. There are available round displays based on st7687s (128 * 128) and st7789 (240 * 240), but I have not found any information on practical use.

Hello! Yes, I purchased this display from keyestudio, connected it to esp32 using this library from dfrobot. It is only necessary to consider that the pinout of the display connectors differs from dfrobot and keyestudio.

I"m wanting to connect a VGA camera, the sort you find as a little module on eBay with OVPxxxx chip, to a screen such as ILxxxx family, which appears to have direct VGA input. I think it will work if I connect the camera directly with no MCU, but I"d also like to add a cross-hair to the display (for a drill targetting system). I wonder is it possible to intercept the serial video data and change individual pixels in a streaming fashion, instead of loading a whole screen into memory, changing it and passing it on? I ask because it seems to me it would need a much less powerful MCU.0

Thank you so much for such a great article. I have been trying to choose the best library to use for a project that will use either a SSD1351 or a ST7735 both being 128x128. The key to my project is to be able to dump a frame buffer in to the display and then recalculate the next frame buffer. :)

So, basically I make a reset in the beggining (read datasheet) then next I use only SPI_DAT and SPLI_CLK. If I destroy the sequence touching with an oscilloscope, the LCD stops to understand the sequence DAT/CLK and I have to make another reset.

Those 2 pins must be dedicated to the display, otherwise the display will get confused without the CS pin. One DAT/CLK to LCD and another DAT/CLK to I2C.
