20x4 lcd display with i2c interface for sale

All orders are processedwithin 24 hoursafter they are placed. Usually, we are able to ship orders the next day. Weekend orders are shipped on the following Monday. You will receive a shipping confirmation email from our system when the shipping information has been uploaded.

Generally, we will ship the orders with Free Shipping, without the minimum order amount requirement. You may check if the free shipping method is available to your country in the Delivery Area below.

All orders are processedwithin 24 hoursafter they are placed. Usually, we are able to ship orders the next day. Weekend orders are shipped on the following Monday. You will receive a shipping confirmation email from our system when the shipping information has been uploaded.

Generally, we will ship the orders with Free Shipping, without the minimum order amount requirement. You may check if the free shipping method is available to your country in the Delivery Area below.

ERM2004SYG-3 is small size 20 characters wide,4 rows character lcd module,SPLC780C controller (Industry-standard HD44780 compatible controller),6800 4/8-bit parallel interface,single led backlight with yellow green color included can be dimmed easily with a resistor or PWM,stn-lcd positive,dark blue text on the yellow green color,wide operating temperature range,rohs compliant,built in character set supports English/Japanese text, see the SPLC780C datasheet for the full character set, It"s optional for pin header connection,5V or 3.3V power supply and I2C adapter board for arduino.

Of course, we wouldn"t just leave you with a datasheet and a "good luck!".For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and Development Kit at the bottom of this page.

These displays are straightforward to use and are a great way to provide a user interface on many projects where you need more info than simple LED indicators or 7-Segment displays can provide since these are full alphanumeric displays with 4 lines of 20 characters each for a total of 80 characters which is a fair amount of info.  For an interactive display, pairing this type of display with a rotary encoder to navigate and select menu items on the display can provide a very nice user interface.

The display is composed of a 20 character x 4 line LCD display with a blue backlight and white characters.  Each of the characters are composed of a 5 x 8 dot matrix for good character representation.

The backlight intensity is not directly controllable though the I2C interface, however there is a jumper on the I2C board that supplies power to the backlight.  That jumper can be removed and a voltage applied to the header pin nearest the ‘LED’ markings on the board to provide power to the backlight separately.

The backlight can go down to about 3V before it goes out.  It is not known what the safe upper limit is for driving the LCD backlight so it is probably best not to exceed 5V by too much.  At 5V, the backlight draws about 30mA, so it should also be possible to drive it with a PWM pin off a uC to allow the display to be dimmed via software if desired.

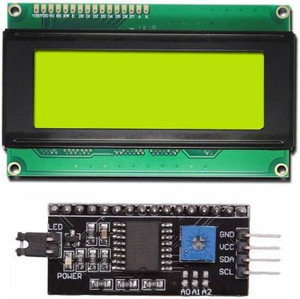

This display incorporates an I2C interface that requires only 2 pins on a uC to interface with and it has good library support to get up and running fast.   The I2C interface is a daughter board attached to the back of the LCD module.

If you need to adjust I2C address to avoid a conflict, this can be done on the I2C adapter board on the back of the module.  There are 3 address jumper locations marked A0, A1, A2.  Normally these lines are pulled high.  If you bridge these pads, it grounds that address line.  If you were to bridge all 3 to ground, the address would be 0x20.  The range of all possible addresses spans from 0x20 to 0x27

These are good quality modules and should be in the parts bin of any hobbyist.  Because of the interactivity they provide, they are both fun to play with and useful for more serious projects.

You will find the raw 20×4 displays without the I2C interface being sold, but those have a parallel bus interface that requires many pins on the microcontroller to control, so it is generally best to stick with the I2C interface version like this one.

Note that the I2C address of the module we sell is 0x27 (39 decimal) but can be adjusted if needed as explained above.  The address will be printed on the label on the bag.

This is a 20x4 Arduino compatible LCD display module with high speed I2C interface. It is able to display 20x4 characters on two lines, whitecharacterson blue background.

Generally, LCD display will run out of Arduino pin resource. It needs 6 digital pins and 2 power pin for a LCD display. If you want to build a robot project, it will be a problem with Arduino UNO and LCD display.

This I2C 20x4 LCD display module is designed for Arduino microcontroller. It is using I2C communication interface, With this I2C interface, only 2 lines (I2C) are required to display the information on any Arduino based projects. It will save at least 4 digital / analog pins on Arduino. All connector are standard XH2.54 (Breadboard type). You can connect it with jumper wire directly.

This 1602 LCD module has 8 I2C address in all, from 0x20 to 0x27. You can set one according to your requirements, avoiding the confliction of I2C address. And its contrast can be adjusted manually.

This board is able to be powered by 5V or 3.3V which make it compatible with both Arduino 101 or Arduino  DUE,  intel edison 3.3V system and standard Arduino UNO/Arduino Mega 5V system.

These displays are straightforward to use and are a great way to provide a user interface on many projects where you need more info than simple LED indicators or 7-Segment displays can provide since these are full alphanumeric displays with 4 lines of 20 characters each for a total of 80 characters which is a fair amount of info.  For an interactive display, pairing this type of display with a rotary encoder to navigate and select menu items on the display can provide a very nice user interface.

The display is composed of a 20 character x 4 line LCD display with a blue backlight and white characters.  Each of the characters are composed of a 5 x 8 dot matrix for good character representation.

The backlight intensity is not directly controllable though the I2C interface, however there is a jumper on the I2C board that supplies power to the backlight.  That jumper can be removed and a voltage applied to the header pin nearest the ‘LED’ markings on the board to provide power to the backlight separately.

The backlight can go down to about 3V before it goes out.  It is not known what the safe upper limit is for driving the LCD backlight so it is probably best not to exceed 5V by too much.  At 5V, the backlight draws about 30mA, so it should also be possible to drive it with a PWM pin off a uC to allow the display to be dimmed via software if desired.

This display incorporates an I2C interface that requires only 2 pins on a uC to interface with and it has good library support to get up and running fast.   The I2C interface is a daughter board attached to the back of the LCD module.

If you need to adjust I2C address to avoid a conflict, this can be done on the I2C adapter board on the back of the module.  There are 3 address jumper locations marked A0, A1, A2.  Normally these lines are pulled high.  If you bridge these pads, it grounds that address line.  If you were to bridge all 3 to ground, the address would be 0x20.  The range of all possible addresses spans from 0x20 to 0x27

These are good quality modules and should be in the parts bin of any hobbyist.  Because of the interactivity they provide, they are both fun to play with and useful for more serious projects.

You will find the raw 20×4 displays without the I2C interface being sold, but those have a parallel bus interface that requires many pins on the microcontroller to control, so it is generally best to stick with the I2C interface version like this one.

Note that the I2C address of the module we sell is 0x27 (39 decimal) but can be adjusted if needed as explained above.  The address will be printed on the label on the bag.

Have a product that needs an I2C character LCD? We have character I2C LCDs in various colors and sizes. Our CFA533 also comes with a keypad and an intelligent API for quick and easy integration into your product. If you need help selecting the best I2C LCD module for your design, don"t hesitate to contact our phenomenal support team.

As we all know, though LCD and some other displays greatly enrich the man-machine interaction, they share a common weakness. When they are connected to a controller, multiple IOs will be occupied of the controller which has no so many outer ports. Also it restricts other functions of the controller. Therefore, LCD2004 with an I2C bus is developed to solve the problem.

I2C bus is a type of serial bus invented by PHLIPS. It is a high performance serial bus which has bus ruling and high or low speed device synchronization function required by multiple host system. I2C bus has only two bidirectional signal lines, Serial Data Line (SDA) and Serial Clock Line (SCL). The blue potentiometer on the I2C LCD2004 is used to adjust backlight to make it easier to display on the I2C LCD2004.

I²C (Inter-Integrated Circuit), pronounced I-squared-C, is a multi-master, multi-slave, single-ended, serial computer bus invented by Philips Semiconductor (now NXP Semiconductors). It is typically used for attaching lower-speed peripheral ICs to processors and microcontrollers. Alternatively I²C is spelled I2C (pronounced I-two-C) or IIC (pronounced I-I-C).

I²C uses only two bidirectional open-drain lines, Serial Data Line (SDA) and Serial Clock Line (SCL), pulled up with resistors. Typical voltages used are +5 V or +3.3 V although systems I²C (Inter-Integrated Circuit), pronounced I-squared-C, is a multi-master, multi-slave, single-ended, serial computer bus invented by Philips Semiconductor (now NXP Semiconductors). It is typically used for attaching lower-speed peripheral ICs to processors and microcontrollers. Alternatively I²C is spelled I2C (pronounced I-two-C) or IIC (pronounced I-I-C).

I²C uses only two bidirectional open-drain lines, Serial Data Line (SDA) and Serial Clock Line (SCL), pulled up with resistors. Typical voltages used are +5 V or +3.3 V although systems with other voltages are permitted.

3) Find the file LiquidCrystal_I2C which you just download. Click it open and then you"ll be prompted by "Library added to your libraries. Check "Import libraries"”. You also can see the libraries just imported have appeared on the list by Sketch->Include Library->LiquidCrystal_I2C.

If everything is correct,But the display just shows 16 black rectangles on Line 1.it may be the address of i2c is not 0x27,therfore you need to run the following code to read the address,then modify the 0x27 to which you read.

4 line, 20 positions alphanumeric LCD 2004 with HD44780 (or compatible) display controller and the standard 4/8 bit parallel interface. The available I2C interface (option) fits right on the back of the display and turns its interface from parallel to simple 2-wire I2C (perfect for microcontrollers like Arduino to save on I/O ports).

4×20 blue LCD character display with bright white LED backlight, high contrast, and optional serial interface (I2C, SDA/SCL) for microcontrollers. The display needs a 5V power supply for operation. With the I2C interface installed, the backlight can be controlled by software as well. Many different libraries for different programming languages and controller families are available, also countless examples.

20x4 Character LCD Display Module available in Serial RS232, TTL, I2C, and USB. Our Character LCD provides you with a cost-effective industrial HMI user interface solution for that great product/project you are developing.

I2C 2004 character LCD display module is 4 lines of 20 characters. It has backlight and IIC communication interface. For Arduino beginners, it will make complicated LCD driver circuit connection easy. It can be directly connected to the Arduino Sensor Shield IIC device interface or easily connected to the Arduino with its 4 pins.

If you want to add some visual output to your Arduino projects, you’ll need a display. If you need only little to display, the 20X4 LCD2004 Display with I2C Interface Module is a quite good solution.

This is 20x4 LCD Display that provides a simple and cost-effective solution that is very easy to interface with Arduino or Other Microcontrollers.. The display is 20 character by 4 line display has a very clear and high contrast white text upon a blue background/backlight. This is a great blue backlight LCD display. It is fantastic for Arduino based project.

This display overcomes the drawback of 20x4 LCD Display in which you’ll waste about 8 Pins on your Arduino for the display to get working. Luckily in this product, an I2C adapter is directly soldered right onto the pins of the display. So all you need to connect are the I2C pins, which shows a good library and little of coding.

The I2C is a type of serial bus which uses two bidirectional lines, called SDA (Serial Data Line) and SCL (Serial Clock Line). Both must be connected via pulled-up resistors. The usage voltages are standard as 5V and 3.3V.

These modules are currently supplied with a default I2C address of either 0x27 or 0x3F. To determine which version you have check the black I2C adaptor board on the underside of the module. If there a 3 sets of pads labelled A0, A1, & A2 then the default address will be 0x3F. If there are no pads the default address will be 0x27.
