2.4 inch tft lcd shield for arduino uno code factory

In this tutorial, you will learn how to use and set up 2.4″ Touch LCD Shield for Arduino. First, you’ll see some general information about this shield. And after learning how to set the shield up, you’ll see 3 practical projects.

The role of screens in electronic projects is very important. Screens can be of very simple types such as 7 Segment or character LCDs or more advanced models like OLEDs and TFT LCDs.

One of the most important features of this LCD is including a touch panel. If you are about to use the LCD, you need to know the coordinates of the point you touch. To do so, you should upload the following code on your Arduino board and open the serial monitor. Then touch your desired location and write the coordinates displayed on the serial monitor. You can use this coordination in any other project.

To display pictures on this LCD you should save the picture in 24bit BMP colored format and size of 240*320. Then move them to SD card and put the SD card in the LCD shield. we use the following function to display pictures. This function has 3 arguments; the first one stands for the pictures name, and the second and third arguments are for length and width coordinates of the top left corner of the picture.

If you want to display pictures without using an SD card, you can convert it to code and then display it. You can display even several photos sequentially without delay to create an animation. (Check this) But be aware that in this case, Arduino UNO may not be suitable (because of low processor speed). We recommend using the Arduino Mega or Arduino DUE.

Spice up your Arduino project with a beautiful touchscreen display shield with built in microSD card connection. This TFT display is 2.4" diagonal and colorful (18-bit 262,000 different shades)! 240x320 pixels with individual pixel control. As a bonus, this display has a optional capacitive touch panel and resistive touch panel with controller XPT2046 attached by default.

The shield is fully assembled, tested and ready to go. No wiring, no soldering! Simply plug it in and load up our library - you"ll have it running in under 10 minutes! Works best with any classic Arduino (UNO/Due/Mega 2560).

This display shield has a controller built into it with RAM buffering, so that almost no work is done by the microcontroller. You can connect more sensors, buttons and LEDs.

Of course, we wouldn"t just leave you with a datasheet and a "good luck!" - we"ve written a full open source graphics library at the bottom of this page that can draw pixels, lines, rectangles, circles and text. We also have a touch screen library that detects x,y and z (pressure) and example code to demonstrate all of it. The code is written for Arduino but can be easily ported to your favorite microcontroller!

If you"ve had a lot of Arduino DUEs go through your hands (or if you are just unlucky), chances are you’ve come across at least one that does not start-up properly.The symptom is simple: you power up the Arduino but it doesn’t appear to “boot”. Your code simply doesn"t start running.You might have noticed that resetting the board (by pressing the reset button) causes the board to start-up normally.The fix is simple,here is the solution.

Spice up your Arduino project with a beautiful touchscreen display shield with built in microSD card connection. This IPS TFT display is 2.4" diagonal and colorful (18-bit 262,000 different shades)! 240x320 pixels with individual pixel control. As a bonus, this display has a optional capacitive touch panel and resistive touch panel with controller XPT2046 attached by default.

The shield is fully assembled, tested and ready to go. No wiring, no soldering! Simply plug it in and load up our library - you"ll have it running in under 10 minutes! Works best with any classic Arduino (UNO/Due/Mega 2560).

This display shield has a controller built into it with RAM buffering, so that almost no work is done by the microcontroller. You can connect more sensors, buttons and LEDs.

Of course, we wouldn"t just leave you with a datasheet and a "good luck!" - we"ve written a full open source graphics library at the bottom of this page that can draw pixels, lines, rectangles, circles and text. We also have a touch screen library that detects x,y and z (pressure) and example code to demonstrate all of it. The code is written for Arduino but can be easily ported to your favorite microcontroller!

1.2.4 inch arduino shield with resistive touch panel could only support Due board. It can support DUE,UNO,MEGA2560 boad if matched with capacitive touch panel.

2.If you"ve had a lot of Arduino DUEs go through your hands (or if you are just unlucky), chances are you’ve come across at least one that does not start-up properly.The symptom is simple: you power up the Arduino but it doesn’t appear to “boot”. Your code simply doesn"t start running.You might have noticed that resetting the board (by pressing the reset button) causes the board to start-up normally.The fix is simple,here is the solution.

In this tutorial, you will learn how to use and set up 2.4″ Touch LCD Shield for Arduino. First, you’ll see some general information about this shield. And after learning how to set the shield up, you’ll see 3 practical projects.

The role of screens in electronic projects is very important. Screens can be of very simple types such as 7 Segment or character LCDs or more advanced models like OLEDs and TFT LCDs.

One of the most important features of this LCD is including a touch panel. If you are about to use the LCD, you need to know the coordinates of the point you touch. To do so, you should upload the following code on your Arduino board and open the serial monitor. Then touch your desired location and write the coordinates displayed on the serial monitor. You can use this coordination in any other project./*TFT LCD - TFT Touch CoordinateBased on Librery Examplemodified on 21 Feb 2019by Saeed Hosseinihttps://electropeak.com/learn/*/#include #include "TouchScreen.h"#define YP A2#define XM A3#define YM 8#define XP 9// For better pressure precision, we need to know the resistance// between X+ and X- Use any multimeter to read it// For the one we"re using, its 300 ohms across the X plateTouchScreen ts = TouchScreen(XP, YP, XM, YM, 300);void setup(void) {Serial.begin(9600);}void loop(void) {TSPoint p = ts.getPoint();if (p.z > ts.pressureThreshhold) {Serial.print("X = "); Serial.print(p.x);Serial.print("\tY = "); Serial.print(p.y);Serial.print("\tPressure = "); Serial.println(p.z);}delay(100);}

Displaying Text and Shapes on Arduino 2.4 LCD/*TFT LCD - TFT Simple drivingmodified on 21 Feb 2019by Saeed Hosseinihttps://electropeak.com/learn/*/#include #include #define LCD_CS A3#define LCD_CD A2#define LCD_WR A1#define LCD_RD A0#define LCD_RESET A4#define BLACK 0x0000#define BLUE 0x001F#define RED 0xF800#define GREEN 0x07E0#define CYAN 0x07FF#define MAGENTA 0xF81F#define YELLOW 0xFFE0#define WHITE 0xFFFF#define ORANGE 0xFD20#define GREENYELLOW 0xAFE5#define NAVY 0x000F#define DARKGREEN 0x03E0#define DARKCYAN 0x03EF#define MAROON 0x7800#define PURPLE 0x780F#define OLIVE 0x7BE0#define LIGHTGREY 0xC618#define DARKGREY 0x7BEFAdafruit_TFTLCD tft(LCD_CS, LCD_CD, LCD_WR, LCD_RD, LCD_RESET);void setup() {Serial.begin(9600);Serial.println(F("TFT LCD test"));#ifdef USE_ADAFRUIT_SHIELD_PINOUTSerial.println(F("Using Adafruit 2.4\" TFT Arduino Shield Pinout"));#elseSerial.println(F("Using Adafruit 2.4\" TFT Breakout Board Pinout"));#endifSerial.print("TFT size is ");Serial.print(tft.width());Serial.print("x");Serial.println(tft.height());tft.reset();uint16_t identifier = tft.readID();if (identifier == 0x9325) {Serial.println(F("Found ILI9325 LCD driver"));} else if (identifier == 0x9328) {Serial.println(F("Found ILI9328 LCD driver"));} else if (identifier == 0x7575) {Serial.println(F("Found HX8347G LCD driver"));} else if (identifier == 0x9341) {Serial.println(F("Found ILI9341 LCD driver"));} else if (identifier == 0x8357) {Serial.println(F("Found HX8357D LCD driver"));} else {Serial.print(F("Unknown LCD driver chip: "));Serial.println(identifier, HEX);Serial.println(F("If using the Adafruit 2.4\" TFT Arduino shield, the line:"));Serial.println(F(" #define USE_ADAFRUIT_SHIELD_PINOUT"));Serial.println(F("should appear in the library header (Adafruit_TFT.h)."));Serial.println(F("If using the breakout board, it should NOT be #defined!"));Serial.println(F("Also if using the breakout, double-check that all wiring"));Serial.println(F("matches the tutorial."));return;}tft.begin(identifier);Serial.println(F("Benchmark Time (microseconds)"));Serial.print(F("Screen fill "));Serial.println(FillScreen());delay(500);tft.setTextColor(YELLOW);tft.setCursor(70, 180);tft.setTextSize(1);tft.println("Electropeak");delay(200);tft.fillScreen(PURPLE);tft.setCursor(50, 170);tft.setTextSize(2);tft.println("Electropeak");delay(200);tft.fillScreen(PURPLE);tft.setCursor(20, 160);tft.setTextSize(3);tft.println("Electropeak");delay(500);tft.fillScreen(PURPLE);for (int rotation = 0; rotation < 4; rotation++) { tft.setRotation(rotation); tft.setCursor(0, 0); tft.setTextSize(3); tft.println("Electropeak"); delay(700); } delay(500); Serial.print(F("Rectangles (filled) ")); Serial.println(testFilledRects(YELLOW, MAGENTA)); delay(500); } void loop() { } unsigned long FillScreen() { unsigned long start = micros(); tft.fillScreen(RED); delay(500); tft.fillScreen(GREEN); delay(500); tft.fillScreen(BLUE); delay(500); tft.fillScreen(WHITE); delay(500); tft.fillScreen(MAGENTA); delay(500); tft.fillScreen(PURPLE); delay(500); return micros() - start; } unsigned long testFilledRects(uint16_t color1, uint16_t color2) { unsigned long start, t = 0; int n, i, i2, cx = tft.width() / 2 - 1, cy = tft.height() / 2 - 1; tft.fillScreen(BLACK); n = min(tft.width(), tft.height()); for (i = n; i > 0; i -= 6) {i2 = i / 2;start = micros();tft.fillRect(cx - i2, cy - i2, i, i, color1);t += micros() - start;// Outlines are not included in timing resultstft.drawRect(cx - i2, cy - i2, i, i, color2);}return t;}

Displaying BMP pictures/*This code is TFTLCD Library Example*/#include #include #include #include #define LCD_CS A3#define LCD_CD A2#define LCD_WR A1#define LCD_RD A0#define SD_CS 10Adafruit_TFTLCD tft(LCD_CS, LCD_CD, LCD_WR, LCD_RD, A4);void setup(){Serial.begin(9600);tft.reset();uint16_t identifier = tft.readID();if (identifier == 0x9325) {Serial.println(F("Found ILI9325 LCD driver"));} else if (identifier == 0x9328) {Serial.println(F("Found ILI9328 LCD driver"));} else if (identifier == 0x7575) {Serial.println(F("Found HX8347G LCD driver"));} else if (identifier == 0x9341) {Serial.println(F("Found ILI9341 LCD driver"));} else if (identifier == 0x8357) {Serial.println(F("Found HX8357D LCD driver"));} else {Serial.print(F("Unknown LCD driver chip: "));Serial.println(identifier, HEX);Serial.println(F("If using the Adafruit 2.4\" TFT Arduino shield, the line:"));Serial.println(F(" #define USE_ADAFRUIT_SHIELD_PINOUT"));Serial.println(F("should appear in the library header (Adafruit_TFT.h)."));Serial.println(F("If using the breakout board, it should NOT be #defined!"));Serial.println(F("Also if using the breakout, double-check that all wiring"));Serial.println(F("matches the tutorial."));return;}tft.begin(identifier);Serial.print(F("Initializing SD card..."));if (!SD.begin(SD_CS)) {Serial.println(F("failed!"));return;}Serial.println(F("OK!"));bmpDraw("pic1.bmp", 0, 0);delay(1000);bmpDraw("pic2.bmp", 0, 0);delay(1000);bmpDraw("pic3.bmp", 0, 0);delay(1000);}void loop(){}#define BUFFPIXEL 20void bmpDraw(char *filename, int x, int y) {File bmpFile;int bmpWidth, bmpHeight; // W+H in pixelsuint8_t bmpDepth; // Bit depth (currently must be 24)uint32_t bmpImageoffset; // Start of image data in fileuint32_t rowSize; // Not always = bmpWidth; may have paddinguint8_t sdbuffer[3 * BUFFPIXEL]; // pixel in buffer (R+G+B per pixel)uint16_t lcdbuffer[BUFFPIXEL]; // pixel out buffer (16-bit per pixel)uint8_t buffidx = sizeof(sdbuffer); // Current position in sdbufferboolean goodBmp = false; // Set to true on valid header parseboolean flip = true; // BMP is stored bottom-to-topint w, h, row, col;uint8_t r, g, b;uint32_t pos = 0, startTime = millis();uint8_t lcdidx = 0;boolean first = true;if ((x >= tft.width()) || (y >= tft.height())) return;Serial.println();Serial.print(F("Loading image ""));Serial.print(filename);Serial.println("\"");// Open requested file on SD cardif ((bmpFile = SD.open(filename)) == NULL) {Serial.println(F("File not found"));return;}// Parse BMP headerif (read16(bmpFile) == 0x4D42) { // BMP signatureSerial.println(F("File size: ")); Serial.println(read32(bmpFile));(void)read32(bmpFile); // Read & ignore creator bytesbmpImageoffset = read32(bmpFile); // Start of image dataSerial.print(F("Image Offset: ")); Serial.println(bmpImageoffset, DEC);// Read DIB headerSerial.print(F("Header size: ")); Serial.println(read32(bmpFile));bmpWidth = read32(bmpFile);bmpHeight = read32(bmpFile);if (read16(bmpFile) == 1) { // # planes -- must be "1"bmpDepth = read16(bmpFile); // bits per pixelSerial.print(F("Bit Depth: ")); Serial.println(bmpDepth);if ((bmpDepth == 24) && (read32(bmpFile) == 0)) { // 0 = uncompressedgoodBmp = true; // Supported BMP format -- proceed!Serial.print(F("Image size: "));Serial.print(bmpWidth);Serial.print("x");Serial.println(bmpHeight);// BMP rows are padded (if needed) to 4-byte boundaryrowSize = (bmpWidth * 3 + 3) & ~3;// If bmpHeight is negative, image is in top-down order.// This is not canon but has been observed in the wild.if (bmpHeight < 0) { bmpHeight = -bmpHeight; flip = false; } // Crop area to be loaded w = bmpWidth; h = bmpHeight; if ((x + w - 1) >= tft.width()) w = tft.width() - x;if ((y + h - 1) >= tft.height()) h = tft.height() - y;// Set TFT address window to clipped image boundstft.setAddrWindow(x, y, x + w - 1, y + h - 1);for (row = 0; row < h; row++) { // For each scanline...// Seek to start of scan line. It might seem labor-// intensive to be doing this on every line, but this// method covers a lot of gritty details like cropping// and scanline padding. Also, the seek only takes// place if the file position actually needs to change// (avoids a lot of cluster math in SD library).if (flip) // Bitmap is stored bottom-to-top order (normal BMP)pos = bmpImageoffset + (bmpHeight - 1 - row) * rowSize;else // Bitmap is stored top-to-bottompos = bmpImageoffset + row * rowSize;if (bmpFile.position() != pos) { // Need seek?bmpFile.seek(pos);buffidx = sizeof(sdbuffer); // Force buffer reload}for (col = 0; col < w; col++) { // For each column... // Time to read more pixel data? if (buffidx >= sizeof(sdbuffer)) { // Indeed// Push LCD buffer to the display firstif (lcdidx > 0) {tft.pushColors(lcdbuffer, lcdidx, first);lcdidx = 0;first = false;}bmpFile.read(sdbuffer, sizeof(sdbuffer));buffidx = 0; // Set index to beginning}// Convert pixel from BMP to TFT formatb = sdbuffer[buffidx++];g = sdbuffer[buffidx++];r = sdbuffer[buffidx++];lcdbuffer[lcdidx++] = tft.color565(r, g, b);} // end pixel} // end scanline// Write any remaining data to LCDif (lcdidx > 0) {tft.pushColors(lcdbuffer, lcdidx, first);}Serial.print(F("Loaded in "));Serial.print(millis() - startTime);Serial.println(" ms");} // end goodBmp}}bmpFile.close();if (!goodBmp) Serial.println(F("BMP format not recognized."));}// These read 16- and 32-bit types from the SD card file.// BMP data is stored little-endian, Arduino is little-endian too.// May need to reverse subscript order if porting elsewhere.uint16_t read16(File f) {uint16_t result;((uint8_t *)&result)[0] = f.read(); // LSB((uint8_t *)&result)[1] = f.read(); // MSBreturn result;}uint32_t read32(File f) {uint32_t result;((uint8_t *)&result)[0] = f.read(); // LSB((uint8_t *)&result)[1] = f.read();((uint8_t *)&result)[2] = f.read();((uint8_t *)&result)[3] = f.read(); // MSBreturn result;}

To display pictures on this LCD you should save the picture in 24bit BMP colored format and size of 240*320. Then move them to SD card and put the SD card in the LCD shield. we use the following function to display pictures. This function has 3 arguments; the first one stands for the pictures name, and the second and third arguments are for length and width coordinates of the top left corner of the picture.bmpdraw(“filename.bmp”,x,y);

Create A Paint App w/ Arduino 2.4 Touchscreen/*This code is TFTLCD Library Example*/#include #include #include #if defined(__SAM3X8E__)#undef __FlashStringHelper::F(string_literal)#define F(string_literal) string_literal#endif#define YP A3#define XM A2#define YM 9#define XP 8#define TS_MINX 150#define TS_MINY 120#define TS_MAXX 920#define TS_MAXY 940TouchScreen ts = TouchScreen(XP, YP, XM, YM, 300);#define LCD_CS A3#define LCD_CD A2#define LCD_WR A1#define LCD_RD A0#define LCD_RESET A4#define BLACK 0x0000#define BLUE 0x001F#define RED 0xF800#define GREEN 0x07E0#define CYAN 0x07FF#define MAGENTA 0xF81F#define YELLOW 0xFFE0#define WHITE 0xFFFFAdafruit_TFTLCD tft(LCD_CS, LCD_CD, LCD_WR, LCD_RD, LCD_RESET);#define BOXSIZE 40#define PENRADIUS 3int oldcolor, currentcolor;void setup(void) {Serial.begin(9600);Serial.println(F("Paint!"));tft.reset();uint16_t identifier = tft.readID();if(identifier == 0x9325) {Serial.println(F("Found ILI9325 LCD driver"));} else if(identifier == 0x9328) {Serial.println(F("Found ILI9328 LCD driver"));} else if(identifier == 0x7575) {Serial.println(F("Found HX8347G LCD driver"));} else if(identifier == 0x9341) {Serial.println(F("Found ILI9341 LCD driver"));} else if(identifier == 0x8357) {Serial.println(F("Found HX8357D LCD driver"));} else {Serial.print(F("Unknown LCD driver chip: "));Serial.println(identifier, HEX);Serial.println(F("If using the Adafruit 2.4\" TFT Arduino shield, the line:"));Serial.println(F(" #define USE_ADAFRUIT_SHIELD_PINOUT"));Serial.println(F("should appear in the library header (Adafruit_TFT.h)."));Serial.println(F("If using the breakout board, it should NOT be #defined!"));Serial.println(F("Also if using the breakout, double-check that all wiring"));Serial.println(F("matches the tutorial."));return;}tft.begin(identifier);tft.fillScreen(BLACK);tft.fillRect(0, 0, BOXSIZE, BOXSIZE, RED);tft.fillRect(BOXSIZE, 0, BOXSIZE, BOXSIZE, YELLOW);tft.fillRect(BOXSIZE*2, 0, BOXSIZE, BOXSIZE, GREEN);tft.fillRect(BOXSIZE*3, 0, BOXSIZE, BOXSIZE, CYAN);tft.fillRect(BOXSIZE*4, 0, BOXSIZE, BOXSIZE, BLUE);tft.fillRect(BOXSIZE*5, 0, BOXSIZE, BOXSIZE, MAGENTA);tft.drawRect(0, 0, BOXSIZE, BOXSIZE, WHITE);currentcolor = RED;pinMode(13, OUTPUT);}#define MINPRESSURE 10#define MAXPRESSURE 1000void loop(){digitalWrite(13, HIGH);TSPoint p = ts.getPoint();digitalWrite(13, LOW);pinMode(XM, OUTPUT);pinMode(YP, OUTPUT);if (p.z > MINPRESSURE && p.z < MAXPRESSURE) {if (p.y < (TS_MINY-5)) {Serial.println("erase");tft.fillRect(0, BOXSIZE, tft.width(), tft.height()-BOXSIZE, BLACK);}p.x = map(p.x, TS_MINX, TS_MAXX, tft.width(), 0);p.y = map(p.y, TS_MINY, TS_MAXY, tft.height(), 0);if (p.y < BOXSIZE) {oldcolor = currentcolor;if (p.x < BOXSIZE) {currentcolor = RED;tft.drawRect(0, 0, BOXSIZE, BOXSIZE, WHITE);} else if (p.x < BOXSIZE*2) {currentcolor = YELLOW;tft.drawRect(BOXSIZE, 0, BOXSIZE, BOXSIZE, WHITE);} else if (p.x < BOXSIZE*3) {currentcolor = GREEN;tft.drawRect(BOXSIZE*2, 0, BOXSIZE, BOXSIZE, WHITE);} else if (p.x < BOXSIZE*4) {currentcolor = CYAN;tft.drawRect(BOXSIZE*3, 0, BOXSIZE, BOXSIZE, WHITE);} else if (p.x < BOXSIZE*5) {currentcolor = BLUE;tft.drawRect(BOXSIZE*4, 0, BOXSIZE, BOXSIZE, WHITE);} else if (p.x < BOXSIZE*6) { currentcolor = MAGENTA; tft.drawRect(BOXSIZE*5, 0, BOXSIZE, BOXSIZE, WHITE); } if (oldcolor != currentcolor) { if (oldcolor == RED) tft.fillRect(0, 0, BOXSIZE, BOXSIZE, RED); if (oldcolor == YELLOW) tft.fillRect(BOXSIZE, 0, BOXSIZE, BOXSIZE, YELLOW); if (oldcolor == GREEN) tft.fillRect(BOXSIZE*2, 0, BOXSIZE, BOXSIZE, GREEN); if (oldcolor == CYAN) tft.fillRect(BOXSIZE*3, 0, BOXSIZE, BOXSIZE, CYAN); if (oldcolor == BLUE) tft.fillRect(BOXSIZE*4, 0, BOXSIZE, BOXSIZE, BLUE); if (oldcolor == MAGENTA) tft.fillRect(BOXSIZE*5, 0, BOXSIZE, BOXSIZE, MAGENTA); } } if (((p.y-PENRADIUS) > BOXSIZE) && ((p.y+PENRADIUS) < tft.height())) {tft.fillCircle(p.x, p.y, PENRADIUS, currentcolor);}}}

Final NotesIf you want to display pictures without using an SD card, you can convert it to code and then display it. You can display even several photos sequentially without delay to create an animation. (Check this)But be aware that in this case, Arduino UNO may not be suitable (because of low processor speed). We recommend using the Arduino Mega or Arduino DUE.

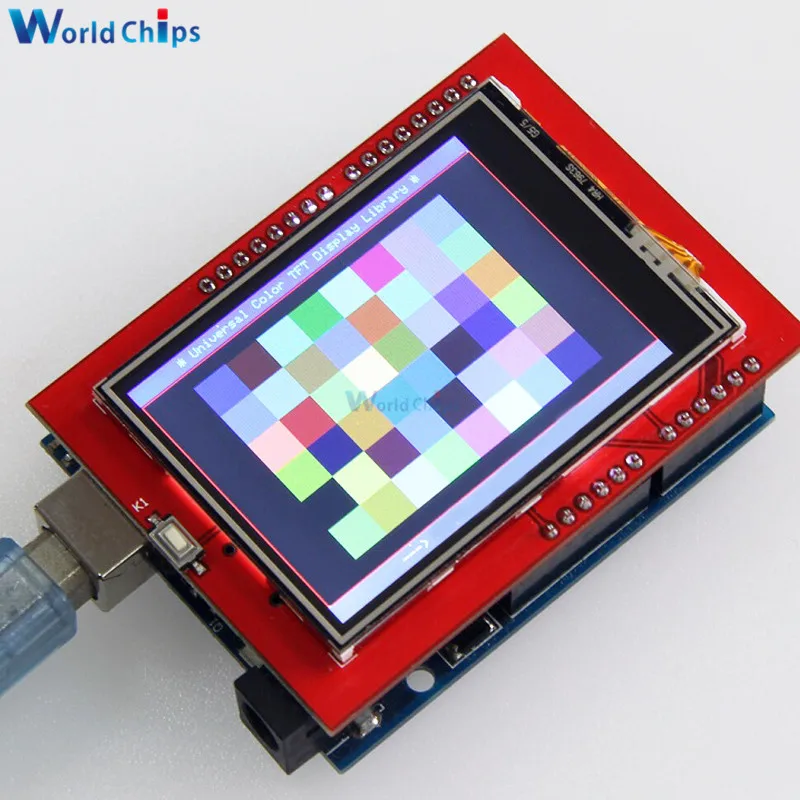

The 2.4 inch TFT LCD Touch Display Shield is a Bright, 4 white-LED backlight, on by default but you can connect the transistor to a digital pin for backlight control. So spice up your Arduino UNO project is a beautiful large touchscreen display shield with a built-in microSD card connection. This TFT display is big (2.4″ diagonal) bright (4 white-LED backlights) and colorful (18-bit 262,000 different shades)!

2.4 inch TFT LCD Touch Display Shield for ArduinoUno is fully assembled, tested and ready to go. Add the touch display without wiring, no soldering! Simply plug it in and load up a library – you ‘ll have it running in under 10 minutes! Works best with any classic Arduino ATMEGA328 Board.

The 2.4 inch TFT LCD Touch Display comes with 240×320 pixels with individual pixel control. It has way more resolution than a black and white 128×64 display. As a bonus, this display has a resistive touchscreen attached to it already, so you can detect finger presses anywhere on the screen.

This touch display works 100% right out of box . Touch screen and SD card reader functions works as designed. You just "plug and play" into the UNO module.

We don"t accept the returns for the products damanged by improper use of the product. Moreover we don"t accept the return, if the ordered product is not fit for any specific application. Please read the product specifications and datasheet before selecting and ordering a product. Returns are accepted only with 3 days from the date of delivery.

We ship to all over India with free shipping on all prepaid orders. For Cash on Delivery orders INR 70 will be charged for orders below INR 599 and INR 20 will be charged for the orders above 599. Please contact to our support team at support@quartzcomponents.com for any question related to shipping.

The 2.4 ” tft lcd touch screen shield for Arduino can be used in a number of applications. However many of the shields available on the market are cloned versions which usually give many hobbyists hard time to use because they do not work properly with the common libraries for running TFT displays.

If you try uploading any of the examples in the Adafruit_GFX library for example the “graphicstest”, the lcd will just give a white screen. Nothing is displayed on the screen!

This problem is mainly due to using a newer version of the Adafruit GFX library. The 1.5.4 release of the Adafruit_GFX library broke compatibility with the Adafruit_TFTLCD library. So you have to roll back to Adafruit_GFX 1.5.3:

Another problem you may encounter with this tft lcd shield is the poor fuctioning of the touch screen. You may find the stylus pen is not well aligned with the content you are writing on the screen.

This is due to a bug in the TouchScreen library therefore you need to locate this library by following the path to where all the libraries for your Arduino IDE are stored.

First change it to return TSPoint(1023-x, 1023-y, z). Save the changes and then compile your code again and upload to check if the touch fuction is fine.

You can keep on adjusting the values of before x and y until you get an ideal point that works best for your tft lcd. Mine worked fine with return TSPoint(x, 1105-y, z)

Due to the limited processing power of the microprocessor in the Arduino, we need to store images in bmp format and they should be 320×240 pixels sizes.

This is SainSmart 2.4 inch TFT LCD module with the TFT LCD shield kit For arduino enthusiasts.It includes one pcs of 2.4 inch TFT LCD display and a TFT LCD shield for arduino UNO(R3) and the Arduino UNO R3

2.4" TFT LCD Display is a LCD touch screen module. It has 40pins interface and SD card and Flash reader design. It is a powerful and mutilfunctional module for your project.The Screen include a controller ILI9325, it"s a support 8/16bit data interface , easy to drive by many MCU like arduino familiesSTM32 ,AVR and 8051. It is designed with a touch controller in it . The touch IC is XPT2046 , and touch interface is included in the 40 pins breakout. It is the version of product only with touch screen and touch controller.

Voltage type: 5v or 3v voltage input voltage???input is selectable. Because TFT can only work under 3.3 V voltage, so when the input voltage VIN is 5V, need through the 3.3 V voltage regulator IC step down to 3.3V , when the input voltage of 3.3 V, you need to use the zero resistance make J2 short , is equivalent to not through the voltage regulator IC for module and power supply directly.

This website is using a security service to protect itself from online attacks. The action you just performed triggered the security solution. There are several actions that could trigger this block including submitting a certain word or phrase, a SQL command or malformed data.

Nextion Tutorial-Based on Nextion Arduino Library / ITEAD Studio - Make innovation easier / Nextion Tutorial-Based on Nextion Arduino Library / ITEAD Studio - Make innovation easier

Let"s get started with this creative Arduino project, where you"ll learn about the TFT LCD touch screen and how to use it to create your own colourful calculator. For a basic understanding of touch screen & LCD, a cheap TFT 2.4" Arduino shield is used to create this project. For creating a similar project, one should follow the steps and edit the code for better understanding.

Touch-screen devices using resistive technology, a two-dimensional membrane potentiometer provides x and y coordinates. The top layer is thin glass spaced close to a neighboring inner layer. The underside of the top layer has a transparent conductive coating; the surface of the layer beneath it has a transparent resistive coating. A finger or stylus deforms the glass to contact the underlying layer. Edges of the resistive layer have conductive contacts. Locating the contact point is done by applying a voltage to opposite edges, leaving the other two edges temporarily unconnected. The voltage of the top layer provides one coordinate. Disconnecting those two edges, and applying a voltage to the other two, formerly unconnected, provides the other coordinate. Alternating rapidly between pairs of edges provides frequent position updates. An analog to digital converter provides output data.

The shield connects ILI9341"s data pins 0-7 to Arduino"s digital pins 2-8 (allowing parallel communication, not SPI. ILI9341"s RESET goes to Arduino analog pin A4. CS (chip select) to A3. RS (CD command/data) to A2. WR and RD to A1 and A0.

ILI9341 is integrated inside the display. It drives the display and has nothing to do with the touchscreen (Although the shield connects some pins of ILI9341 together with pins of the touchscreen).

Now, open Arduino IDE and select Sketch -> Include Library -> Add .ZIP library. A browser window will open navigate to the ZIP file and click “OK”. You should notice “Library added to your Libraries” on the bottom-left corner of Arduino, if successful.

You can also find an SD card slot at the bottom of the module shown above, which can be used to load an SD card with BMP image files, and these images can be displayed on our TFT LCD screen using the Arduino Program.
