In this article... We"ll discuss what to consider when planning a backup camera system. A lot depends on what"s already in your dash or what you"d like to add, so check out the basics below to get a solid understanding of what goes into installing a backup or rear-view camera. And don"t forget, our Advisors can always help you find the best cameras for your vehicle.

ith a backup camera system in your car, you"ll enjoy a well-lit, wide-angle view of what’s behind you – a view that a regular old rear-view mirror just can"t deliver. Whether you"re safety-conscious, want to keep an eye on something you"re towing, or just have a bad habit of crunching bumpers, installing an aftermarket backup camera or rear-view video system in your car, truck, or RV is a no-brainer. The big question becomes: what"s the best system for you?

Before we get into the details, we need to discuss these terms. Most people use "rear-view camera" and "backup camera" interchangeably, but they aren"t the same. When you"re shopping, pay attention because you don"t want to buy the wrong camera. Here"s the thing to keep in mind: Backup camera – a camera that turns on when you put your vehicle in reverse

Choosing and installing your camera system isn"t as hard as you think it is, but it"s important to understand the basics before you get started. We"ll discuss the process in three steps:

An aftermarket backup camera won"t do you much good without a screen to plug it into, so what you"ll need in a backup camera system will depend on what"s already in your dash. If you have an aftermarket touchscreen receiver with a backup cam video input, you"re in great shape to shop for backup cameras. If not, you"ll need to figure out which of the following three categories you fall into.

Toyota! Jeep! Dodge! Volkswagen, and more! Enter your vehicle information and explore these vehicle-specific backup cameras with harnesses that match select factory-installed entertainment systems. These backup cameras are often specifically designed to blend in with the exterior of your vehicle.

There"s no better time to install a backup camera than when you"re already installing a new stereo in your dash. We carry a wide variety of receivers that are equipped with touchscreen monitors and backup cam video inputs. When you shift your vehicle into reverse, you"ll see a helpful view on your new stereo"s display.

Wireless backup cameras spare you the hassle of running a wired connection between the rear of your vehicle and the front (which can be a relief if you"re dealing with a big truck or RV). If you own a compatible Garmin portable navigation device, you can accessorize with a Garmin wireless backup cam. When you choose a wireless backup camera system, you"ll save on installation time, but you"ll still have to wire the camera and monitor for power.

Backup cameras are designed to be tiny and weatherproof, so those things are pretty much guaranteed. There are some other variables to consider, though:

Most backup cameras use either CCD or CMOS sensors. The sensors convert light to signal in two different ways: CCD is essentially analog, and CMOS is digital. Generally speaking, a CMOS sensor draws less power and is more sensitive to image noise than a CCD sensor, but a CCD sensor is slightly better adapted to handle fluctuating lighting scenarios than a CMOS sensor. Depending on the types of environments where you typically drive, the difference may be incidental. In the good ol" tradition of iPhone® vs. Android™, the argument as to which sensor is "better" is ongoing and you"ll find fans on both sides. In most cases, it won"t likely be a deciding factor in which camera you choose.

Many backup cameras provide onscreen guide lines to help when you"re backing out of a precarious position or squeezing into a tight spot. They help you gauge the distance between your car and the things around it, which can be a huge stress-reliever. If you want the flexibility of opting in or out of parking lines, look for "selectable parking lines" as a feature. Some give you the opportunity to remove them during installation, which will allow you to use the selectable parking lines feature that can be found in certain touchscreen receivers. If you like the idea of parking lines that bend as you turn your steering wheel and predict your trajectory in reverse (which is very cool by the way), look for "active parking lines" as a feature.

This is exactly what you think it is. The view in your monitor is reversed to mimic that of a rear-view mirror. With some cameras, this is a selectable feature, which is handy if you plan to use the camera as a front-view camera.

On some cameras, you may see a minimum Lux rating. This tells you the least amount of light required for an acceptable picture. For your reference, a night with a full moon is rated at around 0.1 Lux while a sunny day rates at around 10,000 Lux. Many cameras enhance their low-light capability with an additional LED or infrared light that powers on when the vehicle is in reverse.

This is the defining feature for most backup cameras. Mounting can be done in several ways, so take a look at the rear of your vehicle before you select a camera. Here are the mounting styles to consider:

Some cameras fit into a matching license plate frame, while others just use a strap mount. This strap-mounted backup cam fastens over your license plate using the existing screws.

If you have an inset area on the rear of your car, chances are you can use an angled lip-mount camera. These cameras are a little more subtle than their license plate-mounted cousins.

DIYers should anticipate a 3-part installation: Installing the camera in the rear of the car and wiring it for power. Some cameras have power wiring that can only be connected near the radio. Others let you power the camera at compatible reverse lights. In all cases, the camera must be wired for power and ground.

Running a video connection from the camera to your dash. You’ll need to route the camera’s video cable from its mounting location outside your vehicle into your vehicle’s cabin. This can require drilling a small hole in your vehicle or filing some metal and or plastic. You"ll want to plan your route through the vehicle in advance to ensure that you have enough cable. We list camera"s cable length under Details.

Like an air bag to a seat belt, a backup camera system isn"t a replacement for your vehicle"s mirrors, it"s a complement — a powerful tool for driving safely and parallel parking like a pro. And even if you consider yourself a pro, everybody has their bad days, and a backup cam system cuts down on the risk of a fender-bender (or worse). If you have any questions about picking the right system, just contact our advisors.

Rear view monitors and cameras mounted in your vehicle can aid you in backing up the car. You can select from a variety of display designs and cameras to upgrade your vehicle. Here are some questions that may come up when looking for rear view monitors.What is a TFT display?

Some TFT LCDs will have thin-film transistors that allows for a thin design called TFT displays. This allows the displays to be thin enough to fit in a compact frame. TFT displays are considered active matrix displays since their pixels are charged at all times, delivering images in HD.What types of rear view monitors are available?Replacement rear view mirror: This type of TFT LCD replaces the existing rear view mirror and incorporates an LCD monitor into the design. Some models will attach a separate screen to the right or left of the mirror and clip onto the panel. These screens are designed to turn on and activate the rear camera when the vehicle is put into the reverse gear, making it so that you no longer have to turn and struggle to see around your headrest when you need to back up your vehicle.

On-dash: These displays sit on top of your dash and are connected by either a suction cup for temporary ones or a mount that is screwed or glued onto the dash panels for permanent ones.How do you select a rearview TFT monitor?Review your vehicle information: You will want to know what power options are available so that you can select a TFT LCD display that can support the voltage requirements.

Select a camera option: You can select from wired technology and wireless options. Wireless options will have a receiver built into their monitors to accept the camera signals.

Choose a display size: Larger resolutions may have a split design that allows you to use one or more cameras in a system. Check the contrast ratio to ensure your video output will be satisfactory for your needs.What types of kits are available?Wireless: The camera end will have both a receiver and transmitter. The receiver will receive signals from the TFT LCD monitor, such as when the the vehicle is put in reverse. This notifies the camera to turn on and transmit the feed to the LCD monitor. These cameras will connect to the power in the taillight section.

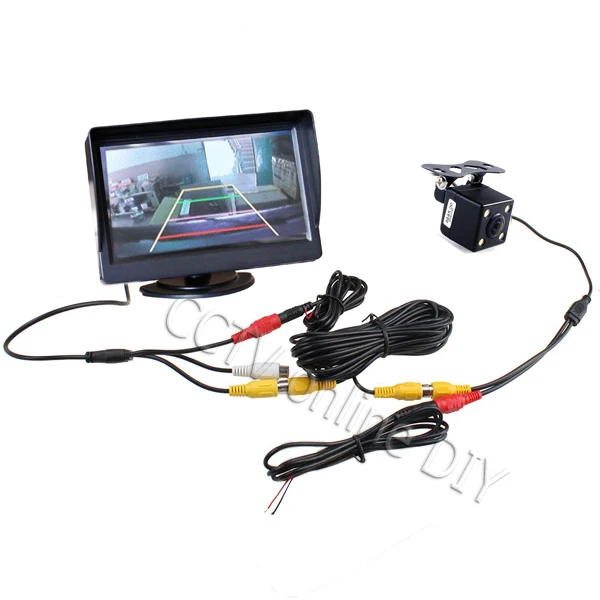

Wired: Wired camera and monitor kits will have a wire ran from the camera up to the monitor. This allows the signals to travel via a video cable, and the camera can be powered from the input monitor.

1.7" LED Backlight Color TFT LCD monitor. Works perfectly with car rearview cameras, supports Car DVD,serveillance camera, STB, satellite receiver and other video equipment.
