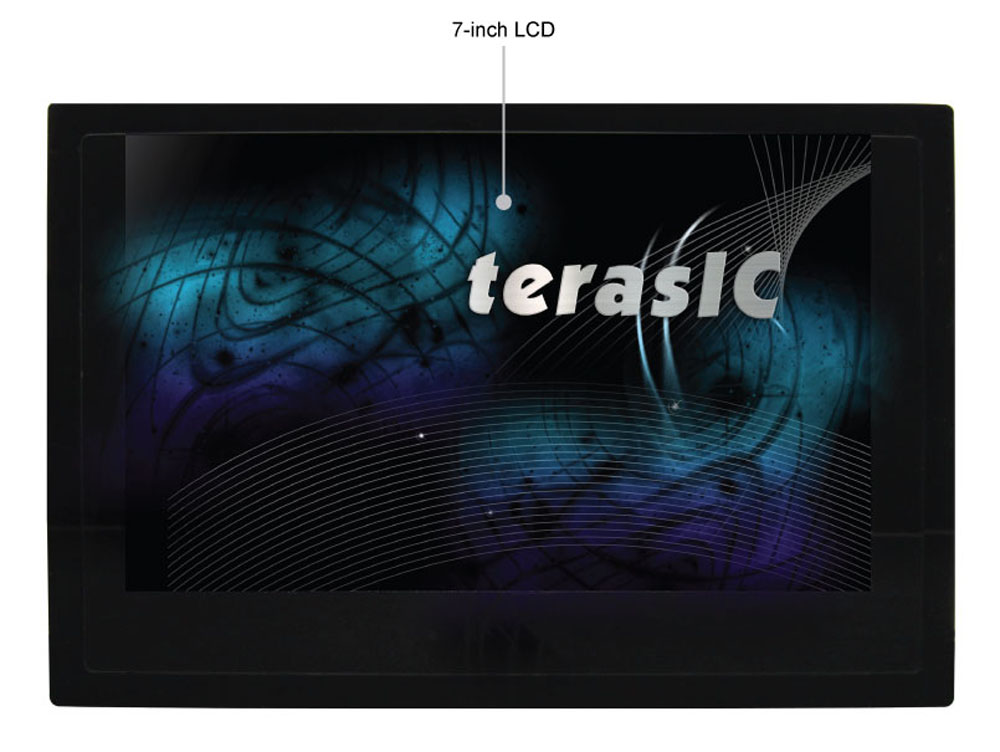

terasic multi touch lcd module made in china

 Column and row binning modes to improve image quality when resizing  Simple two-wire serial interface  Programmable controls: gain, frame rate, frame size, exposure Table 1-2 shows the key parameters of the CMOS sensor (Note*). MTLC User Manual www.terasic.com May 22, 2014...

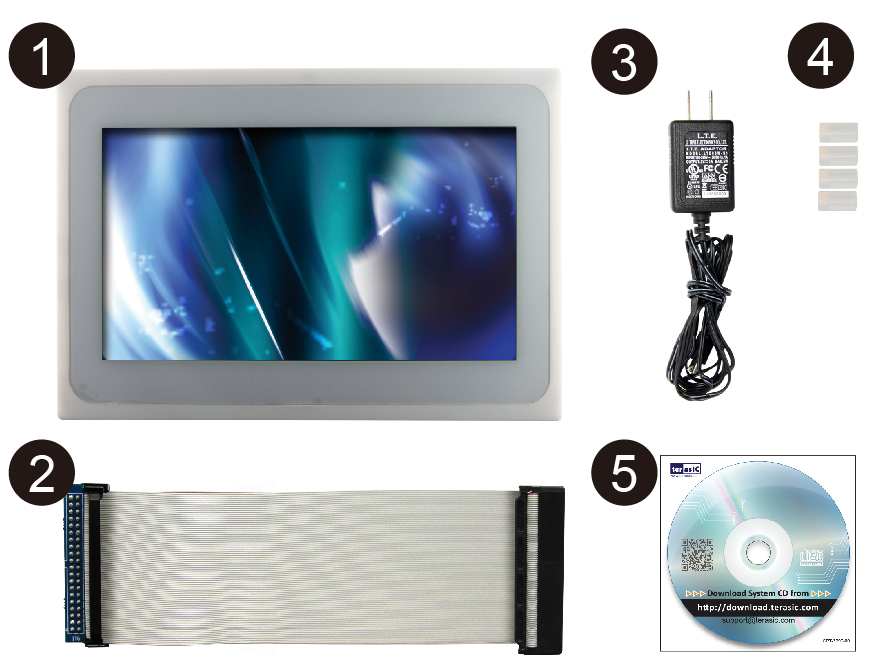

The HSMC cable should be already connected to the MTLC right out of the box. User only needs to connect the HSMC cable to the HSMC connector on the host board as shown in Figure 1-8. MTLC User Manual www.terasic.com May 22, 2014...

HSMC cable. Thus, the user can configure the FPGA to implement any system design. Figure illustrates the connection for MTLC to the Terasic FPGA boards. Figure 2-3 Block Diagram of MTLC Figure 2-4 Connection Diagram of MTLC Kit with Terasic FPGA boards MTLC User Manual www.terasic.com May 22, 2014...

Horizontal Front Porch thfp tCLK Horizontal Valid tCLK Vertical Period Vertical Pulse tvpw Width tvpw 23th Vertical Back Porch fixed Vertical Front Porch tvfp Vertical Valid Setup time Tdsu Hold time Tdsu MTLC User Manual www.terasic.com May 22, 2014...

Left or Right Display LCD_SHLR Control 2.5V Down Display LCD_UPDN Control 2.5V LCD_VSD Vertical sync input. 2.5V TOUCH _I2C_SCL touch I2C clock 2.5V TOUCH _I2C_SDA touch I2C data 2.5V TOUCH _INT_n touch interrupt 2.5V MTLC User Manual www.terasic.com May 22, 2014...

Zoom In 0x48 Zoom Out 0x49 Note: The Terasic Multi-Touch IP can also be found under the \IP folder in the system CD as well as the \IP folder in the reference designs. MTLC User Manual www.terasic.com May 22, 2014...

3.5 Using Terasic Multi-Touch IP in this document. Figure 4-1 Block Diagram of the Painter Demonstration  Demonstration Source Code  Project directory: Painter  Bit stream used: Painter.sof  Nios II Workspace: Painter \Software  Demonstration Batch File...

Figure 4-4 shows the phone when counter-clockwise rotation gesture is detected. Figure 4-5 shows the photo when zoom-in gesture is detected. Figure 4-2 GUI of Painter Demo Figure 4-3 Single Touch Painting MTLC User Manual www.terasic.com May 22, 2014...

Figure 4-4 Counter-clockwise Rotation Gesture Figure 4-5 Zoom-in Gesture Note: execute the test.bat under Picture_Viewer\demo_batch will automatically download the .sof and .elf file. MTLC User Manual www.terasic.com May 22, 2014...

First: There are several types of cheap touchscreens: resistive and capacitive (intro from 3m). And under touchscreen I mean touch panels (digitizers) - the thin multilayer panels which feels touches, but don"t display anything. Touchscreens can be combined with LCD/OLED screens to get display with touch capability. Resistive touchscreens are sensitive to pressure, and you can use any stick to press them, they also had problems with multitouch (sensing several touches at same time). Capacitive touchscreens are often used now in smartphones (since iPhone), and they sense capacitance of human body, working only with fingers or special conductive styli.

Resistive touchscreens usually have 4-wire or 5-wire analog interface (short description) to touchscreen controller. If you want to plug this directly into FPGA board, you need ADC (analog-to-digital converter, sometimes up to 10-12 bit precision) to measure coordinates of touch point.

Capacitive touchscreens usually have more complex interface with complex medium-frequency signals (25-200 kHz). Simplest panels still have 5 wires, but Cypress"s "Touchscreens 101" lists two more advanced panels with 11 and 20 pins. It will be very hard to implement (and calibrate) your own touch controller in FPGA even with good ADCs and DACs.

So, our second step is the touchscreen controller ASIC: the device between microcontroller or FPGA and the touchscreen. Controller will do all needed magic to detect touches and translate information about them into some digital protocol, like COM (RS-232) or USB in ancient controllers for PC, or simple SPI and I2C for microcontrollers and FPGAs (you should know how to implement SPI/I2C for FPGA; the fpga4fun site may help you: spi, i2c). Many small touchscreens sold now may include some controller, integrated into their PCB or flex wire.

Third step: if you want to make prototype with LCD display and touchscreen, especially with small size LCD (up to 6″), the touch panel may be already integrated into display. And because virtually all LCD have the controller to output some information to display (again, fpga4fun has some introduction into using LCD with FPGAs), they probably will have integrated touchscreen controller too.

Now we can start speak about your case: "what I could buy". If you already have FPGA board, you can search for some LCD+touchscreen for some popular hardware prototyping platform, e.g. for ardoino or raspberry pi. For example, adafruit shop has both separate touch panels, lines and buttons even without controller: http://www.adafruit.com/category/60. Also they have several LCD+touch like 2.8" TFT with STMPE610 touch controller (both SPI and I2C, selectable via pin). There are several on sparkfun.com too. Make sure that you understand how to connect the LCD to FPGA, both electrical and protocol requirements. Check is there touch controller, or you need to implement it in the FPGA with ADC (and there should be ADC on your FPGA board).

If you don"t have FPGA board or if you have no any FPGA experience, it can be better (and costly) to find FPGA kit with optional LCD+touch, but not from chinese vendors. There are lot of chinese kits in cheap section of ebay"s search "fpga touch", but they may have not so good tutorials and demo projects as right vendors. There are 7" kit from Terasic (2000 USD, VEEK-MT-C5SoC), or 7" 250USD LCD+touchpanel module for 1800 USD DE3 or 600USD DE2 FPGA boards. And for Digilent, there is 150 USD VmodTFT 4.3" TFT+touch (manual) compatible with Digilent boards with VHDCI connector, like 300 USD Nexys 3 board, 450 USD Atlys board, or 1100 USD Genesys superboard.
