serial tft lcd 3.2 with touch screen factory

Description: The uLCD-32PT(GFX) is a compact and cost effective all in one ‘SMART” display module using the latest state of the art Active Matrix LCD (TFT) technology with an embedded PICASO-GFX2 graphics controller that delivers ‘stand-alone’ functionality to any project.

The PICASO-GFX2 belongs to a family of processors powered by a highly optimised soft core virtual engine, E.V.E. (Extensible Virtual Engine). EVE is a proprietary, high performance virtual processor with an extensive byte-code instruction set optimised to execute compiled 4DGL programs. 4DGL (4D Graphics Language) was specifically developed from ground up for the EVE engine core. It is a high level language which is

4DGL allows the developer to write applications in a high level syntax similar to popular languages such as BASIC, C and Pascal and run it directly on the PICASO-GFX2 processor embedded in the uLCD-32PT module. It allows the user to take complete control of all available resources on that hardware platform such as the Serial Ports, Graphics LCD Display, uSD memory card, I/O pins, etc. This eliminates the need for an external host controller/processor to drive the uLCD-32PT module via serial commands. It provides the user complete control over the hardware module allowing them to quickly develop powerful applications.

Reason: The hooks on the backight of ER-TFT032-3.1 is always complained by most customers for inconvenient assembly. So we cancel the hooks in the new version of ER-TFT032-3.2.That"s the only difference for these two versions.

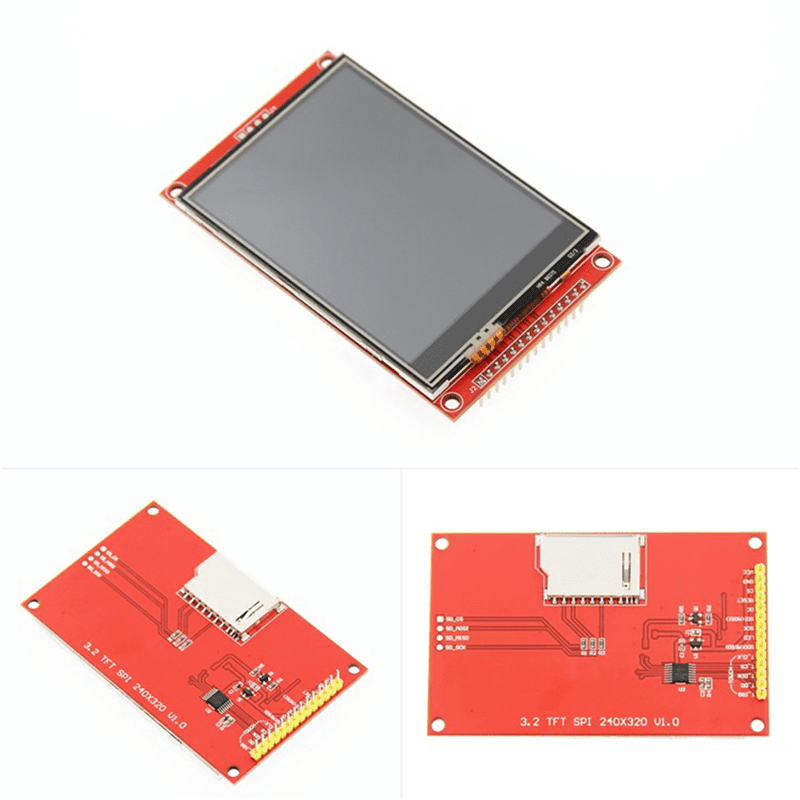

ER-TFT032-3.2 is 240x320 dots 3.2" color tft lcd module display with ILI9341 controller and optional 4-wire resistive touch panel and 3.2 inch capactive touch panel with controller FT6236,superior display quality,super wide viewing angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO ARM and Raspberry PI.It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.It supports 8080 8/16-bit parallel,3/4-wire serial interface. FPC with zif connector is easily to assemble or remove.Lanscape mode is also available.

Of course, we wouldn"t just leave you with a datasheet and a "good luck!".Here is the link for 3.2"TFT Touch Shield with Libraries, Examples.Schematic Diagram for Arduino Due,Mega 2560 and Uno . For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and development kit at the bottom of this page.

"Your time is limited, so don"t waste it living someone else"s life. Don"t be trapped by dogma – which is living with the results of other people"s thinking."

The uLCD-32PT(GFX) is a compact and cost effective all in one ‘SMART” display module using the latest state of the art Active Matrix LCD (TFT) technology with an embedded PICASO-GFX2 graphics controller that delivers ‘stand-alone’ functionality to any project.

The PICASO-GFX2 belongs to a family of processors powered by a highly optimised soft core virtual engine, E.V.E. (Extensible Virtual Engine). EVE is a proprietary, high performance virtual processor with an extensive byte-code instruction set optimised to execute compiled 4DGL programs. 4DGL (4D Graphics Language) was specifically developed from ground up for the EVE engine core. It is a high level language which is

4DGL allows the developer to write applications in a high level syntax similar to popular languages such as BASIC, C and Pascal and run it directly on the PICASO-GFX2 processor embedded in the uLCD-32PT module. It allows the user to take complete control of all available resources on that hardware platform such as the Serial Ports, Graphics LCD Display, uSD memory card, I/O pins, etc. This eliminates the need for an external host controller/processor to drive the uLCD-32PT module via serial commands. It provides the user complete control over the hardware module allowing them to quickly develop powerful applications.

Note: The module can be switched to a "SGC" by changing the firmware. Also, It"s been brought to our attention that trying to program the 4D screens using an FTDI breakout can damage the driver. You"ll need to use the FT232RQ USB to Serial which you can find in the related items below.

A wide variety of 3.2 inch tft lcd module display options are available to you, You can also choose from original manufacturer, 3.2 inch tft lcd module display,As well as from tft, ips, and standard.
