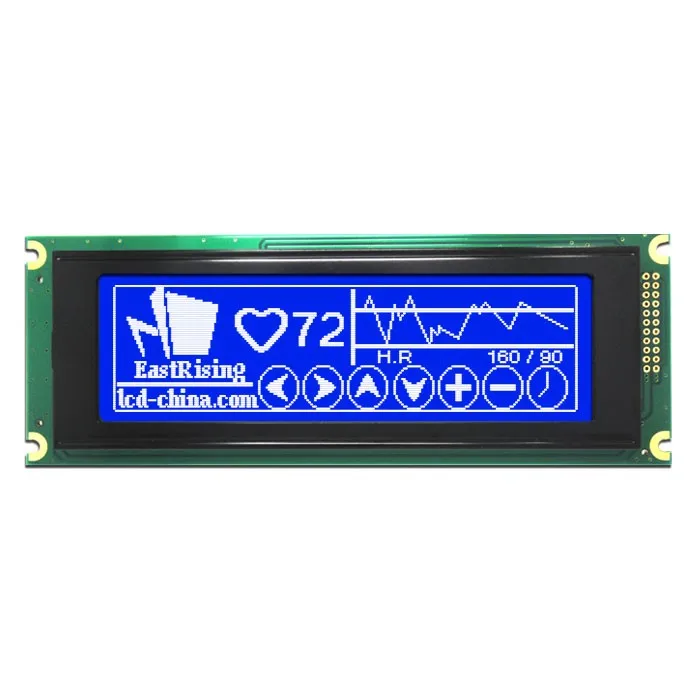

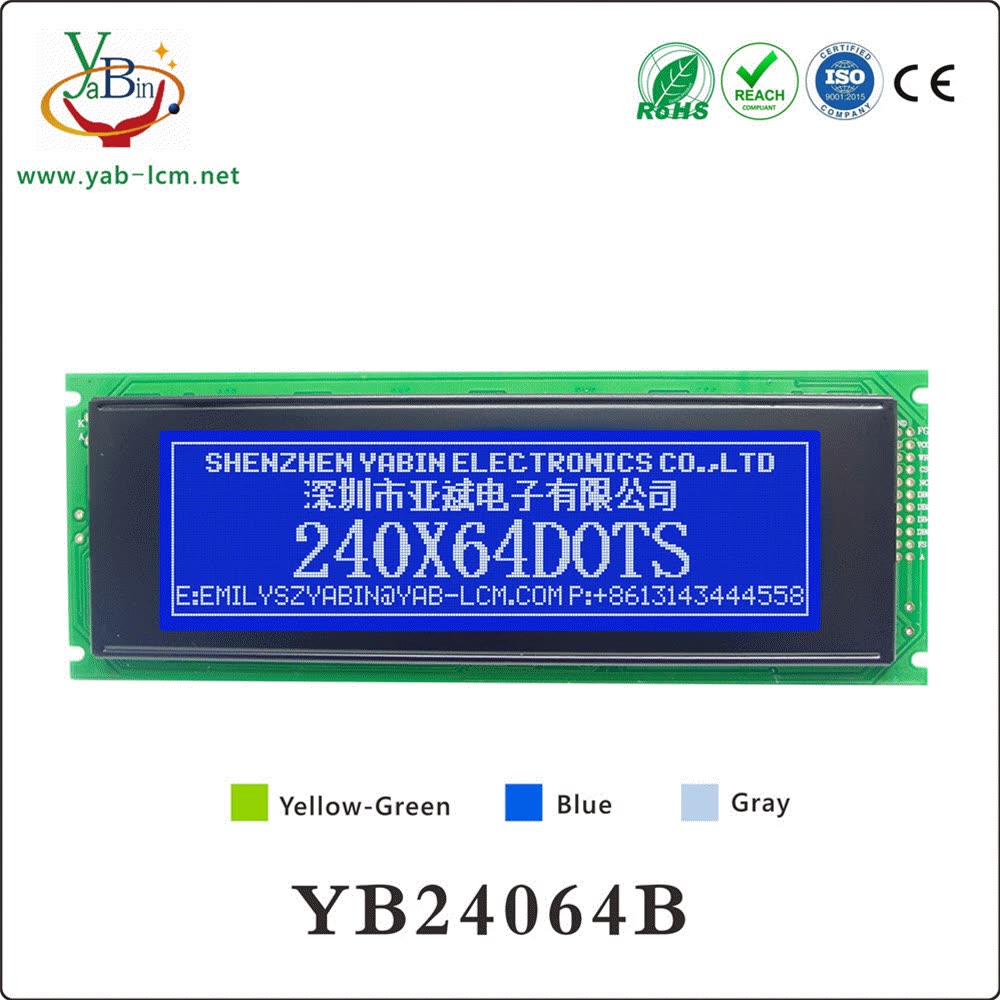

NHD-24064WG-ATMI-VZ# | Monochrome Graphic Module | 240x64 Pixels | Transmissive LCD | Side White Backlight | STN (-) Negative Blue Display | Built-in Negative Voltage Supply

Newhaven 240x64 graphic Liquid Crystal Display module shows white pixels on a blue background. This transmissive LCD Display requires a backlight for visibility and offers a wide operating temperature range from -20 to 70 degrees Celsius. This NHD-24064WG-ATMI-VZ# display includes built-in negative voltage supply It has an optimal view of 6:00, operates at 5V supply voltage and is RoHS compliant.

Graphic lcd module: 122x32, 128x64, 128x32,192x64, 24064, 240x128, 320x240, etc. TFT lcd display: 1.44", 1.77", 2", 2.2", 2.4", 2.8", 3", 3.2", 3.5", 4", 4.3", 5",5.5", 5.7", 6.2", 7", 8", 9", 9.7", 10.1", 17",etc. Flow Chart Name Skype WhatsApp QQ Email Tel Jassica Lo jessica_lujiayi +86-18998985555 1411376275 +86-731-28668968 Packaging & Shipping Packaging&Shipping Customers can choose their own forwarder

Monochrome lcd panel is low cost LCD screen, monochrome lcd display is the mainstream in custom lcd screen because its custom tooling fee is very cheap.Monochrome LCD display included standard graphic monochrome lcd display, character lcd module, monochrome segment lcd display, monochrome tft lcd module and custom lcd screen.The monochrome lcd screen structures have COG LCD (chip on lcd glass), COB (chip on board), COF (chip on film).

An seven segment lcd display is like the below picture, it can display numbers from 0 to 9 and several letters such as C, A, b E, L, and F by control some segments "on" and "off". it is the cheapest lcd display panel.

The segment lcd also could be in Icon lcd display, that is the display content are the custom segments based on customer"s application.each segment means one icon, we could design the icon on our application.

The familiar Characters lcd modules have 16x1, 16x2, 16x4 characters, 20x1, 20x2, 20x4 characters, and 40x2, 40x4 etc, characters lcd display module. An 16x2 lcd display means 16 characters x 2 lines character on the lcd. normally, one characters is made by 5x8 pixels, we could display numbers 1~9, and A~Z letters and most of characters on the 5x8 pixels per characters.

The standard graphic lcd resolution have 96x64、96x96、122x32、128x64、128x128、160x128、160x160、192x64、240x64、240x128、320x240 etc.we could display all the characters and image in the graphic lcd display. of course, the higher resolution lcd, the display effect of image would be better.

(What is lcd resolution: )Lcd resolution means how many pixels of lcd screen,128x64 lcd resolution means 128 column x 64 row pixels on the lcd screen, we also call it 128x64 lcd display. monochrome lcd resolution could be 320x240 (QVGA) or 480x240 maximum, tft lcd resolution could be VGA (640X480) or HD (1366x768, FHD(1920x1080) or 4k2k lcd resolution.

Yes, if you only need the low quantity monochrome lcd display for your project, you could choose Maclight standard monochrome lcd, Maclight have wide range standard Characters lcd and Graphic lcd module, including COB type and COG type for your choosing. please find the standard monochrome list in the end of article, welcome to contact Maclight at [email protected]

The tooling fee of monochrome lcd panel would be around 300~500 USD, if only the simple segment lcd panel, such as TN display mode, then tooling fee would be cheaper, but if the custom lcd screen is monochrome graphic lcd panel, such as STN display panel, the tooling fee would be little higher than TN lcd panel. because the tooling mask for stn lcd would be higher than TN lcd panel. but it is only the tooling fee for monochrome lcd panel.

If for custom monochrome lcd module that with IC chip on glass, we call it COG LCD module, the tooling fee would be more higher, because if for custom TN or STN lcd display panel, the tooling mask can be made by PI film, while for custom monochrome COG LCD module, the custom COG LCD tooling mask would be used the metal mask, the tooling fee would be more higher to around 1500~2000 USD.

Besides the custom lcds panel, for some custom lcd mode that in transmissive lcd or transflective lcd display mode, because lcd panel is passive display, instead of oled display, lcd panel can not emit light by itself, it have to use the backlight, the backlight tooling fee would be upper than 1000 USD or more, the more complicating structure on the backlight, the tooling fee would be higher. for saving the cost of tooling fee on lcd backlight, the simple structure would be cheaper.

The MOQ of custom lcd display for monochrome lcd is calculated based on the mother-glass of LCD panel, some person may ask, what is mother-glass of lcd panel? is it the mother of lcd panel? no, no,no..., it is just a joke, the mother-glass of lcd is the primary glass of lcd, we also call it ITO glass, because it have an ITO layer on the glass. the lcd panels are array on the mother glass in manufacturing lcd panel, and cutting it one by one after lcd cell production finished. the main mother glass sizes if 14"x16", as in lcd manufacturing, for stable running in the full-auto machine line, it is at least 50 set of 14"x16" for an production running, that is the smaller sizes of lcd, the bigger MOQ of lcd quantity is necessary.

1. Confirm the sizes what you would like to custom making? the custom mono lcd displays would be mainly less than 10", the custom sizes is up to the mother glass of lcd panels that is less than 14"x16". the custom mono lcd can be custom made the random sizes below 10".

If you would not like to custom lcd display, you could choose the standard lcd from the following list, it is no MOQ requirement for the standard lcd.

Monochrome lcd display have TN, STN LCD, monochrome tft lcd types. the monochrome lcd could be with or without backlight. even for monochrome lcd display, it have difference LCD colors for choosing, such as yellow-green mode, blue mode, gray mode, black-white mode, negative display mode and positive display available. the backlight color could be white, green, orange, yellow-green colors.

Currently, the mainstream aspect ratio of the TFT LCD panel in the market is 4:3 or 16:9 aspect ratio. But for some applications, some sort of Bar Type shape of display panel would be better than the current mainstream 4:3 or 16:9. Winstar Display released a series of Bar Type TFT LCD display in a row. In this issue, we will introduce 5.2 inch WF52A (Winstar offer only), 3.9 inch WF39A and 4.6 inch WF46A. These bar type TFT displays are perfect for industrial equipment, automotive application, server system, POS system, dynamic information displays and advertising display. In order to meet with customers requirement especially for industrial applications, we develop more derivative solution from these Bar type TFT, e.g. with screw hole on module, with touch panel, high brightness, with controller board. Welcome to learn more for Winstar Bar TFT in the following content.

Winstar monochrome STN WG24064A is a very popular Bar Type display module for industrial applications. We developed our first Bar Type TFT WF52A for customers to upgrade their monochrome display to color TFT. Below is the pin definition comparison for WF52QTLBSDBN0 (with SSD1963 controller board) and WG24064A. They are pin-to-pin from pin 1 to pin 20. WG24064A is using A.K pin for backlight, WF52QTLBSDBN0 is using pin 21 and pin 22 for backlight. Therefore, it’s very easy for customers to upgrade from monochrome STN to color TFT. The WF52QTLBSDBN0 is perfect for industrial equipment & automotive applications, server system, POS system and advertising display.

Winstar Display released a Bar type 5.2" TFT LCD display, it"s a new size and resolution of TFT display. This new 5.2 inch TFT WF52A LCD display offers high quality and colorful image made of resolution 480x128 pixels; it is especially suitable for industrial equipment & automotive applications, server system, POS system and advertising display.

WF52ATLASDNN0 is having View Area dimension of 133.4 x 39.4 mm and Active Area of 127.152 x 33.9072 which is very close to our monochrome Graphic WG24064A; both diagonal sizes are 5.2 inch. WF52ATLASDNN0 is built in with ST7252 or equivalent driver IC, this type is having TFT panel only. It supports RGB 24 bits parallel interface SYNC mode. If customers need PCB with screw holes on module which is having same module dimension as WG24064A, you could choose our WF52QTLBSDBN0. More details, please refer to next introduction. This TFT LCD WF52A module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. Below is the basic specification of WF52ATLASDNN0 as reference.

WF52QTLBSDBN0 model is an upgrade solution for monochrome Graphic STN WG24064A COB module to colorful TFT display, both diagonal size are 5.2 inch. This STN WG24064A is having the resolution 240x64 pixels; the TFT WF52QTLBSDBN0 is having resolution 480x128 pixels which are with higher resolution and colorful images. Winstar developed this wholly new design WF52A with SSD1963 controller board on module to be a replacement of STN WG24064A.

Winstar TFT WF52QTLBSDBN0 is having module dimension of 180.0 x 65.0 mm which is the same as Winstar monochrome Graphic WG24064A. Therefore, the customers can upgrade the existing mono STN WG24064A to color TFT directly since we designed a Pin-to-Pin interface on WF52QTLBSDBN0 module.

WF52QTLBSDBN0 is built in with SSD1963 controller board on module. It supports 8080 family MPU 8bit and 16 bit parallel interface. There are two connection interface options; 26 pins 8 bits using pin header and 36 pins 8 bits/16 bits using ZIF connector. The LCM PIN Definition of CON1 is for those who used WG24064A version, it is pin-to-pin from pin 1 to pin 20. WG24064A is using A.K pin for backlight, WF52QTLBSDBN0 is using pin 21 and pin 22 for backlight. More details, please contact with our sales persons for datasheet.

This TFT LCD WF52QTLBSDBN0 module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. Below is the basic specification of WF52QTLBSDBN0 as reference.

WF52QTLBSDBN0 supports 8080 family MPU 8bit and 16 bit parallel interface. There are two connection interface options. If customers would like to upgrade from WG24064A, please choose CON 1 interface; 26 pins 8 bits using pin header. If customers would like to use WF52A on a new project, please choose CON 4, it supports 8080 parallel interface, 36 pins 8 bits/16 bits using ZIF connector. For more details, please contact with our sales persons for full datasheet.

WF39A is 480x128 dots 3.9 inch color TFT LCD display module which is having the module dimension of 105.5x40.64 mm and Active area size of 95.04x25.34 mm. WF39A TFT LCD display is without built in controller on module. WF39A supports RGB interface, 3.3V (typical) power supply, supports DE mode and Sync mode. It’s View Angle (U/D/R/L) is:50/70/70/70 (typical); brightness is 500 cd/m2. This WF39A TFT module can be used in information display device, server system, audio system, industrial device, security equipment which requires display in high quality and colorful image.

WF39A TFT LCD module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. Below is the basic specification of WF39A as reference.

Winstar WF46A is 4.6 inch color TFT LCD display module made of 800x320 dots pixel. WF46A model is having the module dimension of 120.7x56.16 mm and Active area size of 108x43.2 mm. This WF46A TFT LCD display is without built in controller on module. It supports RGB interface, 3.3V (typical) power supply, supports DE mode and Sync mode. It’s View Angle (U/D/R/L) is 50/70/70/70 (typical); brightness is 350 cd/m2. This WF46A TFT module can be used in information display device, server system, audio system, industrial device, security equipment which requires display in high quality and colorful image.

WF46A TFT LCD module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. Below is the basic specification of WF46A as reference.

Winstar WEO128128A is a passive matrix OLED display which is made of 128x128 pixels, diagonal size 1.5 inch. The WEO128128A has the outline dimension of 33.8 x 36.5 mm and AA size 26.86 x 26.83 mm; it is built in with SSD1327ZB controller IC and it communicates via 6800/8080 8-bit parallel, I2C and 4-wire SPI serial interface, 3V power supply. The WEO128128A is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it’s lightweight and low power consumption. This OLED module is suitable for handheld instruments, meters, IoT, etc. The standard emitting color for this item is yellow, but options are available in white and sky blue.

WEO128128A module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +80℃. Below is the basic specification of WEO128128A as reference. For any further information such as samples or quotation, please contact with our sales rep.

Orient Display is a company that specializes inmanufacturing graphic LCD, graphic display modules and many more. The company was founded in 1996 by specializing in fields of production, R&D, quality controls. Thanks for the management and employee’s continuous hardworking and enormous effort and shareholder continuous investment over years, Orient Display factory is now the world’s lead LCD graphic displays manufacturer in flat panel industry and is listed as a public company in China stock market.. Now, Orient Display factory has 3 plants that can produce graphic LCD modules. Factories have complete quality and environment management system, ISO9001, ISO/IATF16949, ISO14001, IECQ QC080000. It is also No.1 in the world for automotive capacitive touch screen which took around 18% market share in the world automotive market.Orient Display has extensive graphic LCD displays (liquid crystal display) standard product lines in dot matrix format of graphic resolution including 122×32, 128×64, 128×128, 160×32, 160×64, 160×160, 192×48, 192×64,202×32, 240×64, 240×160, 240×128, 282×128, 320×240 etc. The sizes range from 1.0” LCD to 5.2” LCD display.

Orient Display graphic LCD display modules includedifferent options of polarizer in reflective (saving power),transmissive (better contrast) or transflective (sunlight readable and battery powered) types.

Orient Display graphic LCD display modules have the selection of different display technologies from low-cost TN (twisted nematic), HTN (high performance twisted nematic), to higher end yellow green STN (super twisted nematic), blue STN, gray STN, FSTN (Film compensated STN), vertical alignment LCD to even higher quality wide viewing angle and automotive grade FFSTN, ASTN to meet different requirements.

Orient Display graphic LCD display modules also have different kinds for package technologies from traditional COB (Chip on Board), to TAB (Tape Automatic Bonding), to highly compacted COG ( Chip on Glass) and COF (Chip on Film).

Orient Display graphic LCD display modules have the options of different colors of backlight, yellow green, pure green blue, red, orange, amber and RGB (Red-Green-Blue) to make the monochrome LCDs more colorful.

Orient Display graphic LCD display modules have most available interface choices, I2C, SPI, parallel 6800, 8080, MCU etc. With our strong technical capability, some of our graphic LCD products are with Arduino shield which are more convenient for our customers.

Orient Display graphic LCD display modules have touch panel options. The 2.7” JAZZ 128×64 dot matrix graphic LCD display series has option of RTP (Resistive Touch Panel). Most of Orient Display graphic LCD displays can be custom made either with RTP or CTP (Capacitive Touch Panel).

Orient Display graphic LCD displays have been widely used in industry instrument, meters, machinery equipment, home appliances, white goods, smart home monitors, thermostats, automation, hand held medical devices, automotive, POS systems, audio/visual display systems, marine, aerospace, toys etc.

A more recent alternative is to integrate the controller and associated electronics onto the LCD glass, resulting in more compact designs. Controller On Glass (COG) displays do not require a PCB as part of the module, but it is often included to simplify connections and mounting.

Worth a mention is the HG2406411G-VA , which is the only module I came across which actually matches the dimensions of the LCM24064YGF. It is available through Alibaba, but with a minimum order quantity of 1000 units.

Since there is little chance of obtaining a controller-less LCD module, it can be assumed that an interface will be required to connect the replacement to the Z1"s controller. Let us further assume the interface could be made to work with whichever controller the replacement has.
