3.5 inch tft lcd screen module ultra hd 320x480 supplier

Sunnyis a professional high-tech enterprise,which specializes in LCDslicing and filling,the researching,designing,manufacturing and selling of LCD(Liquid Crystal Display),LCM(LCD Modules). it is located in NanYu Industrial Area, Longhua District., Shenzhen,only a 30-minutes drive from Baoan International Airport.

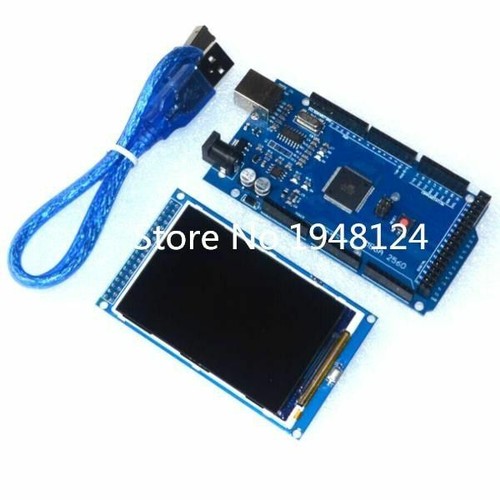

This is a 3.5-inch 320 * 480 resolution TFT color screen. It supports working boards such as Arduino uno and Arduino mega2560 and Arduino due. Also supports STM32, 51 and other conventional microcontrollers.

When using this screen, you do not need any wiring operations, just plug onto your arduino board, we will provide the corresponding Arduino library files, the development code is open source, you can use arduino and this screen to build some applications.The backlight always on, can not control the backlight, backlight is connect to 3.3V.

This is a 3.5-inch 320 * 480 resolution TFT colour screen. It supports working boards such as Arduino Uno and Arduino mega2560 and Arduino due. Also supports STM32, 51 and other conventional microcontrollers.

When using this screen, you do not need any wiring operations, just plug onto your Arduino board, we will provide the corresponding Arduino library files, the development code is open source, you can use Arduino and this screen to build some awesome applications and games!

This 3.5 inch TFT LCD Display module has a resolution of 320 x 480 pixels. The module includes Resistive Screen Panel. SSD1289 is used to control LCD and the panel is controlled by XPT2046.The module can be interfaced with any MCU like STM32, AVR and 8051 using the 40 pins breakout header that Include panel interface. The module can be driven in 16bit data interface mode.

This LCD Module can be directly plugged into Arduino board using "TFT LCD Adapter Shield for Arduino" shield. The LCD on this module has a has wide viewing angle and a decent contrast ratio.

ER-TFTM035-6 is 320x480 dots 3.5" color tft lcd module display with ILI9488 controller and breakout board,superior display quality,super wide viewing angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO,ARM and Raspberry PI.It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.

It supports 8080 8-bit /9-bit/16-bit /18-bit parallel ,3-wire,4-wire serial spi interface.Built-in microSD card slot, optional 3.5" 4-wire resistive touch panel with controller XPT2046 and capacitive touch panel with controller FT6236, so you can detect finger presses anywhere on the screen and doesn"t require pressing down on the screen with a stylus and has nice glossy glass cover . It"s optional for font chip, flash chip and microsd card. We offer two types connection,one is pin header and the another is ZIF connector with flat cable mounting on board by default and suggested. Lanscape mode is also available.

Of course, we wouldn"t just leave you with a datasheet and a "good luck!".Here is the link for 3.5"TFT Touch Shield with Libraries, EXxamples.Schematic Diagram for Arduino Due,Mega 2560 and Uno . For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and development kit at the bottom of this page.
