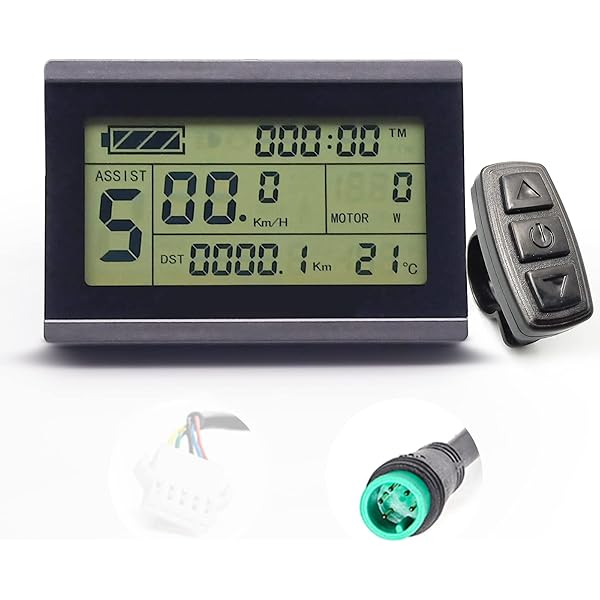

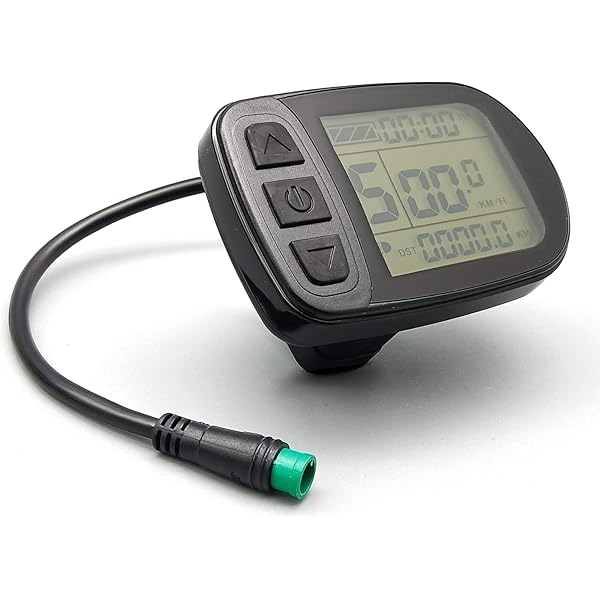

kt lcd display in stock

1. Data display: it shows the riding speed, a single mileage, and cumulative mileage, riding time, power-assist gear, motor power and temperature, battery voltage and charge status, brake status, and the used ambient temperature and other cycling parameters;

8. Cruise and constant speed: With the setting and display of the cruise, achieving to automatically maintain the vehicle speed, so that the vehicle drives at a constant speed;

9. Night driving: With the functions of LCD backlit display and headlight switch control, instrument backlighting and headlights can be turned on during driving at night;

11. Automatically prompt: For the appeared failure of the vehicle, it can prompt different fault codes for easy inspection and maintenance of the vehicle. With a temperature display for motor operation and it is to achieve the ultra-temperature alarm and motor protection;

6. The flashing units of measure show if the display is configured for metric or imperial measures. Again, use UP ​and DOWN ​if you need to change it. You may have to cycle through until you find the right combination. Press POWER​ to advance to next step.

7. At this point, nothing will be flashing. But the display still shows the settings for max speed, tire size, and metric/imperial units. Press both UP ​and DOWN​ to advance to setting the P values.

10. Continue on to set any other desired parameters. Brief explanations are as follows. For detailed instructions, see the LCD manual. P1 Motor Characteristic Parameter Setting Mode (100) P2 Wheel Speed Pulse Signal Setting Mode (6, 5 and 1 most common) P3 Power Assist Control Mode (1) P4 Handlebar Startup Mode (0) P5 Power Monitoring Mode (12-15) C1 Power Assist Sensor and Parameter Selection Mode (2) C2 Motor Phase Classification Coding Mode (0) C3 Power Assist Ratio Gear Initialization Mode (8) C4 Handlebar Function Setting Mode (3) C5 Controller Maximum Current Adjustment Mode (10) C6 Backlight Brightness Adjustment Mode (3) C7 Cruise Function Setting Mode (0 or 1. Setting to 1 enables cruise. While riding, hold the DOWN button to enable cruise control. A "C" will appear in the pedal assist field. Using the throttle or brakes will disable the cruise. C8 Motor Operating Temperature Display Mode (1) C9 Power-on Password Setting Mode (0) C10 Automatic Restore Default Setting Mode (n) C11 Attribute Selection Mode (0) C12 Controller Minimum Voltage Adjustment Mode (4) C13 ABS brakes of the controller and parameters of anti-charge control (0) C14 Power-assist tuning parameters (2) Press and hold POWER at any time ​to exit the setup mode.

The LCD Display Upgrade provides additional information while riding, including Speedometer, Odometer, Trip Odometer, Average Speed, Max Speed, and Pedal Assist (PAS) levels 1-4. This replaces the stock LED display on the RadRunner, RadMission, and RadExpand.

Color LCD with USB port for the Rad ebikes. Unlock the speed limiter to 45mph and unleash the potential power of your Rad ebike! This LCD will only work with our 25 & 35a controller (Rad) and can be ordered herehttps://electrobikeworld.com/products/35a-controller-rad&

1. Data display：it shows the riding speed, a single mileage and cumulative mileage, riding time, power-assist gear, motor power and temperature, battery voltage and charge status, brake status and the used ambient temperature and other cycling parameters;

7. Cruise and constant speed：With the setting and display of the cruise, achieving to automatically maintain the vehicle speed, so that the vehicle drives at a constant speed;

8. Night driving：With the functions of LCD backlit display and headlight switch control, instrument backlighting and headlights can be turned on during driving at night;

10. Automatically prompt：For the appeared failure of the vehicle, it can prompt different fault codes for easy inspection and maintenance of vehicle. With a temperature display for motor operation and it is to achieve the ultra-temperature alarm and motor protection;

Data display: It shows the riding speed, a single mileage and cumulative mileage, riding time, power-assist gear, motor power and temperature, battery voltage and charge status, brake status and the used ambient temperature and other cycling parameters.

Cruise and constant speed: With the setting and display of the cruise, achieving to automatically maintain the vehicle speed, so that the vehicle drives at a constant speed.

Night driving: With the functions of LCD backlit display and headlight switch control, instrument backlighting and headlights can be turned on during driving at night.

Automatically prompt: For the appeared failure of the vehicle, it can prompt different fault codes for easy inspection and maintenance of vehicle. With a temperature display for motor operation and it is to achieve the ultra-temperature alarm and motor protection.

Eliminating the speed limit is not the same thing as increasing the speed. Higher voltage equals higher speed while higher amps equals more torque. The controller/display upgrade gives you more torque because it pulls more amps but it does not mean that your battery is somehow now able to provide more voltage. However it does give you the capability to wire in a higher voltage battery, whereas the original controller would have simply burnt out if you wired up a higher voltage battery.
