Summarize （1602A QAPASS ）is an industrial character type LCD, can also shows that 16 x02 namely 32 characters. (16 column 2 line) Second:module size (pictured) Three:pin interface specifications table Numbers symbols pin pin that Numbers symbols that Numbers symbols Pin that...

1 foot: for to power VSS. 2 feet: VDD take 5 V is power. 3 feet: VL for LCD contrast the adjustment, and then when the power is the weakest contrast, grounded contrast the highest, and the contrast Through high can produce the "ghost", when used, can pass...

4. 1602 LCD instructions in time sequence that 1602 LCD module internal controller of article 11 control instruction, as the chart shows: Numb instructions Clear display Cursor to return to Buy input mode Display the on/off control The cursor or character shift Buy function Buy character CunZhuQi...

4: control command table 1602 LCD module of reading and writing, and the screen and light mark operation operations are through the instructions of programming realize. (note: 1 for high Level, 0 for low level) Instruction 1: clear display, instruction code 01 H, the cursor is reset to address 00 H position. Instruction 2: the cursor reset, the cursor to return to address 00 H.

The basic operation sequence table Graph: read operation sequence Graph: write operation sequence 1602 LCD RAM address mapping and standard word stock list. Liquid crystal display module is a slow display device, so in the execution eachinstruction before must affirm module mark is busy low electricity Flat, said were not busy, otherwise this instruction failure.

At the product description it said that the controller is HD44780. I followed the initializing sequence in the datasheet, but all I get is one line of white full rectangles.

LCD 16X2 Blue Backlight provides a 16 characterX2 line LCD with I2C interface for easy control by a uC. 16X2 Blue Backlight LCD-1602 IIC I2C 16-Character 2-Lineare extremely common and is a fast way to have your project show status messages.

LCD 16×2 is composed of a 16 character x 2 line LCD display with a blue backlight and white characters. Each of the characters are composed of a 5 x 8 dot matrix for good character representation.

This is slightly difficult guide for the beginners as it involves soldering and wiring is complex. Here is detailed steps on how to for 1602A LCD display Arduino connection. In this guide we will also talk about the soldering part. The units do not cost more than 3 USD per unit but there is no in-built pins – usually male header pins supplied. We talked about different types of wires in electronics. We can use solid core wires instead of male header pins and solder. Arduino has the needed Library included :

With the above connection, again connect your Arduino with computer, the LCD will light up. Adjust the potentiometer and you’ll be able to see from blank to white all units like [] [] [] []. That [] [] [] [] is full contrast and blank is minimum contrast.

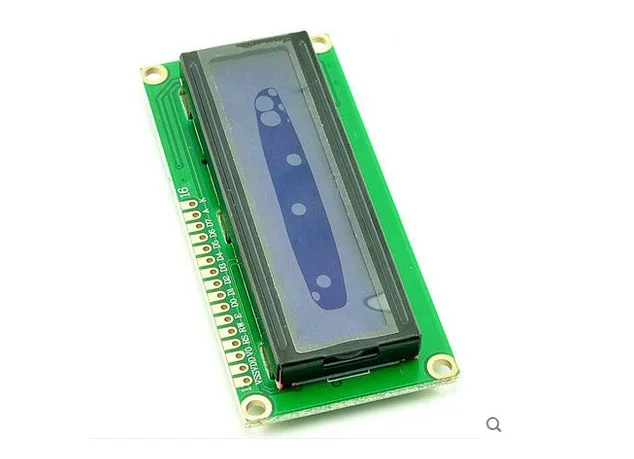

1602a LCD 16X2 Lcd Display Module for Arduino Blue Color 1602 LCD is 16 character by 2 line display has a very clear and high contrast black text upon a blue background/backlight. It also includes a serial I2C/IIC adaptor board pre-soldered to the back of the LCD. A 1602a LCD 16X2 Lcd Display Module with white text on a vivid blue backlit LCD. This is a 1602a LCD 16X2 Lcd Display Module screen with I2C interface. It is able to display 16×2 characters on 2 lines, white characters on blue background.

LCD USES manual Directory (1) Summarize (2) shape dimension (3) module mainly hardware description (4) the external interface module (5) command instructions (6) reading and writing operation sequence (7) software initialization

Is the text moves left or move to the right. High level said effective, low level is invalid. Instruction 4: display switch control. D: control overall display of open and shut, high level says open display, low level said shut show And C: the open and close to control a cursor, high level said the cursor, low level said no cursor B: whether to control a cursor flashing, High level flashing, low level do not twinkle. Command 5: the cursor or display shift S/C: high electricity at ordinary times of mobile displays text, low electric usually move the cursor. Command 6: function setting command DL: high electricity at ordinary times for four bus, low electricity at ordinary times for eight bus N: low electricity at ordinary times for single line Display, high electric usually pair on display F: low electricity at ordinary times display 5 x7 of dot matrix characters, high electric usually display 5 x10 of dot matrix characters. Command 7: character generator RAM address Settings. Instructions 8: DDRAM address Settings. Instructions 9: read the busy signal and the cursor address BF: a sign for busy, high level said busy, this time the module can"t receive commands or The data, if for low level is not busy said. Directive 10: write data. 11 instructions: read data.

before display character input address, also is tell module in Where display character. 6. 1602 internal display address (pictured) For example the second line the first character address is 40 H, so whether written 40 H can directly to the cursor positioning in the second line The first character position? So no, because that address to request when the top bits D7 constant for high level 1 so The actual writing data should be 01000000 B (40 H) + 10000000 B (80 H) = 11000000 B (C0H). In the LCD module in the initialization of first set its display mode, in LCD module display characters is automatic when the cursor move to the right, Without human intervention. Every time before you judge input instructions LCD module are in favor of the state. 1602 LCD module of the internal character happen storage

1 foot: for to power VSS. 2 feet: VDD take 5 V is power. 3 feet: VL for LCD contrast the adjustment, and then when the power is the weakest contrast, grounded contrast the highest, and the contrast Through high can produce the "ghost", when used, can pass a 10 K adjust potentiometer contrast. 4 feet: RS for registers choice, high electric usually choose data registers, low electric usually choose instruction register. 5 feet: R/W signal lines for reading and writing, high electric usually are read operation, low electricity at ordinary times for write operation. When the RS and the R/W common For low electricity can be written instructions at ordinary times, or displays address, when RS for low level R/W high power for at ordinary times can read busy signal, and when RS for high level R/W for low electricity data can be written at ordinary times. 6 feet: E end to make can end, when E is driven by high level jump into low electricity at ordinary times, LCD module executive order. 7 to 14 feet: D0 ~ D7 for eight two-way data cables. 15 feet: back light positive. 16 feet: back light negative.

1602 LCD RAM address mapping and standard word stock list Liquid crystal display module is a slow display device, so in the execution each instruction before must affirm module mark is busy low electricity Flat, said were not busy, otherwise this instruction failure. To display character

14: control command table 1602 LCD module of reading and writing, and the screen and light mark operation operations are through the instructions of programming realize. (note: 1 for high Level, 0 for low level) Instruction 1: clear display, instruction code 01 H, the cursor is reset to address 00 H position. Instruction 2: the cursor reset, the cursor to return to address 00 H. Instruction 3: the cursor and display mode I/D: cursor movement direction, high level move to the right, low level moves left S: all on the screen

In this tutorial we will see How to Interface a 16×2 character LCD module with PIC 16F877A Microcontroller using MPLAB X IDE and MPLAB XC8 C Compiler. 16×2 Character LCD is a very basic and low cost LCD module which is commonly used in electronic products and projects. 16×2 means it contains 2 rows that can display 16 characters. Its other variants such as 16×1 and 16×4 are also available in the market. In these displays, each character is displayed using 5×8 or 5×10 dot matrix.

For controlling LCD using MPLAB XC8 compiler we need to know the hardware of LCD. These LCDs commonly uses HD44780 compliant controllers. So we need to learn HD44780 Dot Matrix LCD Controller Datasheet. Don’t worry we already developed an LCD library including commonly used functions, so you can use it without any hardware knowledge of LCD.

First two pins GND and VCC (VSS and VDD) are for providing power to LCD display. 3ed pin VEE is used to control the contrast of the LCD display. A 10KΩ preset whose fixed ends connected to VDD, VSS and variable end connected to VEE can be used to control contrast of the LCD. A microcontroller or microprocessor need to send 2 types of information for operating this LCD Module, Data Information and Command Information. Data Information is the ASCII value of the characters to be displayed in the LCD screen and Command Information determines other operations such as position to be displayed, clear screen, shift etc. Data and Command Information are send to LCD through same data lines (DB0 – DB7) which are multiplexed using RS (Register Select) pin of LCD. When RS is HIGH LCD treats DB0 – DB7 data pins information as Data to be displayed and when it is LOW LCD treats it as Command Information. Enable (E) input of the LCD is used to give Data Strobe. HIGH (5V) Voltage Level in the Enable (E) pin tells the LCD that DB0 – DB7 contains valid information. The input signal R/W (Read or Write) determines whether data is written to or read from the LCD. In normal cases we need only writing hence it is tied to GROUND in circuit shown below.

The interface between this LCD and Microcontroller can be 8 bit or 4 bit and the difference between them is in how the data or commands are send to LCD. In the 8 bit mode, 8 bit data and commands are send through the data lines DB0 – DB7 and data strobe is given through E input of the LCD. But 4 bit mode uses only 4 data lines. In this 8 bit data and commands are splitted into 2 parts (4 bits each) and are sent sequentially through data lines DB4 – DB7 with its own data strobe through E input. The idea of 4 bit communication is introduced to save pins of a microcontroller. You may think that 4 bit mode will be slower than 8 bit. But the speed difference is only minimal. As LCDs are slow speed devices, the tiny speed difference between these modes is not significant. Just remember that microcontroller is operating at high speed in the range of MHz and we are viewing LCD with our eyes. Due to Persistence of Vision of our eyes we will not even feel the speed difference.

Hope that you got rough idea about how this LCD Module works. Actually you need to read the datasheet of HD44780 LCD driver used in this LCD Module to write a MPLAB XC8 program for PIC. But we solved this problem by creating a header file lcd.h which includes all the commonly used functions using 4 bit mode. Just include it and enjoy.

Lcd_Set_Cursor(int row, int column) : This function is used to set row and column of the cursor on the LCD screen. By using this function we can change the position of the character or string displayed by following functions.

sprintf() can be used to write formatted string to a variable. It can be used with this LCD library to format displayed texts. This enables us to display integers and floating point numbers on the LCD very easily. You should include the header file stdio.h for using sprintf().
