192x64 lcd modules free sample

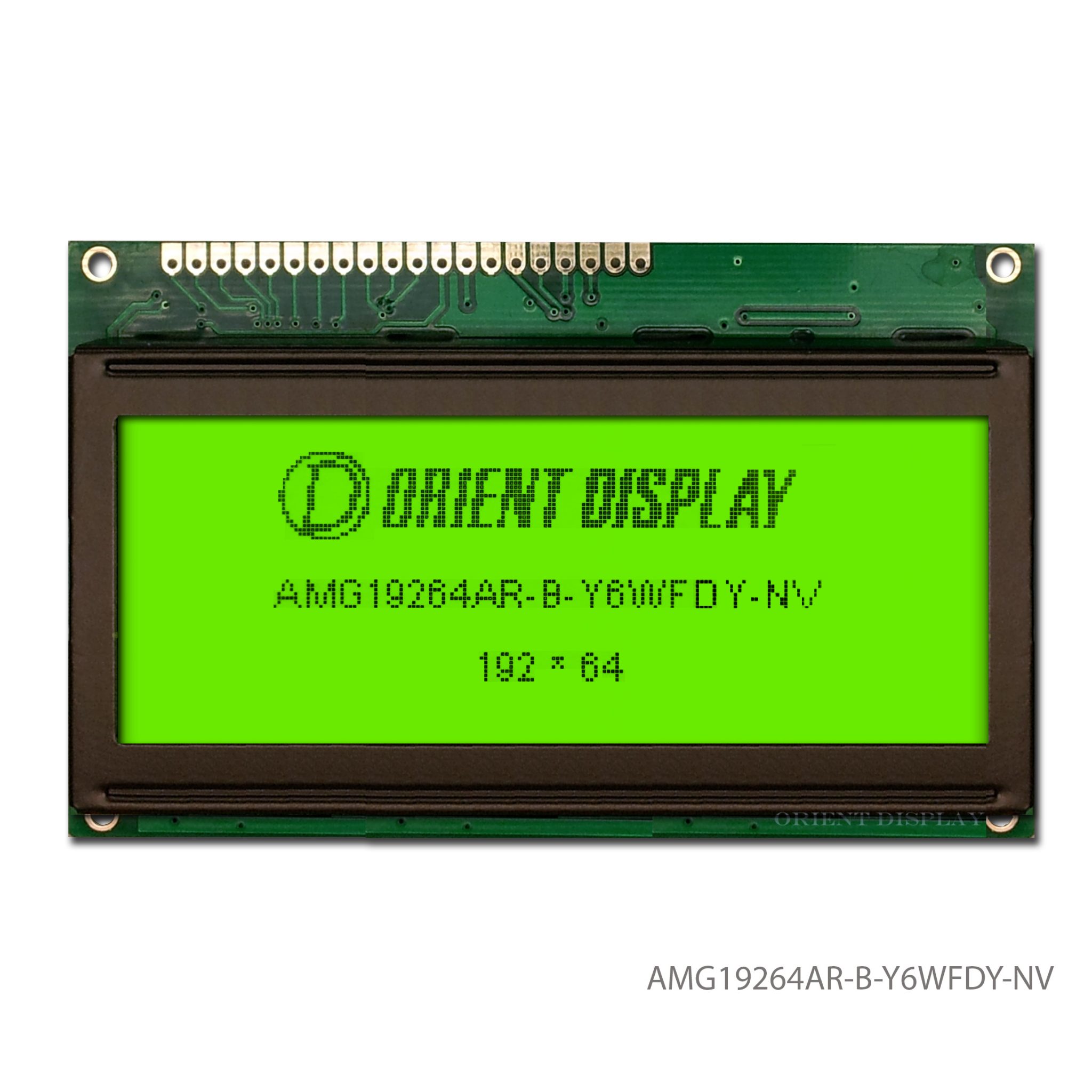

A 3.3″ monochrome, 192×64 dot matrix, COB (Chip on Board) Graphic LCD Module in STN Positive Yellow Green LCD Mode Wide Temperature Range (Operating Temp: -20°C to 70°C, Storage Temp: -30°C to 80°C), and Yellow Green LED Backlight. It has a six O’clock viewing direction and a transflective polarizer recommended for applications that will be used both indoor and outdoor. This product has negative voltage and is assembled Chip On board with 1/64 Duty and a controller IC S6B0107, S6B0108 or equivalent. The interface type is Parallel. This is an ROHS compliant product manufactured with ISO standards and procedures.

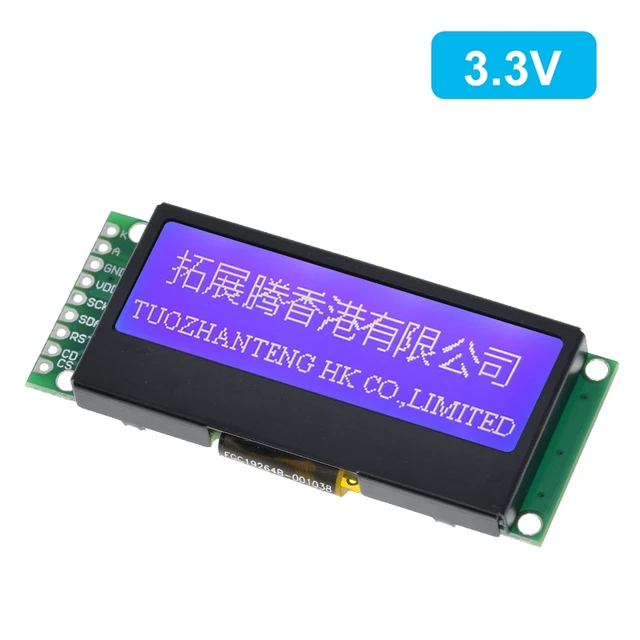

NMLCD-M19264Ais 192x64 graphic lcd display module, ks0107+ks0108 or equivalent controller, white led backlight, wide temp, stn blue lcd, parallel interface.

NMLCD-M19264Ais blue background with 192x64 monochrome white pixels, S6B0107 and S6B0108 controller that is extremely common and well documented, 6800 8-bit parallel interface, single led backlight with white color included can be dimmed easily with a resistor or PWM, stn-blue lcd negative, wide operating temperature range, rohs compliant.

Answer: For the segment type LCD module, if you need to modify the outline size or display content, we will start the drawing paper for your checking.

Get top-notch quality graphic lcd module 192*64 at Alibaba.com. These graphic lcd module 192*64 are necessary while stitching as they make sure your finger is safe from getting poked or pricked by the sewing needle. They are little covers that fit over your finger"s end and are especially useful when you"re stitching leather or thick fabrics and require extra pressure during the process.

There are different types of graphic lcd module 192*64 depending on the material used in manufacturing them. You can purchase all these types at Alibaba.com. The leather type is primarily used for hand embroidery and quilting. They are flexible and your fingers sweat less. With use, they mold to your fingers, making them even more comfortable. Several types are of antique value only, like the ones made using glass, bone china, silver, brass, wood and porcelain. Several of these come with carvings too. Metal types are often used when stitching heavier fabrics. There are several plastic types as well, which are available in hard and soft versions. When choosing graphic lcd module 192*64 for yourself, you must look for the right fit.

There are innumerable benefits to using graphic lcd module 192*64. Not only do they save your fingers while stitching, but it also keeps them dry. They give you more control while stitching and make your work precise and accurate. graphic lcd module 192*64 also ensure that you don"t get any finger cramps caused by repetitively pushing and pulling a needle. And to top it off, they can also serve as a collectible, especially the antique ones.

For premium quality graphic lcd module 192*64, you need to look no further than Alibaba.com. Here, you can shop from a vast collection of products that come with on-time shipments and multiple payment options. These graphic lcd module 192*64 make your sewing experience joyful, easy and safe.

In this project, I will show you how to interface a 128X64 Graphical LCD with Arduino UNO. This particular LCD Module is based ST7920 LCD Controller. So, we will first see a little bit about the Graphical LCD Module and its LCD Controller ST7920.

In the previous Arduino project, I have interfaced a Nokia 5110 LCD Module with Arduino. It is also a graphical LCD which can display some basic bitmap images and graphics. But the issue with Nokia 5110 LCD Module is its resolution.

At 84 x 48 pixels, the Nokia 5110 LCD can be used for implementing a menu-based user interface. Due to its small size, the resulting menu will be limited to 3 or 4 items per page.

If we want a bigger display with more real estate to work with, then the obvious choice is to go for the bigger and better 128×64 Graphical LCD Module.

As a demonstration, after making all the hardware connections, I will display a bitmap image on the Graphical LCD Module. If you are interested in implementing a simple 16×2 Alpha-Numeric LCD with Arduino, then check out this tutorial.

At first glance, the 128×64 Graphical LCD Module seems like a bigger brother to the famous 16×2 LCD or 20×4 LCD Modules, with their similar construction and almost similar pin layout.

But there is a significant difference between those two. 16×2 or 20×4 LCDs are essentially character displays. They can only display alpha-numeric characters and some simple custom characters that are confined to a 5×8 matrix.

By using different combinations of pixels, we can basically display characters of various sizes. But the magic doesn’t end there. You can display images and graphics (small animations) as well. In a 128×64 LCD Module, there are 64 rows and 128 columns.

There are several versions of the Graphical LCD in the market. Even though the usage, application and implementations are almost identical, the main difference lies in the internal LCD Controller used to drive the dot matrix display.

Some of the commonly used LCD Controllers are KS0108, SSD1306, ST7920, SH1106, SSD1322, etc. The pin out of the final LCD Module might vary depending on the LCD Controller used. So, please verify the LCD Controller as well as the pin out before making a purchase.

The Graphical LCD Module I purchased consists of ST7920 Controller. It is manufactured by Sitronix and supports three types of bus interfaces i.e., 8-bit mode, 4-bit mode and Serial interface.

If you have used 16×2 LCD Display earlier, then you might be familiar with both 4-bit as well as 8-bit parallel interfaces. The serial interface is something new and we will explore this option in this project.

As I already mentioned, double-check with the manufacturer about the pinout of the Graphical LCD Module. The following table describes the pinout of the 128×64 LCD Module that I have.

Now that we have seen a little bit about the Graphical LCD and its controller ST7920, let us now proceed with interfacing the 128×64 Graphical LCD with Arduino. I will implement a simple circuit to demonstrate how easy it is to interface the LCD and Arduino using very few external components.

So, connect the RS, RW and E of the LCD to Digital IO pins 10, 11 and 13 of Arduino UNO. Also, in order to select the Serial Interface Mode, the PCB pin must be connected to GND.

The remaining connections are similar to a traditional 16×2 LCD. VCC and GND are connected to 5V and ground of the power supply. VO is connected to the wiper of a 10KΩ POT while the other two terminals of the POT are connected to 5V and GND respectively.

I have used the above “The Office” logo. Remember that the resolution of the 128×64 LCD is, well 128×64 pixels. So, the maximum image size should be 128×64. So, using Microsoft Paint, I have brought down the resolution of the above image to 128×64 pixels and also saved it as Monochrome Bitmap Image.

A simple project for interfacing the 128×64 Graphical LCD with Arduino is implemented here. Instead of displaying plain characters, I have displayed a bitmap image on the LCD to show its capability.
