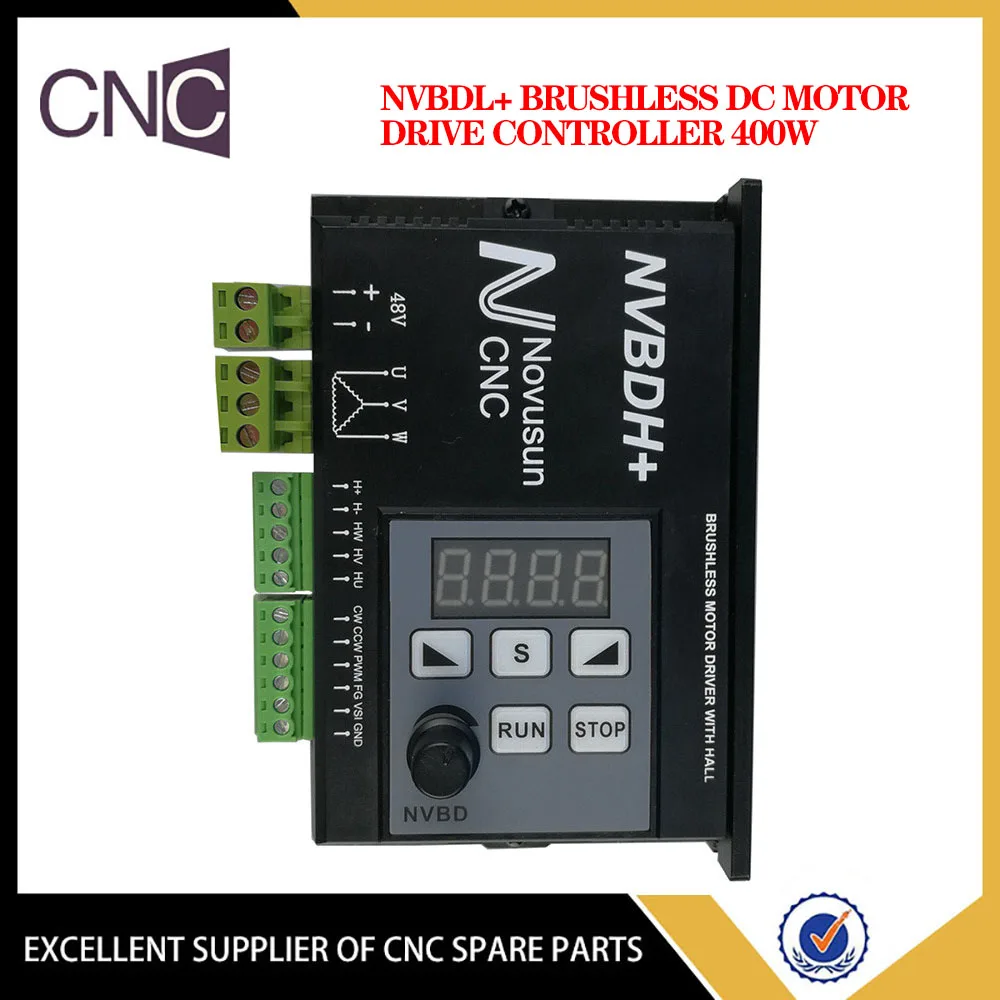

400W CNC DC Brushless Spindle Motor Driver Kit + LCD Control Panel NVBDH + 48V. 无标题文档 Description: 1, up to 400W power output 2,48 VDC power input 3, the control panel potentiometer control, external voltage control, external PWM control 3 speed mode 4, start and stop the control panel, external IO start and stop two kinds of start and stop mode 5,12,000 rev / min maximum speed control 6, M542 standard cooling shell + plastic shell 7, to adapt to the carving machine brushless DC spindle drive control 8,400W DC brushless spindle motor + ER8 chuck 9, comes with 1.5 m motor extension cable 10, the control panel can be removed and installed with the user cabinet. Note: This product is with a brushless motor and its drive NVBDH + Hall, is equipped with one Arbor + ER8 head, can not replace the ER11 head. Package Included: 1 x Brushless spindle motor 1x Drive kit 1x Motor mount User Manual Contact Us: 1.We have always been trying to provide the best service and reliable products for every customer, however, accident may happen sometimes, please contact us to resolve any issue before leaving a negative feedback. 2. Please contact us by "Ask a question". Shipping Policy: 1. We Will ship your orders within 1-2 business days after the payment received. 2. Item shipped via Singapore Post or Hong Kong Post , It takes about 7-14 business days (USA, CA, AU, UK). others country 10-20 business days (Brazil, India, RU), Exact delivery time depends on postal process. 3. If you do not receive your item by 30 business days, Please feel free to contact us via eBay mail system , we will try our very best to resolve any problems with you Payment Method: 1.All payments must be prepaid. 2.We only accept payment via PayPal. Please kindly check if you can do the payment via PayPal before placing an order. Returns and Warranty: 1. We offer 30 days money back guarantee return policy . 2. Our warranty does not extended to any products that are physically damaged or that are not under normal operating conditions as a result of misuse or improper installation on the buyer/user"s part. 3. For all returned products, buyers MUST contact us for the returning address. 4. In all cases, buyers pay shipping fees at their own cost to return products for exchange or refund. We will be responsible for the postage of replacements. Refund will be made upon receipt of the returned item.

2 N Novusun CNC Manual of NVBDH+/NVBDL+ cnc.prom.ua/ Manual of NVBDH+/NVBDL+ Contects Chapter 1. Brief Introdution Products brief introduction Specification feature Product appearance and dimension Notice and Waring Chapter 2. Connection Connection interface definition NVBDH+ connection NVBDL+ connection Chapter 3. Configuration methods Panel definition Parameter setting and LED display parameter description

3 MNovusun CNC Manual of NVBDH+/NVBDL+ cnc.prom.ua» Chapter 1. Brief Introdution 1.1 Products brief introduction We design Brushless spindle driver NVBDH+ and NVBDL+ specialized for the ecomomic engraving machine,it matchs with the brushless DC motor.with the updated DSP technology,the driver can drive the motor to output more precise speed and bigger torque comparing with current drivers.we adopt the idea from the inverter, designed independent demountable panel.the users can take down the panel from the main driver and install it on the controller cabinet.by the panel,we can set the parameter,control motor speed and start/stop,very convenient. DVBDH is the brushless driver with Hall. DVBDL is the brushless driver without Hall. 1.2 Specification feature 1) High performance,low prices 2) DSP main control module 3) No current passing when no movement 4) Voltage range 24VDC-60VDC 5) demountable panel 6) Maximum driver power 600W 7) 3 debugging ways:panel potentiometer external voltage signak external PWM signal 8) Maximum driver motor running speed 12000R/Min

4 N Novusun CNC Manual of NVBDH+/NVBDL+ 9) Speed testing port for user to inspect the real speed. cnc.prom.ua 10) Internal over-voltage, over-current and stalling inspection 11) Input signal TTL compatible 1.3 Product appearance and dimension NVBDH+ product appearance pls see picture 1-1,detached driver pls see picture 1-2,NVBDH with motor see picture 1-3. NVBDL+ product appearance pls see picture 1-4, detached driver pls see picture 1-5,NVBDH with motor see picture 1-6. Figure1-1 NVBDH+ appearance

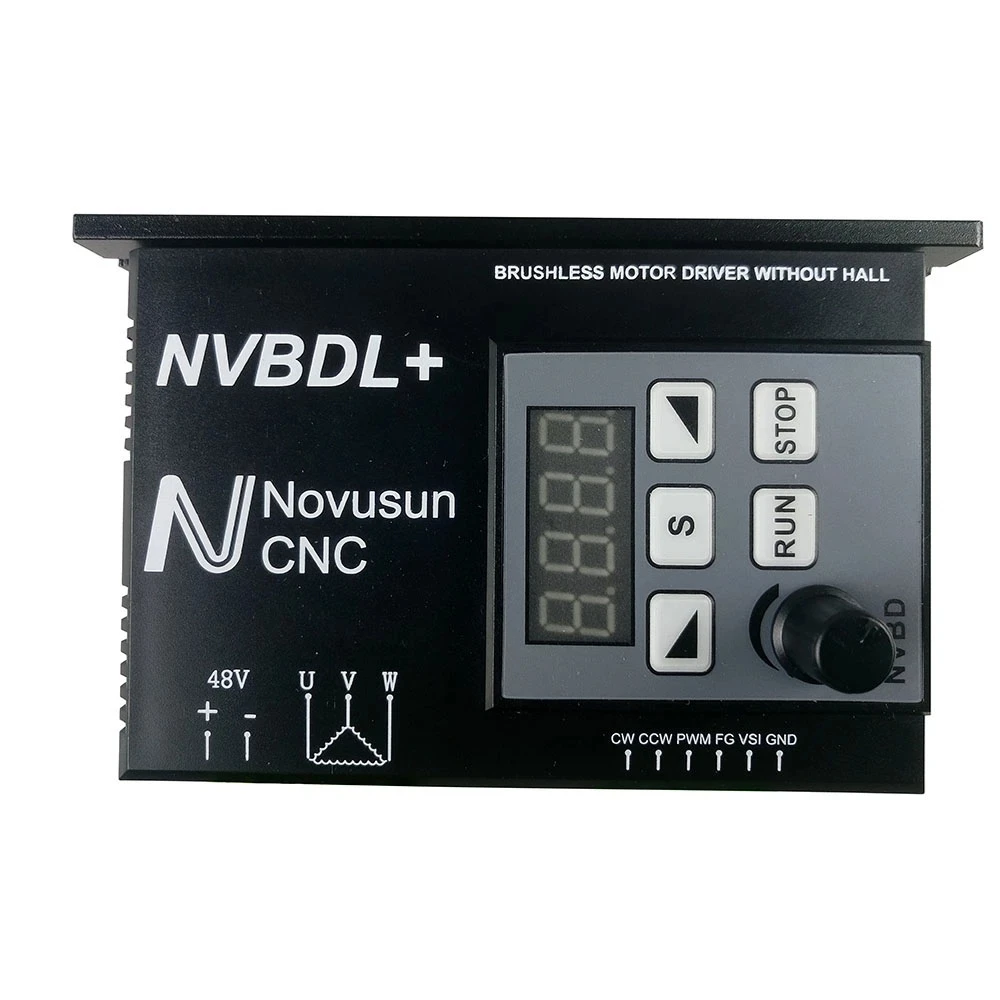

6 N Novusun CNC Manual of NVBDH+/NVBDL+ cnc.prom.ua Figurei-4. NVBDL+ Product appearance NVBDL+ BRUSHLESS MOTOR DRIVER WITHOUT HALL //Novusun # c n c 48V U V W r a & 1 R U n j^stopj CW CCW PWM FG VSI GNO r r r I r I NVBD Figure1-5. NVBDL+ detached panel

7 Figure1-6. NVBDL+ brushless spindle motor as one set NVBDH+ and NVBDL+ mechanical dimensions are the same,here we take NVBDL+ as example.product outline dimension is 118*76*33mm,as picture 1-7 shows.the two installing hole size is 110mm,see picture 1-8.

9 MNovusun Manual of NVBDH+/NVBDL+ CNC 1.4 Notice and Waring cnc.prom.ua Prohibit staying in the rain, it will cause short-circuit.. A Pls use proper voltage power supply and motor. Note the power supply connection. Prohibit reverse connection of power supply and Hall.

10 Chapter 2 Connection M Novusun Manual of NVBDH+/NVBDL+ cnc.prom.ua» Chapter 2. Connection 2.1 Connection interface definition NVBDL without Hall feedback,other parts are same as NVBDH. NVBDH+ and NVBDL+ connection table as table 2-1.The green color Hall signal cable is only for NVBDH+. Mark Definition Main power Input voltage range is NVBDH+/NVBDL+ supply+ 24V-60V,our matched Main power spindle is 48V,so here we NVBDH+/NVBDL+ supply Ground marked 48V Brushless motor U phase Brushless motor V phase Brushless motor W phase Hall power supply+,voltage is 12V Hall power supply Ground Hall feedback W phase signal cable Hall feedback V phase signal cable Hall feedback U phase signal cable Motor clockwise rotate control signal NVBDH+/NVBDL+ NVBDH+/NVBDL+ NVBDH+/NVBDL+ NVBDH+ NVBDH+ NVBDH+ NVBDH+ NVBDH+ NVBDH+/NVBDL+ port Motor couterclockwise rotate control NVBDH+/NVBDL+ signal port

11 Chapter 2 Connection M Novusun Manual of NVBDH+/NVBDL+ cnc.prom.ua PWM PWM speed control input port NVBDH+/NVBDL+ FG Motor speed inspection output port NVBDH+/NVBDL+ VSI Analog speed control input port NVBDH+/NVBDL+ GND Control signal common Ground NVBDH+/NVBDL+ Chart 2-1 Wiring definition of NVBDH+ and NVBDL+ 2.2 NVBDH+ connection Thought parameter setting,the speed control mode can be adjusted by external analogx external PWM and panel potentiometer.start/stop also can be controlled by external interface or panel keys,the use can define the combination control methods.here we explain 3 ways connection mode:panel button speed control+panel start/stop controlx external analog speed control+external interface start/stop controlx external PWM speed control+external interface start/stop control.firstly introduce Hall version NVBDH+: 1 x NVBDH+panel button speed control+ Panel start/stop control NVBDH+panel button speed control+ Panel start/stop control connection pls see picture 2-1.In this mode,if the control system need to collect motor speed data,then FGx GND port on NVBDH+ need to connect with signal collection portx GND port on controller.cable thick yellow x thick green and thick blue is the U\V\W phase of the motor,they connect with UVW port on the drivers respectively. Cable thin redx thin black x thin greenx thin blue on the motor is Hall power supply+x Hall GNDx Hall Ux Hall Vx Hall W respectively,connect with H+x H-x HV> HW on the drivers respectively.

12 N Novusun CNC Manual of NVBDH+/NVBDL+ cnc.prom.ua PHASE U WIDE GREEN PHASE V WIDE BLUE PHASE W RED HALL +5V HALL U GREEN HALL V BLUE HALL W BLACK HALL GND Figure2-1. NVBDH+panel button speed control+ Panel start/stop control 2^ NVBDH+ external analog speed control+external interface start/stop control NVBDH+ external analog speed control+external interface start/stop control connection pls see picture 2-2.The VSI is analog speed control interface,connect VSI to controller analog output;cw and CCW control the motor rotating direction,cw and GND connect with motor CW.

13 M Novusun Manual of NVBDH+/NVBDL+ cnc.prom.ua Figure2-2. NVBDH+ external PWM speed control+external interface start/stop control 3 NVBDH+ external PWM speed control+external interface start/stop control NVBDH+ external PWM speed control+external interface start/stop control connection pls see the picture 2-3.In the mode of PWM control,connect PWM port on NVBDH+ to PWM output port on controller.

14 M Novusun Manual of NVBDH+/NVBDL+ cnc.prom.ua Figure2-3. NVBDH+ external PWM speed control+external interface start/stop control 2.3 NVBDL+ connection NVBDL+ is the driver without Hall feedback,so the connection is easier than NVBDH+.Here we also introduce 3 control modes. К NVBDL+ panel button speed control+ Panel start/stop control NVBDL+ panel button speed control+ Panel start/stop control connection pls see the picture 2-4. In this mode,if the control system need to collect motor speed data,then FG^ GND port on NVBDH+ need to connect with signal collection poru GND port on controller.cable thick yellow^ thick green and thick blue is the U\V\W phase of the motor,they connect with UVW port on the drivers respectively.no hall connection.

15 M Novusun Manual of NVBDH+/NVBDL+ cnc.prom.ua Figure2-4. NVBDL+ panel button speed control+ Panel start/stop control connection 2^ NVBDL+ external analog speed control+external interface start/stop control NVBDL+ external analog speed control+external interface start/stop control connection see the picture 2-5. The VSI is analog speed control interface,connect VSI to controller analog output;cw and CCW control the motor rotating direction,cw and GND connect with motor CW.

16 N Novusun CNC Manual of NVBDH+/NVBDL+ cnc.prom.ua MAIN CONTROLLER Figure2-5. NVBDL+ external PWM speed control+external interface start/stop control 3^ NVBDL+ external PWM speed control+external interface start/stop control NVBDL+ external PWM speed control+external interface start/stop control connection pls see the picture 2-6.In the mode of PWM control,connect PWM port on NVBDL+ to PWM output port on controller. Figure2-6. NVBDL+ external PWM speed control+external interface start/stop control

17 XVChapter 3 Configuration methods 3.1 Panel definition The parameters on NVBDH+ and NVBDL+ are the same, so here just describe only one.panel definition reference image just see picture 3-1. Figure3-1. control panel structure image M a rk D efin itio n D escrip tion RUN Start Press this button motor run STOP Stop Press this button motor stop working reduce parameter parameter downpage or reduce parameter S selection press once the button and enter into parameter term,keep pressing button,exit from current parameter term.

18 5 A increase parameter parameter uppage or increase parameter 6 speed control Motor speed adjust,cw increase speed,ccw reduce potentiometer speed. 7 LED display display parameter or motor running speed. Chart 3-1 Control panel definition 3.2 Parameter setting and LED display 1. When power on buzzer DI-- rings one time,and LED lights up, driver standby ^ At the status of Standby,keep pressing S button and enter into parameter setting page,kilobit displayed P,hundreds place is flashing,then press A or L to increase or reduce your parameter. The adjustable range is from P0 to P5,and Po is exit. 3 When selected the parameter,keep pressing S button and enter into parameter setting,then kilobit on the page displayed P, hundreds place is flashing,decade displayed -,the unit flashing and shows the value. P 1-0 4^ After parameter setting,keep pressing S button and confirm the setting,page go to last menu. P 1 5^ When all the parameter setting finished,at the first menu,press A or L to select Po, And keep pressing S,Then exit this page,into standby status ^ At the first setting menu or the second setting menu,if without any operation over 15 seconds,system will exit from the setting display,and enter into standby status.

19 7^ At the standby page,press START button motor start to run,led display the motor speed,real speed=display speed*10.for example,when LED display 1020,then the motor speed is R/Min.The LED 4 radixpoints take turns to flash,shows the motor run properly. 3.3 parameter description 1 Speed control mode P0 M a rk P0 Speed con trol m ode d efau lt= 0 v a lu e rem ark 0 panel potentiometer speed control 1 external PWM speed control 2 external analog speed control 2 Start control mode P1 M a rk P1 start con trol m od e d efa u lt =0 v a lu e rem ark 0 panel button start CW/CCW start 3 External voltage control range P2 M a rk P1 extern al v o lta g e con trol ran ge d efa u lt =1 v a lu e rem ark 0

20 4^ PWM effective voltage P3 M a rk P3 P W M effective v o lta g e d efa u lt =1 v a lu e rem ark 0 Low level is effective, output 0V High level is effective, output DC5V 5 Panel start motor direction P4 M a rk P1 P anel sta rt m otor d irection d efa u lt =0 v a lu e rem ark 0 CW CCW 6^ Speed signal feedback frequency multiplication P5 M a rk P1 Speed signal feed b a ck freq u en cy m u ltip lication d efa u lt =1 v a lu e rem ark one revolution output 1 pulse 2 one revolution output 2 pulse 3 one revolution output 3 pulse 4 one revolution output 4 pulse

Vitkovets CNC Комплетующие системы ЧПУ Наш сайт: http://cnc.prom.ua/ Тел: +380 (096)-665-71-06 +380 (098)-821-25-90 E-mail: cncprom@ukr.net Manual of NVBDH+/NVBDL+ http://cnc.prom.ua/...

Novusun Manual of NVBDH+/NVBDL+ cnc.prom.ua/ Contects Chapter 1. Brief Introdution...........................- 1 - 1.1 Products brief introduction........................- 1 - 1.2 Specification feature..........................- 1 - 1.3 Product appearance and dimension......................- 2 - 1.4 Notice and Waring..........................- 7 - Chapter 2. Connection............................- 8 - 2.1 Connection interface definition.......................- 8 - 2.2 NVBDH+ connection..........................- 9 -...

Novusun Manual of NVBDH+/NVBDL+ cnc.prom.ua 9) Speed testing port for user to inspect the real speed. 10) Internal over-voltage, over-current and stalling inspection 11) Input signal TTL compatible 1.3 Product appearance and dimension NVBDH+ product appearance pls see picture 1-1,detached driver pls see picture 1-2,NVBDH with motor see picture 1-3.

Novusun Manual of NVBDH+/NVBDL+ cnc.prom.ua Figurei-4. NVBDL+ Product appearance B R U S H L E S S M OTOR DRIVER W ITHOUT HALL N V B D L + //Novusun # ¥ c n c r a & 1 R U | j^ S T O p j CW C CW PWM F G VSI GNO r r r I r I...

Figure1-6. NVBDL+ brushless spindle motor as one set NVBDH+ and NVBDL+ mechanical dimensions are the same,here we take NVBDL+ as example.Product outline dimension is 118*76*33mm,as picture 1-7 shows.The two installing hole size is 110mm,see picture 1-8.

Novusun Manual of NVBDH+/NVBDL+ cnc.prom.ua 1.4 Notice and Waring Prohibit staying in the rain, it will cause short-circuit.. Pls use proper voltage power supply and motor. ▲ Note the power supply connection. Prohibit reverse connection of power supply and Hall.

Hall version NVBDH+: NVBDH+panel button speed control+ Panel start/stop control NVBDH+panel button speed control+ Panel start/stop control connection pls see picture 2-1.In this mode,if the control system need to collect motor speed data,then FG x GND port on NVBDH+ need to connect with signal collection port x GND port on controller.Cable thick...

BLACK HALL GND Figure2-1. NVBDH+panel button speed control+ Panel start/stop control 2^ NVBDH+ external analog speed control+external interface start/stop control NVBDH+ external analog speed control+external interface start/stop control connection pls see picture 2-2.The VSI is analog speed control interface,connect VSI to controller analog...

Novusun Manual of NVBDH+/NVBDL+ cnc.prom.ua Figure2-2. NVBDH+ external PWM speed control+external interface start/stop control 3 NVBDH+ external PWM speed control+external interface start/stop control NVBDH+ external PWM speed control+external interface start/stop control connection pls see the picture 2-3.In the mode of PWM control,connect PWM port on NVBDH+ to PWM output port on controller.

Novusun Manual of NVBDH+/NVBDL+ cnc.prom.ua Figure2-3. NVBDH+ external PWM speed control+external interface start/stop control 2.3 NVBDL+ connection NVBDL+ is the driver without Hall feedback,so the connection is easier than NVBDH+.Here we also introduce 3 control modes. К NVBDL+ panel button speed control+ Panel start/stop control NVBDL+ panel button speed control+ Panel start/stop control connection pls see the picture 2-4.

Novusun Manual of NVBDH+/NVBDL+ cnc.prom.ua Figure2-4. NVBDL+ panel button speed control+ Panel start/stop control connection 2^ NVBDL+ external analog speed control+external interface start/stop control NVBDL+ external analog speed control+external interface start/stop control connection see the picture 2-5. The VSI is analog speed control interface,connect VSI to controller analog output;CW and CCW control the motor rotating direction,CW and GND connect with motor CW.

Novusun Manual of NVBDH+/NVBDL+ cnc.prom.ua MAIN CONTROLLER Figure2-5. NVBDL+ external PWM speed control+external interface start/stop control 3^ NVBDL+ external PWM speed control+external interface start/stop control NVBDL+ external PWM speed control+external interface start/stop control connection pls see the picture 2-6.In the mode of PWM control,connect PWM port on NVBDL+ to PWM output port on controller.

parameter uppage or increase parameter increase parameter speed control Motor speed adjust,CW increase speed,CCW reduce potentiometer speed. display parameter or motor running speed. LED display Chart 3-1 Control panel definition 3.2 Parameter setting and LED display 1 • . When power on buzzer “DI--”rings one time,and LED lights up, driver standby.

4^ PWM effective voltage P3 M a r k P W M e ffe c tiv e v o lta g e d e fa u lt =1 r e m a r k v a lu e Low level is effective, output 0V High level is effective, output DC5V 5 Panel start motor direction P4 M a r k...
