IMPORTANT:Warranty does not cover oxygen sensor, as these are wear items.  Each oxygen sensor is tested to be fully functional by Zeitronix before shipping.

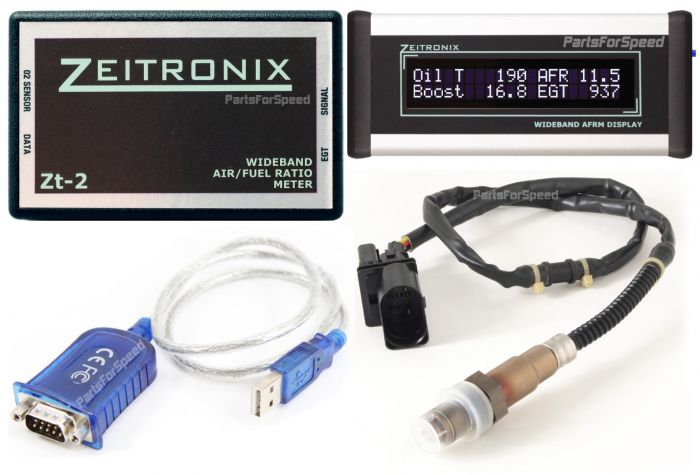

In this kit the Zt-2 wideband is bundled with the black anodized LCD display. The black anodizing is a deep shade of black -- no cheap or grayish imitation anodizing here. High contrast LCD is visible even in a direct sunlight and has a peak and hold feature. Includes the Zt-2 wideband Air/Fuel Ratio Meter, Wideband Oxygen Sensor, Sensor Harness, Signal Harness, PC Serial Cable, Datalogging Software, Installation Instructions and 2-Pin EGT Connector to retrofit your EGT probe. Data splitter included for simultaneous display and datalogging use. Made in the USA.

The Zeitronix Wideband Air/Fuel ratio meter and datalogging system is a high quality, stand-alone system for use with carbureted and electronic fuel injection engines. Zt-2 Wideband Kits provide the best bang for your buck delivering unmatched quality, features and capabilities for very reasonable prices. The Zeitronix system provides the accuracy of a Dyno Air/Fuel reading right in your vehicle as well as multiple engine parameters. Supports Air/Fuel ratio as AFR/Lambda, plus RPM, Vacuum, Boost, Exhaust Gas Temperature, Throttle Position, 0-5 volt sensors, and Air/Fluid temperature sensors. Tune fuel injected and carbureted engines. Very simple installation. Connect two wires to +12V and ground and place the O2 sensor in the exhaust stream and you are ready to read AFR! Cut your tuning time in half!

Finally you can tune for more power, closer to the edge, precisely monitoring Air/Fuel ratio Boost, EGT, RPM and throttle position datalogging up to 9 hours of data with a blazing rate of 74 samples per seconds per graph. The ZDL software can be utilized as a real time display when using a basic Zt-2 kit without the hardware display. Fully digital, smallest wideband O2 controller and datalogging system in the world! Zt-2 is about the size of 1" thick business card. Extremely compact design for installation where space is a premium.

User2 Input, Programmable to view/log 0-5V, Fuel Pressure, Oil Pressure, Boost Pressure, Water Temperature, Intake Air Temperature, Oil Temperature, Transmission Temperature. (Zt-2 model 2010- viewing supported in new LCD, ZR-2 gauges, and logging software)

Yes, you can be fast without the A-pillar gauges. The LCD display gives you a stealth look and important data in high contrast digital format. The aluminum enclosure dimensions are 4.7" x 2" x 0.9" , slightly larger than the LCD display itself. The LCD fonts are bright white on a black background. High contrast LCD digits are visible even in a direct sunlight. A push of a button located on the right side of the LCD shows peak and hold maximum AFR, Lambda, EGT and Boost values. The LCD display communicates with the Zt-2 digitally through a serial interface. This allows for a clean display installation in the car, since all heavy wire connections are going to the Zt-2. The display serial cable is thin, black and easily blends with the dash. The overlay is made from hard coated, scratch resistant material.

Zeitronix Zt-2 + LCD Display Bundle Includes: Zeitronix Wideband Air/Fuel ratio meter and datalogging system 2010 and up model Zeitronix Wideband LCD Display in Silver Scroll to the bottom to add sensors and accessories! We are an official Zeitronix Distributor and we have the 2010 and up models in stock.  There ARE differences between the 2010-up and older models. In this kit the Zt-2 Model 2010 Wideband is bundled with the new silver anodized LCD display. High contrast LCD is visible even in a direct sunlight and has a peak and hold feature. Includes the Zt-2 Model 2010 Wideband Air/Fuel Ratio Meter, Wideband Oxygen Sensor, Sensor Harness, Signal Harness, PC Serial Cable, Datalogging Software, Installation Instructions and 2-Pin EGT Connector to retrofit your EGT probe. Data splitter included for simultaneous display and datalogging use. Made in the USA. Click Here For Video The Zeitronix Wideband Air/Fuel ratio meter and datalogging system is a high quality, stand-alone system for use with carbureted and electronic fuel injection engines. Zt-2 Wideband Kits provide the best bang for your buck delivering unmatched quality, features and capabilities for very reasonable prices. The Zeitronix system provides the accuracy of a Dyno Air/Fuel reading right in your vehicle as well as multiple engine parameters. Supports Air/Fuel ratio as AFR/Lambda, plus RPM, Vacuum, Boost, Exhaust Gas Temperature, Throttle Position, 0-5 volt sensors, and Air/Fluid temperature sensors. Tune fuel injected and carbureted engines. Very simple installation. Connect two wires to +12V and ground and place the O2 sensor in the exhaust stream and you are ready to read AFR! Cut your tuning time in half! Finally you can tune for more power, closer to the edge, precisely monitoring Air/Fuel ratio Boost, EGT, RPM and throttle position datalogging up to 9 hours of data with a blazing rate of 74 samples per seconds per graph. The ZDL software can be utilized as a real time display when using a basic Zt-2 kit without the hardware display. Fully digital, smallest wideband O2 controller and datalogging system in the world! Zt-2 is about the size of 1" thick business card. Extremely compact design for installation where space is a premium.

IMPORTANT:Warranty does not cover oxygen sensor, as these are wear items.  Each oxygen sensor is tested to be fully functional by Zeitronix before shipping.

Zt-2 Specs: 0.1 AFR accuracy Operating voltage 10V to 18V Switching power supply for oxygen sensor heater Precise sensor temperature control Reverse polarity protection Integrated self resettable fuse Positive lock connectors Protected inputs and outputs Flexible Plug and Play Sensor Harness with a small, easy to route through the fire wall, connector Wideband Oxygen Sensor included Easy to install plug and play kit Adjustable Narrowband Switching Point Warning Alarms and Triggers   Inputs/Outputs: 0.1 AFR accuracy Bosch Wideband O2 sensor Linear Wideband Output AFR=Vx2+9.6 Serial data output to the Zeitronix Wideband LCD Display Serial data output for real time datalogging (PC laptop required) RPM Input (tachometer, primary side ignition coil, crank, cam sensor). The RPM input works in any car and any ignition system. No additional adapters needed! Simulated and adjustable Narrowband Output to feed a stock ECU Throttle Position Input Boost (MAP) Sensor Input EGT Probe Input User Input User2 Input, Programmable to view/log 0-5V, Fuel Pressure, Oil Pressure, Boost Pressure, Water Temperature, Intake Air Temperature, Oil Temperature, Transmission Temperature. (Zt-2 model 2010- viewing supported in new LCD, ZR-2 gauges, and logging software) Warning Output * 5V output for sensors   LCD Specs: Yes, you can be fast without the A-pillar gauges. The LCD display gives you a stealth look and important data in high contrast digital format. The aluminum enclosure dimensions are 4.7" x 2" x 0.9" , slightly larger than the LCD display itself. The LCD fonts are bright white on a black background. High contrast LCD digits are visible even in a direct sunlight. A push of a button located on the right side of the LCD shows peak and hold maximum AFR, Lambda, EGT and Boost values. The LCD display communicates with the Zt-2 digitally through a serial interface. This allows for a clean display installation in the car, since all heavy wire connections are going to the Zt-2. The display serial cable is thin, black and easily blends with the dash. The overlay is made from hard coated, scratch resistant material. Shipping included on accessories added below:

Yes, you can be fast without looking like a UFO just landed. The remote LCD display gives you a stealth look and important data in high contrast digital format.

The aluminum enclosure dimensions are 4.7" x 2" x 0.9”, which is just slightly larger than the LCD display itself. The LCD fonts are bright white on a black background. High contrast LCD digits are visible even in a direct sunlight.

The LCD display communicates with the Zt-2 digitally through a serial interface. This allows for a clean display installation in the car, since all heavy wire connections are going to the Zt-2. The display serial cable is thin, black and easily blends with the dash.

You do not need P4, P3 or even P2 laptop. We understand that you want to leave your new laptop at home and dedicate the old one to car tuning. We give you well optimized software. If your laptop is capable of running Win95 and up it is good enough for the Zeitronix logging software.

Zeitronix has been a part of the racing scene for many years. We support race teams in US and around the world. Zeitronix has been offering high grade automotive electronics available to high performance enthusiasts and winning race teams since 1998.

The serial data port can be used for a variety of connections. It can be used to connect a laptop for datalogging and configuration of some ancillary features, like the narrowband switching point, when referencing the wideband instead of the factory O2 sensor for the factory ECU. Zeitronix’s Black Box Data Logger, up to three ZR-2 Multi Gauges, Zeitronix’s LCD display, or a Drew Technologies DashDAQ II XL touch screen display, can also make the connection to the ZT-2 by way of this serial port, offering a multitude of configurations for different applications.

When you’ve raised the bar of performance under the hood, protecting your investment requires safe AFRs. Detecting fuel-lean conditions before they cause damage avoids costly repairs. Szwalgin concluded, “The ZT-2 was designed to be an easy to use engine monitoring tool fit for every tuner, driver and racer. Anyone that wants to keep their engine in one piece. It samples every channel you connect at a rate of 70 times-per-second, a much faster rate than OBDII which can be as low as 3 times-per-second.” Zeitronix’s ZT-2 wideband air-fuel meter, along with the DashDAQ II XL display, keeps you informed and enables a broad and flexible range of information to be recorded so that you can stay “In the know.”

desertcart is the best online shopping platform where you can buy Zeitronix ZT-2 AFR & Datalogging Tuning System with LCD Display Bundle (Silver) from renowned brand(s). desertcart delivers the most unique and largest selection of products from across the world especially from the US, UK and India at best prices and the fastest delivery time.

desertcart ships the Zeitronix ZT-2 AFR & Datalogging Tuning System with LCD Display Bundle (Silver) to and more cities in Cayman Islands. Get unlimited free shipping in 164+ countries with desertcart Plus membership. We can deliver the Zeitronix ZT-2 AFR & Datalogging Tuning System with LCD Display Bundle (Silver) speedily without the hassle of shipping, customs or duties.

Yes, it is absolutely safe to buy Zeitronix ZT-2 AFR & Datalogging Tuning System with LCD Display Bundle (Silver) from desertcart, which is a 100% legitimate site operating in 164 countries. Since 2014, desertcart has been delivering a wide range of products to customers and fulfilling their desires. You will find several positive reviews by desertcart customers on portals like Trustpilot, etc. The website uses an HTTPS system to safeguard all customers and protect financial details and transactions done online. The company uses the latest upgraded technologies and software systems to ensure a fair and safe shopping experience for all customers. Your details are highly secure and guarded by the company using encryption and other latest softwares and technologies.

In this kit the Zt-2 Model 2010 Wideband is bundled with our classic silver (clear anodized aluminum) LCD display. High contrast LCD is visible even in a direct sunlight and has a peak and hold feature. Includes the Zt-2 Model 2010 Wideband Air/Fuel Ratio Meter, Wideband Oxygen Sensor, 10ft* Sensor Harness, Signal Harness, PC Serial Cable, Datalogging Software, Installation Instructions and 2-Pin EGT Connector to retrofit your EGT probe. Data splitter included for simultaneous display and datalogging use. Made in the USA..
