8x2 0802 802 character lcd module in stock

Shenzhen Surenoo Technology Co., Ltd. is a professional display supplier, work in LCD Industry since 2005, The company has its own trademark "Surenoo Display", dedicated to the LCD industry over 10 years, supply service for numerous domestic and foreign eBay and Alixpress buyers and companies. After more than ten years of development, it has gradually gained recognition and recognition from domestic and foreign customers. The company has a rich product line. The company"s designers are composed of a group of experienced and experienced professionals who can provide customers with fast, high-quality design solutions and meticulous technical support.

In July 2019, we joined the Alibaba China Supplier Gold Certified Member, and we will provide professional services to our customers with more advantageous LCD product resources.

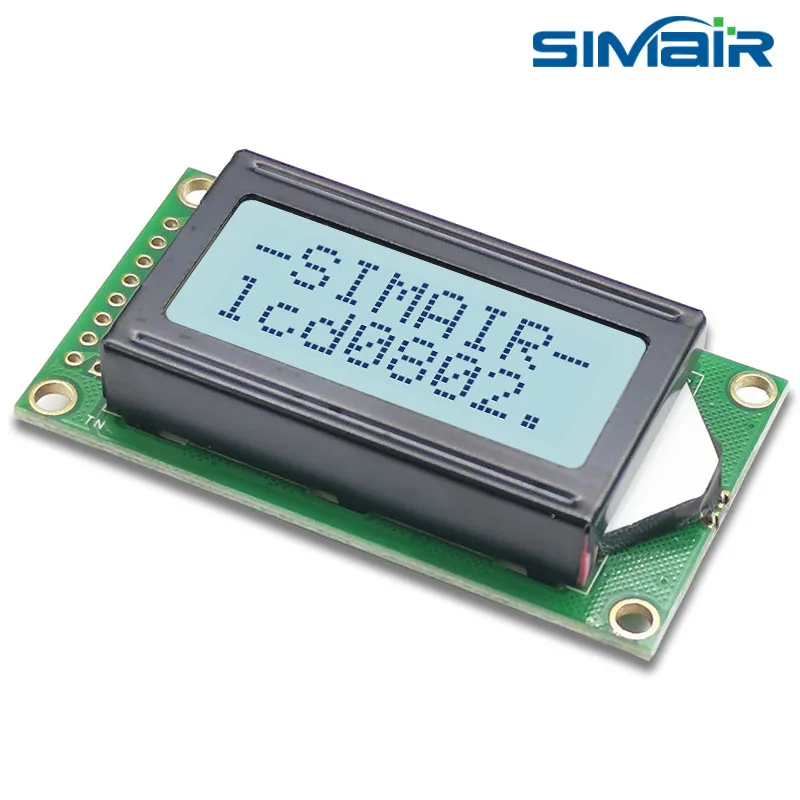

8 x 2 LCD Module 0802 Character Display Screen. The module is a low-power consumption character LCD Module with a built-in controller and can be widely used in varius fields. The module can be easily interfaced with a MCU. This module can be used with Arduino LCD library (click to download).

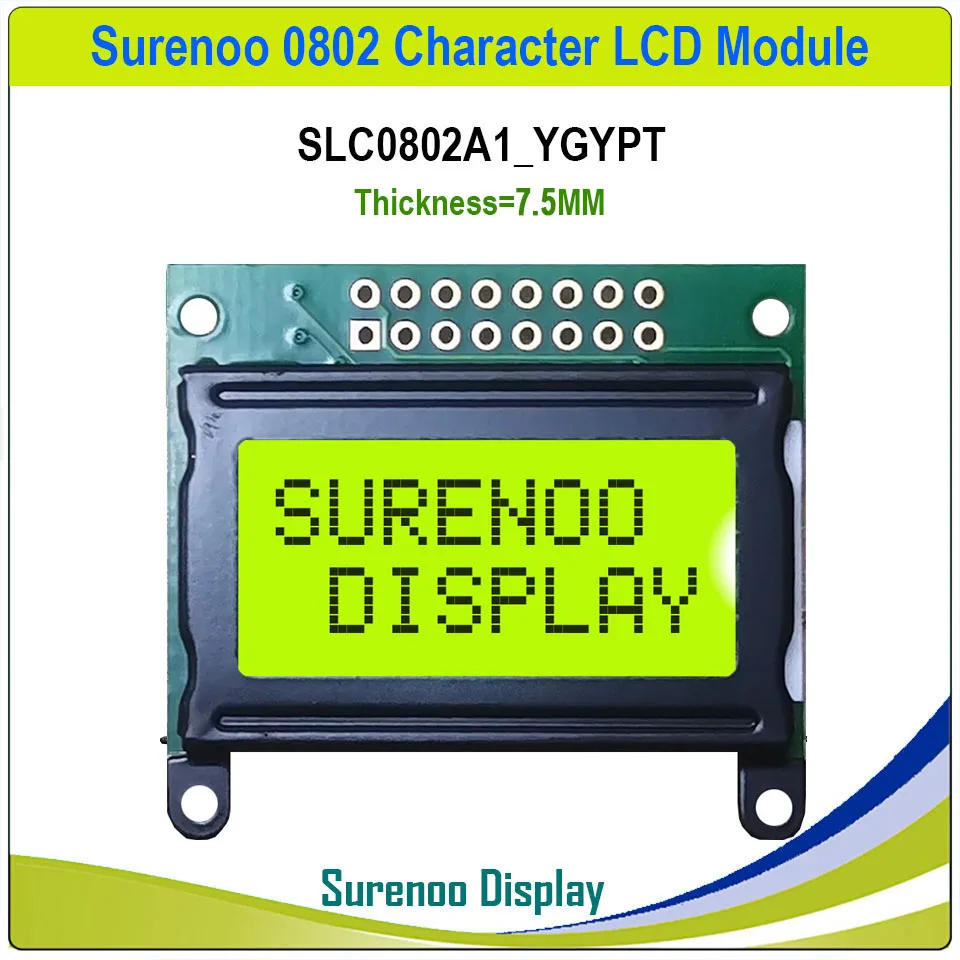

YM802SYG-3 is 8 characters wide,2 rows character lcd module,SPLC780C controller (Industry-standard HD44780 compatible controller),6800 4/8-bit parallel interface,single led backlight with yellow green color included can be dimmed easily with a resistor or PWM,stn-lcd positive,dark blue text on the yellow green color,wide operating temperature range,rohs compliant,built in character set supports English/Japanese text, see the SPLC780C datasheet for the full character set.

Since 2005, We, Silicon Components Private Limited,are leading aorganization involved in Exporter and Importer, Manufacturer, Wholesaler, Trader of Microchip Products. We have been successfully providing our clients with PIC Microcontrollers,Analog PIC Microcontroller,Thermal Printers,GSM GPRS Modules, Integrated Circuits, GSM & GPS Module, Channel Mosfet, Operational Amplifiersand many more. All our products are sourced from the reliable and certified manufacturers of the market such as Fairchild Semiconductors. Our products are widely appreciated by the customers due to their durability, reliability, compact designs, corrosion resistance, dimensional accuracy and easy installation.

An 8 x 2 dot matrix Character LCD Module display in STN Positive Yellow Green LCD Mode, Six O’clock viewing direction, Wide Temperature Range (Operating Temp: -20°C to 70°C, Storage Temp: -30°C to 80°C), and Yellow Green LED Backlight. It has a transflective polarizer, recommended for applications that will be used both indoor and outdoor. This product is assembled Chip On board with 1/16 Duty and a Controller IC AC780S or equivalent. The interface type is Serial – SPI. This is an ROHS Compliant product manufactured with ISO standards and procedures.
