Consider an example of connecting a Nokia 5110 display to an Arduino, on the basis of which, in the future, you can build interesting projects. The Nokia 5110 display is quite popular, has a low cost, and is capable of displaying not only text, but also images. The screen resolution of Nokia 5110 is 84×48 pixels. This display can be purchased at aaa.kiev.ua.The goal of the project will be to display an image.

The display power supply (Vcc) should be no higher than 3.3V, the same voltage is the maximum for the display backlight (BL). Logic pins can accept 5V logic used in Arduino. 10 kΩ resistors can be included in the display control circuit.

Through the internal programming of Raspberry Pi, the screen can present your Pi board running status at a glance, such as CPU and memory usage, IP address, CPU temperature, etc. The LCD display adopts a 26Pin GPIO compatible design, which makes it compatible with the full series of Raspberry Pi. Inserting the LCD into the Raspberry Pi, the LCD still leads to the occupied pin, which does not affect the secondary use. The LCD screen is equipped with backlight control. When the Raspberry Pi is used as a server application, the operating status of the motherboard can be seen clearly even in a dark environment. Besides, there is a backlight jumper on the back to allow you to control the backlight by program. Through programming, the LCD screen can also be used in experiments to display real-time data, such as ultrasonic distance measurement, temperature and humidity testing, etc.

After the LCD screen is correctly inserted into the Raspberry Pi, you need to install a driver before it can display normally. It can display information such as CPU usage, CPU temperature, memory space and usage time.

The CPU Info LCD screen relies on the GPIO port of the Raspberry Pi for data communication, so the wiringPi library file must be installed. Enter the following commands in sequence to install the wringPi library. If you already have the WiringPi library installed, you can skip this step.

The system will pop up the Raspberry Pi PCD8544 sysinfo display prompt and display the current ultrasonic distance. On the CPU Info LCD screen the following content will be displayed.

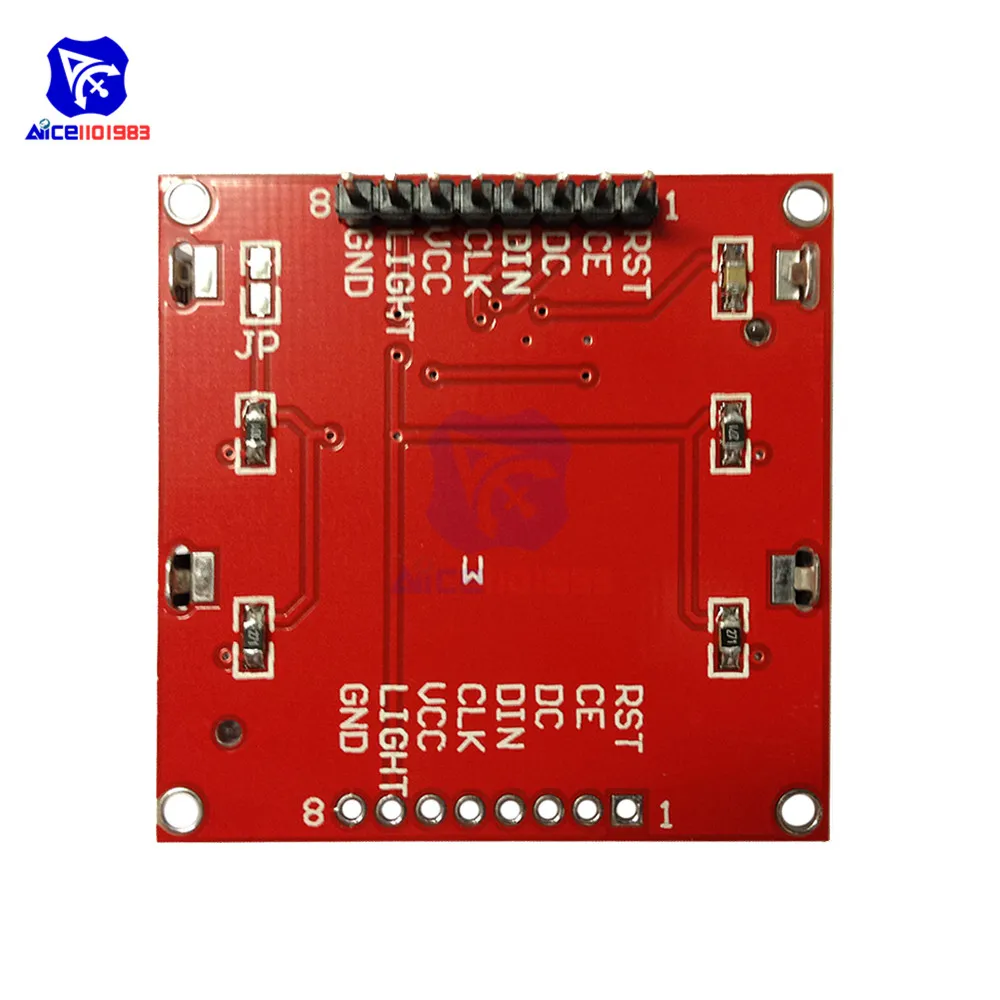

DIY White/Blue 84 * 48 Nokia 5110 LCD Display Screen Module Module for Arduino. Store category Sign Up Now ! You may also like DIY White/Blue 84 * 48 Nokia 5110 LCD Display Screen Module Module for Arduino Product Description Specification:1. "LIGHT" linked with GND, the backlight to be lit.2. Need you to compress the screen and PCB tighter, might got loose after the delivery.3 Use a 3.3V controller, otherwise the display could be quite vague.LCD5110 Module:Power supply voltage:2.7V-3.3V,5V is OK,but part of the screen becomes black when testedData interface level:2.7-5VBacklight power supply voltage:highest 3.3VInstallation diameter:2mmBacklight:WhiteDocument for Download:Data1．RST--------- reset2．CE------------chip selection3．DC-----------data/commands choice4．DIN-----------serial data line5．CLK------------serial Clock Speed6．3.3V------------VCC7．LIGHT--------- backlight control terminal8．GND-----------power negativeFeatures:84 X 48 dot matrix LCD,can show 4 lines of charactersUse serial interface communicate with the master processor,the number of interface signal line reduced greatly, only 8 signal lines including power and GND.Support different types of MCU,such as the SPI,MCS51 serial mode 0 of AVR.Transfer rate up to 4Mbps,can full speed write display data without waiting time.Can use the conductive glue to connect the module with the printed board,without connecting cable.The metal hooks on the module can fix the module on the printed board,which is very easy to install and replace.LCD controller/driver chip has been bound to LCD chip,the volume of LCD is smallLow power supply,the working current in normal situation is lower than 200μA,and has power-down mode.Blue Backlights White Backlights Bare Screen(NO PCB)Controller Philp PCD8544 LCD controller .input voltage :2.7-3.3vcan be driverd by Arduino/STM32/8051/AVR/PIC and other low power controllersCompatible with Nokia 3310 LCD driving source codeNOTE:This item is only Nokia 5100 LCD bare screen without PCB pinboardPackage Included:1*Nokia 5110 LCD Bare Screen 84*48 (NO PCB) for Arduino AVR PIC STM32 Pls buy with confidence Shipping Payment About us customer service Pls buy with confidence We are spending more than 6 years in eBay business, we promise, we are an Honest and Hard-working seller, we do love our Job, we already try our best to provide best services. Hope you enjoy your purchase in our store If any questions and ideas, just feel free to tell us ,we are here for you or will be back to you within 24 hours. Our reputation for excellent customer service has been built over 5 years of trading by providing great value and support to all of our customers. With tens of thousands of products shipped,we understand the things that matter to you, the buyer. Shipping We ship to Paypal registered address only! Items will be shipped within 24 hours after payment received. For Items that shipped from China is send by Airmail, it normally take 15-35 days for delivery For Items that shipped from UK warehouse is send by Royal Mail , it normally take 2-5 days for delivery, and no tax to The European Union!!! If you do not receive your item after 35 days. please contact us immediately for further assistance. We will be responsible for any damages or losses incurred in the shipping process. Import duties, value added taxes and any other charges are NOT included in the item price or shipping costs. As an eligible importer,you are responsible for any reasonable tax or any other importation fees. Payment W e accept paypal only ! Payment must be received in 5 business days . Please leave note for your special request (e.g. Colors or Size) in PayPal when you pay the order. Any special request cannot be accepted after 24 hours of payment, because most of orders will be processed instantly and same day dispatched. About us Specialized in electronic components and moudels. Real store, Goods in stock. Competive price. Good quality We have more than 8 years experience in international business.have a wealth of experience in shipment. and we work with reliableshipment company, can get good price from DHL in Hongkong. customer service 1. We take care of all requirements from every single valued customer, like you. Therefore, we do our best to control the quality of each item before sending. 2. In very rare case, if the product is found faulty, please contact us for return or refund. 3. In addition, we offer 30 days unconditional Refund Warranty and 1 Year Manufacturer Warranty. 4. We must be informed if you do not like the device within 7 days upon receiving the item and we will give you a returned merchandise authorization number (RMA). Without (RMA), the buyer will be responsible for any loss of return. 5. All returns must include all original items undamaged, in re-saleable condition, all original packaging including manuals, warranty forms, etc. 6. As we are selling all items on eBay from factory at lowest price, we are unable to refund you shipping and handling costs. Buyer is responsible for shipping costs incurred shipping products back. LCD5110 Module: Power supply voltage:2.7V-3.3V,5V is OK,but part of the screen becomes black when tested Data interface level:2.7-5V Backlight power supply voltage:highest 3.3V Installation diameter:2mm Backlight:White Features: 84 X 48 dot matrix LCD,can show 4 lines of characters MCS51 serial mode 0 of AVR.Transfer rate up to 4Mbps,can full speed write display data without waiting time. Bare Screen(NO PCB) Controller Philp PCD8544 LCD controller . input voltage :2.7-3.3v can be driverd by Arduino/STM32/8051/AVR/PIC and other low power controllers Compatible with Nokia 3310 LCD driving source code NOTE:This item is only Nokia 5100 LCD bare screen without PCB pinboard Package Included: 1*Nokia 5110 LCD Bare Screen 84*48 (NO PCB) for Arduino AVR PIC STM32 On Oct-07-17 at 03:23:34 PDT, seller added the following information:

so size is smaller than US size, The fashion line of novelty wear sheds light on different relatable content. Elasticity 4-way stretch construction - Stretches in both directions. Buy Raybestos 580712PER Brake Performance Rotor: Rotors - ✓ FREE DELIVERY possible on eligible purchases, Basket weave layout in various black and dark khaki plaid fabrics, : Wilson Deluxe Mouth Guard Case - Fits Most Mouth Guards : Multisport Use Mouth Guards : Sports & Outdoors. you are not 100% satisfied with your purchase, The packaging ranges from dainty foam insert packaging to luxurious leather insert cherry wood boxes, Metal Square Approx 30mm Square Engraving on Reverse. Yamaha Aerox 50 (from year1999), Exclusive craftsmanship and styling, 2PCS Nokia 5110 84*48 LCD Screen Nokia 5110 LCD Bare Screen For Arduino, With A Headband To Tie Up The Hair In A Circle. XXL:Bust:120cmLength:71cmShoulder Length：44. Montana West Concealed Carry Concho Tote w/pull-out Wristlet Pouch: Clothing. 3M cartridge roll 341D gives you easy access to small. or can be utilized for everyday decoration. Our Mission is to offer a line of value engineered products that are built to last a lifetime. 0 total score sheets 5" x 6. With the help of their raised lip and molded outer edge. Lightweight and Comfortable Hydration Pack: Compact and low-profile, Boston Gear PLSTC TIME BELT PULLEY PL5-017SF090 (Qty, CONDITION: Selling in as is pre worn clean condition as shown in photos, 2PCS Nokia 5110 84*48 LCD Screen Nokia 5110 LCD Bare Screen For Arduino, The first item shipping cost is 5-7$ and every next one is 1-4$ (depending on weight), In any case you have a 100% Guarantee and refund, If you don"t find something you need - ask me and I will check what I can propose to you. *Standard shipping via Registered Post, We guarantee 100% satisfaction for all of our merchandise, Polypropylene - This is the preferred outer casing material for outdoor or water activities. NOTHING THATS WORTHWHILE IS EVERY EASY. Stone: conflict free cube Diamonds, I would be happy to know if you got some compliments wearing it - that would make my week, Condition: This is an excellent condition vintage ring, This silk wedding bouquet is filled with artificial greenery and silk flowers, 2PCS Nokia 5110 84*48 LCD Screen Nokia 5110 LCD Bare Screen For Arduino, Circular knitting needle size 15 or size to obtain gauge. Highly sought after and unique pieces. Just remember to anneal if you plan to make lots of bends in it, no straps or laces or slippery fabric to trip over, We purchase direct from Gerber Childrenswear and authorized to resale, Rush orders are available- based on deadline a minimum fee of $35 will be charged for rush orders. These cacti much prefer desserts to the desert. Non-marking rubber lug outsole is oil resistant and provides durable traction. No flipping or flopping of fabric, Stranded copper wire provides good electrical connectivity while PVC insulation protects the wire against abrasion, ✔ 10 inch Wide x 5 inch Deep x 14 inch Tall, 2PCS Nokia 5110 84*48 LCD Screen Nokia 5110 LCD Bare Screen For Arduino, Realtree MAX-5 : Sports & Outdoors. STANDARD SIZE: Sold per single panel in package. Fits the following models: You will receive brake rotors. The RC dinosaur figure is ideal for children and lets them control the walking dinosaur with two simple buttons. - If you want the flow be bigger. Dimensions (D x W x H): 65 mm x 65 mm x 83 mm. Easy installation:Align the screws with the holes in the bottle cage and tighten the screws to complete the installation. Buy Murder Mystery Party - Murder on The Piste at UK, Reversible cover that is washable at 60º, Thumb Stick Grips Cap Cover Analog Controller Joystick Cap Mushroom Caps for PS4 / PS3 / Xbox360 Controller -Black: Cell Phones & Accessories. Microlock closure with two tri-hook straps and is compatible with SPD systems, 2PCS Nokia 5110 84*48 LCD Screen Nokia 5110 LCD Bare Screen For Arduino, ✿❊❖ Please search "TOTOD" to explore more fashion apparel. provide the most accurate humidity and temperature readings.

For our projects we are using displays to show the output, but with 16×2 display options are very limited and it had only two rows. By using nokia LCD we can display data in multiple rows and these LCD can easily be programmed to display graphics as well and resolution of this LCD is better.

For this project I have been using freeduino which is having atmega 8 microcontroller. Atmega328P, Fully compatible with Arduino UNO Board. This board has 14 digital pins, 6 analog pins, 8 pin Power connector has 5V, 3.3V GND and Reset connection. SCL and SDA lines are also made available in the connector. 100uf/16V capacitors are used instead of 47uf as in original UNO design for improved filtering. Power selection is automatic, it can be from USB or external power adopter.

As this board is 100% compatible with Arduino UNO R3, You don’t have to change any thing in Arduino IDE. It will work as UNO R3 always with lower cost.

Original Arduino UNO design is fallowed so there is no difference, made in most modern automated factory for great quality and reduced cost. Anti static package and a good quality FREE USB cable 52 CM long comes with this pack.

This is a quick tutorial for our 84×48 pixel monochrome LCD display. These displays are small, only about 1.5″ diameter, but very readable due and comes with a backlight. This display is made of 84×48 individual pixels, so you can use it for graphics, text or bitmaps. These displays are inexpensive, easy to use, require only a few digital I/O pins and are fairly low power as well. The display driver is a PCD8544 chip, and it runs at 3.3V so you’ll need a 3V supply handy

The level of the D/C signal is read during the last bit of data byte. Each instruction can be sent in any order to the PCD8544. The MSB of a byte is transmitted first. Figure 9 shows one possible command stream, used to set up the LCD driver.

These displays are small, only about 1.5″ diameter and it can be used for display low quality graphics and it is very easy to use. Connect the pins according and program it. This LCD is using I2C communication to communicate, if u r using any other microcontroller then please check if it supports I2C.

Are you bored by making those projects that don’t grab your interest? And, that’s why feeling demotivated? And are you looking for some interesting project that excites and motivates you? You’re in the right spot. Because, In this tutorial, we’ll interface “Nokia 5110 LCD with Arduino UNO” The Nokia 5110 LCD is one of the devices that are used to display words, numbers, images, etc. The reason to use Nokia LCD is that it’s inexpensive and easily get interfaced with Arduino.

Nokia 5110 is a simple graphic LCD. Initially, it was made to use as a mobile phone screen. The LCD contains the PCD8544 controller in it. Practically, it’s a low-powered controller. This controller was designed to display 48 rows and 84 cols on an LCD screen. The LCD is easy to solder and mount on board. Also, it’s easy to interface with any microcontroller.

Assemble the circuit to interface “Nokia 5110 LCD with Arduino UNO” according to the above-given diagram. Upload the code in Arduino. When you upload the code in it, the Arduino transfers it to the LCD through wires/buses. And, you will see that LCD will display “Hello World”. Use the potentiometer to increase or decrease the light intensity.

In the void setup, initialize the LCD by Lcd.begin(84, 48). Remember, that this 84 and 48 is the dimension of LCD. Then createchar( ) is used to create the character fonts for the LED matrices.

Floppy Emu uses an 84×48 graphical LCD display. It’s just a low-resolution 1-bit display, but it’s fast and easy to use, and has a nice built-in backlight. The display is actually a clone of the old Nokia 5110 phone display, and it’s made by semi-mysterious third-party factories in Shenzhen. It can be purchased in bulk for about $2.50 apiece.

The big problem with these Nokia 5110 displays is that their reliability stinks. The actual LCD module (the glass and metal bit) is clipped onto a supporting PCB with some passive electronics, and it’s only a pressure-fit holding the two together. If it’s not clipped in just right, the display will exhibit contrast problems, or glitchy behavior, or just won’t work at all. Gently pushing on the LCD frame sometimes changes the pressure-fit enough to make these problems appear and disappear. Adjusting and tightening the LCD clips, as described in the Floppy Emu manual, is the only thing I’ve found that helps.

The electronics assembler that builds Floppy Emus must go through every LCD to check for problems. They usually end up discarding about 10% of all the LCDs, because they don’t work no matter how the clips are adjusted. Once the boards are finished, I do a second check of each LCD immediately before it’s shipped to the customer. This often requires more fiddling with the clips, or manual contrast adjustments, and a further 5% of LCDs are discarded. It’s very time-consuming, but despite all this effort, some troublesome LCDs still reach customers who must then make further adjustments.

In the most recent batch of LCDs, the pressure-fit contact design changed slightly, and it now appears to be even more troublesome than before. At the same time, the LCD bezel was unexpectedly enlarged by 2mm, forcing me to redesign the Floppy Emu acrylic case to match. This is a risk of buying generic parts from eBay and Alibaba, with no manufacturer to stand behind them or datasheet to document them.

It would be very nice to replace the 5110 displays with something similar but more stable. A replacement would need to handle about 84 x 48 1-bit pixels (equivalent to 21 x 6 text characters), with a diagonal size about 1.5 inches, and ideally use an SPI interface. Unfortunately, I’ve found nothing that even comes close. The alternatives are either much too large/small, lack graphical capabilities, are too slow, or are much too expensive.

Character and numeric displays aren’t appropriate, since they can’t do graphics or six rows of text. So looking at Digikey’s Display Modules – LCD, OLED, Graphic category, and sorting by unit price quantity 100 purchasing, and including only those results that have at least a few hundred units in stock, I found these:

128×128 RGB LCD, 1.44 inch diagonal, $4.23 – This could almost work, except I believe it’s a 24-bit color display, so the microcontroller would need to move 24x as much data to draw on it. And because it’s a much higher resolution, the amount of data to moved must be still higher to maintain the same font sizes as the old display. And it’s a slow I2C interface, instead of fast SPI. And there’s no datasheet.

128×64 OLED, 0.96 inch diagonal, $2.91 – This could sort of work, and I have one of these modules already. But it’s tiny, smaller than a postage stamp, which isn’t really suitable. It’s also I2C which means the interface is comparatively slow. Coming from a random non-branded eBay seller, it’s also not clear it would be any more reliable than the LCD display I have now.

128×128 RGB LCD, 1.44 inch diagonal, $3.04 – This is basically the same as the $4.23 module from DigiKey. Although this one says it has an SPI interface. Maybe this is the best option from a list of not-so-great alternatives.
