The LiquidCrystal library allows you to control LCD displays that are compatible with the Hitachi HD44780 driver. There are many of them out there, and you can usually tell them by the 16-pin interface.

The LCDs have a parallel interface, meaning that the microcontroller has to manipulate several interface pins at once to control the display. The interface consists of the following pins:

A register select (RS) pin that controls where in the LCD"s memory you"re writing data to. You can select either the data register, which holds what goes on the screen, or an instruction register, which is where the LCD"s controller looks for instructions on what to do next.

There"s also a display constrast pin (Vo), power supply pins (+5V and Gnd) and LED Backlight (Bklt+ and BKlt-) pins that you can use to power the LCD, control the display contrast, and turn on and off the LED backlight, respectively.

The process of controlling the display involves putting the data that form the image of what you want to display into the data registers, then putting instructions in the instruction register. The LiquidCrystal Library simplifies this for you so you don"t need to know the low-level instructions.

The Hitachi-compatible LCDs can be controlled in two modes: 4-bit or 8-bit. The 4-bit mode requires seven I/O pins from the Arduino, while the 8-bit mode requires 11 pins. For displaying text on the screen, you can do most everything in 4-bit mode, so example shows how to control a 16x2 LCD in 4-bit mode.

Before wiring the LCD screen to your Arduino board we suggest to solder a pin header strip to the 14 (or 16) pin count connector of the LCD screen, as you can see in the image above.

This is a 20x4 Arduino compatible LCD display module with high speed I2C interface. It is able to display 20x4 characters on two lines, whitecharacterson blue background.

Generally, LCD display will run out of Arduino pin resource. It needs 6 digital pins and 2 power pin for a LCD display. If you want to build a robot project, it will be a problem with Arduino UNO and LCD display.

This I2C 20x4 LCD display module is designed for Arduino microcontroller. It is using I2C communication interface, With this I2C interface, only 2 lines (I2C) are required to display the information on any Arduino based projects. It will save at least 4 digital / analog pins on Arduino. All connector are standard XH2.54 (Breadboard type). You can connect it with jumper wire directly.

This 1602 LCD module has 8 I2C address in all, from 0x20 to 0x27. You can set one according to your requirements, avoiding the confliction of I2C address. And its contrast can be adjusted manually.

This board is able to be powered by 5V or 3.3V which make it compatible with both Arduino 101 or Arduino DUE, intel edison 3.3V system and standard Arduino UNO/Arduino Mega 5V system.

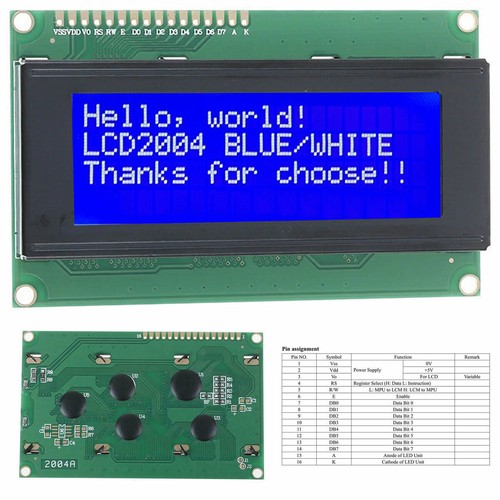

LCD modules are very commonly used in most embedded projects, the reason being its cheap price, availability, and programmer-friendly. Most of us would have come across these displays in our day to day life, either at PCO’s or calculators. Alphanumeric Graphical LCD (2004A) is a 20x4 Blue Coloured Liquid Crystal Display. It can display 4 lines of text and each line can have up to 20 characters in it, which is bigger than the 16x2 LCD displaybut the programming is almost same. These characters can either be text, numbers, graphical symbols or even custom characters. It can be used in DIY projects, to display the data on IoT projects, etc.

We know that each character has 40 Pixels and for 80 Characters we will have 3200 Pixels. Further, the LCD should also be instructed about the Position of the Pixels. It is a hectic task for the microcontroller, hence Driver IC like ST7066 is used, which is mounted on the backside of the LCD Module.it takes data from the Microcontroller and processes them to display on the LCD Screen. You can use it in 8 bit parallel interface or 4 bit parallel interface mode if you need to connect fewer lines to the microcontroller.

There are not many differences between the two LCD screens apart from the obvious one that 16*2 can display only 32 characters and 20*4 can display 80 characters. So you have to choose the display according to your needs. If you need a display to show a lot of data then go for 20*4 size and if there is not too much of data to display then go for 16*2 LCD. It also depends on the packaging size of your project. If space is at a premium then go for smaller sized 16*2 else its 20*4.

What is the purpose of declaring LiquidCrystal_I2C lcd(0x27, 2, 1, 0, 4, 5, 6, 7, 3, POSITIVE); if we are using pins A4 and A5? I know that 0x27 is the ic address but what is the rest for?

I am getting a error while i m going to add zip file of lcd library error id this zip file does not contains a valid library please help me to resolve this issue as soon as possible.....

Hey guys. My LCD works fine using the above instructions (when replacing the existing LCD library in the Arduino directory) but I can"t get the backlight to ever switch off. Suggestions?

This website is using a security service to protect itself from online attacks. The action you just performed triggered the security solution. There are several actions that could trigger this block including submitting a certain word or phrase, a SQL command or malformed data.

20×4 Green JHD204A Character LCD Display can be Interface with almost All Digital Microcontrollers. Itcan be used with such as Arduino, 8051, PIC, AVR, ARM, MSP, COP8, STM, Raspberry Pi etc. About 20×4 Character LCD Display: 20×4 LCD is a basic 20 character by 4 line display Green/Yellow Backlight. Utilizes the extremely common HD44780 parallel interface chipset. Interface code is freely available. You will need 7 general I/O pins (If used in 4-bit Mode) to interface to this LCD screen. Includes LED Backlight.

Need a 4 line 20 character lcd for your product? Crystalfontz keeps stock of the most popular colors and interfaces for standard 20x4 character LCDs. We pride ourselves in being able to get our 20x4 lcd display modules in your hands quickly and with all the product support you can use. Our CFA635, CFA735, CFA634 are all intelligent lcd display modules, that have their own command set making integrating them into your product a much faster process than using a standard LCD module. If you"re looking for a 40x2 character lcd, we have those as well!

One way of driving an LCD character display from uLisp is to buy an I2C/SPI backpack with-i2c or with-spi. The advantage of this approach is that the display becomes an output stream, and you can write to it using any of the uLisp output commands, including print, princ, prin1, terpri, write-line, and write-string.

Alternatively you can drive the display directly using the following program. This will run on all the uLisp platforms, down to the Arduino Uno (or Arduino Nano as in the above photograph), although if it forms part of a larger project you"ll probably need an Arduino Mega 2560 or better.

Tip: don"t fit pin headers to the pins D0 to D3 on the display module; these aren"t used, and leaving them unconnected may allow you to save some wiring between the Arduino board and the display module, as in my prototype in the photograph above.

If, however, the display is initially in 4-bit mode, as it would be if you just reset the Arduino, the first byte #x33 is interpreted as a single command:
