China is the leader in producing LCD display panels, with a forecast capacity share of 56 percent in 2020. China"s share is expected to increase in the coming years, stabilizing at 69 percent from 2023 onwards.Read moreLCD panel production capacity share from 2016 to 2025, by countryCharacteristicChinaJapanSouth KoreaTaiwan-----

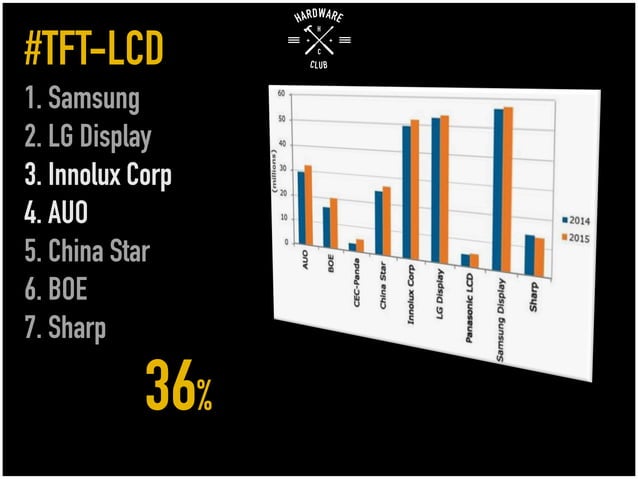

DSCC. (June 8, 2020). LCD panel production capacity share from 2016 to 2025, by country [Graph]. In Statista. Retrieved December 18, 2022, from https://www.statista.com/statistics/1056470/lcd-panel-production-capacity-country/

tft display graph made in china

I.Film removal: the high concentration of alkali solution (NaOH solution) is used as the film removal solution to peel off the remaining photoresist on the glass, thus forming ITO graphics exactly consistent with the lithography mask on the ITO glass.

General TN and the STN product does not require this step, the TOP film coating process is after the photolithography process making SiO2 coating, once again to the etching area and the etching area between the grooved bridge and the electrode covering, this can have the effect of the insulation layer, and can effectively eliminate the display state of the bottom electrode, also help to improve the perspective characteristics and so on, so most of the high-grade product requires TOP coating.

This process involves coating an oriented layer on the etched ITO glass surface and treating the restricted layer in a specific way so that the liquid crystal molecules can be oriented (arranged) in a specific direction on the surface of the oriented layer. This step is unique to the production of liquid crystal displays.

Organic polymer-oriented material is coated on the surface of the glass, that is, a uniform orientation layer is applied to the appropriate position of ITO glass by a selective coating method, and the orientation layer is cured at the same time. (Usually in the display area)

STONE provides a full range of 3.5 inches to 15.1 inches of small and medium-size standard quasi TFT LCD module, LCD display, TFT display module, display industry, industrial LCD screen, under the sunlight visually highlight TFT LCD display, industrial custom TFT screen, TFT LCD screen-wide temperature, industrial TFT LCD screen, touch screen industry. The TFT LCD module is very suitable for industrialcontrol equipment, medical instruments, POS system, electronic consumer products, vehicles, and other products.

tft display graph made in china

The ST7789 TFT module contains a display controller with the same name: ST7789. It’s a color display that uses SPI interface protocol and requires 3, 4 or 5 control pins, it’s low cost and easy to use. This display is an IPS display, it comes in different sizes (1.3″, 1.54″ …) but all of them should have the same resolution of 240×240 pixel, this means it has 57600 pixels. This module works with 3.3V only and it doesn’t support 5V (not 5V tolerant).

The ST7789 display module shown in project circuit diagram has 7 pins: (from right to left): GND (ground), VCC, SCL (serial clock), SDA (serial data), RES (reset), DC (or D/C: data/command) and BLK (back light).

As mentioned above, the ST7789 TFT display controller works with 3.3V only (power supply and control lines). The display module is supplied with 3.3V (between VCC and GND) which comes from the Arduino board.

To connect the Arduino to the display module, I used voltage divider for each line which means there are 4 voltage dividers. Each voltage divider consists of 2.2k and 3.3k resistors, this drops the 5V into 3V which is sufficient.

The first library is a driver for the ST7789 TFT display which can be installed from Arduino IDE library manager (Sketch —> Include Library —> Manage Libraries …, in the search box write “st7789” and install the one from Adafruit).

tft display graph made in china

In this article, you will learn how to use TFT LCDs by Arduino boards. From basic commands to professional designs and technics are all explained here.

In electronic’s projects, creating an interface between user and system is very important. This interface could be created by displaying useful data, a menu, and ease of access. A beautiful design is also very important.

There are several components to achieve this. LEDs, 7-segments, Character and Graphic displays, and full-color TFT LCDs. The right component for your projects depends on the amount of data to be displayed, type of user interaction, and processor capacity.

TFT LCD is a variant of a liquid-crystal display (LCD) that uses thin-film-transistor (TFT) technology to improve image qualities such as addressability and contrast. A TFT LCD is an active matrix LCD, in contrast to passive matrix LCDs or simple, direct-driven LCDs with a few segments.

In Arduino-based projects, the processor frequency is low. So it is not possible to display complex, high definition images and high-speed motions. Therefore, full-color TFT LCDs can only be used to display simple data and commands.

In this article, we have used libraries and advanced technics to display data, charts, menu, etc. with a professional design. This can move your project presentation to a higher level.

Size of displays affects your project parameters. Bigger Display is not always better. if you want to display high-resolution images and signs, you should choose a big size display with higher resolution. But it decreases the speed of your processing, needs more space and also needs more current to run.

After choosing the right display, It’s time to choose the right controller. If you want to display characters, tests, numbers and static images and the speed of display is not important, the Atmega328 Arduino boards (such as Arduino UNO) are a proper choice. If the size of your code is big, The UNO board may not be enough. You can use Arduino Mega2560 instead. And if you want to show high resolution images and motions with high speed, you should use the ARM core Arduino boards such as Arduino DUE.

In electronics/computer hardware a display driver is usually a semiconductor integrated circuit (but may alternatively comprise a state machine made of discrete logic and other components) which provides an interface function between a microprocessor, microcontroller, ASIC or general-purpose peripheral interface and a particular type of display device, e.g. LCD, LED, OLED, ePaper, CRT, Vacuum fluorescent or Nixie.

The display driver will typically accept commands and data using an industry-standard general-purpose serial or parallel interface, such as TTL, CMOS, RS232, SPI, I2C, etc. and generate signals with suitable voltage, current, timing and demultiplexing to make the display show the desired text or image.

The LCDs manufacturers use different drivers in their products. Some of them are more popular and some of them are very unknown. To run your display easily, you should use Arduino LCDs libraries and add them to your code. Otherwise running the display may be very difficult. There are many free libraries you can find on the internet but the important point about the libraries is their compatibility with the LCD’s driver. The driver of your LCD must be known by your library. In this article, we use the Adafruit GFX library and MCUFRIEND KBV library and example codes. You can download them from the following links.

By these two functions, You can find out the resolution of the display. Just add them to the code and put the outputs in a uint16_t variable. Then read it from the Serial port by Serial.println(); . First add Serial.begin(9600); in setup().

Upload your image and download the converted file that the UTFT libraries can process. Now copy the hex code to Arduino IDE. x and y are locations of the image. sx and sy are size of the image.

In this template, We converted a .jpg image to .c file and added to the code, wrote a string and used the fade code to display. Then we used scroll code to move the screen left. Download the .h file and add it to the folder of the Arduino sketch.

In this template, We used sin(); and cos(); functions to draw Arcs with our desired thickness and displayed number by text printing function. Then we converted an image to hex code and added them to the code and displayed the image by bitmap function. Then we used draw lines function to change the style of the image. Download the .h file and add it to the folder of the Arduino sketch.

In this template, We created a function which accepts numbers as input and displays them as a pie chart. We just use draw arc and filled circle functions.

while (a < b) { Serial.println(a); j = 80 * (sin(PI * a / 2000)); i = 80 * (cos(PI * a / 2000)); j2 = 50 * (sin(PI * a / 2000)); i2 = 50 * (cos(PI * a / 2000)); tft.drawLine(i2 + 235, j2 + 169, i + 235, j + 169, tft.color565(0, 255, 255)); tft.fillRect(200, 153, 75, 33, 0x0000); tft.setTextSize(3); tft.setTextColor(0xffff); if ((a/20)>99)

while (b < a) { j = 80 * (sin(PI * a / 2000)); i = 80 * (cos(PI * a / 2000)); j2 = 50 * (sin(PI * a / 2000)); i2 = 50 * (cos(PI * a / 2000)); tft.drawLine(i2 + 235, j2 + 169, i + 235, j + 169, tft.color565(0, 0, 0)); tft.fillRect(200, 153, 75, 33, 0x0000); tft.setTextSize(3); tft.setTextColor(0xffff); if ((a/20)>99)

In this template, We display simple images one after each other very fast by bitmap function. So you can make your animation by this trick. Download the .h file and add it to folder of the Arduino sketch.

In this template, We just display some images by RGBbitmap and bitmap functions. Just make a code for touchscreen and use this template. Download the .h file and add it to folder of the Arduino sketch.

This article is introduce what is TN lcd and STN display, what is difference for FSTN and FFstn lcd? what types of lcd panel available for lcd technology? how the lcd panel display working. what is difference between FSTN and FFSTN lcd display definition? what does STN stand for? let"s see the introduction as following:

LCD is including monochrome lcd and color lcd types,monochrome lcd have TN LCD, STN LCD (yellow-green mode, blue mode, gray mode, black-white mode/FSTN,FFSTN), monochrome tft lcd. color lcd including color STN LCD and color TFT lcd types, color STN LCD (CSTN lcd) is almost phase out because it is no better than TFT in contrast, Now all CSTN LCDs were replaced by tft lcd dsiplay.

TN lcd means (twisted nematic) LCD, the namatic liquid crystal elements inside the lcd glass cell,its twisted angle is 90 degree, integrated the front and rear polarizes on the lcd, the polarized angle is also in 90 degree in cross, it control the light transmission and make the tn lcd display on and off.

STN lcd is super-twisted nematic lcd display, it is a type ofmonochrome lcd display,it is also passiveliquid crystal display(LCD). compare to TN lcd, STN LCD twist angle is 240 degree, instead of 90 degree of TN LCD, so we call it STN LCD. STN lcd have yellow-green display mode, gray,black-white mode,blue display mode,available.

With the twist angle in 240°, it bring higherdisplay contrast as the twist angle from TN 90° to STN 240°, as see the graph as below, as the increasing about the lcd contrast in twist angle, when TN lcd can support 8 commons driver (1/8 duty), such as segment lcd, because the TN liquid crystal sharpness is less than STN LCD, if the commons higher than 8, the TN lcd contrast would be decreased dramatically. while STN lcd could support 240 commons (1/240 duty) in maximum. STN not only support 16x2, 20x4 characters lcd, and could support 128x64, 320x240 graphic lcd as well, it is all because the contrast increased due to liquid crystal"s twist angle for STN lcd.

Meanwhile, as the display contrast increased for the STN LCD, it bring wider viewing angle for STN lcd than TN lcd display. STN lcd viewing angle could be reach 120 degree, while TN lcd viewing angle around 90 degree.

FSTN lcd display mode is the profession name for black-white STN mode, it is white background and black display characters. it is the nearest color to paper in monochrome lcd, even its real background is a little near to gray. FSTN LCD mode is one of STN mode, it is mean film STN, instead of the background color to yellow-green color or blue color, FSTN LCD add a optics compensating film on the front of FSTN LCD, the optics compensating film compensate the linear polarize light and color from STN LCD, the STN LCD color turn to white background after light through the optics compensator film. that is the compensating film turn the oval polarized light to the linear polarized light again,then we could get thewhite and black lcd display. it is the display mode that near to paper.FSTN lcd is widely used in many display application because of its background.

FFSTN is FSTN LCD in negative display mode, it is also a kind of white-black stn lcd mode, FFSTN lcd is negative background with white display characters, while FSTN lcd is white background with black characters, its background would be in black, and display white characters. FSTN lcd would need one layer polarized light compensation, FFSTN would need two layers polarized light compensation on the front and rear polarizers, it would need higher cost than other STN LCD, but FFSTN LCD is best lcd soluton in STN LCD. it is higher contrast than other types of lcd.

CSTN lcd means color STN LCD, its display technology is based on FFSTN mode, but it have a RGB color filter in side the lcd glass, so it can realize to color display, and because FFSTN have high contrast, so instead lcd font display to other STN LCD, CSTN LCD is better in image display than other monochrome lcd. but CSTN lcd is still type of stn lcd, it have cross-talk effect, which decreased the contrast than TFT LCD which is active display mode without cross-talk.

Because STN lcd display is 240 degree twist angle, it have better display contrast than TN display in 90 degree twist angle. the STN display could support the 1/240 duty lcd, that with 480 segment x240 common graphic lcd. and the TN lcd only support 1/8 duty with 8 commons maximum. so TN lcd is mainly used in segment lcd display or icon lcd display. STN display is mainly used in graphic lcd display. of course, if STN lcd is also can be used segment lcd display or icon lcd display, but its cost would be around double than TN lcd display.

STN LCD display require less power and are less expensive to manufacture than,STN displays typically has lower image quality and slowerresponse timecompare than TFT displays. and tft lcd display is mainly in color display, but STN LCDs have the advantage that it can be made purely reflective for viewing under direct sunlight. STN LCD is a good choice for sunlight readable display in outdoor, for it has a display effect in outdoor and less power consumption. such as transflective STN lcd or reflective STN LCD, it can be display good without backlight light on.

TFT (thin film transistor)is still one kinds of lcd, but it active matrix lcd which without cross-talk with higher contrast than STN LCD or monochrome TN LCD. because of the thin film transistor inside, it is without cross-talk problem, and easily to get the high contrast. besides IPS tft, most of tft lcd is still TN LCD display mode, that is 90 degree twist angle to the liquid crystal.

tft display graph made in china

NEW YORK, Feb. 5, 2019 /PRNewswire/ -- This report analyzes the worldwide markets for Flat Panel Displays (FPDs) in US$ Million by the following Display Technologies: Organic Light Emitting Diode Displays (OLEDs), Plasma Display (PDPs), TFT LCD Displays, and Others.

Table 1: Healthy Growth of the Electronics Industry & The Parallel Need for Human Machine Interface for Information Exchange Between Electromechanical Systems & the User, Ranks as the Main Driver of FPDs: Breakdown of the Global Electronics Industry Size (in US$ Billion) for the Years 2015 & 2018E (includes corresponding Graph/Chart)

Table 3: Global Production Capacity of Flat Panel Displays (2018E): Percentage Breakdown of Capacity by Leading Manufacturers (includes corresponding Graph/Chart)

Table 4: Global TFT Flat Panel Display Production Capacity by Country (2016 & 2018): Percentage Breakdown of Production Capacity for China, Japan, South Korea, and Taiwan (includes corresponding Graph/Chart)

Table 6: Global Interactive Displays Market by Product Type (2018E): Percentage Share Breakdown of Value Sales for Interactive Flat Panel Displays, Interactive Projectors, and Interactive Whiteboard Displays (includes corresponding Graph/Chart)

Table 7: Global Small & Medium Display Panels Market by Leading Players (2016): Percentage Breakdown of AU Optronics, BOE Technology Group, Chunghwa Picture Tubes, Innolux Corp., Japan Display Inc., LG Display, Samsung Display, Sharp, and Others (includes corresponding Graph/Chart)

Table 8: Widening Global LCD Panel Demand and Supply Gap: Global LCD Panel Demand and Supply Gap in Million Square Meter for the Years 2013, 2015 & 2017E (includes corresponding Graph/Chart)

Table 9: Global OLED Panels Market by Panel-Area Type (2015 & 2018): Penetration Percentage of Large-area OLED Panels, and Small & Medium Area OLED Panels (includes corresponding Graph/Chart)

Table 11: Global AMOLED Panel Displays Market by Type of Substrate (2015-2020): Percentage Share Breakdown of Dollar Revenues for Flexible and Rigid Substrates (includes corresponding Graph/Chart)

Table 12: Global AMOLED Materials Market by Type (2015 & 2020): Percentage Breakdown of Consumption Volumes for FMM RGB AMOLED, and WOLED Materials (includes corresponding Graph/Chart)

Table 14: Global Smartwatches Market by Type of Display Technology (2017E): Percentage Share Breakdown of Unit Shipments for AMEPD, AMOLED, PMOLED, and TFT LCD Displays (includes corresponding Graph/Chart)

Table 15: Global Flexible Displays Market (2016, 2018, 2020 & 2022): Shipment of Flexible Displays in Million Units (includes corresponding Graph/Chart)

Table 16: Global Wide Color Gamut Displays Market by Type of Display Technology (2016): Percentage Share Breakdown of Area-based Volume Shipments for LED-backlit LCD, OLED, Quantum Dot, and Other Displays (includes corresponding Graph/Chart)

Table 20: World Recent Past, Current & Future Analysis for Flat Panel Displays by Geographic Region/Country - US, Japan, Europe, Asia-Pacific, and Rest of World Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2016 through 2024 (includes corresponding Graph/Chart)

Table 21: World Historic Review for Flat Panel Displays by Geographic Region/Country - US, Japan, Europe, Asia-Pacific, and Rest of World Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2011 through 2

Table 22: World 14-Year Perspective for Flat Panel Displays by Geographic Region/Country - Percentage Breakdown of Dollar Revenues for US, Japan, Europe, Asia-Pacific, and Rest of World Markets for Years 2011, 2017 & 2024 (includes corresponding Graph/Chart)

Table 23: World Recent Past, Current & Future Analysis for OLED Displays by Geographic Region/ Country - US, Japan, Europe, Asia-Pacific, and Rest of World Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2016 through 2024 (includes corresponding Graph/Chart)

Table 24: World Historic Review for OLED Displays by Geographic Region/Country - US, Japan, Europe, Asia-Pacific, and Rest of World Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2011 through 2

Table 25: World 14-Year Perspective for OLED Displays by Geographic Region/ Country - Percentage Breakdown of Dollar Revenues for US, Japan, Europe, Asia-Pacific, and Rest of World Markets for Years 2011, 2017 & 2024 (includes corresponding Graph/Chart)

Table 26: World Recent Past, Current & Future Analysis for Plasma Displays by Geographic Region/Country - US, Japan, Europe, Asia-Pacific, and Rest of World Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2016 through 2024 (includes corresponding Graph/Chart)

Table 27: World Historic Review for Plasma Displays by Geographic Region/Country - US, Japan, Europe, Asia-Pacific, and Rest of World Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2011 through 2

Table 28: World 14-Year Perspective for Plasma Displays by Geographic Region/Country - Percentage Breakdown of Dollar Revenues for US, Japan, Europe, Asia-Pacific, and Rest of World Markets for Years 2011, 2017 & 2024 (includes corresponding Graph/Chart)

Table 29: World Recent Past, Current & Future Analysis for TFT LCD Displays by Geographic Region/Country - US, Japan, Europe, Asia-Pacific, and Rest of World Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2

Table 30: World Historic Review for TFT LCD Displays by Geographic Region/Country - US, Japan, Europe, Asia-Pacific, and Rest of World Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2011 through 2

Table 31: World 14-Year Perspective for TFT LCD Displays by Geographic Region/Country - Percentage Breakdown of Dollar Revenues for US, Japan, Europe, Asia-Pacific, and Rest of World Markets for Years 2011, 2017 & 2024 (includes corresponding Graph/Chart)

Table 32: World Recent Past, Current & Future Analysis for Other FPDs by Geographic Region/Country - US, Japan, Europe, Asia-Pacific, and Rest of World Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2

Table 33: World Historic Review for Other FPDs by Geographic Region/Country - US, Japan, Europe, Asia-Pacific, and Rest of World Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2011 through 2015 (includes corresponding Graph/Chart)

Table 34: World 14-Year Perspective for Other FPDs by Geographic Region/ Country - Percentage Breakdown of Dollar Revenues for US, Japan, Europe, Asia-Pacific, and Rest of World Markets for Years 2011, 2017 & 2024 (includes corresponding Graph/Chart)

Table 35: World Recent Past, Current & Future Analysis for Flat Panel Displays in Automotives by Geographic Region/Country - US, Japan, Europe, Asia-Pacific, and Rest of World Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2016 through 2024 (includes corresponding Graph/Chart)

Table 36: World Historic Review for Flat Panel Displays in Automotives by Geographic Region/ Country - US, Japan, Europe, Asia-Pacific, and Rest of World Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2

Table 37: World 14-Year Perspective for Flat Panel Displays in Automotives by Geographic Region/Country - Percentage Breakdown of Dollar Revenues for US, Japan, Europe, Asia-Pacific, and Rest of World Markets for Years 2011, 2017 & 2024 (includes corresponding Graph/Chart)

Table 38: World Recent Past, Current & Future Analysis for Flat Panel Displays in Mobile Phones/ Tablets by Geographic Region/Country - US, Japan, Europe, Asia-Pacific, and Rest of World Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2016 through 2024 (includes corresponding Graph/Chart)

Table 39: World Historic Review for Flat Panel Displays in Mobile Phones/Tablets by Geographic Region/Country - US, Japan, Europe, Asia-Pacific, and Rest of World Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2011 through 2015 (includes corresponding Graph/Chart)

Table 40: World 14-Year Perspective for Flat Panel Displays in Mobile Phones/Tablets by Geographic Region/Country - Percentage Breakdown of Dollar Revenues for US, Japan, Europe, Asia-Pacific, and Rest of World Markets for Years 2011, 2017 & 2024 (includes corresponding Graph/Chart)

Table 41: World Recent Past, Current & Future Analysis for Flat Panel Displays in Personal Computers/Notebooks by Geographic Region/Country - US, Japan, Europe, Asia-Pacific, and Rest of World Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2016 through 2

Table 42: World Historic Review for Flat Panel Displays in Personal Computers/ Notebooks by Geographic Region/Country - US, Japan, Europe, Asia-Pacific, and Rest of World Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2011 through 2015 (includes corresponding Graph/Chart)

Table 43: World 14-Year Perspective for Flat Panel Displays in Personal Computers/ Notebooks by Geographic Region/Country - Percentage Breakdown of Dollar Revenues for US, Japan, Europe, Asia-Pacific, and Rest of World Markets for Years 2011, 2017 & 2024 (includes corresponding Graph/Chart)

Table 44: World Recent Past, Current & Future Analysis for Flat Panel Displays in Television by Geographic Region/Country - US, Japan, Europe, Asia-Pacific, and Rest of World Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2016 through 2024 (includes corresponding Graph/Chart)

Table 45: World Historic Review for Flat Panel Displays in Television by Geographic Region/Country - US, Japan, Europe, Asia-Pacific, and Rest of World Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2

Table 46: World 14-Year Perspective for Flat Panel Displays in Television by Geographic Region/Country - Percentage Breakdown of Dollar Revenues for US, Japan, Europe, Asia-Pacific, and Rest of World Markets for Years 2011, 2017 & 2024 (includes corresponding Graph/Chart)

Table 47: World Recent Past, Current & Future Analysis for Flat Panel Displays in Other Applications by Geographic Region/Country - US, Japan, Europe, Asia-Pacific, and Rest of World Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2016 through 2024 (includes corresponding Graph/Chart)

Table 48: World Historic Review for Flat Panel Displays in Other Applications by Geographic Region/Country - US, Japan, Europe, Asia-Pacific, and Rest of World Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2011 through 2015 (includes corresponding Graph/Chart)

Table 49: World 14-Year Perspective for Flat Panel Displays in Other Applications by Geographic Region/Country - Percentage Breakdown of Dollar Revenues for US, Japan, Europe, Asia-Pacific, and Rest of World Markets for Years 2011, 2017 & 2024 (includes corresponding Graph/Chart)

Table 50: US Recent Past, Current & Future Analysis for Flat Panel Displays by Display Technology - OLED Displays, Plasma Displays, TFT LCD Displays, and Other Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2016 through 2024 (includes corresponding Graph/Chart)

Table 51: US Historic Review for Flat Panel Displays by Display Technology - OLED Displays, Plasma Displays, TFT LCD Displays, and Other Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2011 through 2015 (includes corresponding Graph/Chart)

Table 52: US 14-Year Perspective for Flat Panel Displays by Display Technology - Percentage Breakdown of Dollar Revenues for OLED Displays, Plasma Displays, TFT LCD Displays, and Other Markets for Years 2011, 2017 & 2024 (includes corresponding Graph/Chart)

Table 53: US Recent Past, Current & Future Analysis for Flat Panel Displays by Application - Automotive, Mobile Phones/Tablets, Personal Computers/Notebooks, Television, and Other Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2016 through 2024 (includes corresponding Graph/Chart)

Table 54: US Historic Review for Flat Panel Displays by Application - Automotive, Mobile Phones/Tablets, Personal Computers/Notebooks, Television, and Other Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2011 through 2015 (includes corresponding Graph/Chart)

Table 55: US 14-Year Perspective for Flat Panel Displays by Application - Percentage Breakdown of Dollar Revenues for Automotive, Mobile Phones/ Tablets, Personal Computers/Notebooks, Television, and Other Markets for Years 2011, 2017 & 2024 (includes corresponding Graph/Chart)

Table 56: Japanese Recent Past, Current & Future Analysis for Flat Panel Displays by Display Technology - OLED Displays, Plasma Displays, TFT LCD Displays, and Other Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2016 through 2024 (includes corresponding Graph/Chart)

Table 57: Japanese Historic Review for Flat Panel Displays by Display Technology - OLED Displays, Plasma Displays, TFT LCD Displays, and Other Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2011 through 2015 (includes corresponding Graph/Chart)

Table 58: Japanese 14-Year Perspective for Flat Panel Displays by display Technology - Percentage Breakdown of Dollar Revenues for OLED Displays, Plasma Displays, TFT LCD Displays, and Other Markets for Years 2011, 2017 & 2

Table 59: Japanese Recent Past, Current & Future Analysis for Flat Panel Displays by Application - Automotive, Mobile Phones/Tablets, Personal Computers/ Notebooks, Television, and Other Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2016 through 2024 (includes corresponding Graph/Chart)

Table 60: Japanese Historic Review for Flat Panel Displays by Application - Automotive, Mobile Phones/Tablets, Personal Computers/Notebooks, Television, and Other Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2011 through 2015 (includes corresponding Graph/Chart)

Table 61: Japanese 14-Year Perspective for Flat Panel Displays by Application - Percentage Breakdown of Dollar Revenues for Automotive, Mobile Phones/Tablets, Personal Computers/ Notebooks, Television, and Other Markets for Years 2011, 2017 & 2024 (includes corresponding Graph/Chart)

Table 62: European Recent Past, Current & Future Analysis for Flat Panel Displays by Display Technology - OLED Displays, Plasma Displays, TFT LCD Displays, and Other Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2016 through 2024 (includes corresponding Graph/Chart)

Table 63: European Historic Review for Flat Panel Displays by Display Technology - OLED Displays, Plasma Displays, TFT LCD Displays, and Other Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2011 through 2015 (includes corresponding Graph/Chart)

Table 64: European 14-Year Perspective for Flat Panel Displays by Display Technology - Percentage Breakdown of Dollar Revenues for OLED Displays, Plasma Displays, TFT LCD Displays, and Other Markets for Years 2011, 2017 & 2

Table 65: European Recent Past, Current & Future Analysis for Flat Panel Displays by Application - Automotive, Mobile Phones/Tablets, Personal Computers/ Notebooks, Television, and Other Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2016 through 2024 (includes corresponding Graph/Chart)

Table 66: European Historic Review for Flat Panel Displays by Application - Automotive, Mobile Phones/Tablets, Personal Computers/ Notebooks, Television, and Other Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2011 through 2015 (includes corresponding Graph/Chart)

Table 67: European 14-Year Perspective for Flat Panel Displays by Application - Percentage Breakdown of Dollar Revenues for Automotive, Mobile Phones/Tablets, Personal Computers/ Notebooks, Television, and Other Markets for Years 2011, 2017 & 2024 (includes corresponding Graph/Chart)

Table 68: Asia-Pacific Recent Past, Current & Future Analysis for Flat Panel Displays by Geographic Region/Country - China, South Korea, Taiwan, and Rest of Asia-Pacific Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2016 through 2

Table 69: Asia-Pacific Historic Review for Flat Panel Displays by Geographic Region/Country - China, South Korea, Taiwan, and Rest of Asia-Pacific Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2011 through 2015 (includes corresponding Graph/Chart)

Table 70: Asia-Pacific 14-Year Perspective for Flat Panel Displays by Geographic Region/ Country - Percentage Breakdown of Dollar Revenues for China, South Korea, Taiwan, and Rest of Asia-Pacific Markets for Years 2011, 2017 & 2

Table 71: Asia-Pacific Recent Past, Current & Future Analysis for Flat Panel Displays by Display Technology - OLED Displays, Plasma Displays, TFT LCD Displays, and Other Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2016 through 2024 (includes corresponding Graph/Chart)

Table 72: Asia-Pacific Historic Review for Flat Panel Displays by Display Technology - OLED Displays, Plasma Displays, TFT LCD Displays, and Other Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2011 through 2015 (includes corresponding Graph/Chart)

Table 73: Asia-Pacific 14-Year Perspective for Flat Panel Displays by Display Technology - Percentage Breakdown of Dollar Revenues for OLED Displays, Plasma Displays, TFT LCD Displays, and Other Markets for Years 2011, 2017 & 2

Table 74: Asia-Pacific Recent Past, Current & Future Analysis for Flat Panel Displays by Application - Automotive, Mobile Phones/Tablets, Personal Computers/ Notebooks, Television, and Other Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2016 through 2024 (includes corresponding Graph/Chart)

Table 75: Asia-Pacific Historic Review for Flat Panel Displays by Application - Automotive, Mobile Phones/Tablets, Personal Computers/Notebooks, Television, and Other Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2011 through 2015 (includes corresponding Graph/Chart)

Table 76: Asia-Pacific 14-Year Perspective for Flat Panel Displays by Application - Percentage Breakdown of Dollar Revenues for Automotive, Mobile Phones/Tablets, Personal Computers/ Notebooks, Television, and Other Markets for Years 2011, 2017 & 2024 (includes corresponding Graph/Chart)

Table 77: Chinese Recent Past, Current & Future Analysis for Flat Panel Displays by Display Technology - OLED Displays, Plasma Displays, TFT LCD Displays, and Other Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2016 through 2024 (includes corresponding Graph/Chart)

Table 78: Chinese Historic Review for Flat Panel Displays by Display Technology - OLED Displays, Plasma Displays, TFT LCD Displays, and Other Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2011 through 2015 (includes corresponding Graph/Chart)

Table 79: Chinese 14-Year Perspective for Flat Panel Displays by Display Technology - Percentage Breakdown of Dollar Revenues for OLED Displays, Plasma Displays, TFT LCD Displays, and Other Markets for Years 2011, 2017 & 2

Table 80: Chinese Recent Past, Current & Future Analysis for Flat Panel Displays by Application - Automotive, Mobile Phones/Tablets, Personal Computers/Notebooks, Television, and Other Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2016 through 2024 (includes corresponding Graph/Chart)

Table 81: Chinese Historic Review for Flat Panel Displays by Application - Automotive, Mobile Phones/Tablets, Personal Computers/Notebooks, Television, and Other Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2011 through 2015 (includes corresponding Graph/Chart)

Table 82: Chinese 14-Year Perspective for Flat Panel Displays by Application - Percentage Breakdown of Dollar Revenues for Automotive, Mobile Phones/Tablets, Personal Computers/ Notebooks, Television, and Other Markets for Years 2011, 2017 & 2024 (includes corresponding Graph/Chart)

Table 83: South Korean Recent Past, Current & Future Analysis for Flat Panel Displays by Display Technology - OLED Displays, Plasma Displays, TFT LCD Displays, and Other Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2016 through 2024 (includes corresponding Graph/Chart)

Table 84: South Korean Historic Review for Flat Panel Displays by Display Technology - OLED Displays, Plasma Displays, TFT LCD Displays, and Other Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2011 through 2015 (includes corresponding Graph/Chart)

Table 85: South Korean 14-Year Perspective for Flat Panel Displays by Display Technology - Percentage Breakdown of Dollar Revenues for OLED Displays, Plasma Displays, TFT LCD Displays, and Other Markets for Years 2011, 2017 & 2

Table 86: South Korean Recent Past, Current & Future Analysis for Flat Panel Displays by Application - Automotive, Mobile Phones/Tablets, Personal Computers/Notebooks, Television, and Other Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2016 through 2024 (includes corresponding Graph/Chart)

Table 87: South Korean Historic Review for Flat Panel Displays by Application - Automotive, Mobile Phones/Tablets, Personal Computers/Notebooks, Television, and Other Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2011 through 2015 (includes corresponding Graph/Chart)

Table 88: South Korean 14-Year Perspective for Flat Panel Displays by Application - Percentage Breakdown of Dollar Revenues for Automotive, Mobile Phones/Tablets, Personal Computers/ Notebooks, Television, and Other Markets for Years 2011, 2017 & 2024 (includes corresponding Graph/Chart)

Table 89: Taiwanese Recent Past, Current & Future Analysis for Flat Panel Displays by Display Technology - OLED Displays, Plasma Displays, TFT LCD Displays, and Other Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2016 through 2024 (includes corresponding Graph/Chart)

Table 90: Taiwanese Historic Review for Flat Panel Displays by Display Technology - OLED Displays, Plasma Displays, TFT LCD Displays, and Other Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2011 through 2015 (includes corresponding Graph/Chart)

Table 91: Taiwanese 14-Year Perspective for Flat Panel Displays by Display Technology - Percentage Breakdown of Dollar Revenues for OLED Displays, Plasma Displays, TFT LCD Displays, and Other Markets for Years 2011, 2017 & 2

Table 92: Taiwanese Recent Past, Current & Future Analysis for Flat Panel Displays by Application - Automotive, Mobile Phones/Tablets, Personal Computers/Notebooks, Television, and Other Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2016 through 2024 (includes corresponding Graph/Chart)

Table 93: Taiwanese Historic Review for Flat Panel Displays by Application - Automotive, Mobile Phones/Tablets, Personal Computers/ Notebooks, Television, and Other Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2011 through 2015 (includes corresponding Graph/Chart)

Table 94: Taiwanese 14-Year Perspective for Flat Panel Displays by Application - Percentage Breakdown of Dollar Revenues for Automotive, Mobile Phones/Tablets, Personal Computers/ Notebooks, Television, and Other Markets for Years 2011, 2017 & 2024 (includes corresponding Graph/Chart)

Table 95: Rest of Asia-Pacific Recent Past, Current & Future Analysis for Flat Panel Displays by Display Technology - OLED Displays, Plasma Displays, TFT LCD Displays, and Other Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2016 through 2024 (includes corresponding Graph/Chart)

Table 96: Rest of Asia-Pacific Historic Review for Flat Panel Displays by Display Technology - OLED Displays, Plasma Displays, TFT LCD Displays, and Other Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2011 through 2015 (includes corresponding Graph/Chart)

Table 97: Rest of Asia-Pacific 14-Year Perspective for Flat Panel Displays by Display Technology - Percentage Breakdown of Dollar Revenue for OLED Displays, Plasma Displays, TFT LCD Displays, and Other Markets for Years 2011, 2017 & 2

Table 98: Rest of Asia-Pacific Recent Past, Current & Future Analysis for Flat Panel Displays by Application - Automotive, Mobile Phones/Tablets, Personal Computers/Notebooks, Television, and Other Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2016 through 2024 (includes corresponding Graph/Chart)

Table 99: Rest of Asia-Pacific Historic Review for Flat Panel Displays by Application - Automotive, Mobile Phones/Tablets, Personal Computers/ Notebooks, Television, and Other Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2011 through 2015 (includes corresponding Graph/Chart)

Table 100: Rest of Asia-Pacific 14-Year Perspective for Flat Panel Displays by Application - Percentage Breakdown of Dollar Revenues for Automotive, Mobile Phones/Tablets, Personal Computers/ Notebooks, Television, and Other Markets for Years 2011, 2017 & 2024 (includes corresponding Graph/Chart)

Table 101: Rest of World Recent Past, Current & Future Analysis for Flat Panel Displays by Display Technology - OLED Displays, Plasma Displays, TFT LCD Displays, and Other Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2016 through 2024 (includes corresponding Graph/Chart)

Table 102: Rest of World Historic Review for Flat Panel Displays by Display Technology - OLED Displays, Plasma Displays, TFT LCD Displays, and Other Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2011 through 2015 (includes corresponding Graph/Chart)

Table 103: Rest of World 14-Year Perspective for Flat Panel Displays by Display Technology - Percentage Breakdown of Dollar Revenues for OLED Displays, Plasma Displays, TFT LCD Displays, and Other Markets for Years 2011, 2017 & 2

Table 104: Rest of World Recent Past, Current & Future Analysis for Flat Panel Displays by Application - Automotive, Mobile Phones/Tablets, Personal Computers/Notebooks, Television, and Other Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2016 through 2024 (includes corresponding Graph/Chart)

Table 105: Rest of World Historic Review for Flat Panel Displays by Application - Automotive, Mobile Phones/Tablets, Personal Computers/ Notebooks, Television, and Other Markets Independently Analyzed with Annual Revenue Figures in US$ Million for Years 2011 through 2015 (includes corresponding Graph/Chart)

Table 106: Rest of World 14-Year Perspective for Flat Panel Displays by Application - Percentage Breakdown of Dollar Revenues for Automotive, Mobile Phones/Tablets, Personal Computers/ Notebooks, Television, and Other Markets for Years 2011, 2017 & 2024 (includes corresponding Graph/Chart)

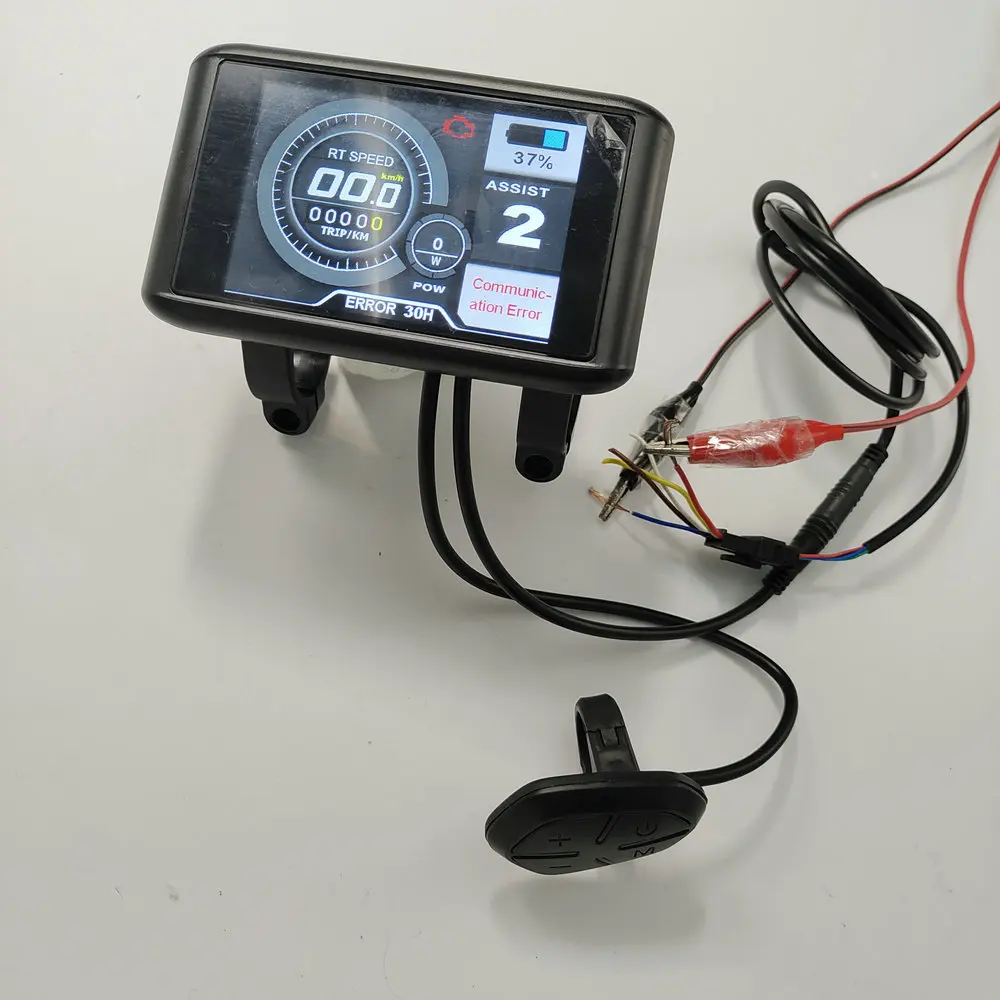

Oct03201633322064 ML3 TFT -DISPLAY, SPARE PART ASSEMBLY CONSIST OF ML3 DISPLAY SATELLITE BOARD 2.VERSION CONNECTION CABLE COVERGermanyKolkata Air CargoPCS280,08440,042

In this Arduino touch screen tutorial we will learn how to use TFT LCD Touch Screen with Arduino. You can watch the following video or read the written tutorial below.

As an example I am using a 3.2” TFT Touch Screen in a combination with a TFT LCD Arduino Mega Shield. We need a shield because the TFT Touch screen works at 3.3V and the Arduino Mega outputs are 5 V. For the first example I have the HC-SR04 ultrasonic sensor, then for the second example an RGB LED with three resistors and a push button for the game example. Also I had to make a custom made pin header like this, by soldering pin headers and bend on of them so I could insert them in between the Arduino Board and the TFT Shield.

Here’s the circuit schematic. We will use the GND pin, the digital pins from 8 to 13, as well as the pin number 14. As the 5V pins are already used by the TFT Screen I will use the pin number 13 as VCC, by setting it right away high in the setup section of code.

I will use the UTFT and URTouch libraries made by Henning Karlsen. Here I would like to say thanks to him for the incredible work he has done. The libraries enable really easy use of the TFT Screens, and they work with many different TFT screens sizes, shields and controllers. You can download these libraries from his website, RinkyDinkElectronics.com and also find a lot of demo examples and detailed documentation of how to use them.

After we include the libraries we need to create UTFT and URTouch objects. The parameters of these objects depends on the model of the TFT Screen and Shield and these details can be also found in the documentation of the libraries.

So now I will explain how we can make the home screen of the program. With the setBackColor() function we need to set the background color of the text, black one in our case. Then we need to set the color to white, set the big font and using the print() function, we will print the string “Arduino TFT Tutorial” at the center of the screen and 10 pixels down the Y – Axis of the screen. Next we will set the color to red and draw the red line below the text. After that we need to set the color back to white, and print the two other strings, “by HowToMechatronics.com” using the small font and “Select Example” using the big font.

drawDistanceSensor(); // It is called only once, because in the next iteration of the loop, this above if statement will be false so this funtion won"t be called. This function will draw the graphics of the first example.

So the drawDistanceSensor() custom function needs to be called only once when the button is pressed in order to draw all the graphics of this example in similar way as we described for the home screen. However, the getDistance() custom function needs to be called repeatedly in order to print the latest results of the distance measured by the sensor.

Ok next is the RGB LED Control example. If we press the second button, the drawLedControl() custom function will be called only once for drawing the graphic of that example and the setLedColor() custom function will be repeatedly called. In this function we use the touch screen to set the values of the 3 sliders from 0 to 255. With the if statements we confine the area of each slider and get the X value of the slider. So the values of the X coordinate of each slider are from 38 to 310 pixels and we need to map these values into values from 0 to 255 which will be used as a PWM signal for lighting up the LED. If you need more details how the RGB LED works you can check my particular tutorialfor that. The rest of the code in this custom function is for drawing the sliders. Back in the loop section we only have the back button which also turns off the LED when pressed.

tft display graph made in china

ILI9341 is a 262,144-color single-chip SOC driver for a-TFT liquid crystal display with resolution of 240RGBx320 dots, comprising a 720-channel source driver, a 320-channel gate driver, 172,800 bytes GRAM for graphic display data of 240RGBx320 dots, and power supply circuit. ILI9341 supports parallel 8-/9-/16-/18-bit data bus MCU interface, 6-/16-/18-bit data bus RGB interface and 3-/4-line serial peripheral interface (SPI). The moving picture area can be specified in internal GRAM by window address function. The specified window area can be updated selectively, so that moving picture can be displayed simultaneously independent of still picture area.

You can find ILI9341-based TFT displays in various sizes on eBay and Aliexpress. The one I chose for this tutorial is 2.2″ length along the diagonal, 240×320 pixels resolution, supports SPI interface, and can be purchased for less than $10.

Note that we will be using the hardware SPI module of the ESP8266 to drive the TFT LCD. The SPI communication pins are multiplexed with I/O pins D5 (SCK), D6 (MISO), and D7 (MOSI). The chip select (CS) and Data/Command (DC) signal lines are configurable through software.

For ILI9341-based TFT displays, there are some options for choosing the library for your application. The most common one is using Bodmer. We will use this library in this tutorial. So go ahead and download the

The library is based on the Adafruit GFX and Adafruit ILI9341 libraries and the aim is to retain compatibility. Significant additions have been made to the library to boost the speed for ESP8266 processors (it is typically 3 to 10 times faster) and to add new features. The new graphics functions include different size proportional fonts and formatting features. There are a significant number of example sketches to demonstrate the different features.

Configuration of the library font selections, pins used to interface with the TFT and other features is made by editting the User_Setup.h file in the library folder. Fonts and features can easily be disabled by commenting out lines.

Now you are all set to try out tons of really cool built-in examples that come with the library. The following output corresponds to the TFT_Pie_Chart example.

My favorite example is TFT terminal, which implements a simple “Arduino IDE Serial Monitor” like serial receive terminal for monitoring debugging messages from another Arduino or ESP8266 board.

tft display graph made in china

You Might Also Be Interested In
