thermal management of lcd displays brands

The pace of development in the electronics and telecommunication fields has been accelerating in all aspects of the business. For example, electronics/telecommunications equipment has traditionally been housed in large buildings, smaller buildings (sheds) and outdoor cabinets. The introduction of electronics to the outdoor environment has imposed serious constraints on enclosure design since temperature and humidity are the two major causes of electronics failure. Since most electronic systems do not include environmentally hardened designs, the enclosure must provide an environment in which they can survive. Among the equipment/systems involved are displays such as LCD, LED and other monitors.

The use of LEDs (Light Emitting Diodes) has been increasing exponentially in the last few years. In the beginning, heat dissipation was not a worrisome problem because of the low power the LED’s used. However, their power consumption and their useful life and reliability are dependent on how their temperature can be controlled, especially in view of high-power LEDs used for illumination and outdoor signage applications. The most important goal in LED cooling is to maintain junction temperature (Tj, the temperature at the p-n junction) from rising above prescribed levels since the junction temperature is a good predictor of the useful life of the LED component. In addition, the junction temperature in many cases must be kept relatively constant since fluctuations and shifts affect the intensity and the color of the LED light output. From a thermal standpoint, junction temperature, as with many other electronic components and systems, is influenced by power levels, heat sinking (high conductivity materials, convection cooling, extended surfaces, heat spreading, heat pipes, etc), ambient temperature, interface materials, applied pressures (clamping to reduce thermal contact resistance).

Thermal management of LEDs can range from the use of natural convection to the use of liquid cooling loops that allow for far higher heat removal rates than employing gases as the cooling medium. Air natural and forced convection, up to very recently, have been the cooling methodology of choice when cooling with a fluid. At the system level, and especially for outdoor applications, liquid cooling is normally not suitable; therefore, only cooling solutions that use natural or forced air convection are employed such as fans, blowers, air-to-air heat exchangers, air-conditioners and other passive cooling techniques.

What is more, display devices such as monitors have incorporated LED technology and must also be thermally managed outdoors since they require hardened enclosures to carry out their tasks.

The objective here is to cover the thermal management of LEDs at the system level, both discrete LED modules or outdoor enclosures (LED walls or LED monitors). This assumes that LED and board level thermal management has been dealt with separately. Nowadays, enclosures that contain LEDs are being installed in various environmental conditions. Most will be fitted with either air conditioning/thermoelectric cooling or air-to-air heat exchangers as needed because of relatively high heat dissipation requirements; for lower heat generation levels, flow-through fan cooling is sufficient. For example, there has been an unprecedented growth of the application of LEDs for outdoor (and indoor) signage or video systems such as sports displays, advertising billboards, and gas station pump customer information displays. These all are enclosures with one wall comprised of LEDs. In addition, recently LED display monitors have been installed in outdoor enclosures and therefore require thermal management. Figure 1 shows an illustration of these two types of enclosures.

The goal is to maintain peak temperatures in the enclosures below a certain level that is normally prescribed (the lowest junction temperature of the LED components) by the manufacturers. Humidity levels are of concern, but since most enclosures are either sealed or its temperatures are much higher than the air’s dew points, humidity is generally not a problem (after the transient effect of opening/closing the enclosure is eliminated.)

The designer should be aware that the air temperatures within the enclosures will be a function of: the amount of heat generated by all the electronic equipment in the enclosure; the amount of heat generated by auxiliary and cooling equipment (fans, etc.); ambient conditions (outdoor air), particularly temperature, solar radiation, wind speeds, etc.; objects surrounding the enclosure (shading, ground reflections, buildings, trees, etc.); enclosure design (surface area, shape, paint’s radiation characteristics, etc.) and air exchange with the outside air, either passive by infiltration, or active by fans or blowers.

Let us consider an enclosure that has installed LED equipment that dissipates a certain amount of heat. The first step is always to realize that the design temperature is that temperature that the enclosure air will attain when there is heat balance, or in equation form:

where, Qequipment comprises the LEDs and its electronics heat dissipation, Qsolar load is the solar heat load and Qcooling-system is the amount of heat removed by the cooling system. The solar load is a complicated term because it includes contributions from all modes or heat transfer. For example:

Normally, the value of Qradiated will always be positive (towards enclosure) but the other two can be either positive or negative, depending on the enclosure’s temperature. Thus, if Qbalance is not zero, this means that the temperature inside the enclosure is either higher/lower than the set temperature and the enclosure is losing/gaining heat by convection and conduction.

Furthermore, since incident solar radiation varies during the daylight hours, the designer must decide whether to conduct a steady state or transient analysis. Moreover, since Qradiation is a very complex term that includes, among other effects, solar declination, latitude, time of year, solar azimuth, atmospheric absorption, atmospheric clearness, re-radiation from other walls, buildings, ground etc., and incident wall surface properties, some simplifying measures must be taken into account. The result is that one can effectively double or triple the amount of heat flux being added into the enclosure depending on the calculation method. The calculation of the cooling load is carried out using several methods. One of these methods is the ASHRAE’s cooling load calculation methods. Normally, when calculating cooling loads, one would include a) Space heat gain, b) Space cooling load, and c) Space heat extraction rate. Space heat gain is the rate at which heat enters or is generated within the space at any given instant. This includes for the enclosure heat transferred into the conditioned space from the external walls and roof due to solar radiation, convection and temperature differential.

One normally includes instantaneous solar radiation effects and delayed effects. The delayed effects include the slow build-up of energy that the external walls accumulate as they absorb solar radiation. This happens because walls are normally thick and massive; making energy absorbed important. For LED enclosures this is not included since its walls are thin (at the most 3 cm when insulation might be added) and should not be included. Another component of heat gain is latent heat due to moisture infiltration. For sealed LED outdoor enclosures, the power electronics are kept in an airtight enclosure with negligible contribution.

where, α -absorptance of solar radiation surface, It – total solar radiation [W/m2], ho– coefficient of heat by long wave radiation and convection [W/K-m2], ε – hemispherical emittance, and ΔR a radiation correction factor [W/m2]. Figure 2 shows typical Sol-Air temperatures for various latitudes.

For roofs: ΔR =63 W/m2, for walls: ΔR = 0, for dark surfaces, α/It = 0.052, which is the maximum value for any surface. To calculate heat transfer into the conditioned space,

where U is the overall heat transfer coefficient for the wall and A is the surface area for the wall. The term, U, includes convective and radiation effects by the internal and external airflow (See AHSHRAE’s Fenestration Chapter for more details, ASHRAE, 1981, 1986) and the wind outside, in addition to conduction through the walls. The solar load calculated will be added to the equipment load to find the total cooling load. The solar load will include three surfaces that can be illuminated simultaneously, with the roof always included.

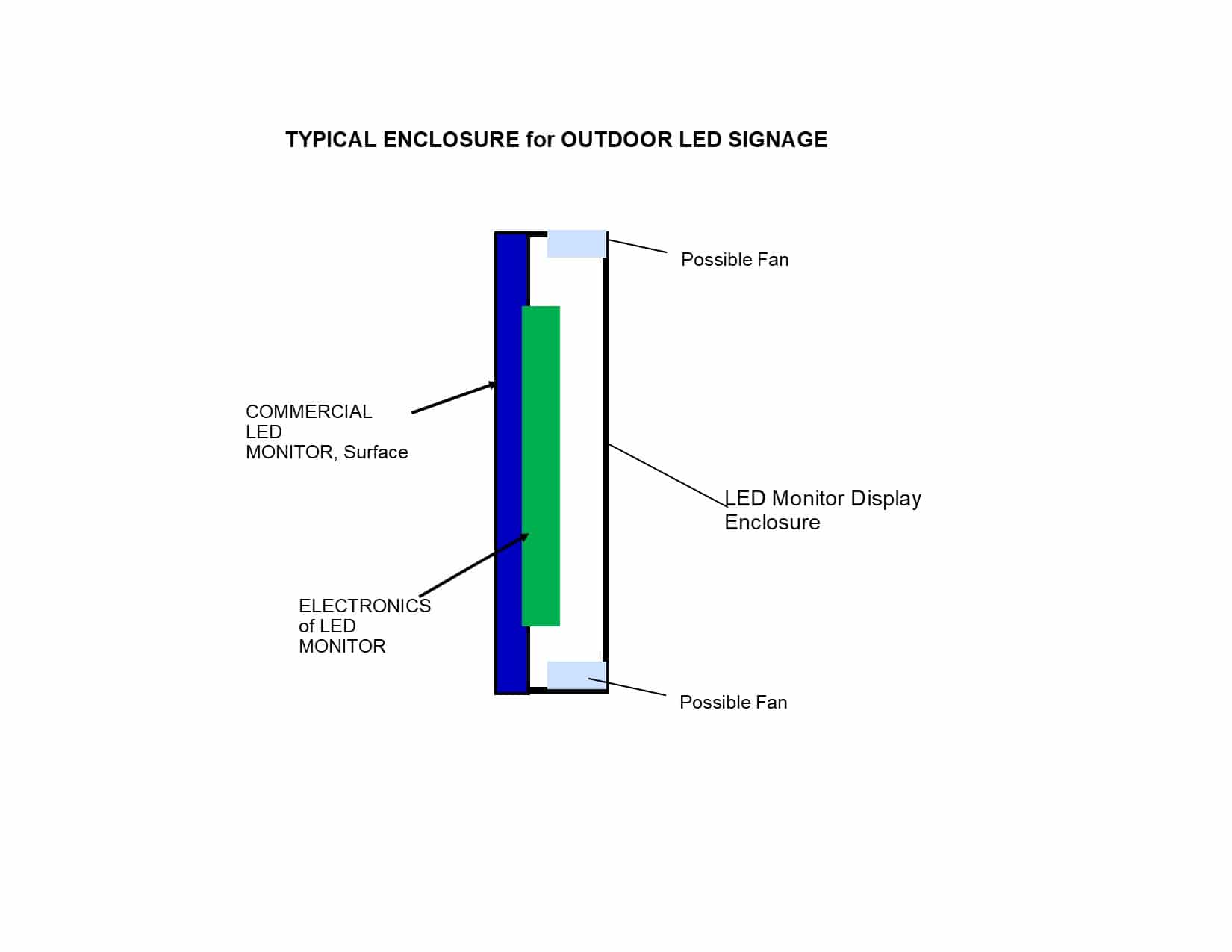

Display/signage enclosures have evolved. Typical LED system design has been the display shown in Figure 3. They typically were metal enclosures measuring 5-10 m wide, 250 mm deep and 5 m high. These enclosures could have thousands of LEDs each measuring, typically,5- 8 by 5-8 by 3 mm and dissipating an average of 1W each, all installed on the largest vertical wall. Therefore, the total amount of heat dissipation for this enclosure (including the electronics needed to control and manage the LEDs) could reach thousands of Watts. Figure 3 shows a CFD model of this enclosure using Phoenics by CHAM Ltd of the UK.

In the last few years, display outdoor enclosures are also being designed to house various display signage equipment configurations such as LED monitors with dissipating heat rates ranging from 200 to 1500 W, depending on the size and type of auxiliary equipment. These enclosures are installed in various environmental conditions, and typically the enclosures, without major structural modifications, may be fitted with fans, air conditioning or air-to-air heat exchangers as needed. Figure 4 shows at typical enclosure (CFD model).

Equipment housed in these enclosures include TV LED monitors that have been initially designed for indoor use and have been slightly hardened to be placed in a hot, dry environment without the support of an enclosure. Many manufacturers sell these monitors.

The goal of the designer is to maintain the peak temperatures in the enclosures, which are below a certain level that is normally prescribed by the electronic equipment manufacturer. Humidity levels are also of concern, but since in most enclosures, its temperatures are much higher than the air’s dew points, humidity is generally not an issue (after the transient effect of opening and closing the enclosure is eliminated). However, typically, the LED monitors are not fully outdoor rated, that is they must be protected from rain and moisture, therefore they must be installed in IP55/56/66 enclosures.

Most enclosures need to be designed to keep the system operating with slight internal overpressure. Cooling air is guided to flow into a gap between the LED screen surface and external transparent wall guided by guide-vanes, and the cooling system also must allow for air to flow to the rest of the enclosure, in addition to the flow in the LED/Wall gap. Overpressure is used to maintaining IP55 and IP66 design and a fan and filter inlet system construction allows for proper solar mitigation technology. For further solar mitigation purposes, if used, a solar shield overhang can reduce solar loading.

Finally, of paramount importance is to keep the LED surface (especially when in full solar exposure) under a maximum temperature. For the above LED monitor, this temperature is 110 C. Since, maximum solar radiation for latitudes below 35 N or S can generate surface temperatures higher than 110 C, then a typical construction would involve a gap between the outdoor facing glass plane and the LED monitor (see Figure 5).

thermal management of lcd displays brands

Here is a picture inside the TV without the rear cover. The power supply includes the inverter stage for the backlight panel using only two HV transformers. Such design idea sounds very good because all EEFL tubes are connected in parallel avoiding the use of small transformers/inverters stages for each lamp minimizing in this way electronic issues on the backlight stage.

Compared to former CCLF, the new EEFL shows superior performance and applications. This incredible technology combines low power consumption and enhanced luminescence as compared to similar lighting sources. The most attractive feature of EEFL (External Electrode Fluorescent Lamp) is the absence of electrodes in the discharge tube, which is the main factor limiting lamp life. Electrode burn-out is the main cause of fault in CCFL. Because each CCFL lamp need its own ballast the new EEFL technology is simpler in electronics circuitry reducing in this way the rate of failures. EEFL lamps consist of a completely enclosed glass tube with external metal electrodes at both ends. This design minimizes electrode burn-out and results in a longer lamp life. Because the electrodes in former CCFL technology are in direct contact with the rare gasses, CCFL run warmer than the EEFL which are completely cool. On average, EEFL lamps have a lamp life of over 50,000 hours.

I figured out that three main areas on the circuit layout requires additional cooling. The hottest part was the digital class D audio amplifier (STA381BW) because overheats to much (manufacturer datasheet claims approx 3 watts of heat dissipation !!!) so I put a passive aluminum cooler to cool it down. Because the rear plastic cover touched the cooler I cut one of the corners. Using a smaller one was to weak to cool down the device at safe temperatures.

The digital scaler image MT5366 processor and glue logic ICs are located below a metallic RFI shield acting at the same time as a heatsink. Unfortunately the metal shield in use affects the efficiency on thermal conductivity of heat because is to thin leading to hot spots on the components. To correct such design issue the most convenient is to install a passive cooler. To cool down the MT5366 system on chip platform processor an older 486 mother board heatsink (the black one after changes third picture below) do the job well. The use of a thicker heatsink improves the thermal conductivity (spread of heat) avoiding hot spots on the devices.

The last part that requires additional cooling was the HDMI switch inputs selector (SiI9185 device schematic picture above) soldered on the right corner next to the HDMI inputs. Its based on the HDMI 1.3, DDC, HDCP specifications including a CEC (consumer electronics control) single wire bus interface to transmit I/O remote commands through a home network and EDID display identification (plug & play feature stored on serials EEPROMs). Researching datasheets from other versions I figured out that the device in operation consumes approximately 1.5 watts average but such information is not released by manufacturer. The device reach a working temperature of approximately 100 grads Celsius when HDMI inputs are enabled receiving stream data. Watching TV channels (digital DVB or analog cable) the HDMI switch remains cool because is in power down/suspend mode. At glance the HDMI switch overheats only when the inputs are enabled. Without an appropriate heatsink the life endurance of the device is affected because such operating condition can lead to a short circuit on terminals due silicon breakdown !!! . The HDMI switch integrates electrostatic discharge protections on its inputs up to 2kV discarding any possibilities of damages due weak ESD spikes but strong lightning electromagnetic discharges are a big problem without ESD protectors.

In the case of factory cooling all mentioned devices use the "ePad" enhancement, a small metal surface below the IC core case to transfer the silicon heat to PCB board. Despite the idea to reduce manufacturing costs avoiding in this way the use of external heatsinks such cheap PCB cooling solution is not appropriate at all. We verified on all the mentioned devices an excessive heat that unfortunately can lead to operational malfunctions/issues leading to a short durability.

After changes the overall heat is reduced due the improvements on heat conductivity and air convection cooling reducing the average working temperature on overall components avoiding at the same time hot spots on digital ICs (core of the silicon device).

To improve more the cooling on the T-Con LCD panel board we put a SinoGuide TCP400 series thermal pad on the main IC to increase the heat transfer on the metallic shield (this is more thick in diameter and seems to be OK for cooling purposes).

thermal management of lcd displays brands

The displays feature a Full HD or 4K LCD with a high brightness LED backlight producing an image up to 1,000 nits. The DI Series features models which are dust proof IP5X rated for protection from contaminants and debris and features a fanless thermal management system for virtually silent operation. With the industry’s thinnest form factors—as thin as 29 mm—the displays are ideal for premium high-end applications such as retail and banking environments.

thermal management of lcd displays brands

Taking into account the conditions inherent to digital billboards and multimedia kiosks, particularly for outdoor, it can be said that the key element of these systems is, besides ventilation, temperature control.

Strongly recommended, the thermal management of the equipment ensures the normal and correct functioning of all components – besides avoiding their deterioration.

PARTTEAM & OEMKIOSKS, aware of the importance of temperature and ventilation systems, seeks to ensure maximum efficiency and reliability in all its products.

The requirements of an internal environment are easy to understand, since there is total control of the environment and a certain stability. This makes digital billboards or indoor multimedia kiosks don"t require as much care as outdoor equipment.

Therefore, outside, there are other attentions that must be taken, being the primordial element of this system the control of the temperature. Moreover, PARTTEAM & OEMKIOSKS has a proprietary system – CROXTHERM® – for thermal management and display cooling.

Temperature management ensures that all system components function correctly. Through this management, stains are prevented, more specifically when the temperature on the screen surface is high; good levels of performance are guaranteed and a long life of the integrated components is ensured.

Junction temperature: The junction temperature is the active region of the LED. This is where electrons jump between the two semiconductors to produce photons. A low junction temperature helps LEDs to produce more light. The junction temperature is affected by current, thermal path and ambient temperature.

Although it is important to ensure that any outdoor display can withstand the weather, it is equally important to ensure that it withstands the varying temperatures of an outdoor environment.

Both cold and heat affect LCD displays. Therefore, it is important to consider thermal management, since it protects the equipment from the outside temperature, ensuring image quality, low power consumption and component conservation.

In a structure, in case the relative humidity of the air is 80% and the temperature is 30ºC, the air will contain approximately 25 milliliters of water. If the temperature drops to 15ºC, the air will contain about 13 milliliters with the same humidity.

The other 12 milliliters condense. At first it may not seem like much, but with the natural movement of air, this amount is concentrated in the coolest parts of the equipment.

PARTTEAM & OEMKIOSKS sun protection foils offer several advantages throughout the year, adapting to both the exterior and interior. In addition to being able to control light, they ensure thermal optimization. In other words, they allow better insulation in winter and a significant reduction of heat in summer.

A glass covered with these sunscreen foils can prevent infrared radiation, controlling peaks of light and reducing them to a level pleasing to the human eye. This creates effective protection for the equipment.

Faced with the fact that outdoor kiosks are subject to adverse environmental conditions that can affect the performance of sensitive electronic components – from extreme temperatures to humidity and dust –, this equipment must be prepared to maintain its internal temperatures, regardless of climate.

For indoor kiosks, extreme temperatures are less risky, so the ambient temperature tends to remain constant. Often, these kiosks maintain their temperature through convection ventilation. However, if the structure is overheated, a fan can be used to dissipate the heat from the electronic components and the upper ventilation of the kiosk.

The ventilation systems cool the components of an equipment, guaranteeing the quality of the air that circulates and preventing the infiltration of pollutant gases, bacteria and humidity.

This effect is controlled in all projects, studying the location and positioning of the equipment in order to analyze the position of the sun during the day and to understand if it will harm its use.

For a good functioning of our kiosks, an efficient and correctly tested ventilation is essential. Perfect air circulation must be guaranteed at all times. For this reason, air inlet and outlet flows must be measured at regular intervals.

One of the most effective ways to avoid the heating of a digital signage equipment is through the use of air conditioning, which regulates the air temperature according to the billboard"s temperature.

In this case, if there is no “connection” with the exterior – other than through air conditioning – the entrance of humidity, dust and water is avoided.

Studies have shown that electronic components tend to last longer if temperatures remain low. But there are other factors in the structure that must be considered, such as the risk of condensation and energy costs.

In fact, the important thing is to maintain a stable temperature and not necessarily low in the equipment. The ideal recommended temperature is approximately 25°C, protecting the components, minimizing the risk of condensation and reducing energy costs.

Thermoelectric cooling uses the Peltier effect to transfer heat from one side of the device to the other. It can be used for heating or cooling (although, in practice, cooling is the main application).

In order to combat the high temperatures in some locations, PARTTEAM & OEMKIOSKS kiosks are covered with thermal insulation. That is, they are prepared to allow a lower heat exchange, so that the external heat is not felt inside the kiosk and the cooling system has a higher efficiency.

At PARTTEAM & OEMKIOSKS, the equipment is designed with intensive quality testing. Firstly, a study is carried out taking into account the heat dissipation of the components and the place where they will be installed – analyzing the average ambient temperature and sun exposure.

On the factory floor, the kiosks are placed inside a greenhouse with projected heat sources – where they stay for several hours –, and this test is monitored through data collected by sensors scattered over several areas of the kiosk. The objective is to understand if the heat is becoming concentrated and putting in question the functioning of some component.

Tests are also performed with cooling and ventilation systems to see if the correct system is being used. If necessary, a readjustment is made during the assembly process to ensure the proper functioning of the equipment.
