Materials List System / Installation Information Before you call Customer Service, please record the following information about your system. It will help our staff to give you better service. Serial Number (This is on the side of the Prosine). Type of installation (e.g., RV, Boat, Home).

Section 1: Features Over-Current Protection When the AC loads connected to the Prosine inverter/charger exceed 50 amps, the inverter will instantaneously reduce the output voltage until the loads on the inverter are reduced. If the overload continues, the inverter will shut down. The unit will automatically restart after a calculated recovery time.

ACS Configuration Considerations BATTERY INFO: BATTERY INFO: ENTER TYPE: FLOODED TYPE: GEL BATTERY INFO: BATTERY INFO: ENTER SIZE: 75Ah SIZE: 2000Ah Prosine 2.5/3.0 Installation & Operation Guide...

Installation Overview 4. Select an appropriate mounting location. The Prosine must be mounted vertically on a bulkhead or wall with the AC and DC connectors on the bottom. The Prosine is a solid- state electronic device and must be located in an appropriate environment. (Refer to “Where to Install the Prosine Inverter/Charger‚”...

Section 4: Inverter/Charger Installation PROsine Prosine Output Power De-rating at Elevated Temperature 4000 3000 PS 2.5 2000 2000 PS 3.0 1000 Am bient tem perature (deg. C) WARNING Explosion hazard: This equipment contains components which tend to produce arcs or sparks. To prevent fire or explosion do not install the Prosine inverter/charger in compartments containing batteries or flammable materials or in locations which require ignition protected equipment.

Section 5: Operation Input Voltage: The Prosine inverter/charger operates from an input voltage ranging from 10 volts to 16 volts, (20 to 32 volts on 24V models) and peak performance occurs when voltage is in the range of 12 volts to 13 volts (24 to 26 volts on 24V models) as shown in the following table. Prosine Operating Voltage Limits Operating Voltage Range...

Section 6: Multistage Charging Stow- Set to Battery is fully charged at a specific gravity of 1.285. This away FLOODED. is a calcium/lead type battery and requires a higher Set to Cold charging voltage than normal. If performance is poor, this for all battery will likely need to be equalized on every charge ambient...

Appendix A: Specifications Prosine 2.5 Efficiency Curve Prosine 2.5 Efficiency 120Vac, 12Vdc model 90.0 89.0 88.0 Eff. @10.5 V 87.0 Eff. @11.5 V Eff. @ 13.0V 86.0 Eff. @ 12.0 V 85.0 Eff. @ 12.5V Eff. @12.5 V 84.0 Eff. @ 12.0V Eff.

Appendix C: Troubleshooting Error Description of Fault Possible Cause Solution Code AC Output voltage too high 1. Some loads, like motors, 1. Try resetting the unit and can feed power back into running the load again. the output of the Prosine. Contact Xantrex if you This may result in a tempo- find consistent incompati-...

Index battery Amp-hour capacity charging profile battery bank sizing charging times battery capacity calculating battery configuration chassis ground battery current indicator chassis ground lug Battery Information menu described battery requirements, estimating illustrated battery reserve capacity circuit breakers battery size minimum setting cleaning batteries Battery status display (ACS control panel)

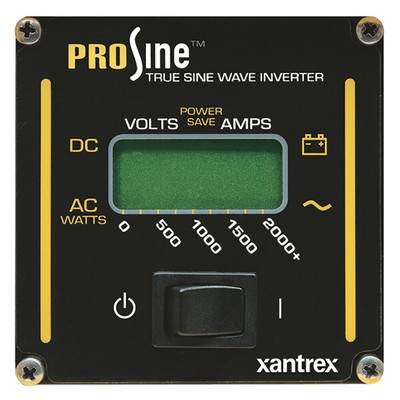

The Xantrex PROSine Remote LCD Panel displays DC input voltage from the battery. The DC input current (amps) drawn from the battery, power scale with inverter wattage output, and status/error display for shutdown conditions. The remote panel displays overload, over-temperature, and over/under voltage. It comes with 25 feet (7.6 m) cable.

. You can extend the lifetime of your Xantrex PROsine Remote LCD Panel 808-1802 with the purchase of a FactoryOutletStore Factory Protection Plan. The Xantrex PROsine Remote LCD Panel 808-1802 is sold as a Brand New Unopened Item.

PROsine™ Inverters deliver true sine wave output that is identical to AC power supplied by your utility. This clean output makes PROsine™ Inverters ideal for handling sensitive loads, while also improving AC equipment performance. Designed for recreational and industrial applications, expect the best performances from televisions, audio systems, speed tools, and any other electronics where you want nothing but the most optimal performance.

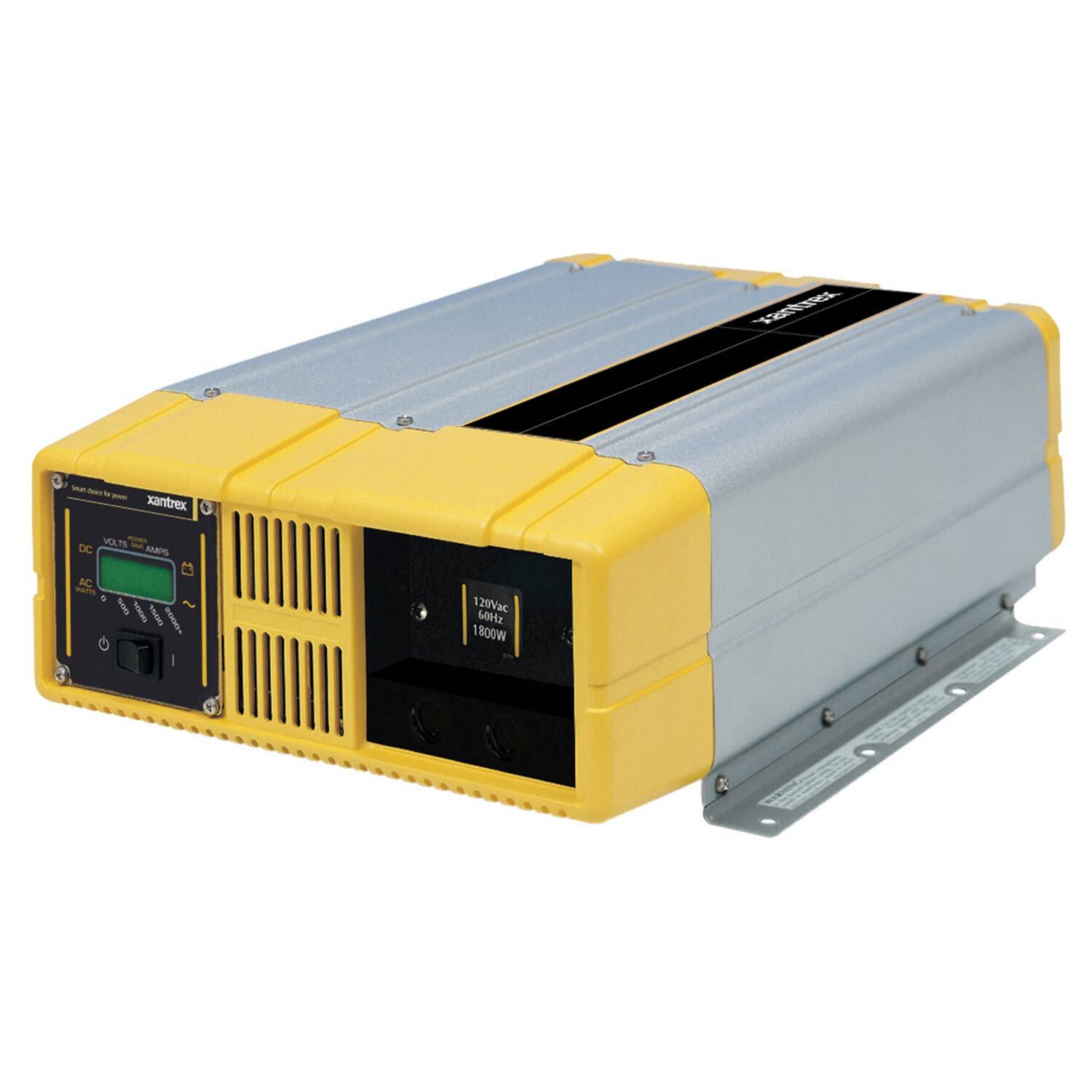

Offering superior quality sine wave output, the PROsine 1000i and 1800i stand-alone inverters are ideally suited for electrical systems that already have a quality multistage battery charger. Designed for recreational and industrial applications, PROsine inverters are suitable for both heavy duty and sensitive electronic loads. The inverters are lighter and more compact than others with similar power ratings because they use high-frequency switching technology in the power conversion process.

Part 1: System Startup Check - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–2 Part 2: Operating Considerations - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–3 Fan Operation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–3 ON/OFF/REMote Control of PROsine Operation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–3 Hysteresis - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–3 Part 3: Operation in Inverter Mode - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–5 Load Sensing Mode - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–5 Operating Limits for Inverter Operation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–5 Power Output - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–5 Input Voltage - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–6

1 2.5/3.0 ACS PANEL (ADVANCED CONTROL SYSTEM) OWNER S MANUAL 7725 Lougheed Highway Burnaby, BC V5A 4V8 Canada Tel: (604) Fax: (604) www. statpower.com

3 PROsine 2.5/3.0 ACS Panel (Advanced Control System) Owner s Manual Table of Contents 1. INTRODUCTION LCD DISPLAY ACS CONTROL PANEL FUNCTIONALITY ACS PANEL OPERATION / MENU NAVIGATION MENU SELECTION PROSINE ACS MENU AC INFORMATION BATTERY INFO INVERTER CHARGER SYSTEM INFO STATPOWER INFO CONFIGURING INSTALLER-SETTABLE PARAMETERS INSTALLATION TROUBLESHOOTING WARRANTY WARRANTY SERVICE COPYRIGHT 1998 STATPOWER TECHNOLOGIES CORPORATION. ALL RIGHTS RESERVED. STATPOWER IS A REGISTERED TRADEMARK OF STATPOWER TECHNOLOGIES CORPORATION. PROSINE AND THE POWER TO MAKE IT HAPPEN ARE TRADEMARKS OF STATPOWER TECHNOLOGIES CORPORATION.

4 1. Introduction WARNING Please review the Important Safety Instructions found at the beginning of the PROsine Inverter Charger Owner s Manual and Installation Manual, paying particular attention to the CAUTION and WARNING statements, before proceeding with the installation and operation of the PROsine ACS. If you have misplaced these manuals, please contact Statpower Customer Service for replacement. The Advanced Control System (ACS) Panel enables you to monitor and control your PROsine Inverter Charger from a remote location and comes standard with a 50 foot (15 metre) 4 conductor telephone cord. The ACS Panel provides you with a finer degree of both monitoring and operating control over the standard Control Panel shipped with the PROsine 2.5 Inverter Charger. If you purchased a PROsine 3.0, it comes standard with the ACS Panel in place of the standard Control Panel. The digital readout of the ACS gives you a detailed display of many parameters for the system, while the menu structure allows advanced configuration as well as the convenience to change system settings when you need to. Configuration settings made with the ACS Panel will over-ride those settings made by configuring the DIP switches on the chassis of the PROsine Inverter Charger LCD Display The ACS Panel has a two-line LCD display with backlight to facilitate reading. You can cycle the LCD panel through a menu tree of items that provides both system display information and adjustable parameters. Some display screens allow you to set parameters and some screens have parameters that can be set only by the installer after a key sequence has been entered that allows access to these settings. Refer to Section 2.3. The backlight for the LCD panel illuminates when any key on the ACS is pressed. The backlight will remain on for one minute after the last key press, or after a warning has been displayed ACS Control Panel Functionality The following diagram and tables will help you get familiar with the buttons and LEDs on the ACS Panel and their functionality. PROsine 2.5/3.0 Advanced Control System (ACS) Owner s Manual 1

5 Control Buttons: 1 Button What it does: Comments: ESCAPE Moves up one level in the menu tree. In a screen with settable values to be changed, does not change the last value set Moves up one option in the selected menu, or 2. Selects the next higher value (or previous choice) in a screen that allows the user or installer to scroll through settable values. 1. Moves down one option in the selected menu, or This button is shown as in the following instructions. For some menus, if you hold the button down, it will scroll rapidly through the numerical values. This button is shown as in the following instructions Selects the next lower value (or next choice) in a screen that allows the user or installer to scroll through settable values. For some menus, if you hold the button down, it will scroll rapidly through the numerical values. Button What it does: Comments: ENTER 1. Selects the menu level, or You can then use the or buttons to move through the screens at that level. 2 PROsine 2.5/3.0 Advanced Control System (ACS) Owner s Manual

6 2. If editing of the displayed value is permitted, this key places the value in edit mode, allowing you to scroll through the allowed values, then If the screen has selectable options, you can then use the or buttons to move through the options. 5 INVERTER ON/OFF 3. When pressed again, the current value displayed will be the new value for that menu item. 1. Press the ON/OFF button to switch the PROsine inverter to standby mode if AC power is available, or to ON if no AC power is available. In standby mode, the inverter switches on automatically when AC power fails or is disconnected and conditions are suitable for inverting. The inverter STANDBY LED is lit when the inverter is in standby mode. The INVERT LED is lit when the inverter is in invert mode. 6 CHARGER ON/OFF 2. Press the ON/OFF button again to switch the inverter off. 1. Press the ON/OFF button to switch the PROsine charger to standby mode if no AC power is available, or to ON if AC power is available. In standby mode, the charger switches on automatically when AC power becomes available and conditions are suitable for charging. When the inverter is switched off, both the INVERTER STANDBY and INVERT LEDs are off. Incoming AC power will still be passed through to the load terminals. The charger STANDBY LED is lit when the charger is in standby mode. The CHARGE LED is lit when the charger is on. 2. Press the ON/OFF button again to switch charger off. Both the STANDBY and CHARGE LEDs are off. 7 FAULTS RESET 3. Hold the charger ON/OFF button down for 5 seconds to enter Equalize mode. CAUTION: Equalizing the batteries improperly can lead to battery damage. Refer to the PROsine Owner s Manual. Press this button to silence an audible alarm and clear a warning from the screen. The EQUALIZE LED is lit. Note: This button does not reset the system, nor does it remove the condition that led to the alarm. Indicator LEDs 8 The function of the indicator LEDs on the PROsine ACS panel are as follows: LED Status Description: Comments: FAULTS PROsine 2.5/3.0 Advanced Control System (ACS) Owner s Manual 3

7 9 10 FAULT TEMP INVERTER INVERT Battery voltage is high, or Battery voltage is low, or Battery current is high, or any other fault. Flashing light indicates: Internal temperatures are above maximum allowable ratings. The PROsine has shut down and will re-start automatically when it has cooled. ON when the PROsine is operating in inverter mode. When flashing, indicates a temporary fault, that if removed will allow the system to automatically recover and continue operation. When this LED stays on, it indicates a serious fault that cannot be recovered from automatically. Serious faults require user intervention. You need to disconnect incoming AC or DC power and correct the condition that caused the fault. 1. Check that the load is within specified limits. 2. Increase ventilation to lower the ambient temperature of the room where the PROsine is located and increase air flow around the PROsine. AC output power is available from the PROsine STANDBY POWER UTILITY/ SHOREPOWER (INCOMING) FLASHING when the PROsine inverter is in Search mode. Lights when the PROsine inverter is enabled, ready to provide AC output when required. ON when PROsine is receiving AC power that is within operating range from the electric power utility. The inverter will be OFF or in STANDBY and the load connected to the PROsine AC output is powered directly from the electric utility power. Inverter is waiting for a load to be detected and is in powersave mode. Acts as a backup power system so when AC power fails, or is disconnected, the inverter begins delivering AC power to the loads. If the LED is OFF, your PROsine is disconnected from the AC source, or the supply from the utility is off, or the AC power is not suitable (e.g. the voltage is too low or too high). LED Status Description: Comments: CHARGER CHARGE ON when charger is operating in charger mode READY Batteries are charged PROsine 2.5/3.0 Advanced Control System (ACS) Owner s Manual

8 14 16 STANDBY Charger is enabled, ready to charge the battery when AC utility power is available. EQUALIZE ON when Equalize (over - voltage) mode has been enabled. Flashing CHARGE and EQUALIZE LEDs indicates PROsine charger is equalizing the batteries. Equalize (over voltage) charging is used to break down sulfation of the battery plates and should only be done on flooded cell batteries as recommended by the battery manufacturer. Refer to the PROsine Inverter Charger Owner s Manual for detailed information regarding battery equalization. PROsine 2.5/3.0 Advanced Control System (ACS) Owner s Manual 5

9 2. ACS Panel Operation / Menu Navigation The top level screen for the ACS panel displays battery voltage and battery current. This screen should be the usual screen displayed as it provides overall status of your batteries and informs you of current either being drawn from the batteries (a - in front of the current reading) or delivered to the batteries (a + in front of the current reading). The - indicates the PROsine Inverter Charger is in inverter mode (negative current direction from the battery) while the + indicates charger mode operation (positive current direction to the battery) Menu Selection To navigate the menu and select parameters, follow these instructions: 1. Press the or buttons to scroll up or down through the menu and values. 2. Press the ENTER button to select the desired item. 3. If the parameter is user settable, you can then press ENTER, then the or button to scroll (up or down) through the available choices. Press ENTER again when your choice of the setting is displayed to select it. 4. For installer settable parameters, refer to Section Press ESCAPE to move up one level in the menu. Press ENTER to select a level in the menu and use the or buttons to scroll through the options at that level. 6 PROsine 2.5/3.0 Advanced Control System (ACS) Owner s Manual

10 The following tree illustrates the top level screen and the secondary level menu items: - PROSINE - BAT: 13.4V +90A AC INFORMATION 2.2. PROsine ACS Menus The following section will take you through each menu option of the ACS panel, illustrating LCD display information and providing a description of the displayed parameter. In addition, the parameters will be identified as USER or INSTALLER selectable with the parameter range of values also being identified AC INFORMATION BATTERY INVERTER CHARGER SYSTEM INFO STATPOWER INFO MENU OPTION DISPLAY DESCRIPTION AC INFORMATION AC INFORMATION: OUTPUT: 120 Vac AC INFORMATION: OUTPUT: 5.75 A AC INFORMATION: INPUT: 0 Vac AC INFORMATION: INPUT: 0.00 A BREAKER SIZE: SET AT: 30 A Display information only output voltage if in inverter mode Display information only output current if in inverter mode Display information only input voltage if AC power is connected and available Display information only input current if AC power is connected and available USER SETTABLE: from 5 to 30 amps in 1 amp increments to match the AC service breaker the unit is connected to. This setting can limit the maximum charge current. PROsine 2.5/3.0 Advanced Control System (ACS) Owner s Manual 7

11 BATTERY INFO MENU OPTION DISPLAY DESCRIPTION AC INFORMATION BATTERY INVERTER BATTERY INFO: TYPE: FLOODED BATTERY INFO: SIZE: 200 Ah BATTERY INFO: TEMP: COLD INSTALLER SETTABLE: adjustable between FLOODED or GEL batteries INSTALLER SETTABLE: adjustable from 50 Ah to >2000 Ah USER SETTABLE: adjustable from COLD (ambient <10C, 50F), WARM (10C, 50F to 27C, 80F), and HOT (>27C, 80F). Set to best match ambient conditions giving batteries a temperature-compensated charge. If battery temperature sensor is attached, then this display shows actual battery temperature and is not adjustable. Press ENTER then or to change between C and F. MENU OPTION DISPLAY DESCRIPTION AC INFORMATION BATTERY INVERTER LOAD SENSE TURN- ON POWER: 0 W LOAD SENSE INTERVAL: 2.0 s DC INPUT RANGE: LO ALARM: 10.5 V DC INPUT RANGE: HI ALARM: 15,5 V DC INPUT RANGE: LO CUTOFF: 10.0 V DC INPUT RANGE: HI CUTOFF: 16.0 V USER SETTABLE: adjustable between 0 and 1401 watts, 0 = Search mode disabled USER SETTABLE: from 2 to 26.5 seconds. Longer delay = lower standby power draw INSTALLER SETTABLE: from 10-12V on 12V products or 20-24V on 24V products INSTALLER SETTABLE: from 14-16V on 12V products or 28-32V on 24V products INSTALLER SETTABLE: from 10-12V on 12V products or 20-24V on 24V products INSTALLER SETTABLE: from 14-16V on 12V products or 28-32V on 24V products Note: The DC input ranges are factory configured for the maximum range allowed for proper operation of the PROsine 2.5/3.0 Inverter Charger. The installer may wish to narrow this range of operation for optimization of the system. For example, the LO ALARM setpoint could be raised to 11.5V if you want an early warning that the battery is being discharged. Or, raising the LO CUTOFF to 11.0V would ensure that the battery is never fully discharged. 8 PROsine 2.5/3.0 Advanced Control System (ACS) Owner s Manual

12 CHARGER MENU OPTION DISPLAY DESCRIPTION AC INFORMATION BATTERY INVERTER CHARGER STATE: NOT CHARGING CHECK STATE OF EQUALIZE REQUEST Display info NOT CHARGING, BULK, ABSORPTION, FLOAT or EQUALIZE USER SETTABLE: DISABLED or ENABLED, if enabled, prompts and warnings appear for approval to proceed with equalization charging. Final YES or NO toggle is required to begin equalizing. CHARGER NOTE: See PROsine Inverter Charger Owner s Manual for complete information on Battery Equalization SYSTEM INFO OVERRIDE CHARGER OPERATING MODE * ONLY INSTALLER VISIBLE AND SETTABLE: force charger to FLOAT charge or EQUALIZE charge. If EQUALIZE selected, then final YES or NO toggle is required to begin equalizing. MENU OPTION DISPLAY DESCRIPTION AC INFORMATION BATTERY INVERTER CHARGER SYSTEM INFO SYSTEM INFO: DEFAULT INV/CHG SYSTEM INFO: ALARM AUDIBLE SYSTEM INFO: LAST FAULT # 0 CHASSIS TEMP. T1: 20C CHASSIS TEMP. T2: 20C CHASSIS TEMP. T3: 20C CHASSIS TEMP. T4: 20C SYSTEM INFO: DC BUS: 220Vdc USER SETTABLE: between 4 initial powerup combinations of inverter and charger ON/OFF USER SETTABLE: between audible alarm ENABLED and DISABLED Display information only: 0 = no faults have occurred, see error code section of manual T1-T4 indicate temperature readings for various points in the unit, to be used mainly for system troubleshooting. Readings may be as high as 60C to 100C (140F to 212F) under heavy load or low battery voltage conditions. Temperature readings can provide insight into how hard the inverter is working, with high readings indicating the inverter is functioning at a high level due to high load or high ambient temperature operating conditions. Press ENTER then or to change between C and F. Display information only used for system troubleshooting PROsine 2.5/3.0 Advanced Control System (ACS) Owner s Manual 9

13 STATPOWER INFO MENU OPTION DISPLAY DESCRIPTION AC INFORMATION BATTERY INVERTER CHARGER SYSTEM INFO STATPOWER INFO STATPOWER INFO: TEL: STATPOWER INFO: FAX: VERSION No. OF THIS DISPLAY: 1 VERSION No. OF MASTER IC: 4 VERSION No. OF ISOLATED IC: 4 Main Switchboard number at Statpower Technologies Corporation Main fax number at Statpower Software version used within ACS (Advanced Control System) Display Software version of Master Processor Software version of Isolated Processor 2.3. Configuring Installer-settable Parameters WARNING The following information is for qualified installation/service personnel only. Incorrect configuration can lead to battery damage and risk of fire hazard. To navigate the menu and select parameters, follow these instructions: 1. Press the or buttons to scroll up or down through the menu and values. 2. Press the ENTER button to select the desired item. 3. If the parameter is installer settable, it is meant to be configured by a professional installer who is familiar with not only the system settings on the inverter but also the ramification of changing those system settings. Setting these parameters incorrectly could cause damage to connected equipment (e.g. batteries) or could severely affect the performance of your system. You will not be able to change parameters that are installer settable unless you enter the ACS Panel into installer mode. To enter installer mode, hold down ESCAPE and for approximately 5 seconds, until the audible signal is heard from the ACS Panel. The parameter can now be adjusted. Exiting to the top level menu, where voltage and current are displayed will disable installer mode. Disable installer mode before putting the unit into service. 10 PROsine 2.5/3.0 Advanced Control System (ACS) Owner s Manual

14 3. Installation The ACS Panel should be installed in a location that is most convenient for you so the important display and control information is easily accessible. To connect the Control Panel 1. Decide on the location of choice for the ACS Panel. For flush mount installation onto a wall, the remote panel requires an opening with the measurements of 4 1/8 inches by 4 1/8 inches (10.5cm by 10.5cm). Ensure there is no wiring or other obstruction within the wall before making this opening as the ACS Panel requires approximately 2 inches (5cm) of free space within the wall to accommodate its depth. 2. Connect the supplied cable to the ACS panel and route the cable back through the wall opening and back to the PROsine unit. Keep the EMI bead (large yellow bulb on cable) close to the PROsine unit and don t plug the cable in with the EMI bead closer to the ACS Panel (it is far more effective close to the base chassis). Connect the cable to the REMOTE output connector jack found on the side of the PROsine itself (the panel can be connected to either output). 3. If you purchased the ACS Panel as an accessory to be used with your PROsine 2.5, the ACS Panel and standard supplied panel can both be used at the same time. Either connect the standard panel to the OUTPUT jack on the back of the ACS Panel, or connect the standard panel to the REMOTE output connector jack on the side of the PROsine Inverter Charger. The standard panel can then be mounted close by the PROsine unit for system monitoring in that location and the ACS Panel can be mounted remotely in some other area where you want the more detailed operating information and control capability. PROsine 2.5/3.0 Advanced Control System (ACS) Owner s Manual 11

15 4. Troubleshooting Should a fault occur, the fault LED will illuminate and an error code will be displayed in the LCD. These error codes will over-ride any other menu items being displayed. The following table lists the error codes, likely causes and suggested solutions. Error Description of Fault Cause Solution Code 000, 255 No Fault There has been no fault since the PROsine has been turned ON. 001 Battery Temperature is too high or too low 1. Room temperature around the batteries is too high or too low. 2. Faulty battery causes self heating. 3. Faulty connection of battery temperature probe. 002 Battery Voltage is too low 1. Discharged battery. 2. Old or faulty battery. 3. Battery cables to the PROsine Inverter Charger are too small, too long, or there is a loose connection. 003 Battery Voltage is too high 1. External charger or alternator has output voltage greater than 16 V. 2. The PROsine Inverter Charger is connected to a 24V battery (two batteries in series). 006,065 Micro Processor communication error Remote display cable is pinched or has loose connection. 1. Keep the temperature around batteries moderate. In cold weather, try a Battery Heating Blanket. 2. Replace the faulty battery. 3. Check connections / replace probe. 1. Charge battery. 2. Check if battery can hold the charge by measuring the Voltage at the battery terminals when the battery is discharging. 3. Check cables. 1. Correct external charging source. 2. Re-wire batteries to give the correct input voltage (12 Volts). Unplug all cables from REMOTE OUT Jacks on side of PROsine. If problem persists, call Statpower. 12 PROsine 2.5/3.0 Advanced Control System (ACS) Owner s Manual

16 Error Description of Fault Cause Solution Code Ambient temperatures or internal component temperatures are too high or too low. 1. Power supplied to AC load is too high. 2. Blocked ventilation. 3. Room temperature too high 1. Reduce AC load to specified limits. Reduce AC load below rated maximum if room temperature is above 25 ºC / 77 ºF. See temperature de-rating curve in Owner s Manual. 2. Allow more room for air circulation around unit. 3. Allow more ventilation in compartment. or too low. 064 AC Output Overcurrent Temporary AC output overload. The higher the output current, the faster the unit will shut down (Minimum 2 seconds). Reduce AC load so that even for short times, the AC output current does not exceed 26 A. See Overcurrent Protection curve in PROsine Owner s Manual. 066 Communication Fault 1. Faulty cable between PROsine and remote panel. 2. Internal Fault Replace cable. 2. Record the error code and contact Statpower. Internal fault Various Record the error code and contact Statpower. AC Input Line & Neutral is reversed. 197 Unexpected AC output voltage Check AC Input wiring. There should be less than 5V RMS between AC Input Neutral and Earth Ground Internal fault Various Record the error code and 202 Relay Contact Fault (Line side) 203 Relay Contact Fault (Neutral / Ground side) One of the relay contacts is stuck in the closed position. Note, this error may also be caused by error #203. One of the relay contacts may be stuck in the closed position. This error may be caused by error # AC Input Neutral Warning AC Input Neutral voltage is greater than 10 V with respect to Earth Ground. contact Statpower. Contact Statpower. Caution: The inverter is designed to shut off while there is a relay fault. Do not allow the inverter to operate under this condition as there may be dangerous voltage fed back to the AC Input wiring even if no utility power is present. See error code #202. Check the AC Input wiring. 1. Neutral and Line connection is reversed. 2. Long and/or loose connections to the utility/shore power can result in a high neutral voltage. PROsine 2.5/3.0 Advanced Control System (ACS) Owner s Manual 13

17 Error Description of Fault Cause Solution Code 205 Internal fault Various Record the error code and contact Statpower. 206 AC Output voltage too high 1. Some loads, like motors, can feed power back into the output of the PROsine. This may result in a temporary over-voltage which may trigger a fault condition. 2. There is an internal hardware or software fault 1. Contact Statpower if you find incompatibility with certain type of loads. 2. Record the error code and contact Statpower. 207 Internal DC Bus voltage low. 1. Temporary condition caused by low battery voltage in conjunction with an overload condition. 2. Internal Fault. 1. Check if battery is OK (see error code 002). Disconnect AC and DC power to the PROsine. Reconnect DC and AC power after 15 minutes. If the problem persists, contact Statpower Customer Service. 2. Contact Statpower. 14 PROsine 2.5/3.0 Advanced Control System (ACS) Owner s Manual

18 5. Warranty Statpower manufactures its products from parts and components that are new or equivalent to new in accordance with industry-standard practices. Statpower warrants the PROsine ACS Panel to be free from defects in workmanship or materials for 24 months from the date of purchase. Proof of purchase is required for warranty service. During the warranty period, Statpower will, at its option, repair or replace the defective product free of charge. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damage arising from improper use or from use in an unsuitable environment. This warranty will be considered void where the product has been misused, neglected, improperly installed, or repaired or modified by anyone other than Statpower without prior authorization by Statpower. Repair or replacement are your sole remedies and Statpower shall not be liable for damages, whether direct, incidental, special, or consequential, even though caused by negligence or fault. Statpower owns all parts removed from repaired products. Statpower uses new and reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Statpower repairs or replaces a product, its warranty term is 90 days or the balance of the original warranty, whichever is longer. This is Statpower"s only warranty, and the Company makes no warranties, express or implied, including warranties of merchantability and fitness for a particular purpose. PROsine 2.5/3.0 Advanced Control System (ACS) Owner s Manual 15

19 6. Warranty Service If your PROsine ACS Panel requires service, please return it to the place of purchase. If you are unable to contact your merchant, or the merchant is unable to provide service, contact Statpower directly: PHONE: (604) Ask for the Customer Service Department. FAX: (604) MAIL: Statpower Technologies Corporation 7725 Lougheed Highway Burnaby, BC V5A 4V8 CANADA You must obtain a Return Authorization Number from Statpower before returning the PROsine ACS Panel directly to Statpower. Do not return the PROsine ACS Panel to Statpower without first obtaining a Return Authorization Number. Returned goods received without an RA# will be shipped back collect. When you contact Statpower to obtain service, be prepared to supply the serial number of your PROsine ACS Panel. If you are returning the unit from the USA, follow this procedure: 1. Obtain a Return Authorization Number from Statpower. You will be required to provide name, telephone number, return shipping address, and a Federal ID or Social Security number required by US Customs. 2. Package the unit safely, preferably using the original box and packing materials. Include the Return Authorization Number, a return ship-to address, a contact telephone number, and a brief description of the problem. You are required to provide a copy of a proof of purchase date showing product description to qualify for warranty service. Ship the unit to the following address, freight prepaid: Statpower Technologies Corporation c/o International Parcel Service Warehouse #8-14th Street Blaine, WA If you are returning the unit from Canada, follow the procedure above but ship the unit, freight prepaid, to the following address: Statpower Technologies Corporation 7725 Lougheed Highway Burnaby, BC V5A 4V8 CANADA If you are returning the unit from outside North America please contact the place of purchase or the local Statpower dealer in your country. PROsine ACS Owner s Manual Rev /12/98 Part # Artwork # PROsine 2.5/3.0 Advanced Control System (ACS) Owner s Manual

I have an aversion to paying retail - especially for iron-free tempered glass. I also have a greater aversion to cutting apart finished panels to mend a failed wafer. Using seconds in something meant to last 50 years didn"t sink in until after I dragged them home so I am leaning toward 6-Volt panels in a module system to keep an overhaul scheme viable - and that would mean 200+ pieces of tempered glass and the EVA sheet to seal them and the racks to mount the glass sheets in. Luckily the price structure is by square feet instead of pieces on glass, I have not seriously approached any glass suppliers but the water-white tempered glass is key for these to have highest output.

Theres a wide variety of inverters on the market. Here, we look at some of the higher-output models-from 1,000 to 2,500 watts-that can be used to power major appliances.

True sine wave versions are generally 5% to 10% percent less efficient than modified sine wave models, and most have a substantially higher standby current while idle, which can be particularly important on smaller boats with limited 12-volt reserves (unless you can remember to shut it off when not in use). The biggest advantage to line-frequency models is the built-in high-capacity battery charger, worth at least $300 if purchased separately, and found in most models. The PROsine we tested is an exception because it is a high-frequency model with a sophisticated four-stage charger.

Trace has a similar remote controller unit called the RC-5 ($200 discount). The difference is that the inverter essentially has all the adjustments built into the basic unit and the RC-5 is an extension of that capability to a remote LCD, two-line display that adds a few extra adjustments. The RC-5 is much easier to install, requiring only the connection of a phone-type cable to the inverter.
